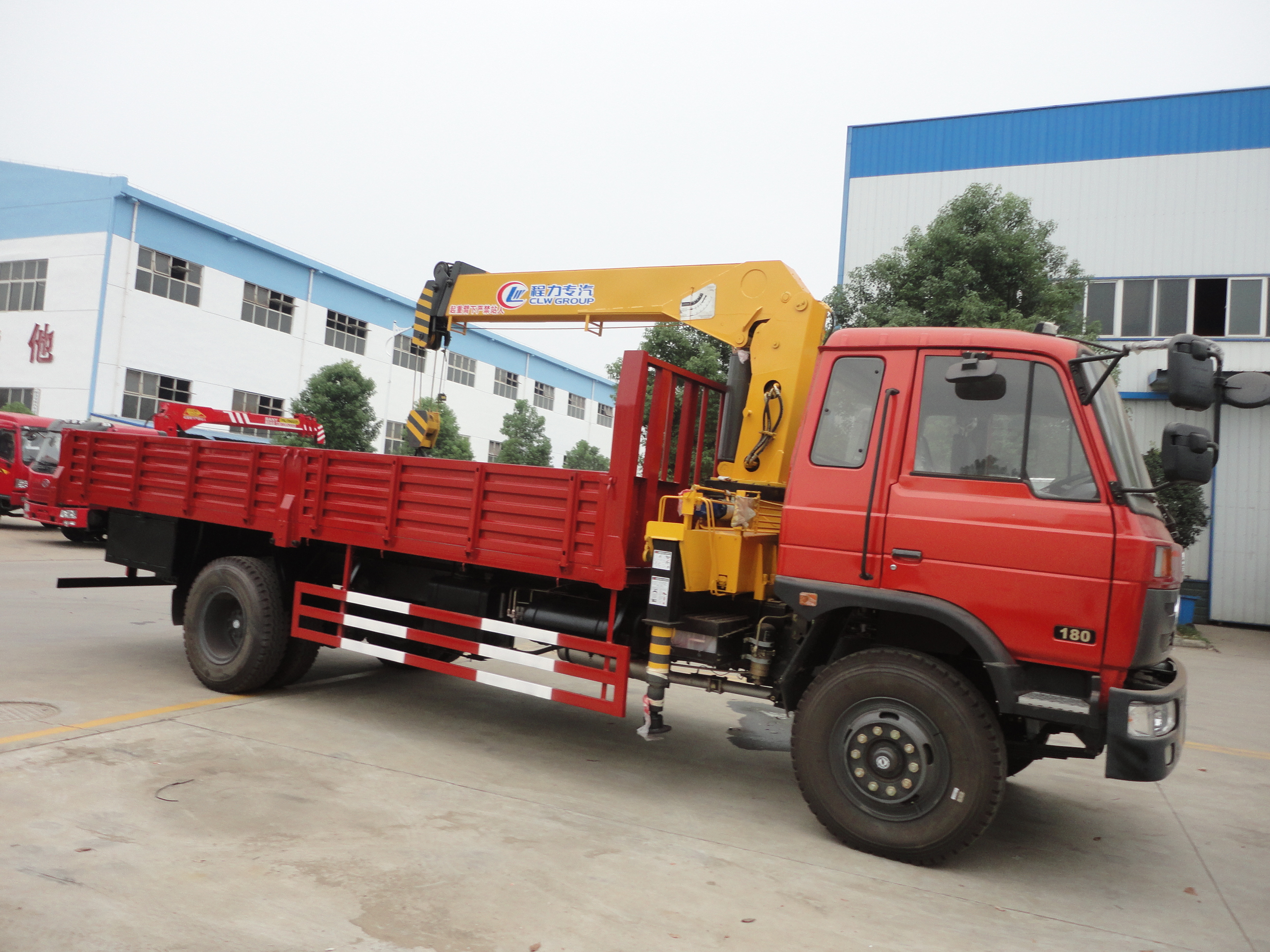

dongfeng 7ton straight crane mounted on truck
| Truck with crane model | SQ7SA3 (CLW 7ton four sections crane) | ||||||||
| Max lifting weight(kg) | 7000 | ||||||||
| Max lifting torque(n.m) | 151200 | ||||||||
| Profile | pentagon | rotary mechanism | Rotary speed(r/min) | 2 | |||||
| Sections | 4 (three sections telescopic ) | Rotary degree | 360(full rotary ) | ||||||
| Length (m) | 4-12 | Outriggers | Type | Up-right supported outriggers | |||||
| max working radius (m) | 12 | Outriggerdimension(m) | 2.28-5.0 | ||||||
| Extended speed(m/s) | 7.98/24 | hydraulicsystem | System pressure (mpa) | 20 | |||||
| Luffing range | 1-76 | Hydraulic oiltanker volume(L) | 80 | ||||||
| Elevation-up speed(°/s) | 76/13 | Safety device | Stop alarm | ||||||
| Max lifting height （m） | 14 | Curb masskg | 2070 | ||||||
| The single rope allowable load N | 15400 | Suitable tru cks | Trucks with rated mass above5ton. | ||||||
| Drop hanger lifting speed (m/min) | 12．5 | Refitting room | 900mm | ||||||
| rope diameter (mm) | 9．3 | Remark：the parameters above is the rated parameters when the speed of engine is 1500r/min | |||||||
| Rope length (m) | 80 | ||||||||
| Lifting ability parameters | |||||||||
| Working radius(m) | 2.2 | 4.0 | 6.6 | 9.3 | 12 | ||||
| Rated load(kg) | 7000 | 3200 | 1750 | 1100 | 750 | ||||
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us. The hot sale line is 0086 13329899995.
