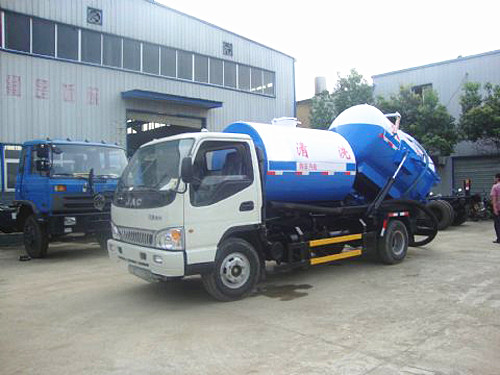

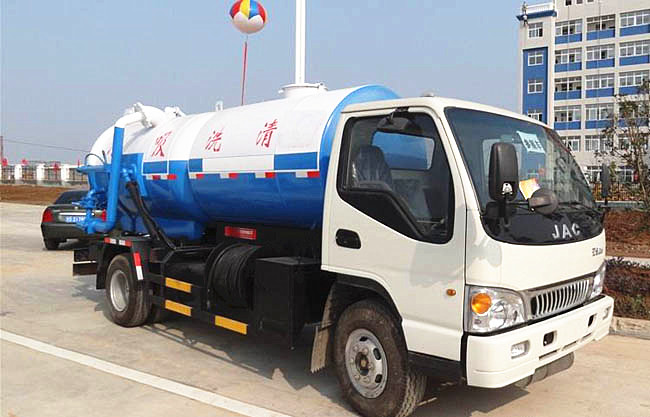

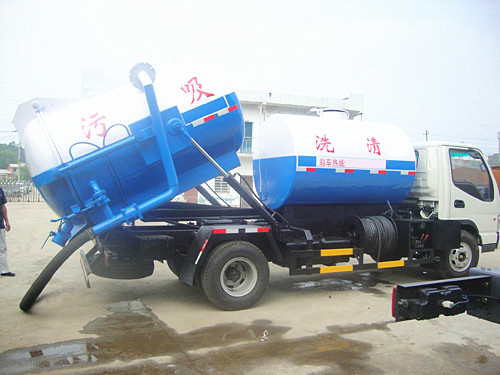

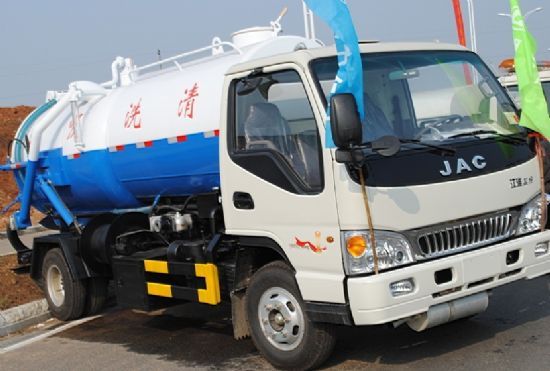

JAC sewer jetting vehicle adopts JAC original chassis, single row with front reversible luxurious driver cab, skywindow, metal coating, Euro 3 Cy4102-C3D diesel engine, warn air, power steering, 8.25-15 tyre, etc.
| Truck name | JAC high pressure sewer jetting vehicle |
| Overall dimension(mm) | 6860×2040×2800 |
| Total mass(Kg) | 8600 |
| Rated mass(Kg) | 3000 |
| Curb mass(Kg) | 5405 |
| Approach/departure angle | 24/13 |
| Front/rear suspension(mm) | 1085/1960 |
| Max speed(km/h) | 90 |
| Others | Water tanker volume: 3cbm Sewer tanker volume: 3cbm |
Chassis parameters
| Chassis model | HFC1091K2T |
| Axles | 2 |
| Wheelbase(mm) | 3815 |
| Axle load(kg) | 3050/5550 |
| Springs | 9/12 |
| Tyre nos. | 6 |
| Tyre specification | 7.50-16,8.25-16 |
| Front tread(mm) | 1665 |
| Rear tread(mm) | 1525 |
Engine main parameters
| Engine model | CY4102-C3D、CY4102-E3D、YZ4DB1-30 |
| Manufacturer | Dongfeng chaoyang |
| Displacement(ml) | 3856、 |
| Power (kw) | 80、 |
| Fuel type | Diesel |
| Emission standard | GB3847-2005,GB17691-2005 Euro Ⅲ |
| The main parameter of the special functions of JAC sewer cleaning vehicle |
| High pressure pump modelKF-36（Italian imported）flow130-170m3/hRated pressure16-24MpaThe reel of the speed0-25m/minHose lengthen60mPipe rolling force1800NInter diameter of the hose19mmHole clip angle15°,25°impellent160-240NTanker volume6cbm
|
The vertical sucking distance of the sewer pump is not less than 6m, the vacuum degree is not less than 500mmHg, the full filling time is not less than 5mins, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer of sewage suction truck, sewer tanker truck, sewer jetting washer truck, vacuum truck, sludge tanker truck, etc. More information, please feel free to contact with us.
