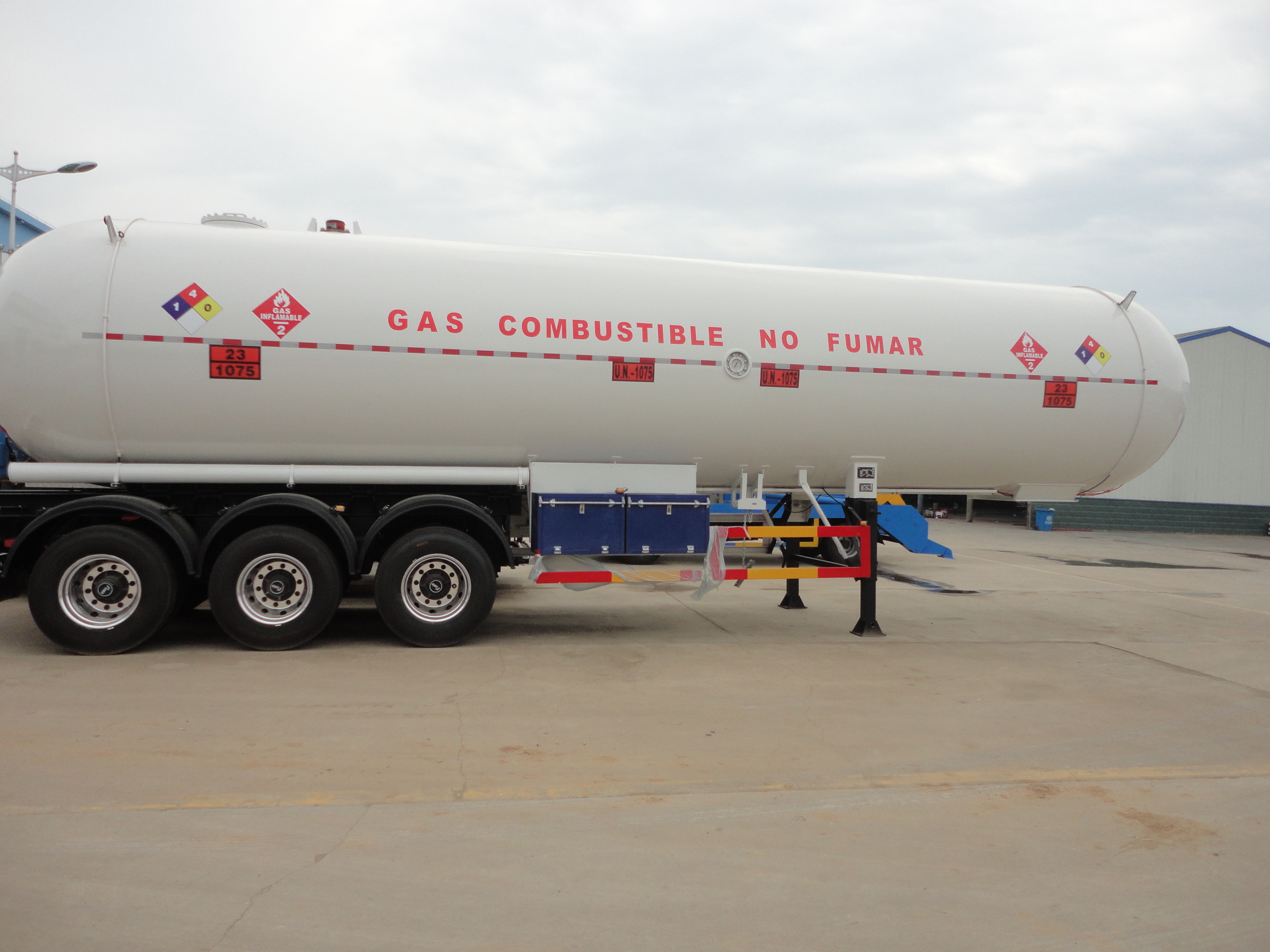

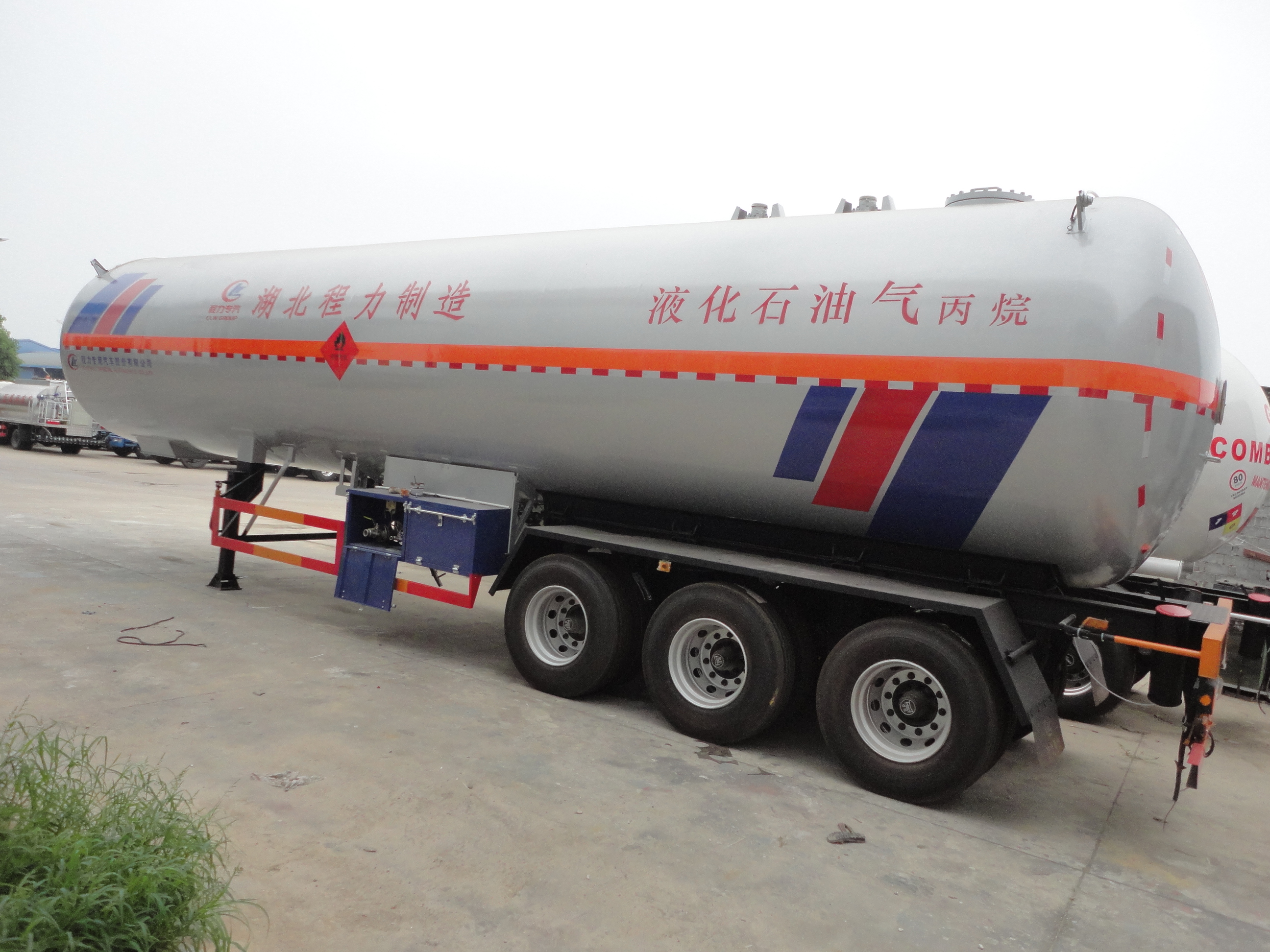

| 58.5cbm 3 axle LPG tanker semi-trailer for propane main parameters | |||
| Total mass (kg) | 40000 | Curb mass(kg) | 15430 |
| Rated mass(kg) | 24570 | Bearing quality of semi-trailer saddle(kg) | 16000 |
| Approach/departure angle | -/25 | Front/rear suspension(mm) | -/1500 |
| Overall dimension(mm) | 13000X2500X3977 | Cargo dimension | XX |
| Axles | 3 | Axle load(kg) | -/24000(triple axles) |
| Tyre | 12R22.5 12PR,11.00R20 12PR | Tyre nos. | 12 |
| Front tread(mm) | - | Rear tread(mm) | 1840/1840/1840 |
| Wheelbase(mm) | 7092+1310+1310 | Springs | -/7/7/7 |
| Others | The tank volume is 58.5cbm. The tanker material adopts Q345R. The propane design pressure is 0.42Mpa, the test pressure is 2.1Mpa, designed temperature is 50 degree, filling volume is 0.42, and corrosion allowance is 1mm. The tanker thickness is 12mm, one ball head (8mm thick) and one ellipse head (12mm thick). The loading medium is LPG （Propane）, the medium density is 442kg/m3. And the tanker will be with the Flammable and explosive identification. | ||
| Function introduction | “CLW” brand LPG storage tanker semitrailer manufactured by Chengli Special Automobile Co., Ltd. adopts scientific leading treatments, assuring the lowest Shrinkage and highest dimension stability at the low temperature. The advantages of the LPG storage tanker are low-temperature storage, easy transporting, safe and reliable, easy maintain, etc. The LPG storage tankers are suitable for storing LPG, liquid ammonia, carbon disulfide, epoxyethane, gasoline, butane, propane, propene, etc. All the LPG tank trucks and LPG pressure vessels manufactured by Chengli Special Automobile Co., Ltd. are line with the GB150-1998《steel pressure vessel》, 《Supervision Regulation on Safety Technology for Pressure Vessel, Regulation of Safety Supervision for Liquefied Gas Tank Car》. | ||
   | |||
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
