| Dongfeng 140 3ton wrecker tow truck | |||
| Product name | Dongfeng 140 long head wrecker tow truck | Overall dimension(mm)： | 6370×2460×2500 |
| Chassis model | EQ1100FKJ | Cargo body dimension(mm)： | ×× |
| Total mass(kg) | 10450 | Approach/departure angle(° ) | 34/30 |
| Rated mass(kg) | Overall dimension(mm)： | 1065/1590,1065/1340 | |
| Curb mass(kg) | 7455 | Max speed(km/h)： | 85 |
| Axle load(kg0 | 4360/6090 | ||
| Chassis main parameters | |||
| Chassis model | EQ1100FKJ | Fuel type | Diesel |
| Axles | 2 | Front tread(mm) | 1810 |
| wheelbase(mm) | 3950,4200 | Rear tread(mm) | 1800 |
| Driver cab person | 3 | Springs | 9/11+8 |
| Tyre nos. | 6 | ||
| Tyre | 9.00-20,9.00R20 | ||
| Engine main parameters | |||
| Engine model | Manufacturer | Displacement （ml） | Power （kw） |
| YC6J160-31 YC4E140-31 YC6J160-33 YC4E140-33 | Yuchai | 6500 4260 6500 4260 | 118 103 118 105 |

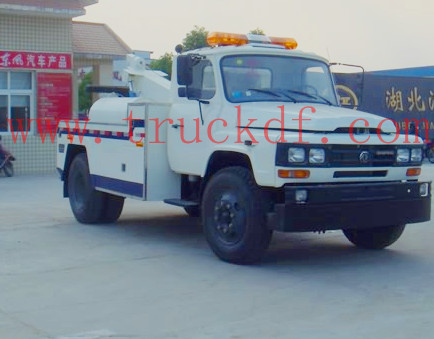

Dongfeng long head wrecker tow truck, adopts dongfeng original chassis, YC4E140-42 engine, 140 long head driver cab, 3950mm wheelbase, 5 speed transmission, 2.8ton front bridge/8ton rear bridge, 9.00-20-12 nylon tyre, 232mm truck frame, etc.
The special functions of dongfeng long tow truck
The rated thoisting mass is 16,000kg, the bracket arm telescopic dimension(mm) is 1,200.
The max action length is 1,600mm; the max towing speed is 40km/h

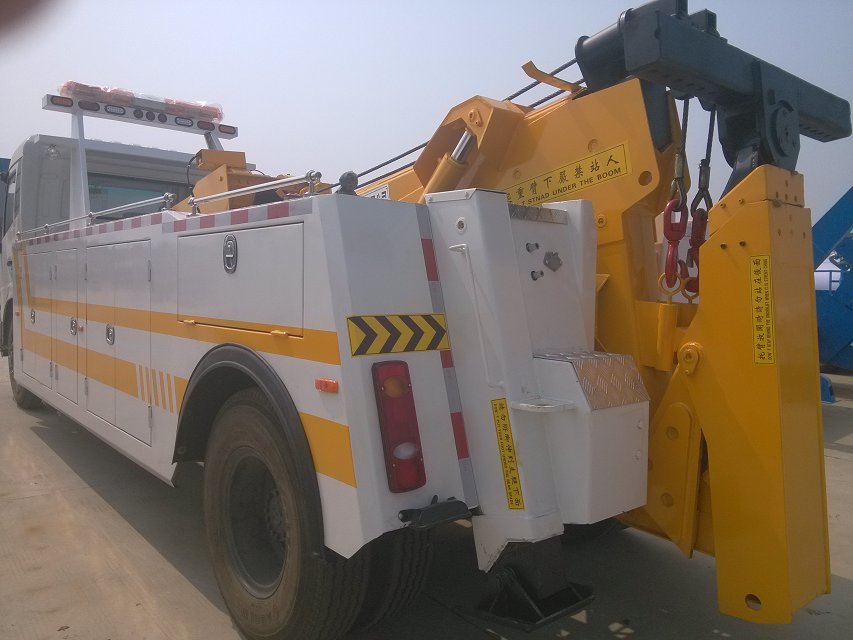

The functions of the crane arm for the wrecker tow truck
The rated lifting mass is 3000kg, the max lifting height is 3420mm.
The crane arm telescopic dimension is 1600mm.
The main parameters of the wrecker tow truck capstan
There is one set capstan, and the rated towing mass is 3000kg.
The wire rope length is 25m, the speed of the spiral rope is 8m/min.
