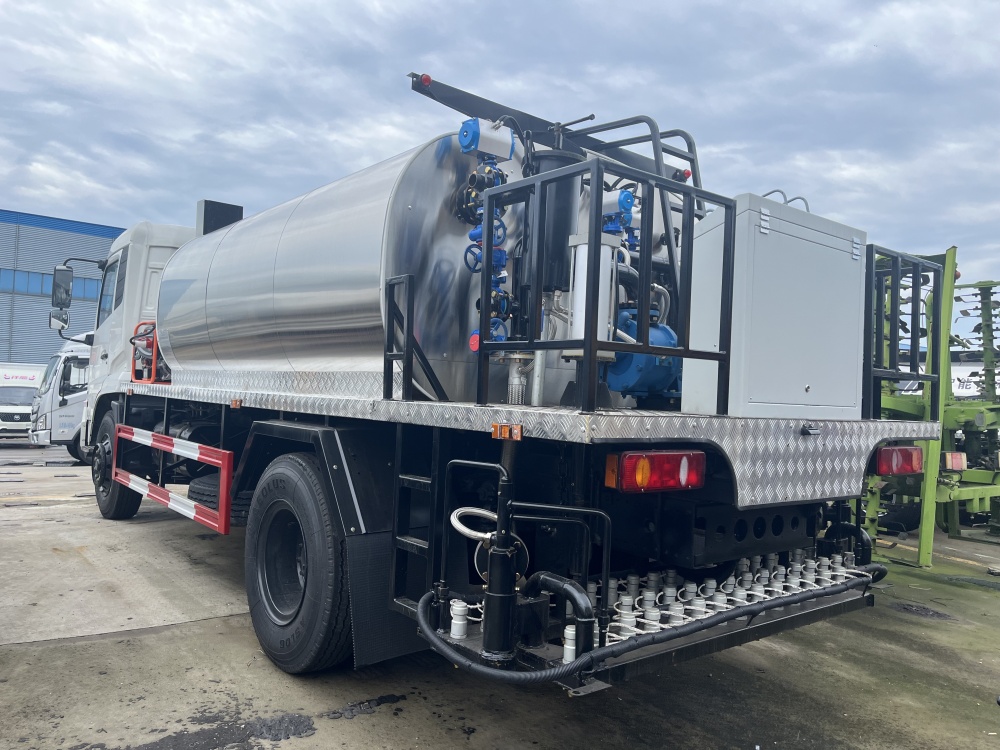

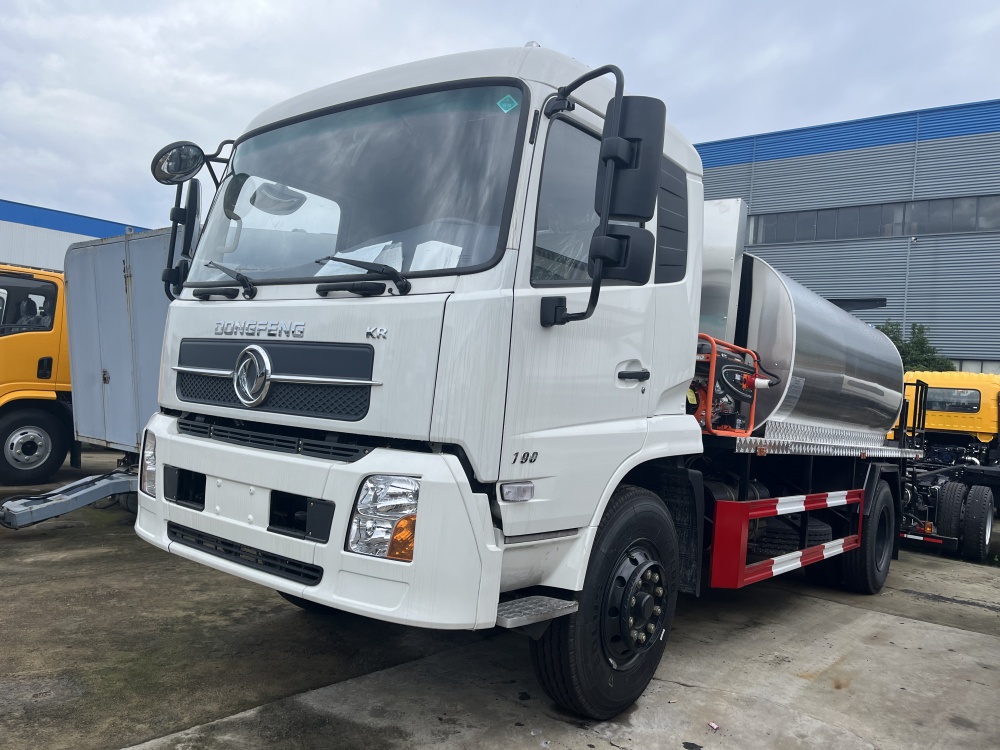

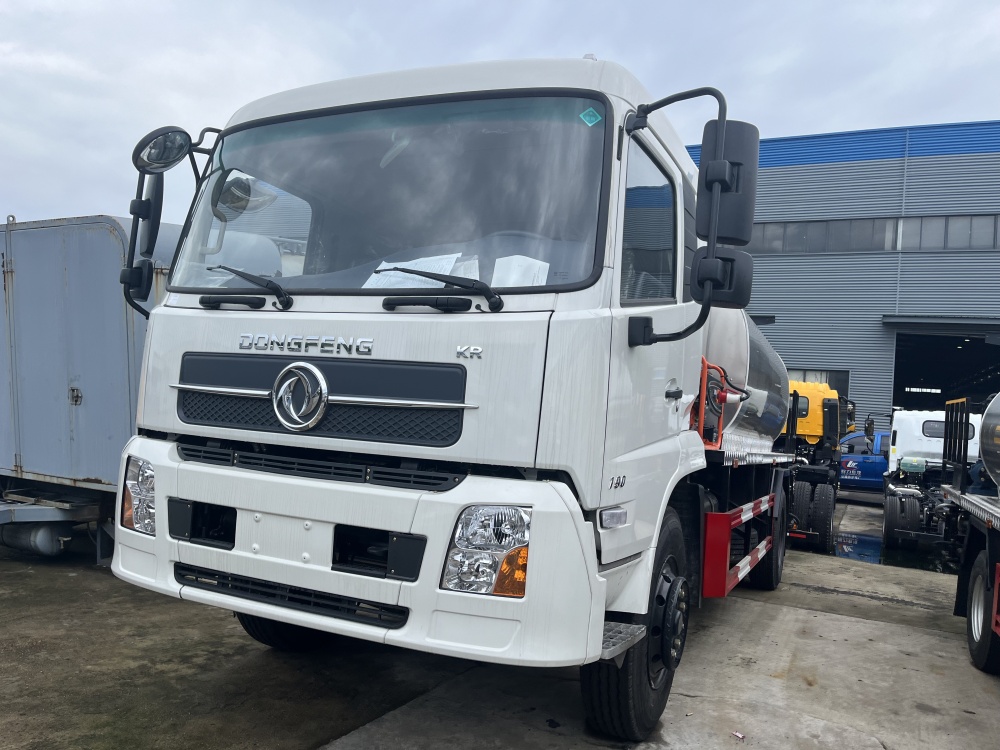

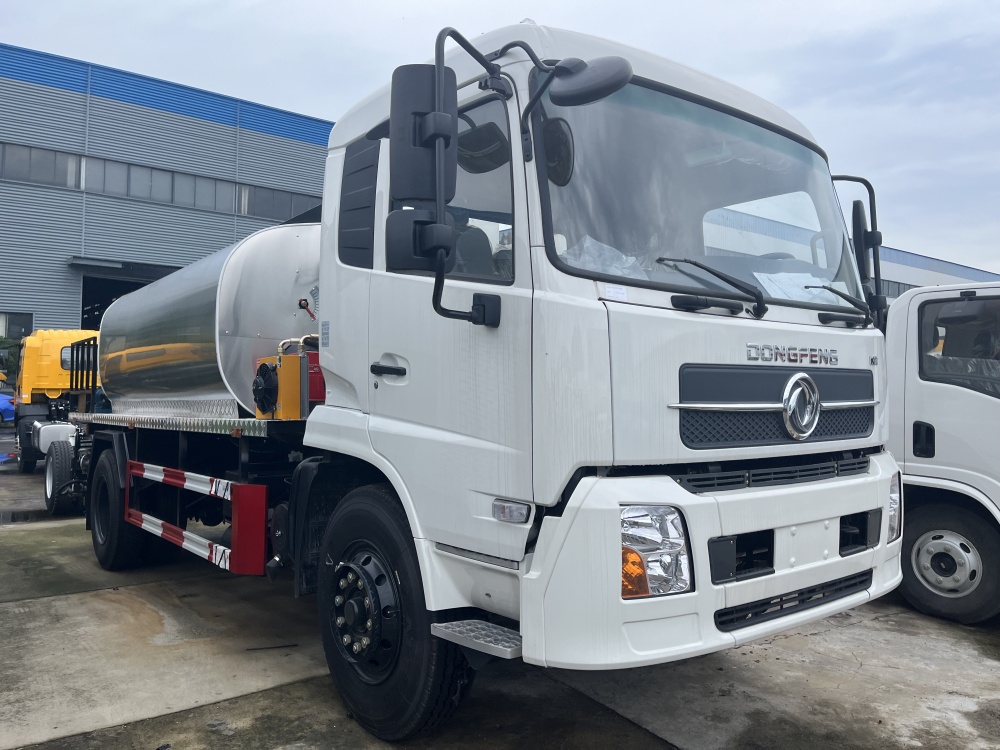

dongfeng KR asphalt tank distributing vehicle is a kind intelligent automated high-tech special vehicle for distributing different kinds of asphalts such as emulsified asphalt, diluted asphalt, hot asphalt, High viscosity modified asphalt, etc. It is used for distributing the permeable oil waterproof layer on the bottom of asphalt pavement of high grade highways. The asphalt distributing vehicle is made up of truck chassis, asphalt tank body, asphalt pump delivering and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, Pneumatic system, operation platform, etc.

1, Excellent and strong carrying capacity, flexible and light maneuverability, beautiful and atmospheric appearance, providing safe, efficient and reliable services for inter-city logistics customers;

2. According to the needs of spraying volume and working width, the computer can combine the matrix nozzles in any form;

3 Both manual and automatic control methods can realize the individual control of each nozzle, so as to adjust the spraying width at will.

4 The asphalt spreading control can be completed not only in the cab, but also on the operating platform at the rear of the vehicle;

5 The automatic control system of the vehicle can measure the vehicle speed and automatically calculate the number of revolutions of the asphalt pump according to the input spreading volume, spraying width and asphalt type, and then automatically adjust the number of pumps of the asphalt pump through the system.

6 The heating system uses an Italian imported burner with automatic ignition and temperature control functions;

7 The internationally advanced imported high-viscosity asphalt pump is used to pump external asphalt into the tank to achieve "self-priming", and the asphalt in the tank can also be pumped out;

8 The key parts of the whole machine (such as hydraulic pump CBQ550-L, hydraulic motor 05-110-BD31, asphalt pump QGB950, proportional valve EFBG-03-160-HF, automatic control system CLW-48-01, vehicle speed sensor, etc.) are all internationally renowned components to ensure the reliability of the whole machine and increase its service life;

9 Under the premise of ensuring that it does not hinder the maintenance and disassembly of other parts, ladders and handrails are arranged for each part for easy operation;

10 All heat pipes are equipped with heat insulation layers to reduce heat dissipation while avoiding scalding operators;

11 The vehicle-mounted rapid heating system (10-15℃/h) can improve heating efficiency and reduce construction auxiliary time to ensure the spreading temperature;

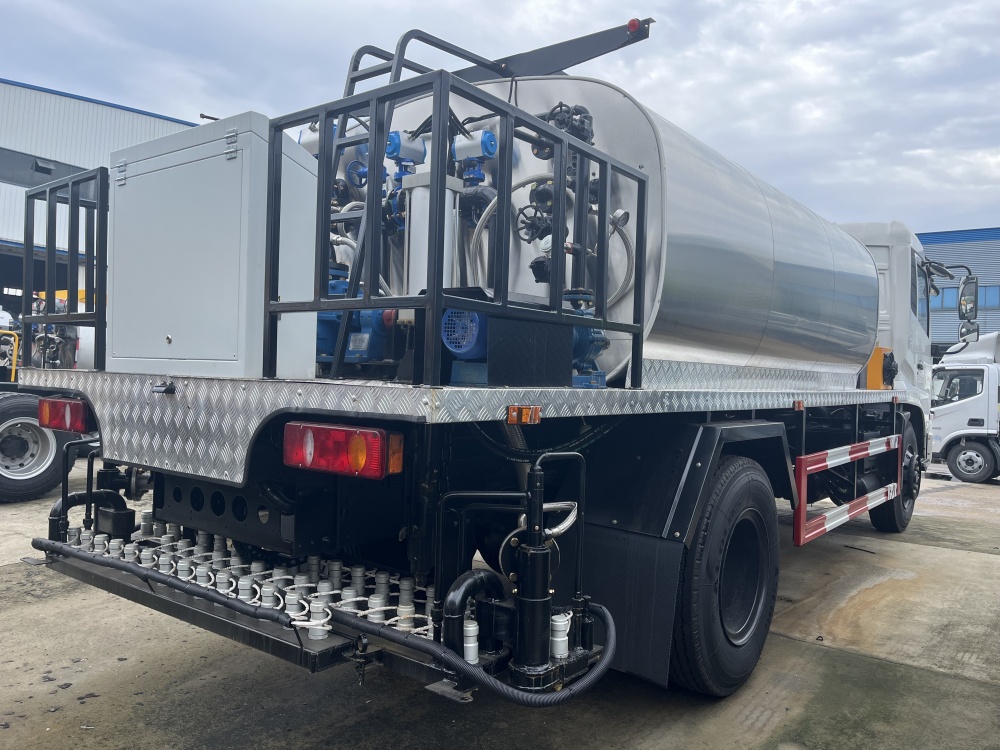

12 The asphalt spraying rod adopts a three-section folding structure. By moving the spraying rod up and down, double or multiple spraying can be achieved. By moving the spraying rod left and right, the spraying range can be expanded, and obstacles can be effectively avoided;

13 The manual spraying function allows asphalt to be sprayed through the hand spray pipe, which is flexible and convenient, and is suitable for small-scale and corner construction conditions. Connect the hand spray gun. Open the main oil outlet valve, open the transfer valve, open the return oil valve, and use the return oil valve to adjust the pressure of the spray gun.

14 The asphalt tank is equipped with a sedimentation and drainage tank, and is equipped with a liquid level display and alarm and safety devices;

15 This function can blow out the remaining asphalt in the nozzle through diesel and high-pressure air to prevent the asphalt from freezing in the nozzle, which can greatly increase the service life of the nozzle. Close the main oil outlet valve, return oil valve, open the pneumatic valve, open the self-priming valve and open the nozzle in turn

16, A good insulation layer can ensure that the static insulation performance index is ≤12℃/8 hours, and it is corrosion-resistant and durable; 17 The outer packaging of the vehicle is made of stainless steel plate, which is corrosion-resistant, durable, and beautiful.

The asphalt tank distributing vehicle is a kind intelligent automated high-tech special vehicle for distributing different kinds of asphalts such as emulsified asphalt, diluted asphalt, hot asphalt, High viscosity modified asphalt, etc. It is used for distributing the permeable oil waterproof layer on the bottom of asphalt pavement of high grade highways. The asphalt distributing vehicle is made up of truck chassis, asphalt tank body, asphalt pump delivering and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, Pneumatic system, operation platform, etc.

It is very easy to operate this asphalt distributing vehicle, based on the technology of similar products at home and abroad; at the same time increased quality and technical content to ensure construction, Highlight improvement of construction conditions and humanized Design of Construction Environment. The reasonable and reliable design ensures Evenness of asphalt sprinkling, Computer controlling is stable and reliable and Vehicle technical performance has reached the world advanced level, etc. With all the improvements we've made, our CLW brand asphalt distributing vehicle can work in worse conditions.

The performance parameter of Dongfeng KR asphalt tanker truck

◆ Truck model：    CLW5160GLQD3

◆ Chassis model：   dongfeng tianjin DFL1160BX1V（EuroⅤ emission standard, client can choose Euro 2/Euro 3 emission standard）

◆ Distributing width：    4500mm

◆ Asphalt distributing amount：  0.2～4.0L/m2

◆ Truck speed when working：    1.5-7km/h

◆ Heating mode：   Italian imported diesel burner heating(200,000 kcal/ hour)

◆ Sprinkling medium:    thermal asphalt, thermal modified asphalt, emulsified asphalt, rubber asphalt of less than 10 % concentration

◆ Spreading error：     ±1.5%

◆ Asphalt tank volume：    10cbm

◆ Sprayers numbers & control way：36 sets（one control one）

◆ Overall dimension(L*W*H)：    8590×2480×2840(mm)

dongfeng KR asphalt tanker vehicle for sale

Main technical parameters of asphalt spreading vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
