SINOTRUK HOWO asphalt tank distributing vehicle is a kind intelligent automated high-tech special vehicle for distributing different kinds of asphalts such as emulsified asphalt, diluted asphalt, hot asphalt, High viscosity modified asphalt, etc. It is used for distributing the permeable oil waterproof layer on the bottom of asphalt pavement of high grade highways. The asphalt distributing vehicle is made up of truck chassis, asphalt tank body, asphalt pump delivering and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, Pneumatic system, operation platform, etc.

It is very easy to operate this asphalt distributing vehicle, based on the technology of similar products at home and abroad; at the same time increased quality and technical content to ensure construction, Highlight improvement of construction conditions and humanized Design of Construction Environment. The reasonable and reliable design ensures Evenness of asphalt sprinkling, Computer controlling is stable and reliable and Vehicle technical performance has reached the world advanced level, etc. With all the improvements we've made, our CLW brand asphalt distributing vehicle can work in worse conditions.

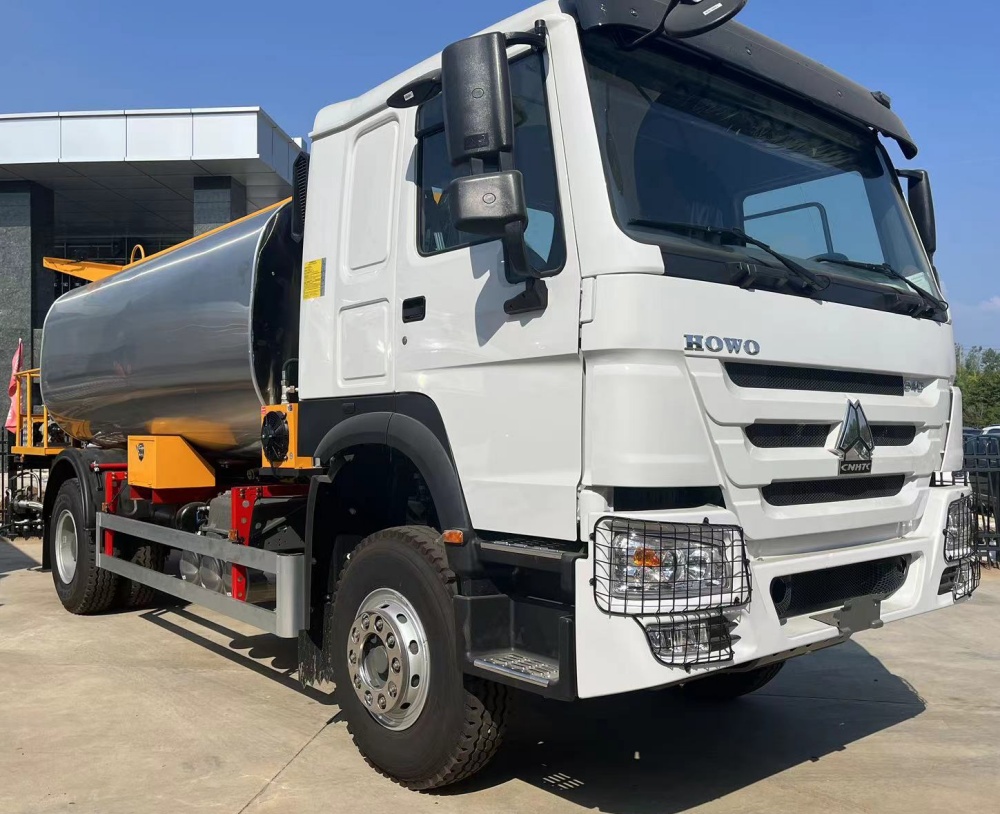

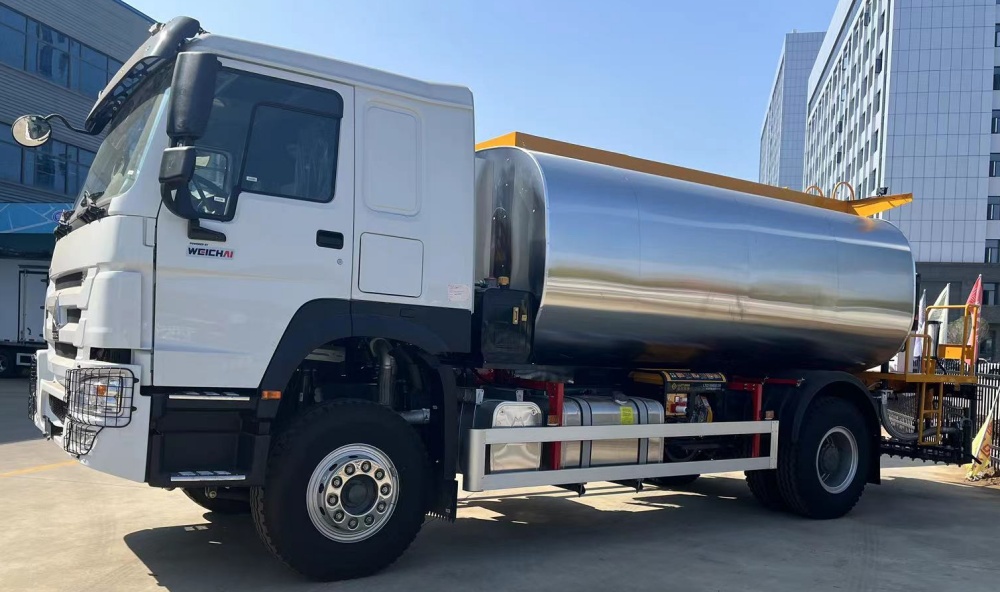

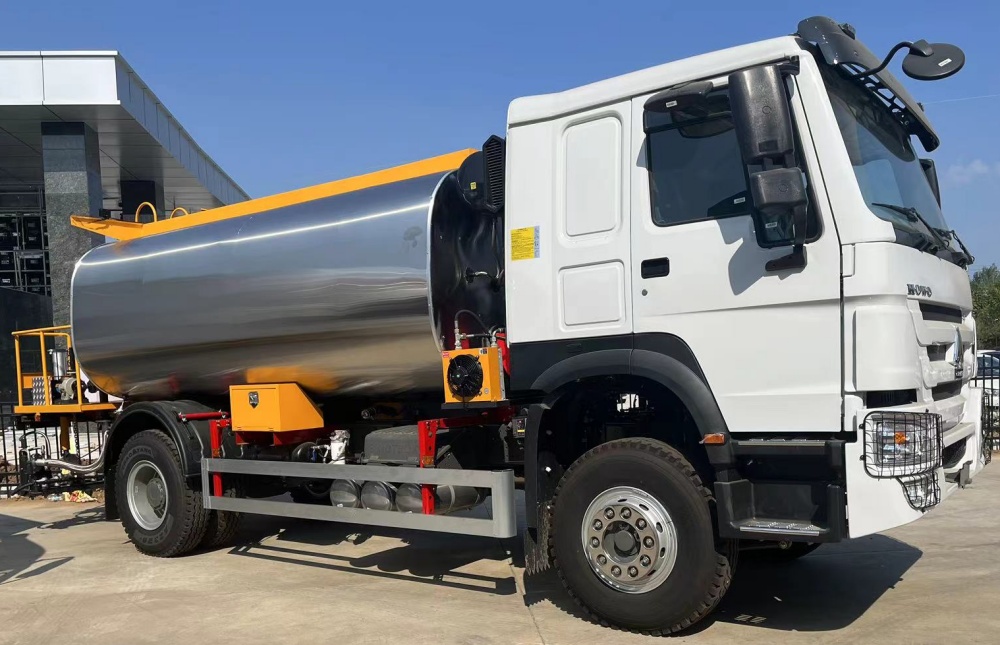

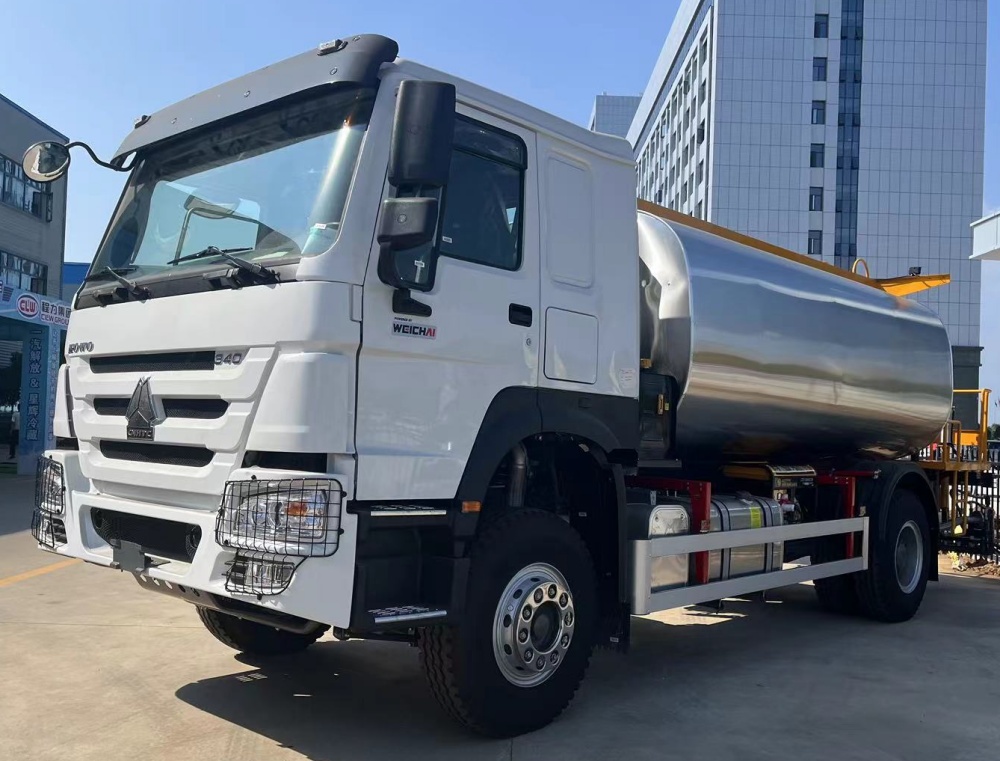

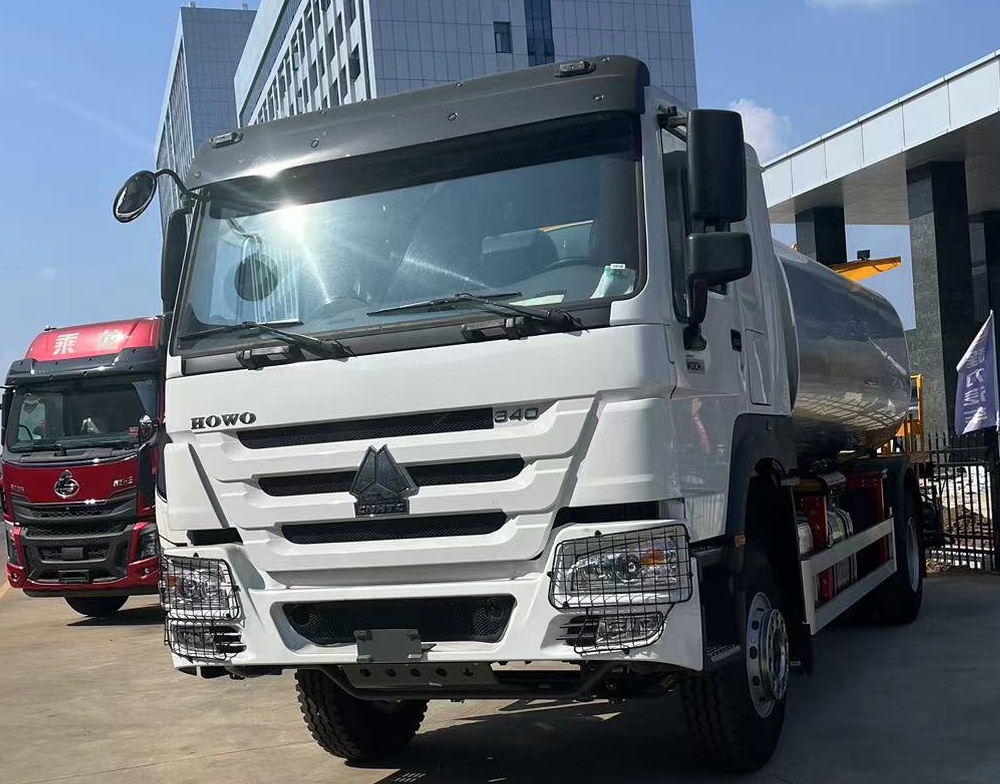

The devices of 12CBM intelligent type asphalt tanker truck SINO TRUK HOWO manufactured by Chengli Special Automobile Co., Ltd. is as below.

1, the asphalt pump adopts high quality QGB950 (high viscosity asphalt pump, 950L/min).

2, hydraulic system: Proportional valve (Taiwan EFBG-03-160-HF); Automatic reversing valve and overflow valve; radiator adopts Risheng brand; the model of hydraulic motor for asphalt pump: 05-110-BD31; hydraulic pump model: CBQ550-L or Power take off after engine GPC4-50R.

3, control way: Intelligent touch screen computer control at the driver cab; control system: (Siemens, Germany), 36 sets intelligent asphalt spraying nozzles (one controls one).

4, Heating method: Burner (Italy imported Riello brand burner model G20) + Automatic heating of heat transfer oil

5, gasoline generator unit: 6KW

6, spreading amount: 0.25-3.5L/㎡;

7, asphalt distributing width: 4.5m, 48 sets spraying nozzles for 6m spreading width is selective (10000RMB additional).

8, Distributing medium: emulsified asphalt, hot asphalt, SBS hot asphalt, etc.

Performance parameter  of 12cbm asphalt tanker truck SINOTRUK HOWO manufactured by Chengli Special Automobile Co., Ltd. as below.

◆ Truck model: CLW5185GLQZ3

◆ Total mass: 18000kg

◆ Curb mass: 9180kg

◆ Overall dimension(L*W*H):8160×2500×3060mm

◆ Spreading width: 4600mm

◆ Distance between nozzles: 125mm

◆ Asphalt spreading amount: 0.2～3.5L/m2

◆ Working speed:1.5--20km/h

◆ Heating way: Italian imported burner heating G20(200,000 Kilocalorie/hour)

◆ Spreading medium: emulsified asphalt, hot asphalt, SBS BS modified pitch, modified emulsified asphalt

◆ Spreading inaccuracy：±2%

main parts of asphalt tanker truck as below
