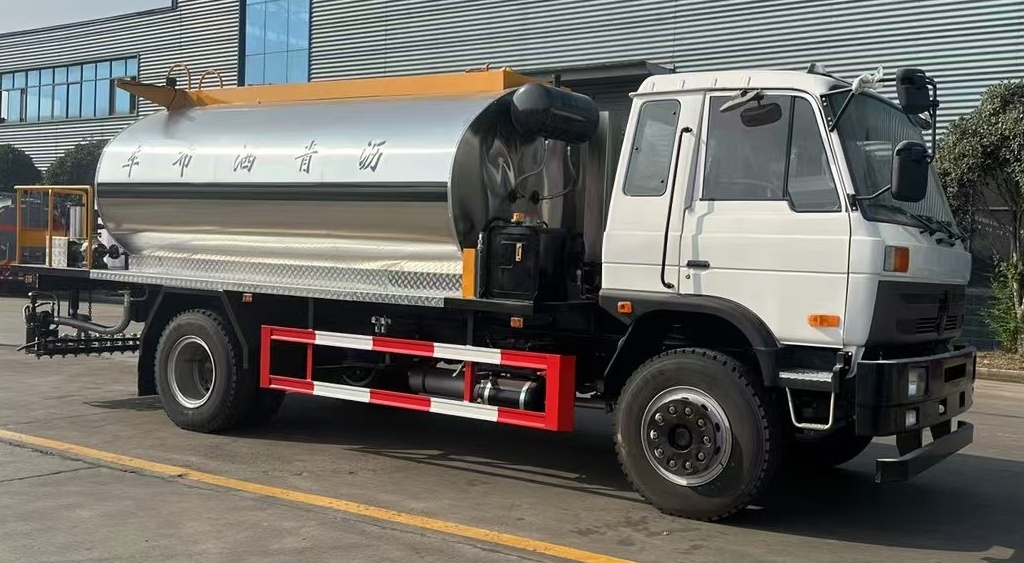

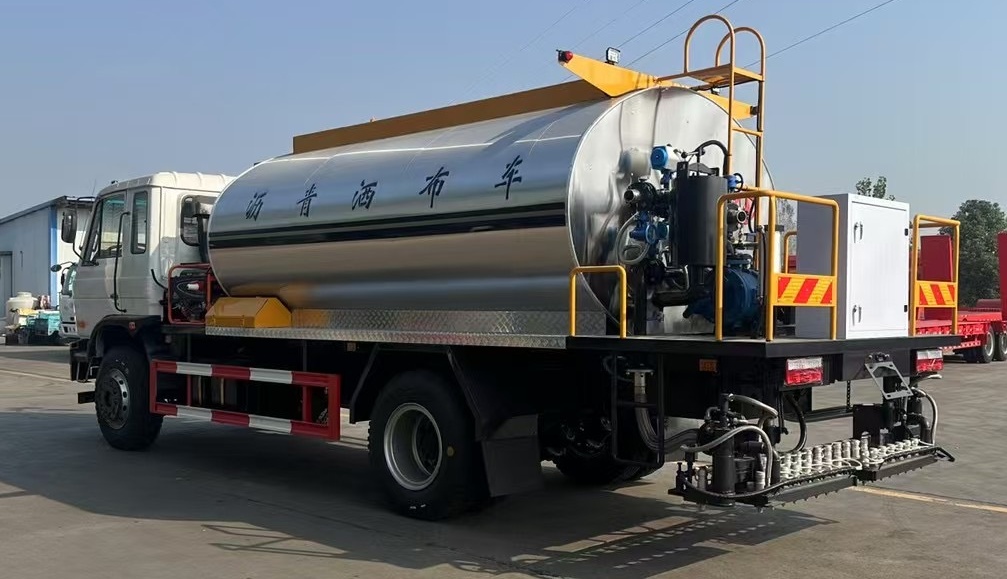

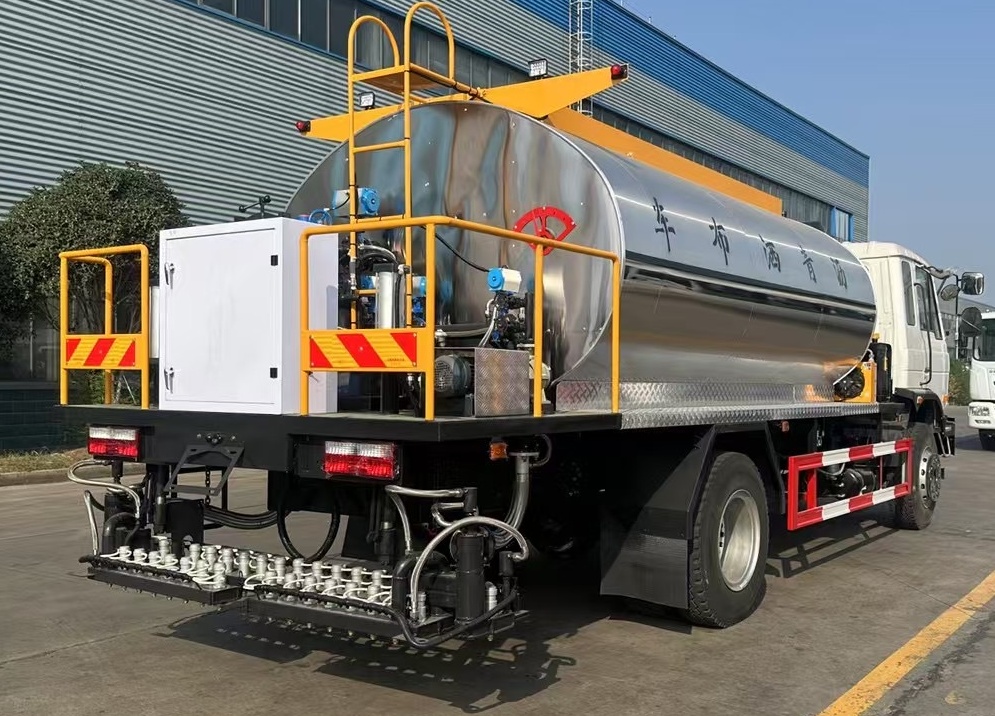

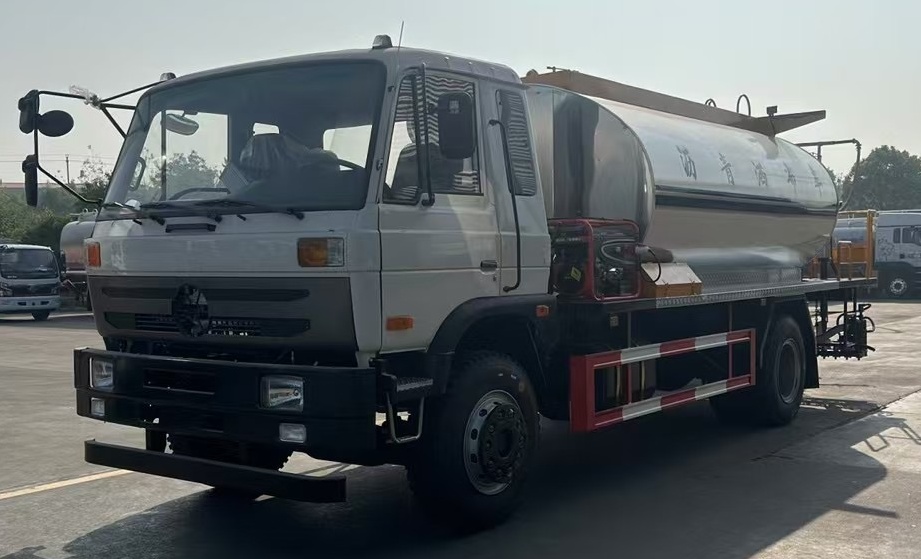

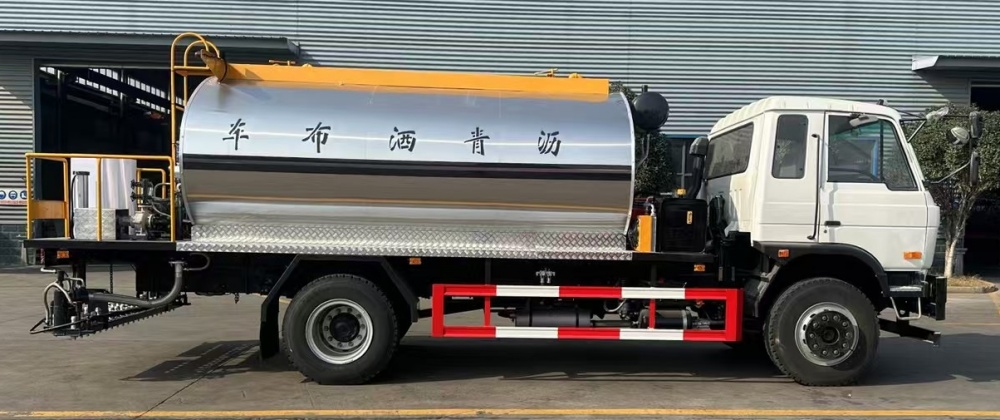

vehicle photo show
product parameters
Hot sale 10cubic meters asphalt spreading tanker truck for sale
CLw brand 4*2 LHD 10cbm bitumen distributing tanker truck, adopts luxurious one row and a half luxurious driver cab, 4500mm wheelbase, B190 33 Cummins 190hp diesel engine, 10,00R20 rail tires, 5t front axle/10t rear axle, 8 speed manual gearbox, power steering and air cut braking, 250mm double layers beam, etc.
The devices of 10cbm asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
1, the asphalt pump adopts high quality QGB950 (high viscosity asphalt pump, 950L/min).
2, hydraulic system: Proportional valve (Taiwan EFBG-03-160-HF); Automatic reversing valve and overflow valve; radiator adopts Risheng brand; the model of hydraulic motor for asphalt pump: 05-110-BD31; hydraulic pump model: CBQ550-L or Power take off after engine GPC4-50R.
3, control way: Intelligent touch screen computer control at the driver cab; control system: (Siemens, Germany), 36 sets intelligent asphalt spraying nozzles (one controls one).
4, Heating method: Burner (Italy imported Riello brand burner model G20) + Automatic heating of heat transfer oil
5, gasoline generator unit: 6KW
6, spreading amount: 0.25-3.5L/㎡;
7, asphalt distributing width: 4.5m, 48 sets spraying nozzles for 6m spreading width is selective (10000RMB additional).
8, Distributing medium: emulsified asphalt, hot asphalt, SBS hot asphalt, etc.
high quality and competitive price 10cubic meters asphalt tanker truck for sale
main technical parameters of 10cubic meters asphalt distributing tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
Main technical parameters | |||
Product name | CLW5161GLQT4 asphalt spreading truck for sale | ||
Total mass(Kg) | 15990 | Tanker volume(m3) | 10 |
Rated mass(Kg) | 7300 | Overall dimension(L*W*H)(mm) | 8590×2480×2840 |
Curb mass(Kg) | 8495 | Driver cab seated person | ×× |
Approach/departure angle(°) | 32/15 | Front/rear suspension(mm) | 1250/2560 |
Axle no. | 2 | wheelbase(mm) | 4500 |
Axle load(Kg) | 5995/9995 | Max speed(Km/h) | 88 |
Chassis main technical parameters | |||
Truck chassis model | 1160GKJ1 | Manufacturer | CHENGLI |
Approach/departure angle(°) | 32/26 | Tire specification | 10.00R20*6 |
Steel spring | 9/10+8 | Front suspension(mm) | 1940, |
Fuel type | Diesel | Rear tread(mm) | 1860, |
Emission standard | Euro IV | ||
Engine model | Manufacturer | displacement(ml) | Power (Kw) |
B190 33 | CUMMINS | 5900 | 196 |
asphalt tank distributing vehicle is a kind intelligent automated high-tech special vehicle for distributing different kinds of asphalts such as emulsified asphalt, diluted asphalt, hot asphalt, High viscosity modified asphalt, etc. It is used for distributing the permeable oil waterproof layer on the bottom of asphalt pavement of high grade highways. The asphalt distributing vehicle is made up of truck chassis, asphalt tank body, asphalt pump delivering and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, Pneumatic system, operation platform, etc.
It is very easy to operate this asphalt distributing vehicle, based on the technology of similar products at home and abroad; at the same time increased quality and technical content to ensure construction, Highlight improvement of construction conditions and humanized Design of Construction Environment. The reasonable and reliable design ensures Evenness of asphalt sprinkling, Computer controlling is stable and reliable and Vehicle technical performance has reached the world advanced level, etc. With all the improvements we've made, our CLW brand asphalt distributing vehicle can work in worse conditions.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
