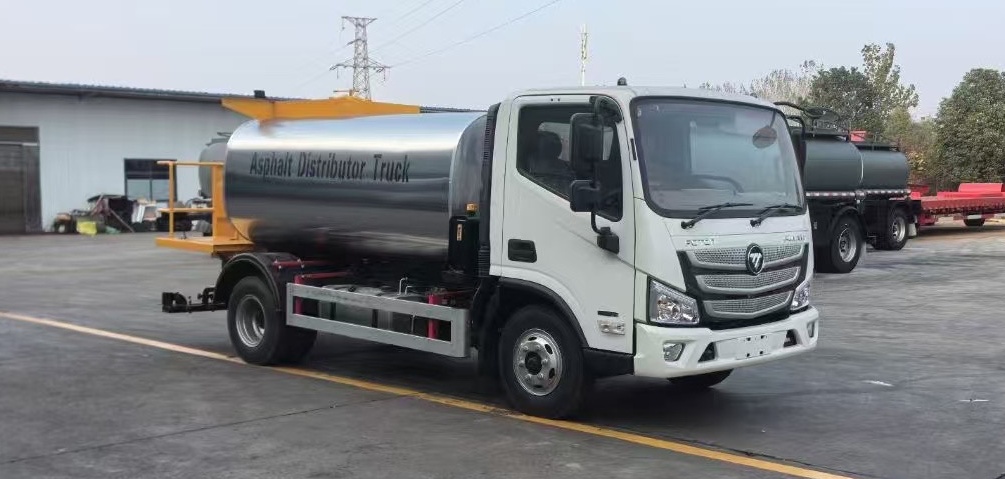

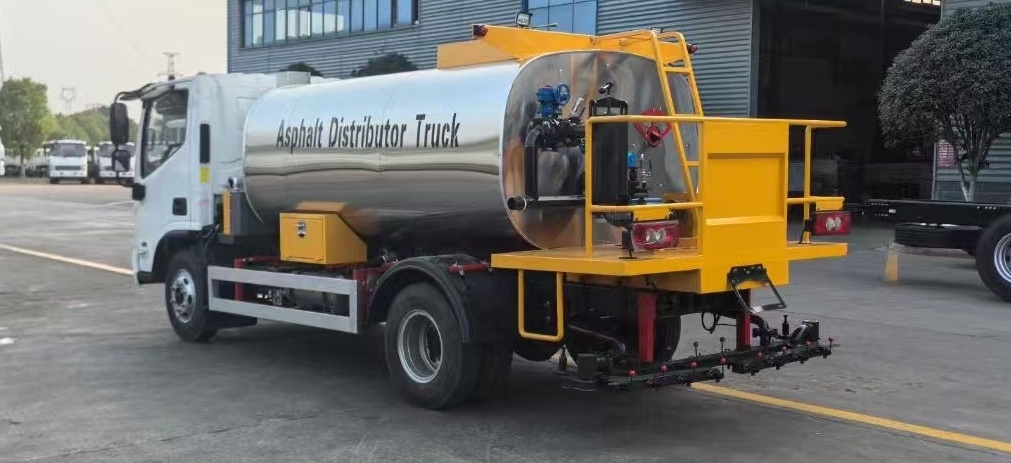

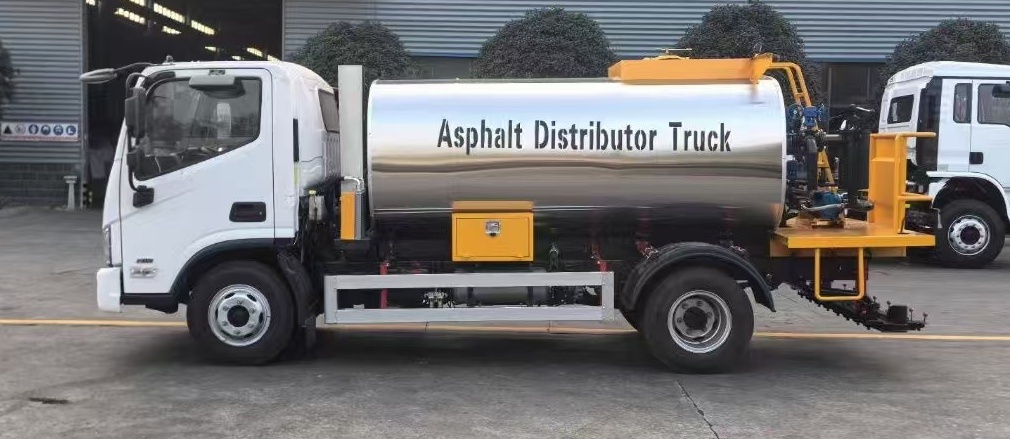

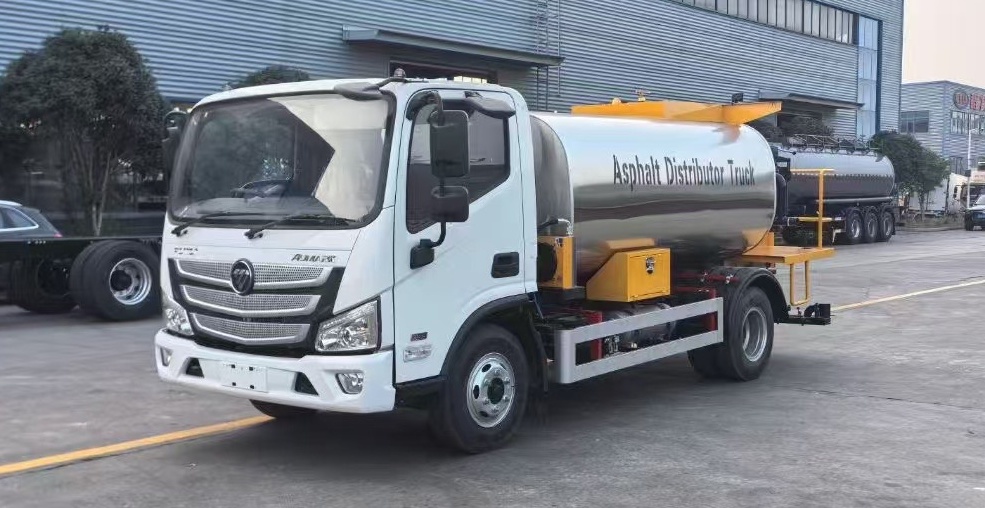

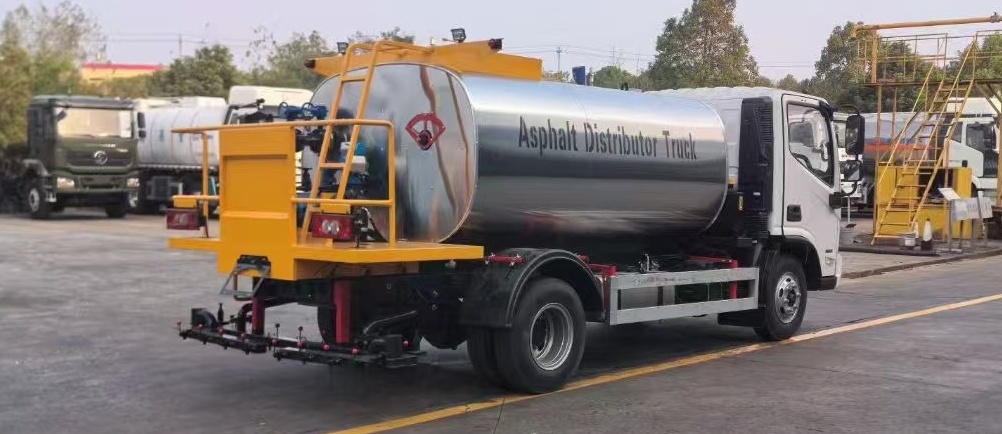

Intelligent type asphalt spreading tanker vehicle for sale
The devices of intelligent type FOTON AUMARK 6cbm asphalt distributing vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
1, the asphalt pump adopts high quality QGB680 (high viscosity asphalt pump, 680L/min).
2, hydraulic system: Proportional valve (Taiwan EFBG-03-160-HF); Automatic reversing valve and overflow valve, radiator adopts Risheng brand; the model of hydraulic motor for asphalt pump: 05-110-BD31; hydraulic pump model: CBQ550-L;
3, control way: Intelligent touch screen computer control at the driver cab; control system: (Siemens, Germany), 34 sets intelligent asphalt spraying nozzles (one controls one).
4, Heating method: Burner (Italy imported Riello brand burner model G20) + Automatic heating of heat transfer oil
5, gasoline generator unit: 6KW
6, spreading amount: 0.25-3L/㎡;
7, asphalt distributing width: 4.5m, 39 sets spraying nozzles for 6m spreading width is selective (8000RMB additional).
8, Distributing medium: emulsified asphalt, hot asphalt, SBS hot asphalt, etc.
Main technical parameter of FOTON AUMARK asphalt spreading tanker truck manufactured by Chengli Special Automobile CO., Ltd. as below.
Product name | Asphalt tanker truck | Truck model | foton aumark |
Tanker volume(L) | 6000-7000 | Total mass（Kg） | 11995 |
Rated mass（Kg） | 5885 | Curb mass（Kg） | 6550 |
Tanker body material | Q235 carbon steel | Insulation layer | Rockwool |
Tanker surface | Stainless steel material | Overall dimension（mm） | 7320*2350*3050 |
Filter | Customized | Thermal oil pump | RY40-25-160 |
Handed spraying nozzle | 6 m length hpse +sprayning nozzle | Proportional valve | CL-BLTS120.00 |
speed sensor | GTS211B-N016 | Temperature Sensor | WZP-230 |
Pneumatic Butterfly Valve | CLD6H3-16C | Shut-off valve | PN16DN50 |
Generator unit | 7KW gasoline generator unit | Operation way | Operated at the driver cab |
Asphalt pump | QGB680 | Asphalt pump speed | Be adjusted at the driver cab |
Asphalt flow | 680L/min | Sprayers at back of the vehicle
| 34 sets * Pneumatic asphalt nozzle |
Sprayers controlled way | One for one | Asphalt distributing amount | 0.25-3L/㎡ |
Distributing medium | mulsified asphalt, hot asphalt | Thermal oil | With thermal oil circulation heating |
Distributing width （m） | ≤4.5m | Burner | G20 |
Distributing area calculation | Spraying area = tank volume ÷ spraying amount | ||
Cleaning method | Comes with pneumatic cleaning or diesel cleaning | ||
