Customized dongfeng 4*2 LHD 4cbm intelliegent asphalt distributing vehicle for overseas client
Customized intelligent type asphalt tanker vehicle adopts dongfeng 4*2 LHD single row driver cab, yuchai 120hp diesel engine, 5 speed gearbox, 7.00R16 tires*6, 3300mm wheelbase, etc.
The devices of intelligent type dongfeng brand 4cbm 3tons asphalt distributing vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
1, the asphalt pump adopts high quality QGB680 (high viscosity asphalt pump, 680L/min).
2, hydraulic system: the model of hydraulic motor for asphalt pump: 05-110-BD31; hydraulic pump model: CBQ550-L;Proportional valve (Taiwan EFBG-03-160-HF); Automatic reversing valve and overflow valve, radiator adopts Risheng brand.
3, control way: Intelligent touch screen computer control in the cab; control system: (Siemens, Germany), 30 intelligent asphalt spraying nozzles (one controls one).
4, Heating method: Burner (Italy imported Riello brand burner model G10)+ Automatic heating of heat transfer oil
5, gasoline generator unit: 6KW
6, asphalt distributing width: 4m; spreading amount: 0.25-2.5L/㎡
7, Distributing medium: emulsified asphalt, hot asphalt, SBS hot asphalt

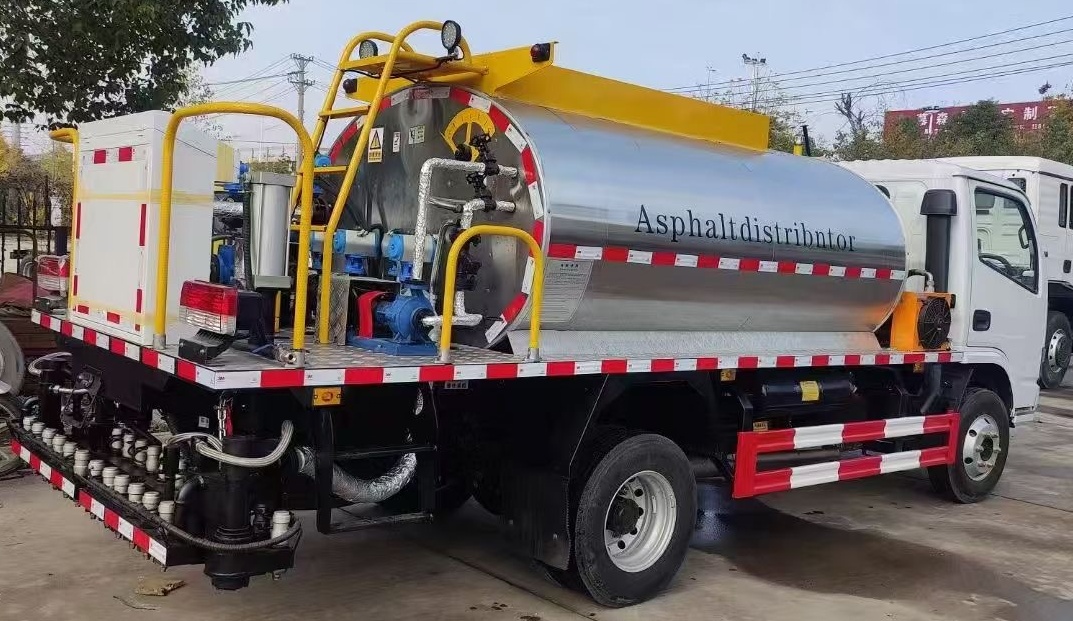

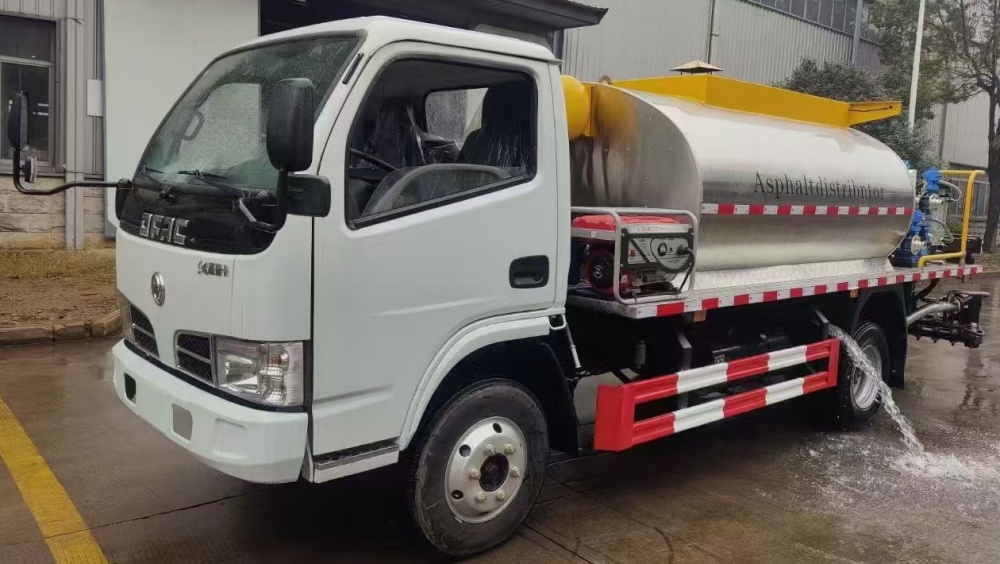

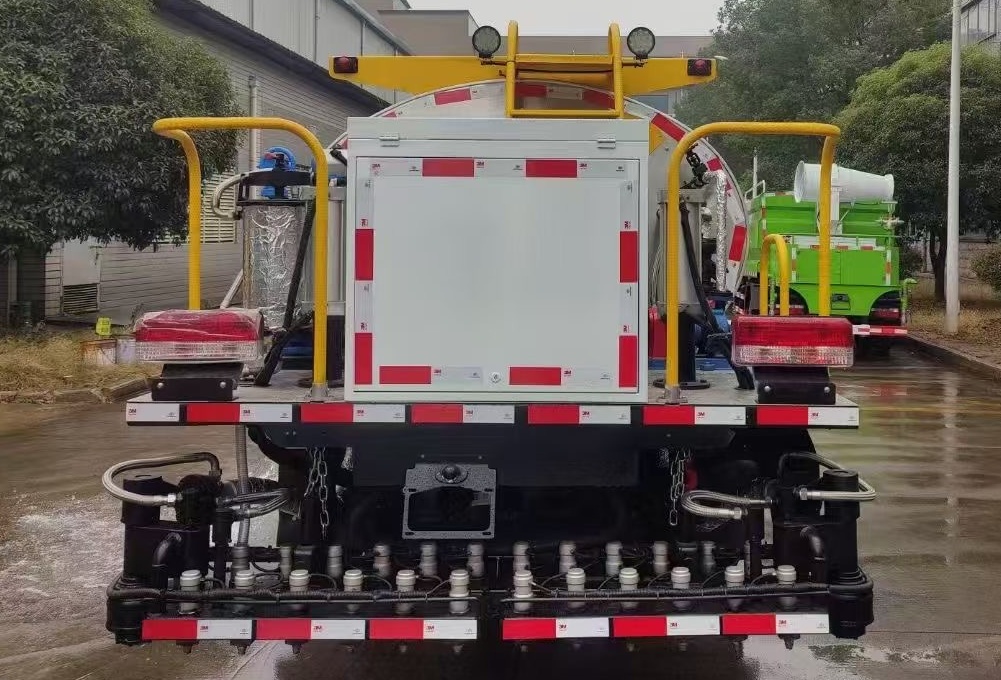

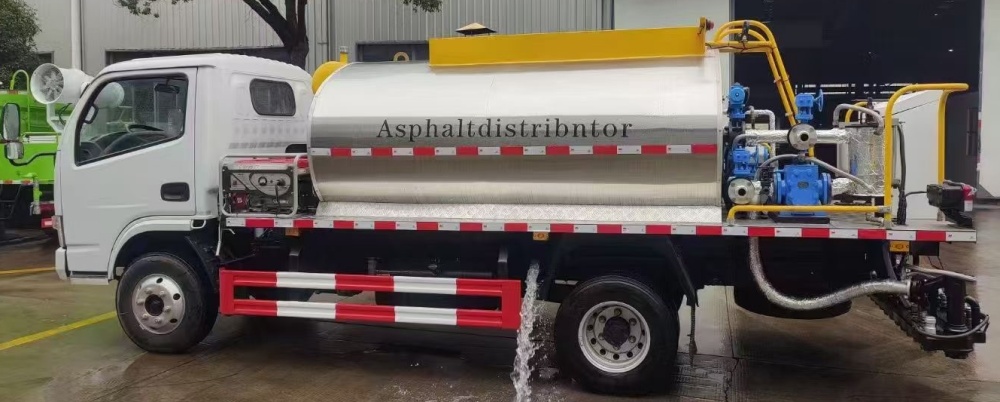

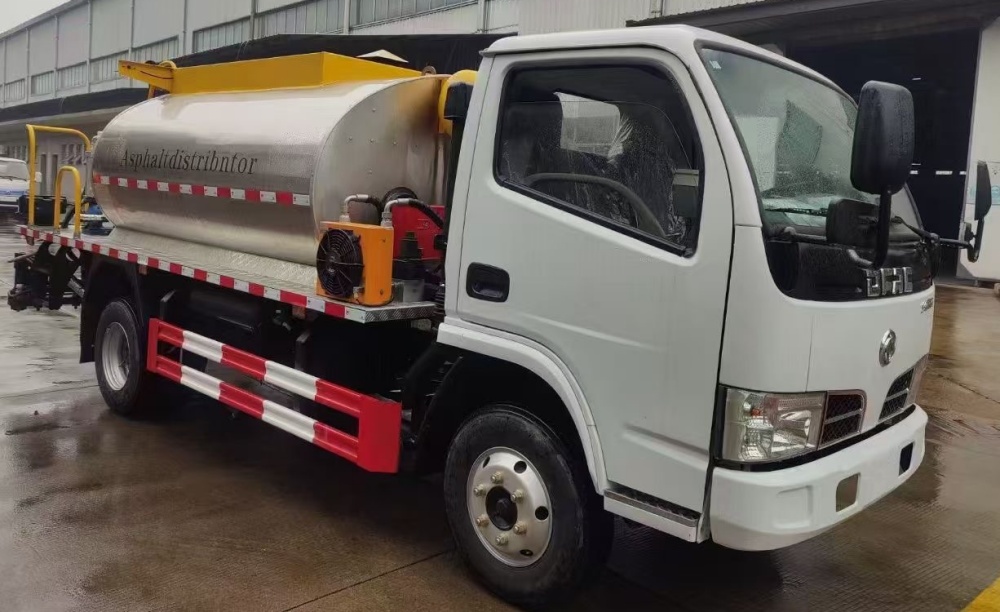

More pictures of 4cubic meters dongfeng asphalt tanker distributing vehicle is as below.
High quality and best price 4cubic meters asphalt distributing vehicle dongfeng for sale
Main technical parameters of dongfeng 4cbm bitumen tanker truck manufactured by Chengli Special Automobile Co., Ltd. as below
Main technical parameters | |||
Product name | asphalt tanker truck for sale | ||
Total mass(Kg) | 7300 | Tanker volume(m3) | 4 |
Rated mass(Kg) | 2690,2625 | Overall dimension(L*W*H)(mm) | 6300×2080×2400 |
Curb mass(Kg) | 4480 | Driver cab seated person | 2 |
Approach/departure angle(°) | 19/12 | Front/rear suspension(mm) | 1032/1968 |
Axle nos. | 2 | wheelbase(mm) | 3300 |
Axle load(Kg) | 2920/4380 | Max speed(Km/h) | 95 |
Chassis main parameters | |||
Truck chassis | EQ1070 | manufacturer | dongfeng |
Appracoh/departure angle(°) | 19/16 | Tire specification | 7.00R16 14PR*6 |
Steel spring | 8/9+5, | Front tread(mm) | 1506 |
Fuel type | Diesel | Rear tread(mm) | 1466 |
Emission standard | Euro Ⅲ | ||
Engine model | Manufacturer | displacement(ml) | Power(Kw) |
YC4FA120-33 | YUCHAI | 2982 | 88 |
Asphalt distributor is a kind of pavement construction machinery; it is a highway, urban road, airport and port construction of major equipment.It can be used to transport and makes liquid asphalt (including hot asphalt, emulsified asphalt and residue) . The bitumen distributor truck are consisted with truck chassis, insulated asphalt tank, heater, hydraulic system, conducting oil pipeline, asphalt pump, spray nozzle, etc. The tank volume is from 3m3 to 18m3. The spray nozzle quantity is from 30 to 48.
The emulsified asphalt distributor truck is also called asphalt paver, asphalt sprayer truck, bitumen sprayer truck, asphalt distributor truck, asphalt bitumen tank truck, road sealer truck, asphalt truck, etc. The liquid bitumen sprayer truck is mainly used to transport asphalt and distribut it for sealing the road.
The bitumen distribution truck for sale are consisted with truck chassis, insulated asphalt tank, heater, hydraulic system, conducting oil pipeline, asphalt pump, spray nozzle, etc. The tank volume is from 3m3 to 18m3. The spray nozzle quantity is from 30 to 48 nos.
The liquid bitumen sprayer truck is mainly used to transport asphalt and distribut it for sealing the road.
Our asphalt distributor dopt advanced technology and foreign imported parts. It has more advantages than other asphalt suppliers.
Our asphalt sparyer truck for sale adopt special chassis and Italy imported burner. It has many advantages.
Advantages of chengli sensor emulsified asphalt distributor truck
1.The temperature rising speed is 5% faster than the trucks manufacture by other factory.
2.With conducting oil system, asphalt both in the tank and in the nozzle are all hot, easy to spray, no remained.
3.High quality metal hose, won't broken, long service life.
4.The distribution width can be adjusted according to your demand from 4.5m to 6m.
5.Start quickly, though the truck stop, still can distribute.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
