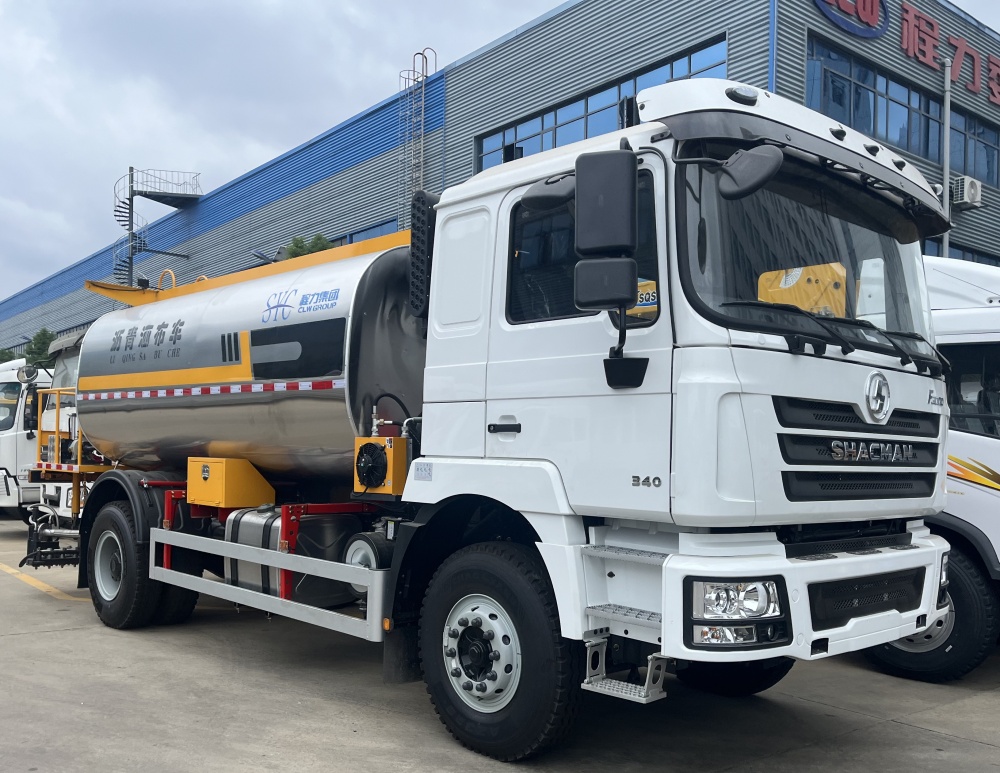

10cbm 12cbm SHACMAN brand asphalt tanker truck bitumen distributing vehicle for sale

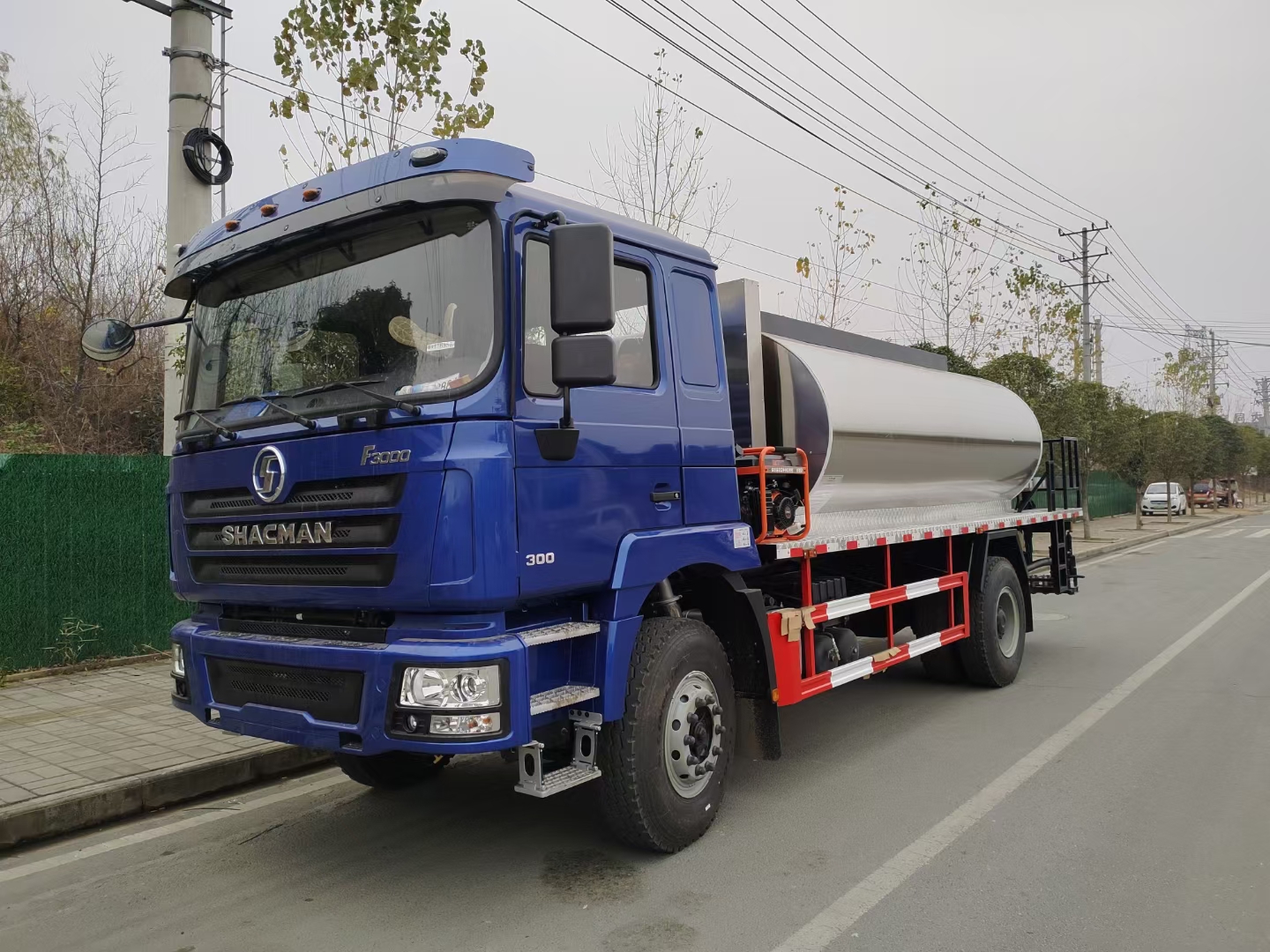

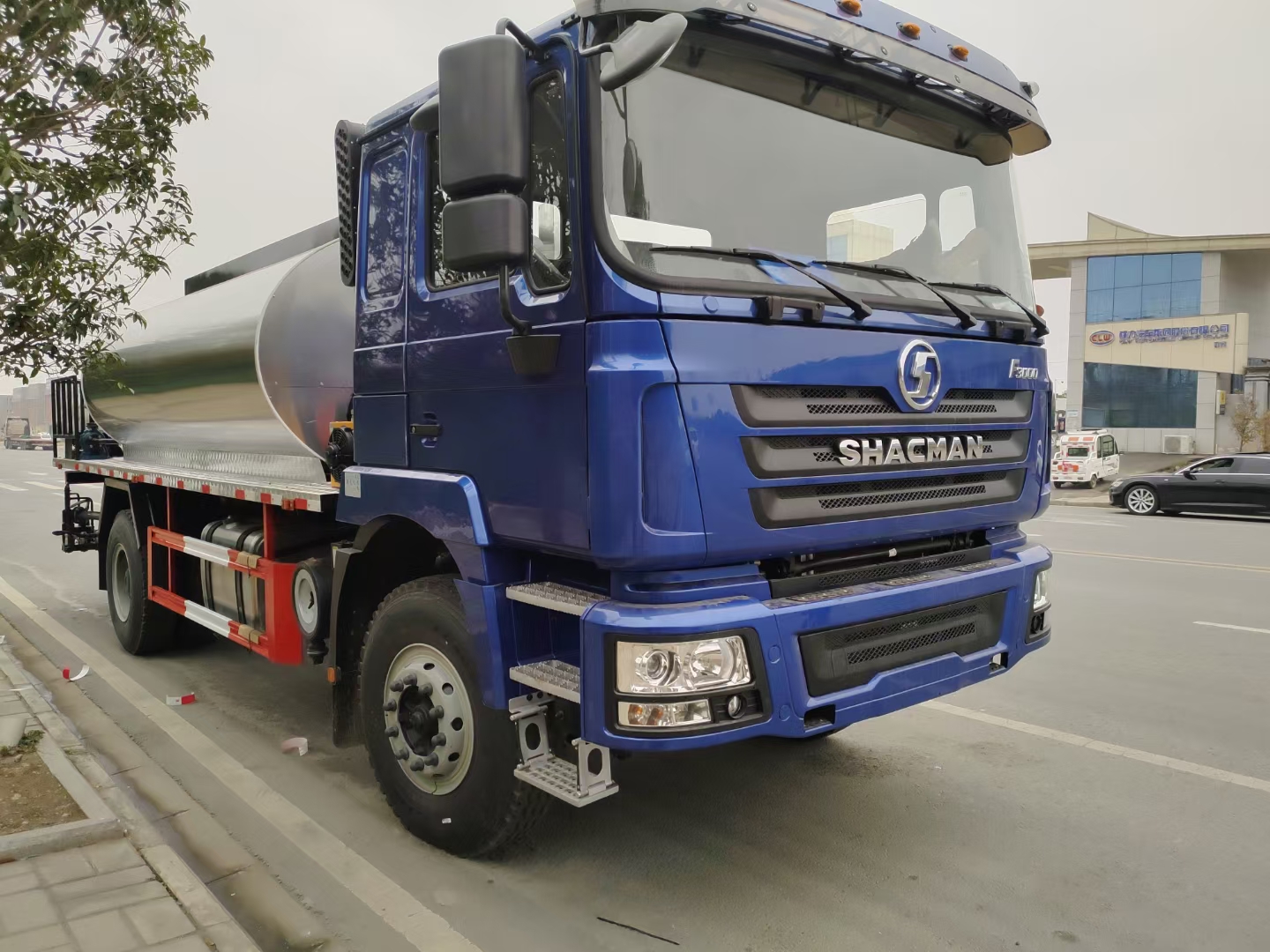

SHACMAN F3000 asphalt tanker truck for sale

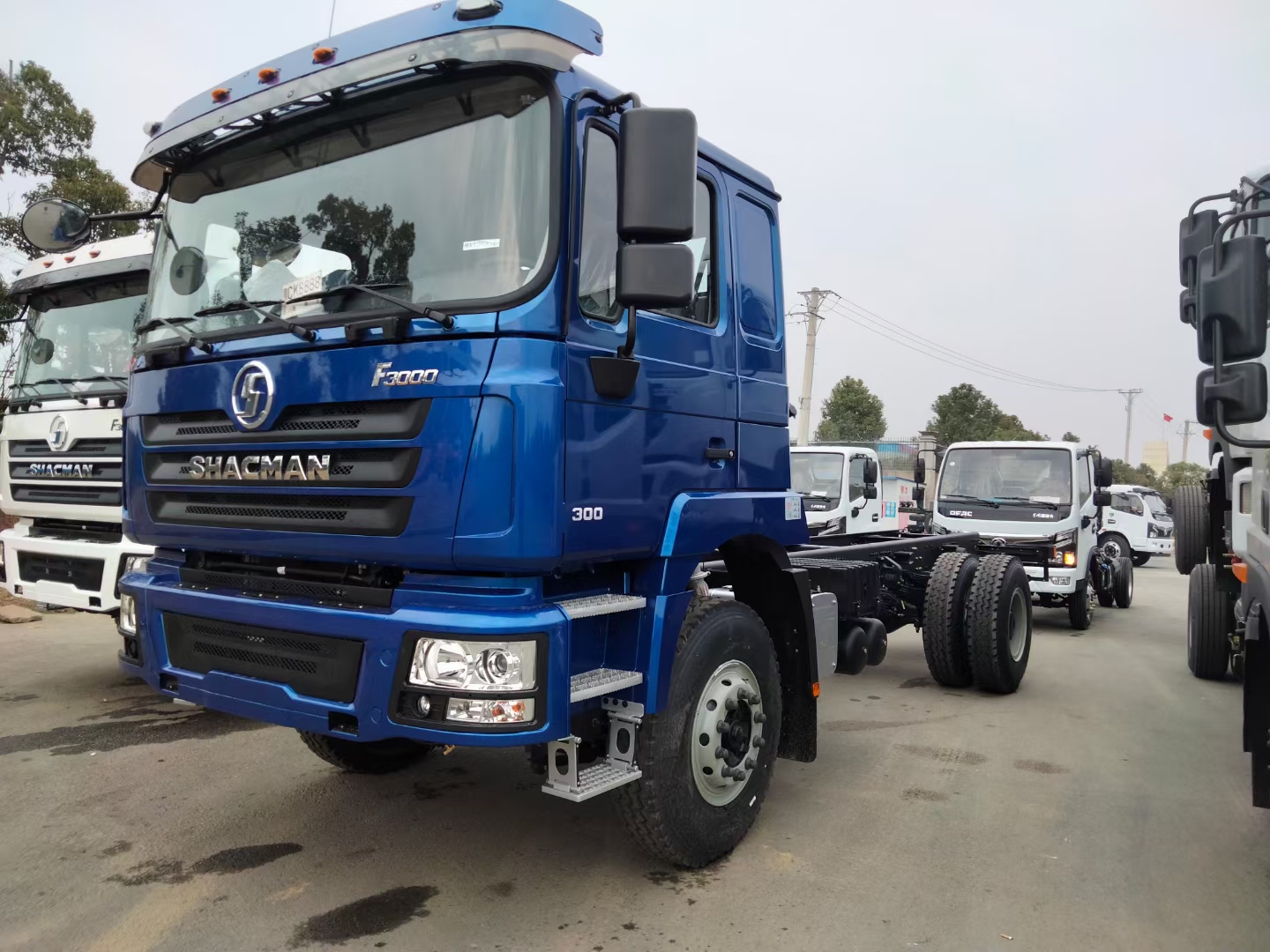

Shacman Brand 4*2 LHD 10CBM 12cbm asphalt distributor vehicle, adopts SHACMAN brand F3000 luxurious driver cab, 4600mm wheelbase, WP10.300E22 weichai 300hp Euro Ⅱ diesel engine, RTD-11509C fastgear 9 speed manual gearbox, MAN 7.5T front axle/MAN 13T rear axle, 400Liters volume oil tanker, 12.00R20 rail tires, etc.
The devices of SHACMAN brand 10cbm standard type asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
1, the asphalt pump adopts high quality QGB950 (high viscosity asphalt pump, 950L/min).
2, hydraulic system: manual Proportional valve; radiator adopts Risheng brand; the model of hydraulic motor for asphalt pump: 05-110-BD31; hydraulic pump model: CBQ550-L or Power take off after engine GPC4-50R.

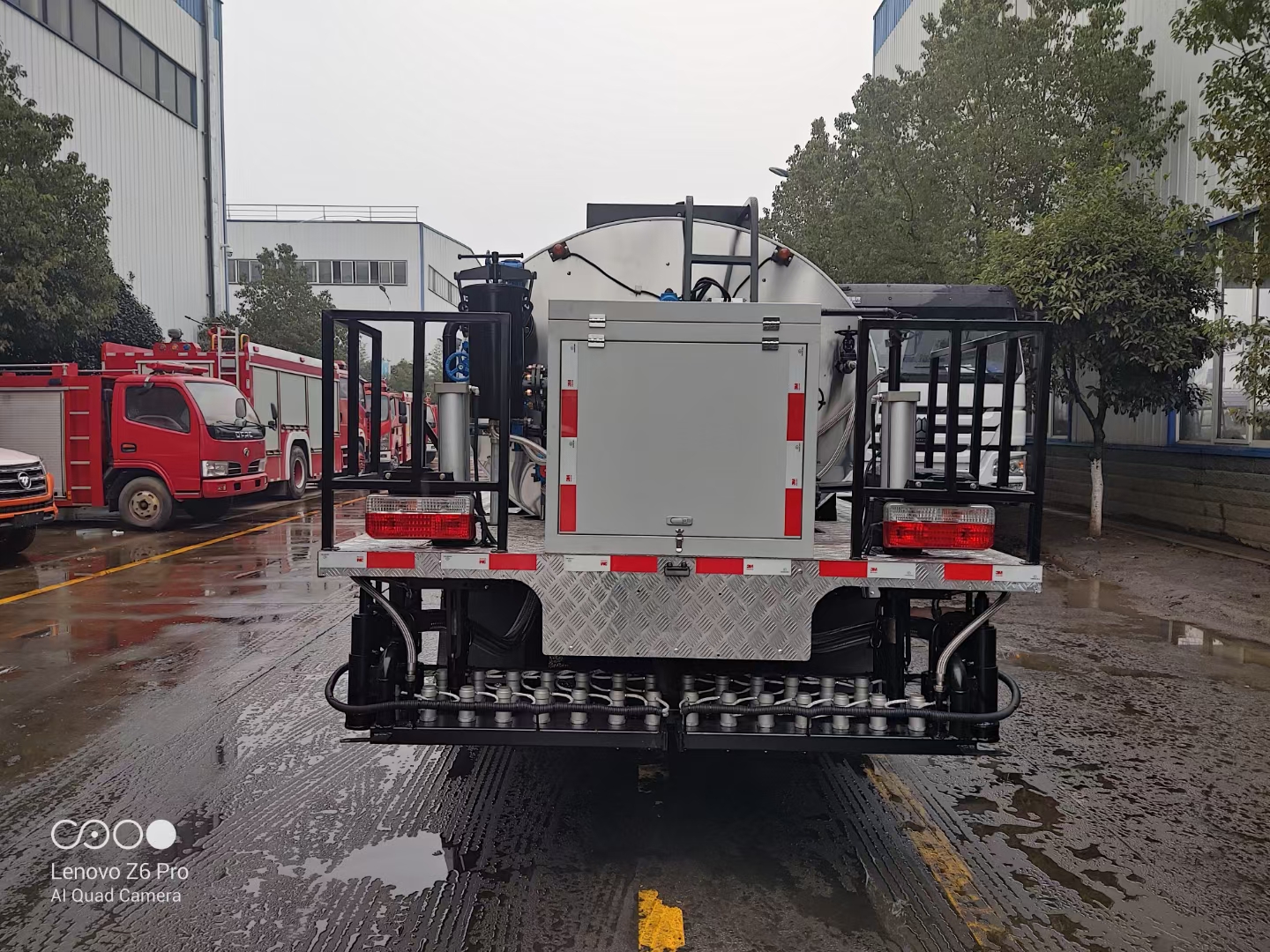

3, control way: controlled the control box at the rear working platform, 36 sets intelligent asphalt spraying nozzles (one controls one).
4, Heating method: Burner (Italy imported Riello brand burner model G20) + Automatic heating of heat transfer oil.
5, asphalt distributing width: 4.5m, 48 sets spraying nozzles for 6m spreading width is selective (10000RMB additional).
6, spreading amount: 0.25-3.5L/㎡;
7, gasoline generator unit: 6KW
8, Distributing medium: emulsified asphalt, hot asphalt, SBS hot asphalt, etc.
The performance parameter of SHACMAN brand 4*2 LHD 300HP 10cbm asphalt tanker distributor vehicle is as below.
Main technical parameters of asphalt spreading vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
| Item | Name | Model & specification | Number. |
| 1 | Truck chassis | SX1185 | 1 |
| 2 | Truck chassis engine | ISB180 50 | 1 |
| 3 | Asphalt tank volume | 10000L | 1 |
| 4 | Hydraulic pump | CBQ550-L(China hefei changyuan made） | 1 |
| 5 | Proportional valve | EFBG-03-160-HF（Taiwan made） | 1 |
| 6 | Overflow valve, directional valve | China shanxi yuci made | 1 |
| 7 | Asphlat pump | QGB950(max displacement 950L/min) | 1 |
| 8 | Motor hydraulically driven by the asphlat pump | 05-130-BD31(China Ningbo TILORMS made） | 1 |
| 9 | Borner | Italian imported（200,000 kcal/ hour） | 1 |
| 10 | Thermal oil pump | RY25-25-160（China Hebei made） | 1 |
| 11 | Controlling system | CLW-36-01（German STW） | 1 |
| 12 | Generator | 6Kw gasoline generator | 1 |
| 13 | temperature sensor | China Shanghai made | 2 |
| 14 | Speed sensor | GERMAN made | 1 |
| 15 | Pump speed sensor | German made | 1 |
<!--
--><!--
-->
SHACMAN 10CBM asphalt tanker distributing vehicle is a kind intelligent automated high-tech special vehicle for distributing different kinds of asphalts such as emulsified asphalt, diluted asphalt, hot asphalt, High viscosity modified asphalt, etc. It is used for distributing the permeable oil waterproof layer on the bottom of asphalt pavement of high grade highways. The asphalt distributing vehicle is made up of truck chassis, asphalt tank body, asphalt pump delivering and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, Pneumatic system, operation platform, etc.
It is very easy to operate this asphalt distributing vehicle, based on the technology of similar products at home and abroad; at the same time increased quality and technical content to ensure construction, Highlight improvement of construction conditions and humanized Design of Construction Environment. The reasonable and reliable design ensures Evenness of asphalt sprinkling, Computer controlling is stable and reliable and Vehicle technical performance has reached the world advanced level, etc. With all the improvements we've made, our CLW brand asphalt distributing vehicle can work in worse conditions.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
