our industry advantage

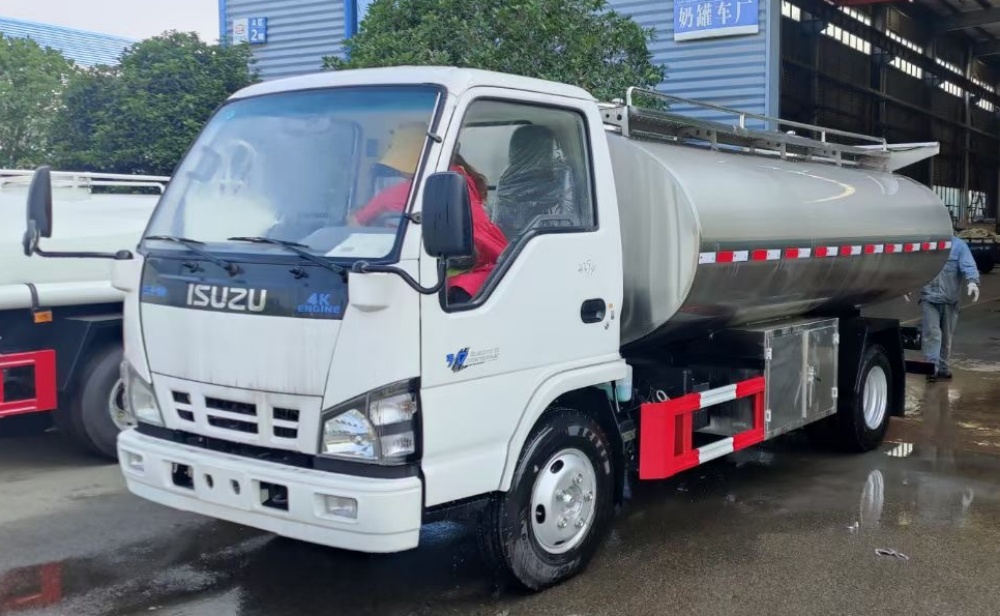

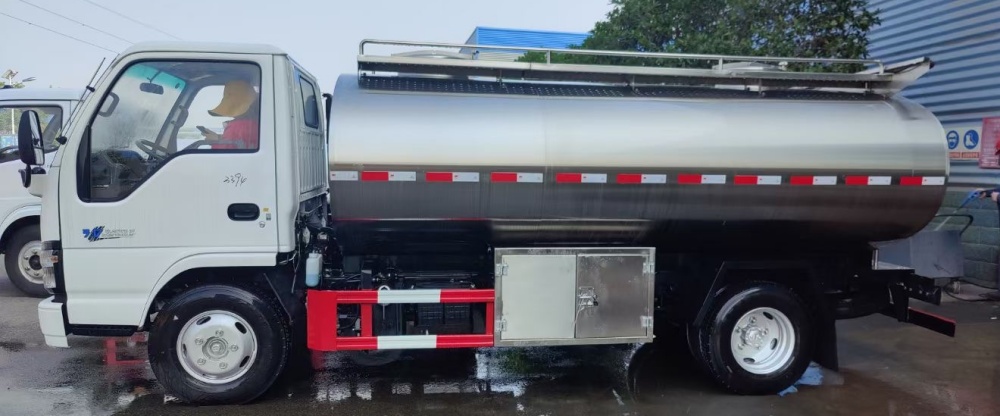

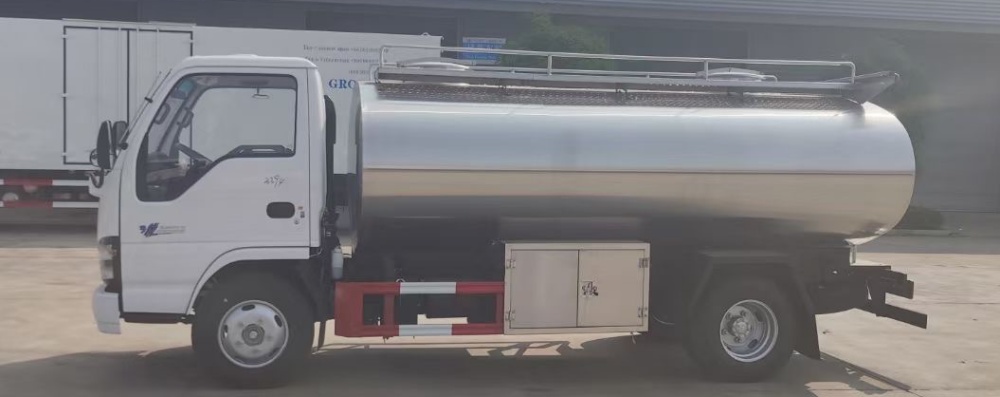

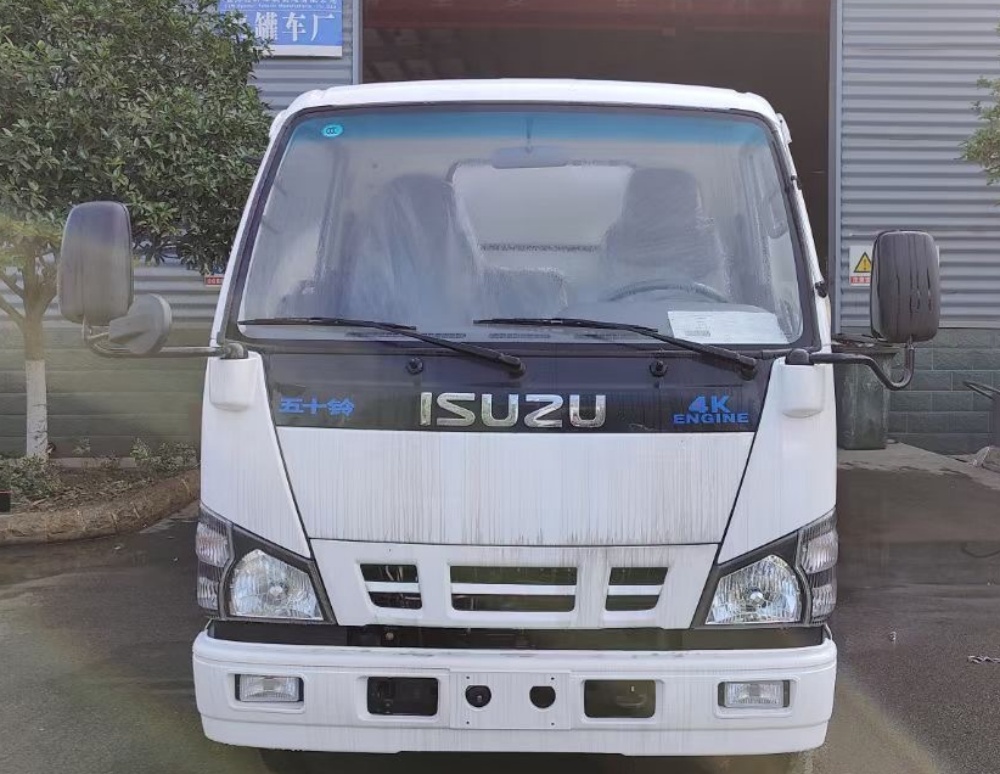

vehicle photo show
product parameters
3360mm wheelbase, 4*2 LHD
4KH1CN6LB 120hp diesel Euro 5 emission standard,
ISUZU MSB 5 speed manual gearbox, 5 forward gears with 1 reverse gear, manual type.
7.00R16 tires*6+1 spare,
2.5T front axle/4.8T rear axle,
oil cut braking with vacuum booster pump+air conditioner+power steering, USB port Radio, etc.
ks | Tank volume: 5,000L, and with one compartment; adopts high quality food grade stainless steel material. The outer layer is with insulation layer to avoid the fresh milk going bad. The inner tanker is polished by the special equipment, and making sure no milk hanging. The inner tanker is smooth, non sharp angle, etc. There is CIP (cleaning device) installed. | |
There are three layers of the milk tank, the inner tanker is manufactured by 3mm thick 304-2B food grade stainless steel; the middle is 80mm PU foam insulation layer, and 60mm PU foam of the manhole part, the temperature will be changed less than 1 degree within 24 hours; the exterior of the tanker is 1.2mm thick 304 stainless steel mirror panel. | ||
There is cleaning equipment inside the tank, cleaning rod (cleaning ball), cleaning pipe (with the diameter of 38mm), turntable cleaning sprayer to automatically cleaning when with water source. | ||

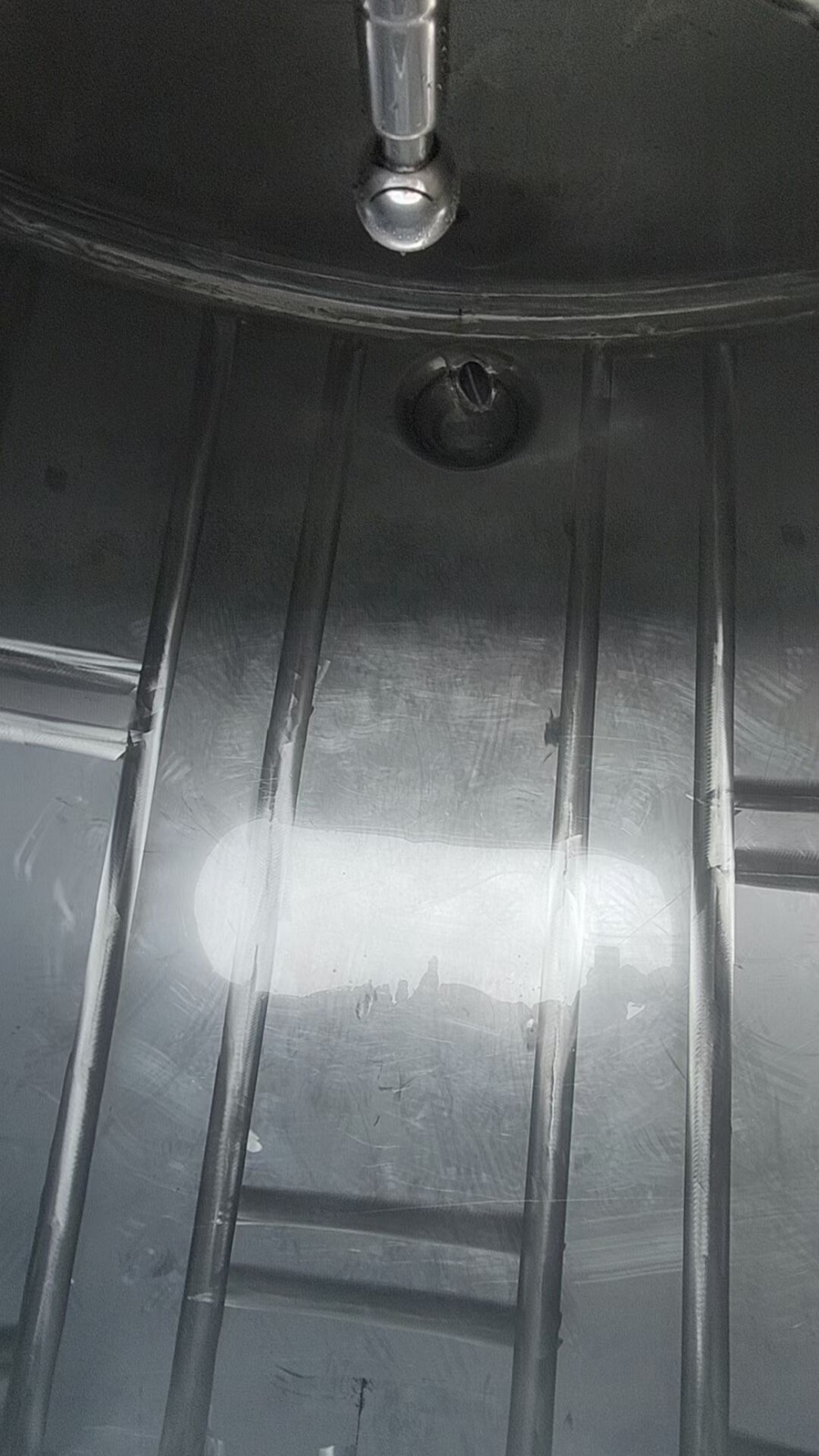

interior part of the foodgrade 304 stainless steel milk tanker truck

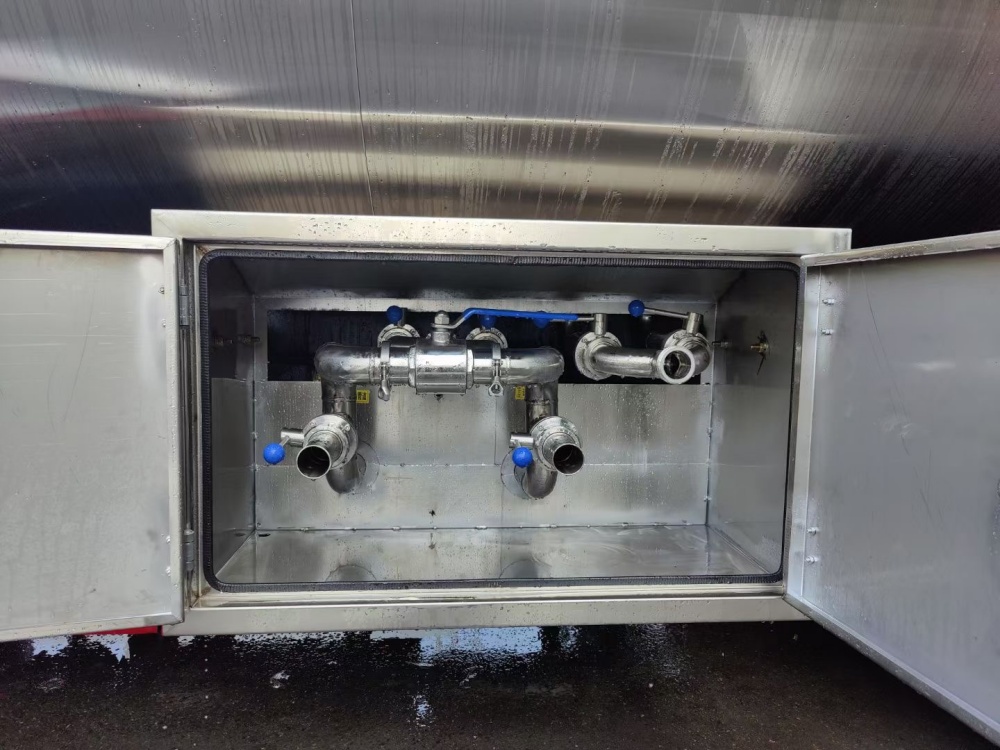

stainless steel pipeline and outlet and inlet
Milk tanker truck characteristic :
(1). The milk tank is made up of three layers:outside layer(for physical protection),middle layer(thermal insulation),inner layer tank(for milk filling).
(2). The thickness of thermal insulation layer is 80mm.
(3). The tanker liner is made of high quality food grade stainless steel,and the inner tank has been fine polished.
(4). Equipped with PIC cleaning devices.With function of thermal insulation: medium temperature change≤1°C during 24 hours.
(5). The tank can be divided into several parts according to demand to load different medium.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of milk truck, milk tank, milk tank trailer, tank truck for milk, stainless steel milk tank, food grade tanker, farm pickup tank truck, liquid food tank, milk trailer, etc. With many years’supplying, Chengli Special Automobile Co., Ltd. could supply 5000L-25000L milk tank truck, 30000L-50000L milk tank trailer, dongfeng milk tank truck for sale, FAW food grade milk truck for sale, ISUZU milk truck for sale, Forland milk truck, liquid food transported tank truck,etc. More information, please feel free to contact with Ms. Anita.
