our industry advantage

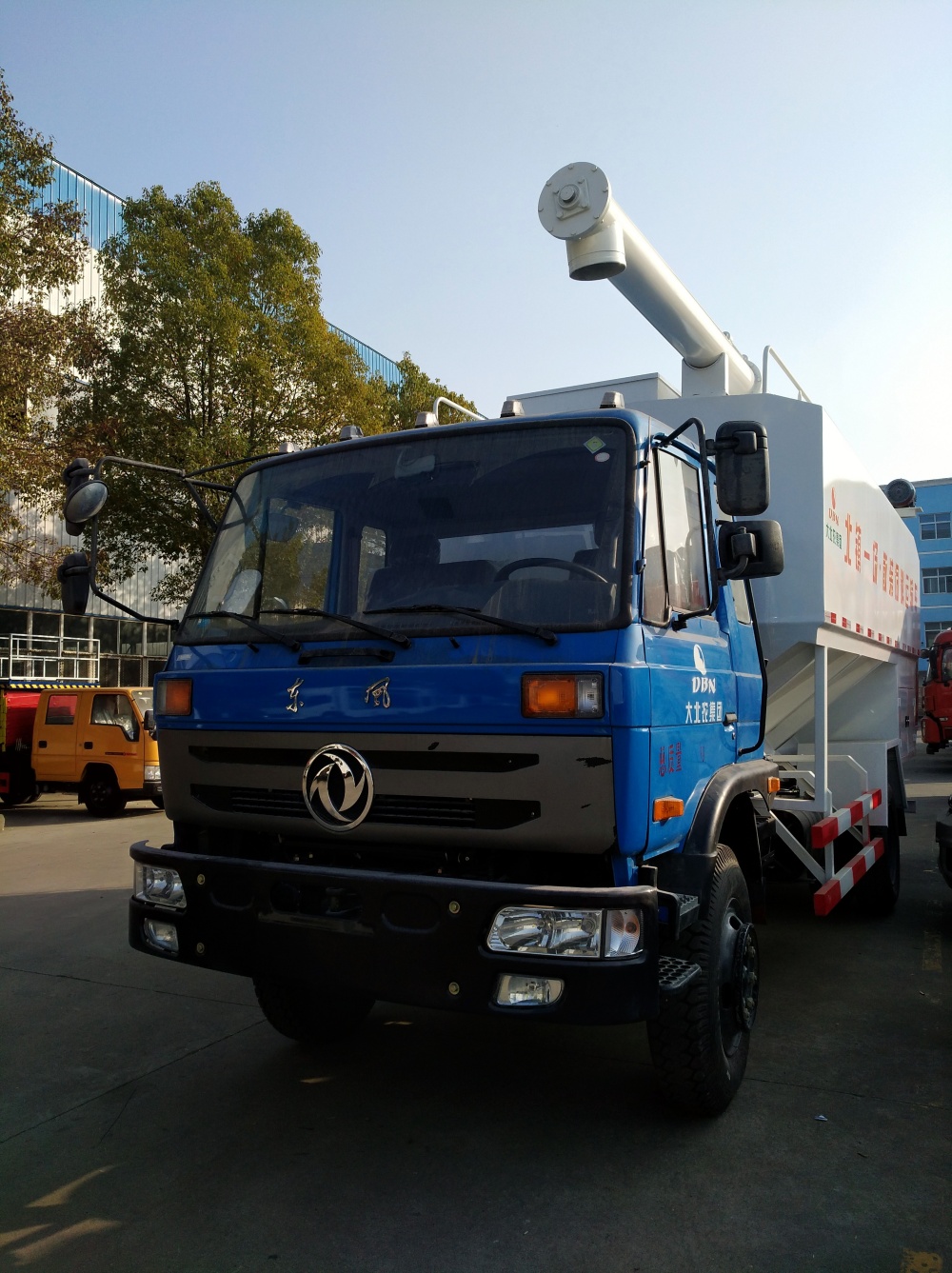

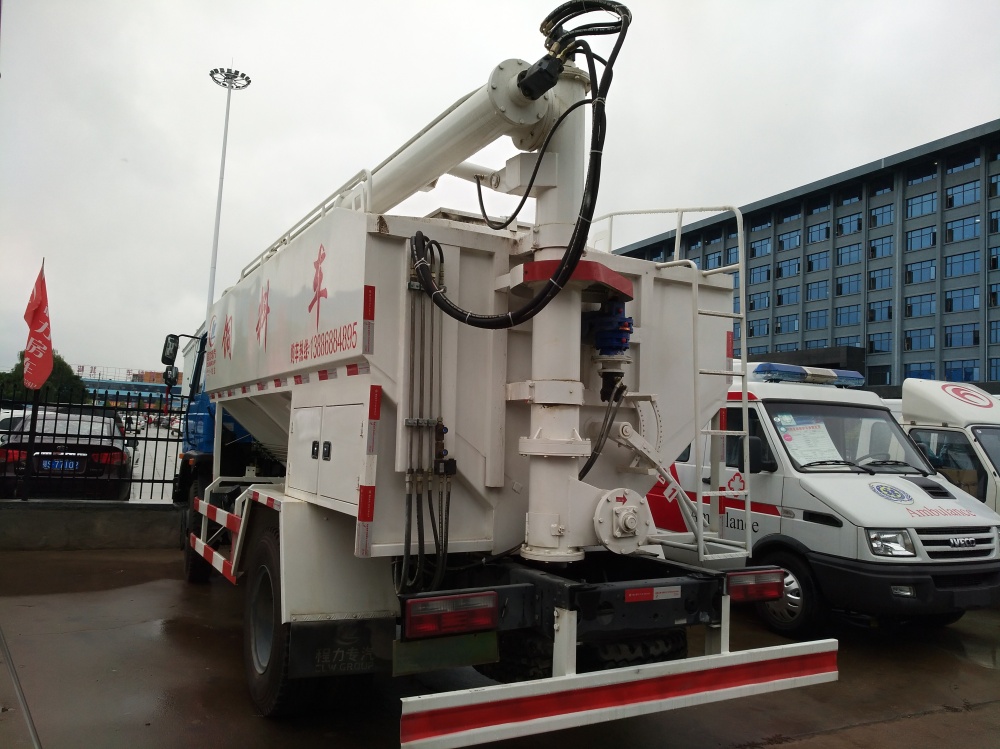

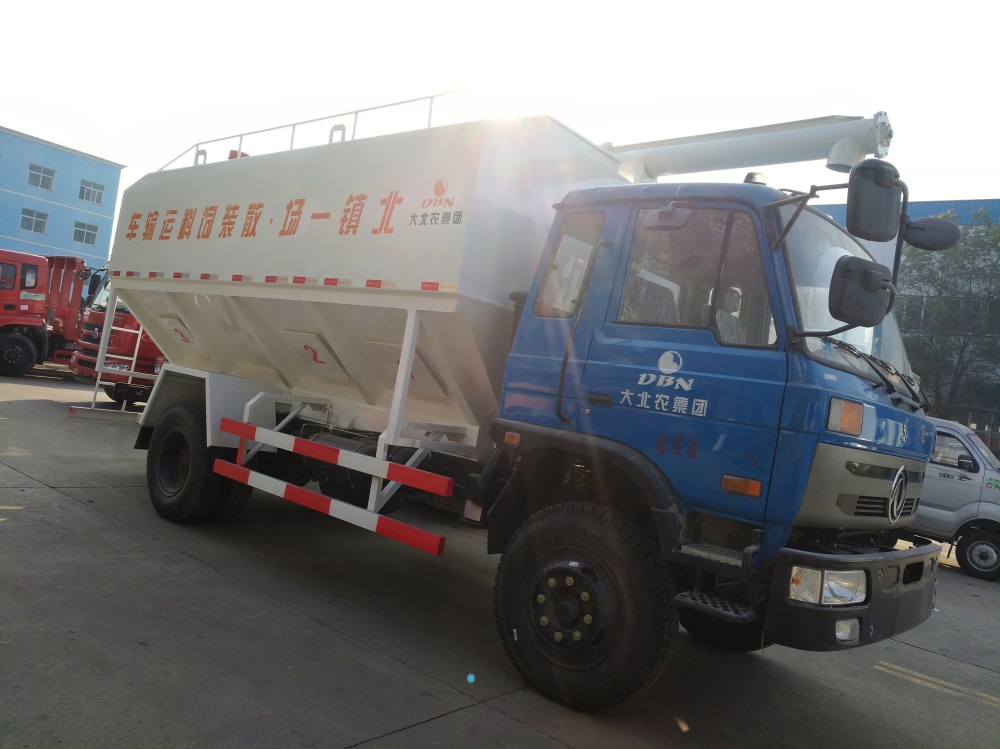

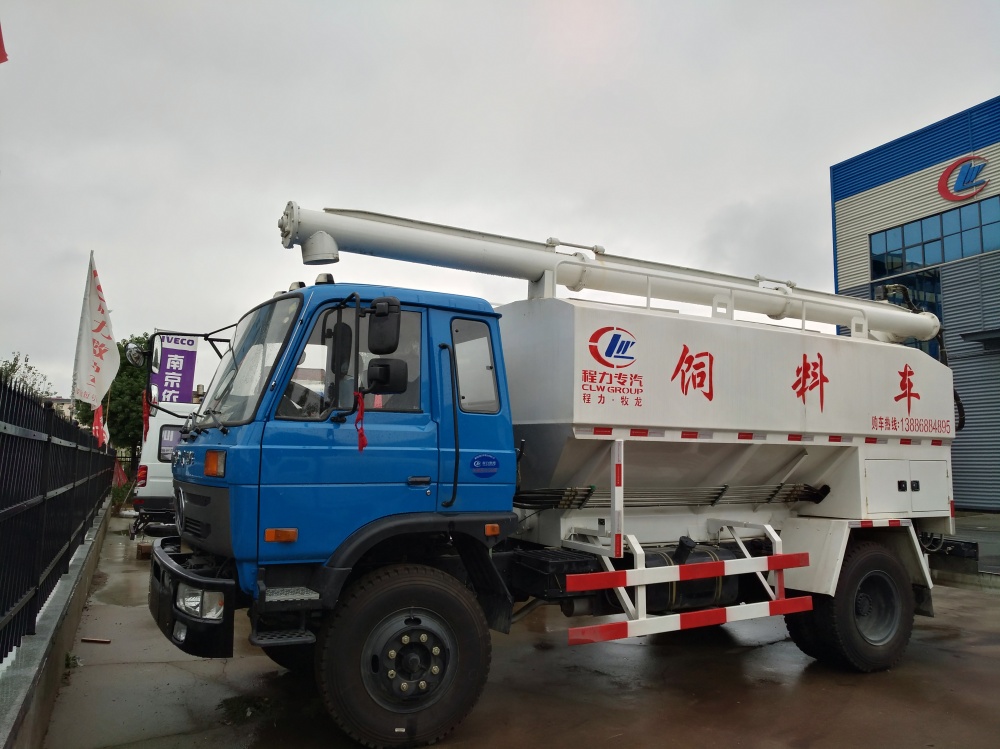

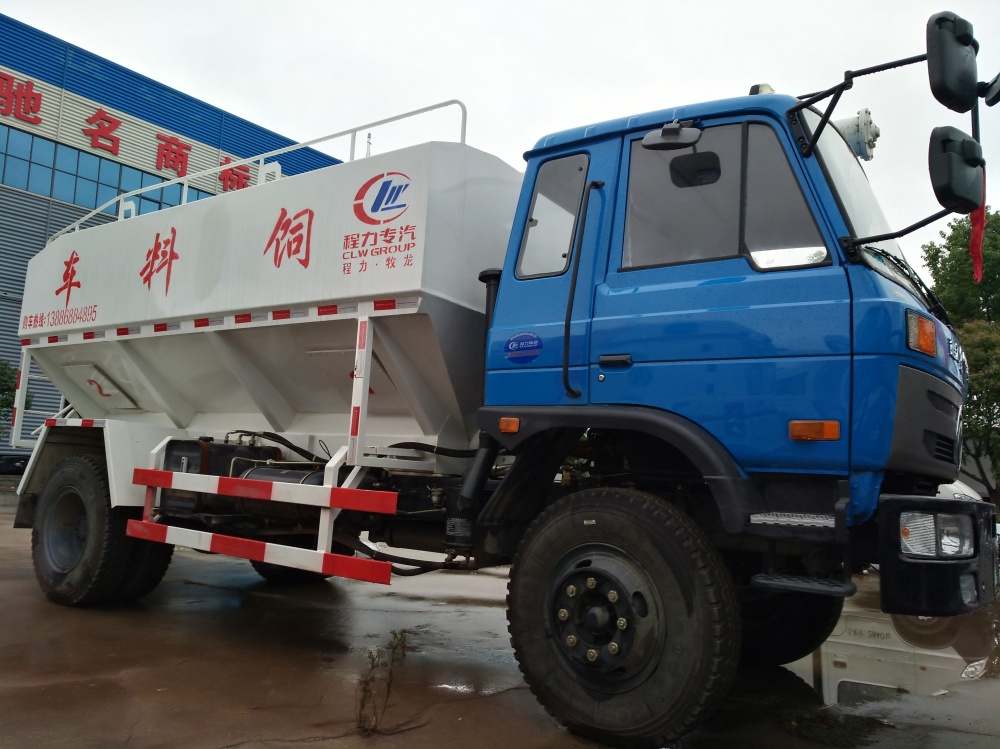

vehicle photo show
product parameters
| loading capacity | 8Tons 10Tons 12Tons | volume | 16cubic meters- 24cubic meters | compartments | 3 compartments | material | carbon steel, aluminum optional | truck head | dongfeng | wheelbase | 4500/4700/5000mm | engine | Cummins 170hp/190hp | tire | 9.00R20 or 10.00R20 | discharging way | electric system or hydraulic system | MOQ | 1 unit | color | different color upon request |
|---|
Bulk feed delivery truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the feed trucks manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories.
1, the material of the feed containers adopt high quality carbon steel;
2, the feed container is with 2/3/4/5/6 seperated compartments to load and unload 2/3/4/5/6 different feed pellets; every compartments with seperated discharging operation system.
3, clients can choose electronic system discharging or hydraulic discharging system for the bulk feed transportation trucks.
4, sealed transportation and reducing wastage, saving manpower and bag price, easy to operate and maintenance.
5, low centre of gravity, reliable loading and discharging, good apprearance with high quality.
Today, we will introduce hot sale 20m3 3 compartments bulk feed truck manufactured by Chengli Special Automobile Co., Ltd. as below.
main technical parameters of bulk feed truck as below.
| Main technical parameters | |||
| Product name | dongfeng bulk feed truck for sale | ||
| Total mass(Kg) | 15800 | Tank volume (m3) | 20m3-22m3 |
| Rated mass(Kg) | 6805 | Overall dimension(mm) | 9000×2450×3800 |
| Curb mass(Kg) | 8800 | Feed container dimension(mm) | 6050×2400×1900 |
| Approach/departure angle(°) | 20/12 | Front/rear suspension(mm) | 1430/2570 |
| Axle nos. | 2 | wheelbase(mm) | 5000mm |
| Wheelbase(Kg) | 5600/10200 | Max speed(Km/h) | 98 |
| Truck chassis | |||
| Chassis model | DFL1160BX1V | Manufacturer | Dongfeng Automobile CO., Ltd. |
| Approach/departure angle(°) | 20/18,20/13,20/19 | Tire specification | 10.00R20*6 |
| Steel spring | 7/9+6,8/10+8,10/11+10 | Front tread(mm) | 1880,1900,1920 |
| Fuel type | Diesel | Rear tread(mm) | 1800,1860,1820 |
| Emission standard | Euro V | ||
| Engine model | Manufacturer | Displacement (ml) | power(Kw) |
| ISB180 50 | Dongfeng Cummins | 590 | 132 |
| Truck chassis devices | 5000mm wheelbase, Cummins 180 diesel engine, dongfeng 6 speed gearbox, 9.00R20 rail tires, air conditioner, etc. | ||
| The feed container devices | The feed container is with the volume of 20m3-22m3(the density of the bulk feed pellet is from 0.5tons/m3 to 0.65tons/m3), | ||
| Feed container Volume | 20m3-22m3 | |
| Loading capacity (kgs) | About 10ton-12tons(according to the density of the feed) | |
| Overall dimension(L*W*H) | 9000×2450×3800mm(suitable for a 40' FR container) | |
| Approximate Feed tank dimension(L*W*H) (mm) | 6050×2400×1900 | |
| Discharging way | Electronic system discharging(3 phase 380Volts) or hydraulic system discharging | |
| Compartments | 3 separated compartments for 3 different feeds | |
| Discharging auger length | 8.5m | |
| Average discharging speed（kg/min） | 500-600kg/min | |
| Full discharging time (minutes) | About 20 | |
| max elevation angle of auger when discharging | 70 degree | |
| Rotation degree | Left-right 180 degree rotation(total near to 350 degree) | |
| Delivery distance | Horizontal max range（m） | 6.5 |
| Vertical max range（m） | 8.2 | |
| Residual rate | No more than 0.10 | |
Chengli Special Automobile Co., Ltd. Is the leading manufacturer and supplier of feed trucks in China. With many years’ development, we Chengli Company can manufacture and sell farm-oriented feed trucks(electronic system discharging or hydraulic system discharging) from 8m3 to 40m3 and 40m3-50m3 animal feed transported semitrailer, etc. And more and more CLW Brand feed trucks have been exported all over the world.If you're interested in our poultry feed transported vehicles, please feel free to call us by +86 13329899995.
