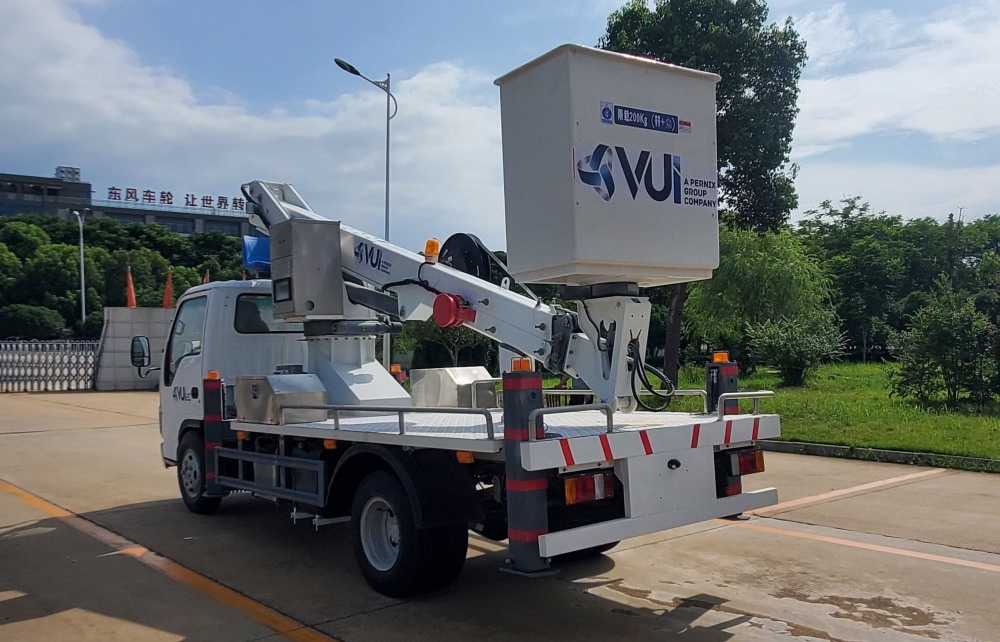

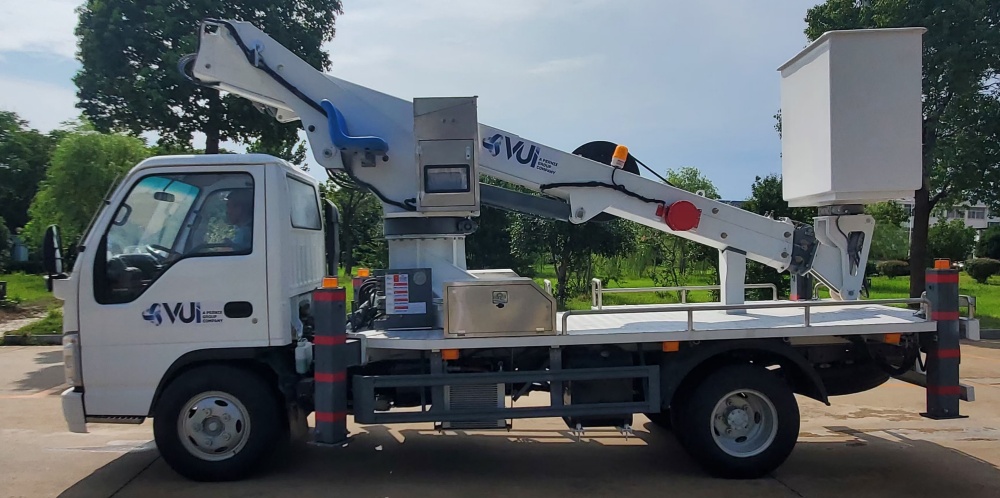

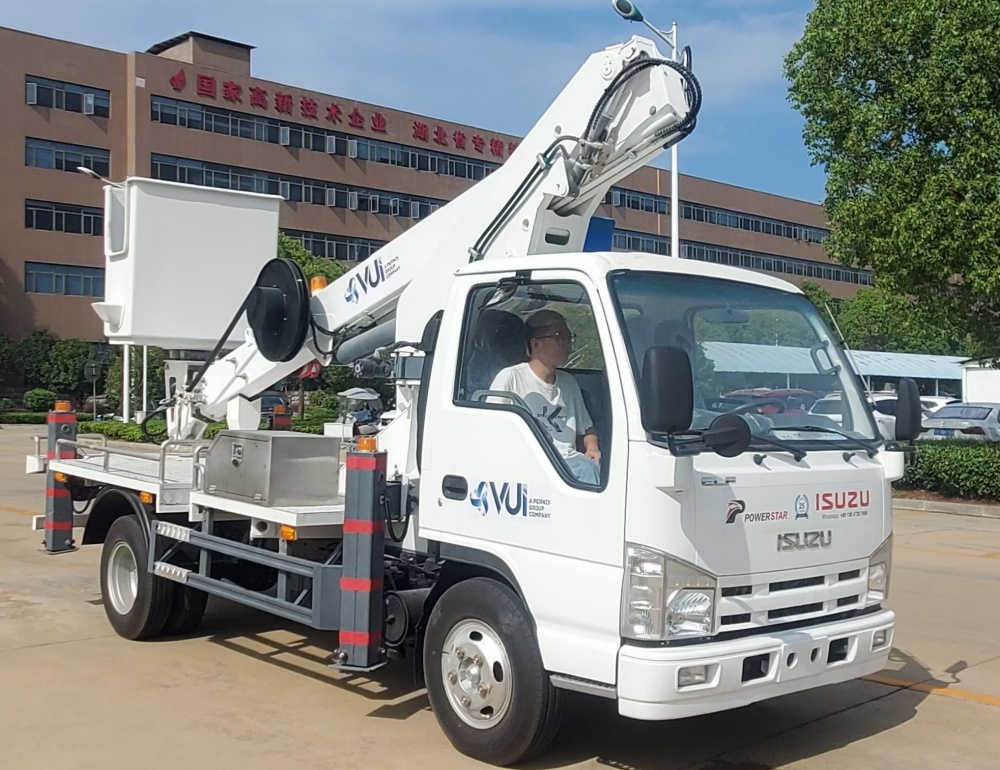

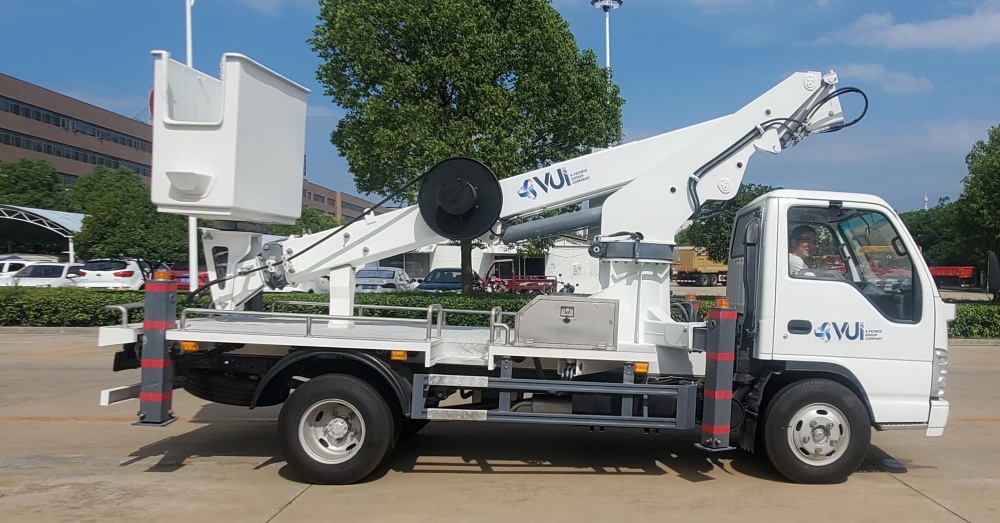

vehicle photo show
product parameters
Isuzu 4*2 LHD 120hp diesel telescopic aerial working platform truck, adopts ISUZU 100P single row driver cab with air conditioner and power steering, Isuzu 4KH1CN6LB 120hp Euro 6 diesel engine, 3360mm wheelbase, ISUZU MSB 5 speed manual gearbox, 7.00R16 rail tires, oil brake , etc.
The working height is 17.5 meters, the color of the upper part is engineering yellow according to the announcement, with four hydraulic telescopic legs (up and down extension and horizontal extension), a total of 12 oil cylinders, the legs are front V and rear H type, emergency pump, bucket belt 360 degrees Rotation, wireless remote control, and others are prepared according to factory standards
Our telescopic aerial working vehicle is flexible and can work flexibly in tight high-rise buildings. It is the leader of aerial work vehicles and leads the new trend of the industry. It is widely used in installation, maintenance and climbing operations in such industries as municipal administration, electric power, street lights, advertising, communications, photography, gardening, shipbuilding, transportation, docks, airports and ports, emergency rescue, and large industrial and mining enterprises.
main technical parameters of ISUZU aerial working platform truck telescopic type manufactured by Chengli Special Automobile Co., Ltd. is as below.
Item | Name | Specification /model |
1 | Truck name | Isuzu telescopic aerial working platform truck for sale （single row） |
2 | Truck model | CLW |
3 | Truck chassis | ISUZU QL1040 |
4 | Working height | 17.5m |
5 | Main technical parameters | platform ground height≥15.3m Platform max working range: Open-ended Platform working height at the max working range: Open-ended Platform max working range at the max working height: Open-ended Platform max working Angle of Tilt: 80° Rated mass of the working bucket: 200kg |
Outriggers | Type: Front V + rear H type, Individually control Outriggers nos.: 4 Control: Individually control or Linkage control Transverse Span of front outriggers: 4170mm Gradient: 120° Transverse Span of rear outriggers: 3930mm | |
Main operation | Operation position: revolving stage, remote operation Control type: ZYK Bus control system, elector-hydraulic proportional control system, realize step-less speed regulation | |
6 | Coaming and platform | Stainless steel fence and Non-slip platform |
7 | Boom construction mode | Three-section six-sided working arm，Synchronous scaling |
8 | Rotation device | Two-way 360° continuous rotation, 360° hanging basket |
9 | Engine model | |
10 | Overall dimension(L*W*H) | 5950×1950×2750 |
11 | Total mass | 4495kg |
12 | Curb mass | 4365kg |
13 | wheelbase | 3360mm |
As a professional truck lifting nacelle manufacturer in China, besides veritical aerial platform truck, we also have 360 degree rotate aerial working truck, which include knuckle boom platform truck and telescopic aerial truck.
The hydraulic aerial basket truck for sale is consisted of truck chassis, telescopic boom, hydraulic cylinders, power take off, motor, gear pump, operator seat, multi-way control valve, lifting hook, etc. It mainly used for street light maintenance, power maintenance, communication maintenance, planting by municipal corporation, power section, communication corporation, etc.
Chengli Special Automobile Co.,Ltd as a professional aerial working platform truck supplier in China, the aerial working truck height is from 10 meter to 32 meter. It is mainly used for building construction, street lamp maintain, plant pruning, power grid maintenance etc. More information, please call 0086 13329899995.
