our industry advantage
vehicle photo show
product parameters
The aerial working vehicle is flexible and can work flexibly in tight high-rise buildings. It is the leader of aerial work vehicles and leads the new trend of the industry. It is widely used in installation, maintenance and climbing operations in such industries as municipal administration, electric power, street lights, advertising, communications, photography, gardening, shipbuilding, transportation, docks, airports and ports, emergency rescue, and large industrial and mining enterprises.

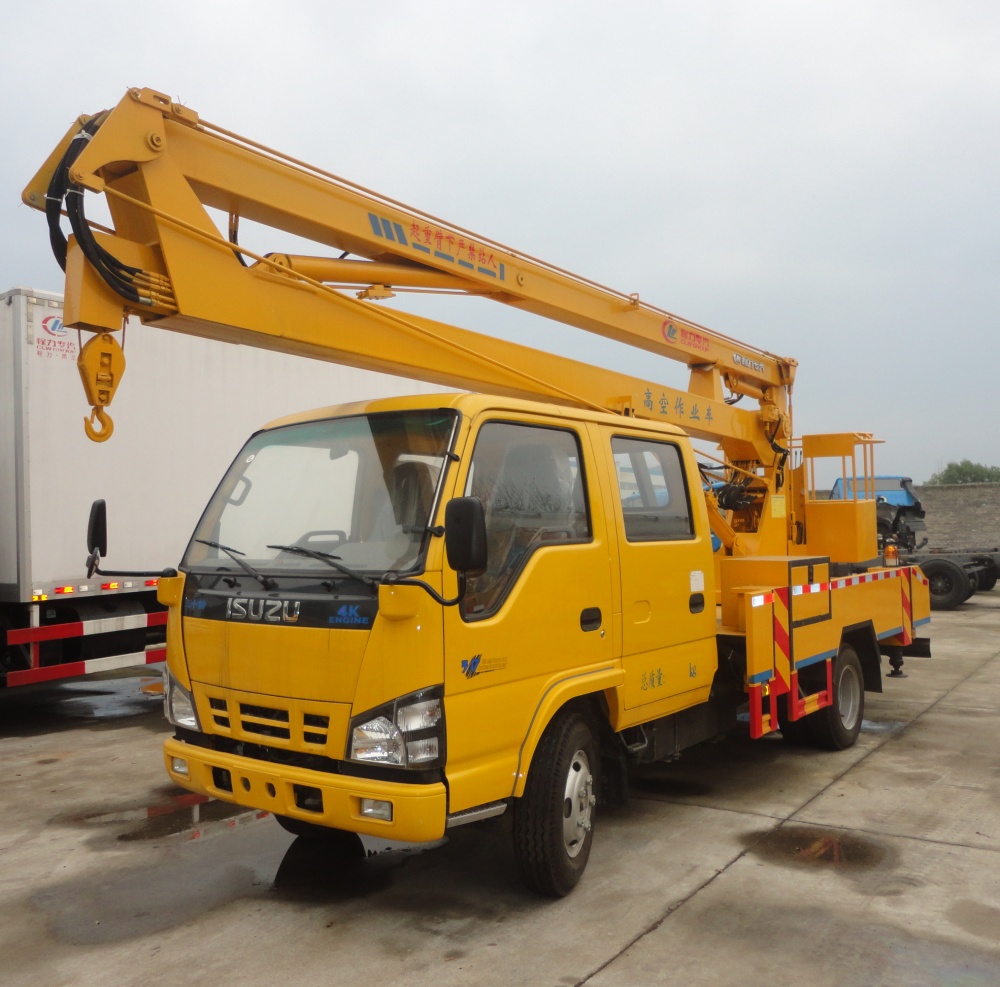

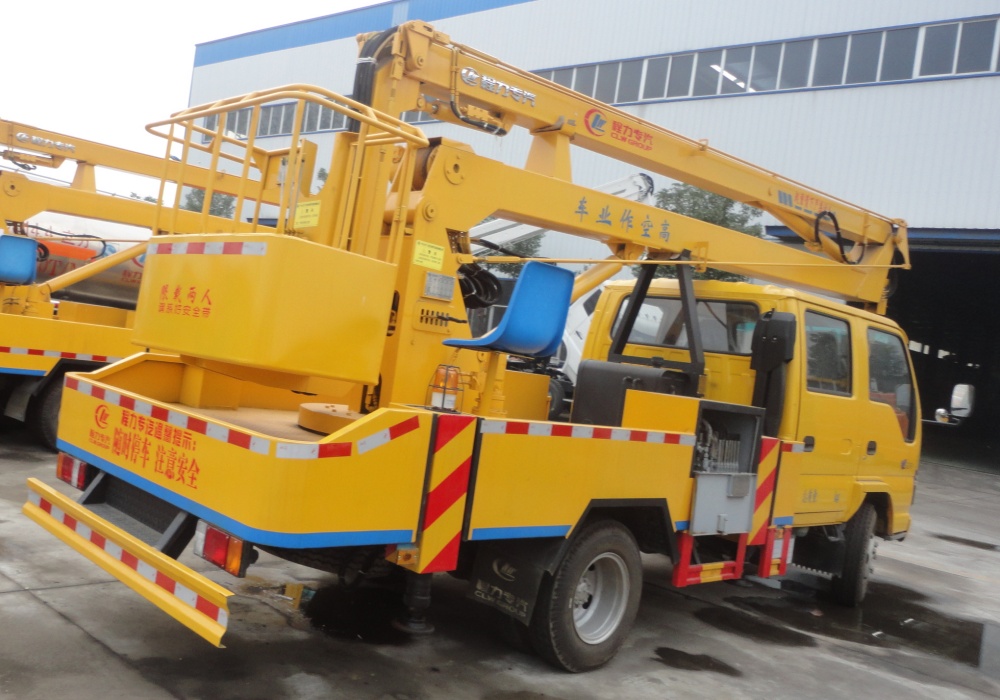

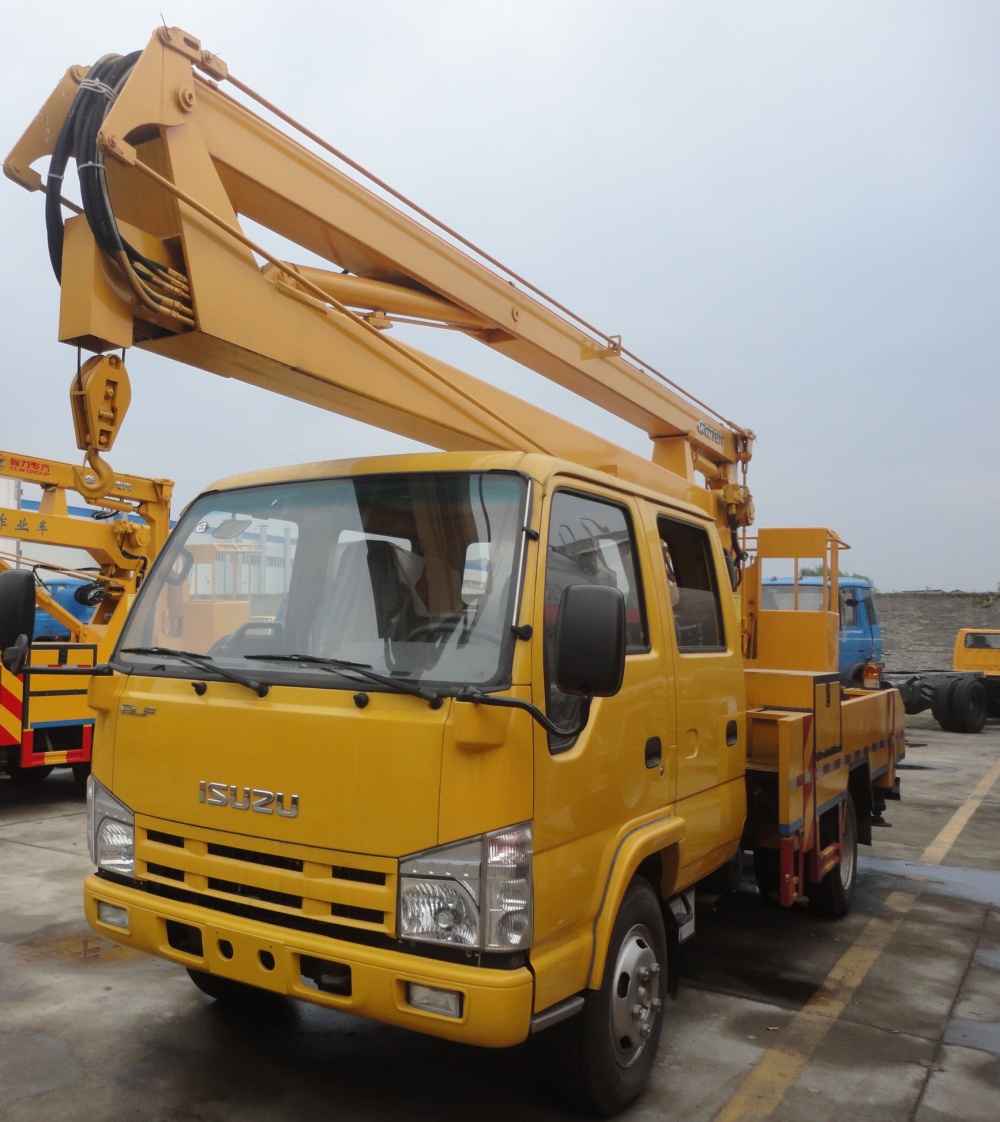

The max working height of ISUZU double cabs folded truck mounted aerial working platform is 18m( person height of 1.7m included). 3 sections folded boom, The working bucket and the turntable are operated by dual working positions, electro-hydraulic control, with remote flameout. The working arm rotates 360 degrees, four hydraulic outriggers, with hooks, a safe lifting weight of 900kg, a working bucket with a load limit of 200kg, and a lighting lamp inside the bucket. Steel toolbox, pattern anti-skid walking table, stainless steel fence.
Main technical paramters of ISUZU 18m truck mounted aerial working platform truck is as below.
1 | CLW5072JGK6HX truck mounted aerial working platform truck for sale(18m) | ||||
2 | Driver cab | Flathead double-cab, 2+3 seats in the driver cab | |||
Truck chassis model | QL1070BUKWY | ||||
Engine | Model | Power （KW/hp） | |||
4KH1CN6LB | 88/120 | ||||
Overall dimension(L*W*H) (mm) | 8600×2000×3200 | ||||
Total mass（kg） | 6625 | Curb mass（kg） | 6300 | ||
wheelbase（mm） | 3815 | Front/rear suspension（mm） | 1015/2470,1015/2450 | ||
3 | Max working height（m） | 18.5m | |||
Working range at the max working height（m） | 2.3m | ||||
Max working range（m） | 8.2m | ||||
Working height at the max working range（m） | 10.1m | ||||
Outriggers type | H | ||||
Outriggers Longitudinal span（mm） | 3650mm | ||||
Outriggers Horizontal span (mm) | 3550mm | ||||
Max lifting height(hook center)（m） | 8.4m | ||||
Max lifting mass(kg) | 1000kg | ||||
Working bucket dimension(L*W*H)(mm) | 1200mm×610mm×1100mm | ||||
We are a professional manufacturer of aerial platform trucks in china, and we can provide our customers various configuration trucks with different prices. Aerial platform truck is ideal for maintenance of traffic lights, street lights, landscaping trees, clearing of high window and other high aerial works.
Working height : 6m,8m,10m,12m,14m,16m,18m,20m,22m,24m.
Aerial platform truck also called articulated boom lift,truck mounted aerial platform, aerial work platform,hydraulic beam lifter, bucket truck ,bucket boom truck ,truck mounted crane ,truck mounted aerial lift, telescopic platform truck , aerial working platform , truck mounted aerial working platform.
Aerial platform truck superstructured by Chengli Special Automobile Co., Ltd. is as below.
1 Aerial working height 12m,14m,16m,18m,20m,20m,14m
2 the rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3 Aerial basket is moving system with dual action commands, one at ground level
and the other at the level of the basket
4 truck equipped with two rotating amber lights
5 Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working.
