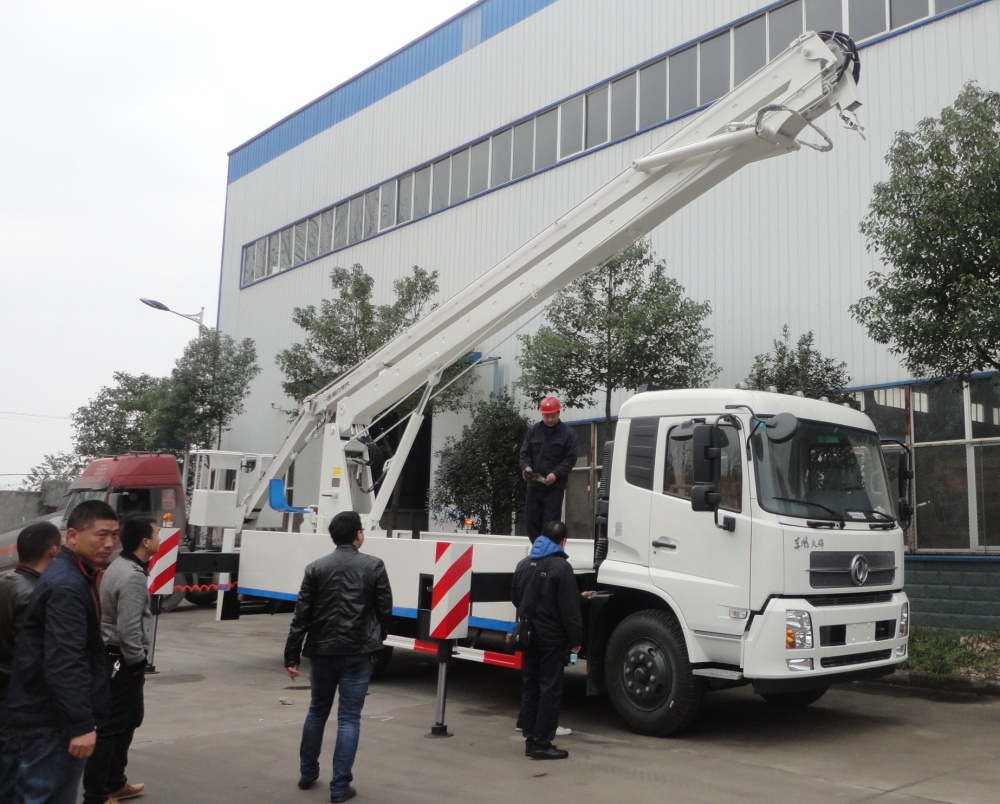

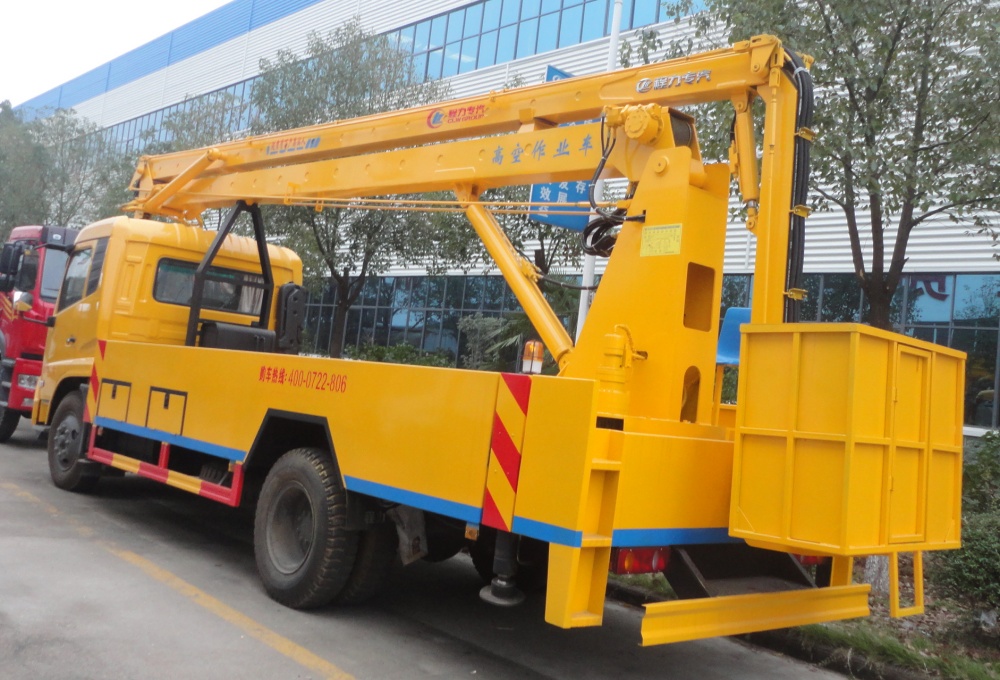

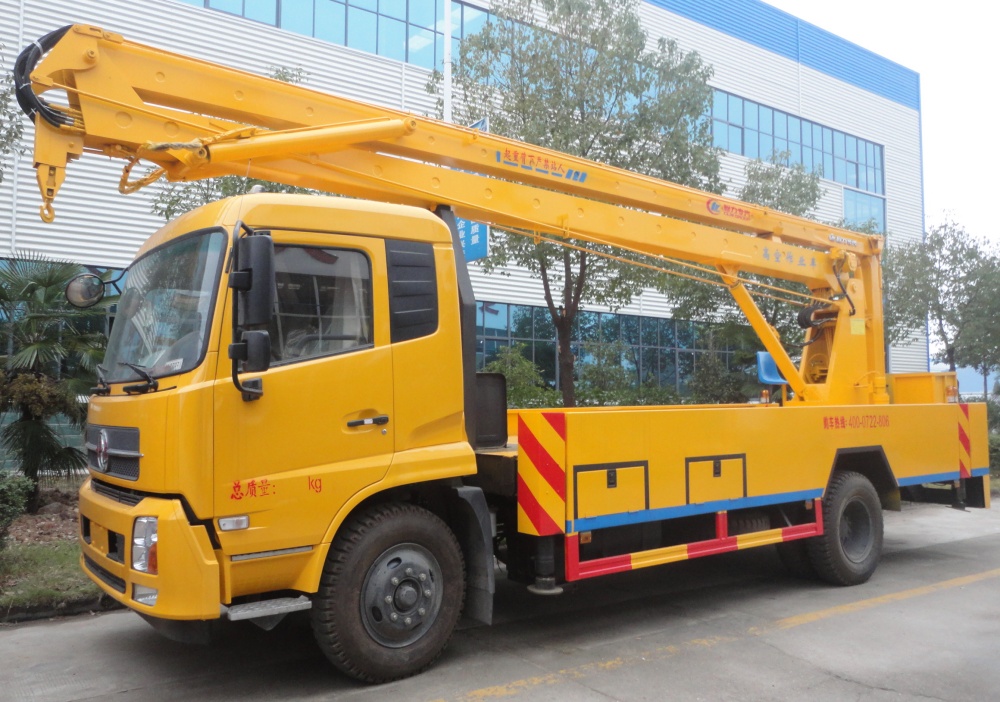

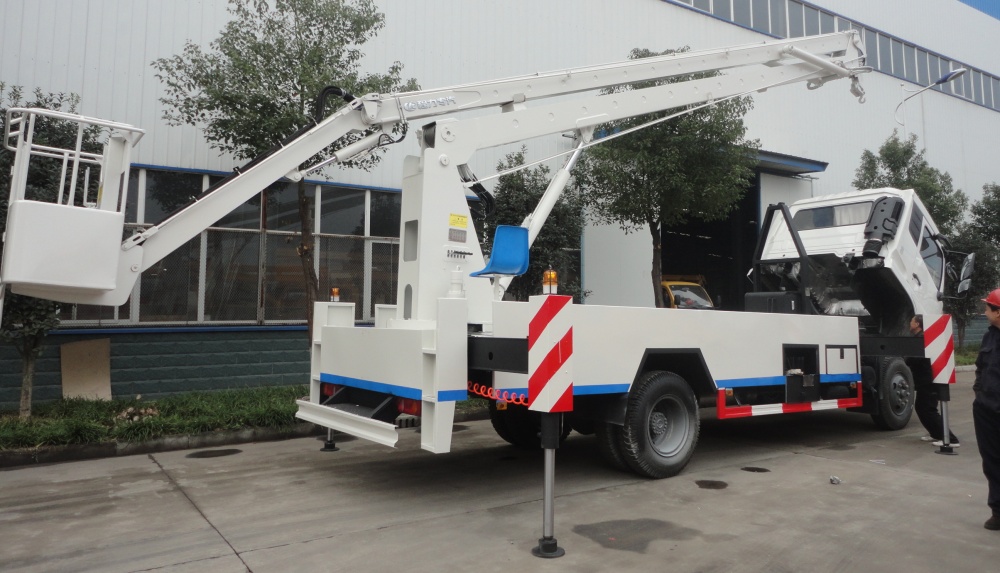

DSC09601_副本 DSC09463_副本 DSC09612_副本 DSC09457_副本

Product parameter details

product parameters

Customized 20m 22m working height dongfeng tianjin 4*2 LHD RHD overhead working platform truck for sale


Dongfeng tianjin 4*2 LHD 20-meter high-altitude operating vehicle adopts a folding crank arm structure, the operating arm is three-section folding, the working bucket and the turntable have double working positions, up and down operation, electro-hydraulic control, 360-degree rotation, four hydraulic outriggers, inside the working bucket It can control the start and stop of the engine, the boom has a hoisting hook system, the hook lifting weight is ≤900kg, the manned working bucket is 200kg, the steel tool box and the pattern anti-skid platform, and the stainless steel fence.

The chassis hydraulic outrigger balance system is equipped with a two-way hydraulic lock as standard, the working arm cylinder is equipped with a two-way balance valve as standard, and the working arm balance structure is an external balance lever.

The main components of Chengli aerial vehicle hydraulic cylinders, hydraulic tubing, hydraulic locks, balance valves, gear pumps, power take-offs, multi-way valves, etc., all adopt well-known domestic brands. The hydraulic system of the vehicle has stable reversing and flexible and convenient operation; The working arms are interlocked, safe and reliable, to prevent misoperation; H-shaped outriggers have a large span and good stability. The outriggers can be independently retractable and linked. The rear outriggers are equipped with outriggers and flashing lights for operation. When the outrigger is profiled, it sends out a light alarm signal.

The technical advantages of CLW brand truck mounted aerial working platform truck is as below.

1. The working bucket adopts mechanical self-balancing design, and its function is that the working bucket is always in a balanced state when working.

2. The rear outriggers of the vehicle are equipped with warning outline lights to improve the safety of warnings during vehicle operation.

3. The upper and lower operating systems can complete various operations on the working bucket and on the turntable.

4. The working bucket is equipped with night operation lights to make night operation safer.

5. The outriggers are individually adjustable. Each outrigger can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state.

6. The outrigger adopts front and rear H-shaped structure, which has larger bearing surface and higher stability.

7. The hydraulic system is equipped with a hydraulic locking system, whose function is to lock the cylinder in place after reaching the required position to prevent accidents.

Item

Name

Model/type

1

Product brand

CLW-aerial working platform truck for sale

2

Product name

dongfeng tianjin aerial work vehicle

3

Chassis model

dfl1120

4

Max working height

20m(person height 1.7m included)

5

Main technical parameters for working

The distance between ground and working platform: 18.3m

Max working range of the working platform≥8.7m

Working range at the working platform max working≥3.07m

Working height at the working platform max working range≥11.5m

Max loading capacity of the working bucket: 200kgs

Outriggers

type:H type outriggers

Nos.:4

Operating way:Independently adjustable and can also be linked

Horizontal span:2930mm

Longitudinal span:4500mm

Hook

Max lifting mass ≤1000kg,Safety value: 800kg。

Max lifting height: 8.5m

Main operation

Operation position: turntable, double working position operation of hanging bar

Operation mode: Manual hydraulic or electronic control operation

6

Hoarding and platform board

Steel toolbox and hoarding, Pattern non-slip walking board, Stainless steel railing

7

Boom structure

3 sections folded crane boom

8

Slewing device

Two-way 360° continuous rotation

9

Engine model

B170 33

10

Overall dimension(L*W*H)

9400×2490×3800

11

Total mass

11195kg

12

Curb mass

11000,11065kg

13

wheelbase

3950mm
