Customized SINO TRUK HOWO 22m aerial working platform truck for sale
The technical advantages of CLW brand aerial platform vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
1. Aerial platform vehicles is also named high-altitude operation truck, refers to the special vehicles for aerial operation with the delivery of staff and the equipment to the scene.
2. We are professional factory, supply Dongfeng aerial vehicles, JMC aerial working vehicles, JAC aerial platform vehicles, Qingling high-altitude working truck, Foton aerial platform operating vehicles, etc., working height of 8-24 meters for choose.
3. Produced by the high-altitude operation vehicles, using double lift hydraulic cylinder, up and down a total of four hydraulic cylinders, the conventional aerial vehicles only two lifting cylinders, double lift hydraulic cylinder in the lift, rotation process does not tremble, do not shake, stability Sex, safety is better.
4. High-altitude operation vehicles using domestic or imported reversing valve and hydraulic cylinder, for the balance, flexible and convenient operation, outrigger and work arm interlocking, outrigger and work arm interlock to prevent misuse over.
5. Installed four hydraulic legs, to ensure vehicle stability and safety in operation.
6. Optional aerial crane hook, hook hanging 1 ton and the electronic control system.
7. Aerial platform vehicles can be up and down operation, 360-degree rotation, install the hand throttle.
8. If you have any special requirements for the aerial vehicles, please let us know, we can design for you.

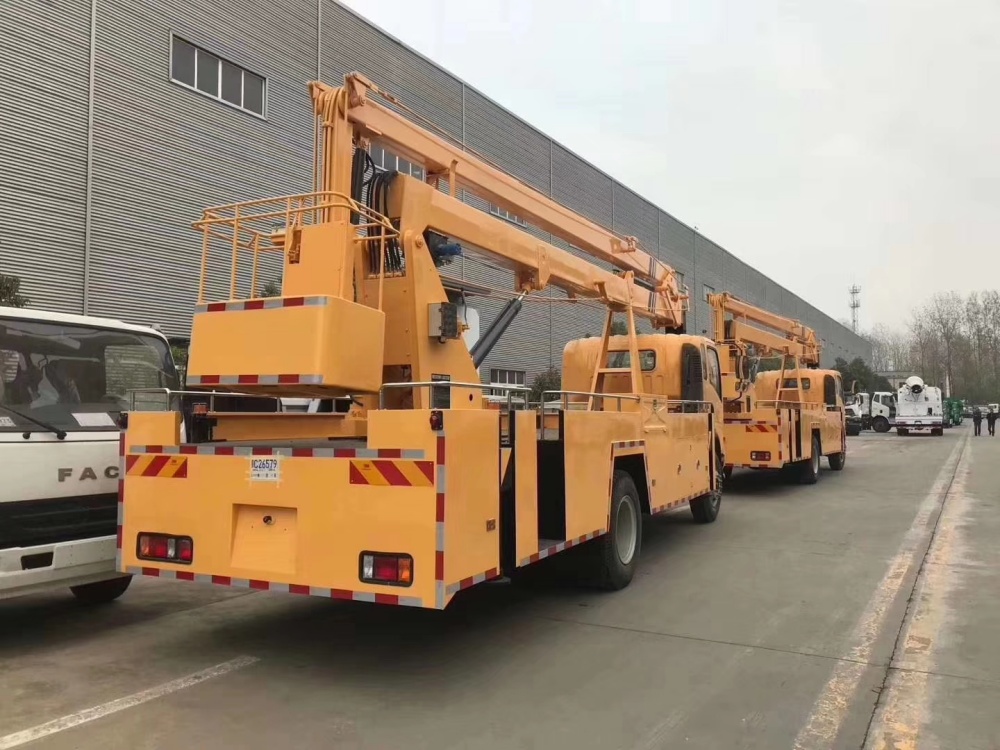

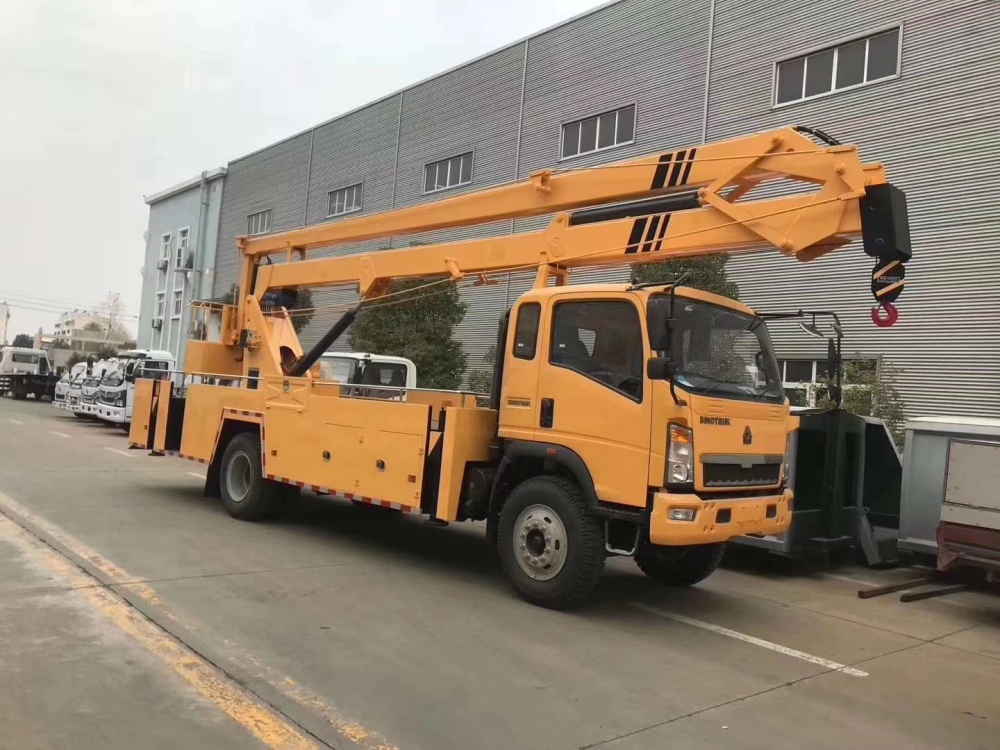

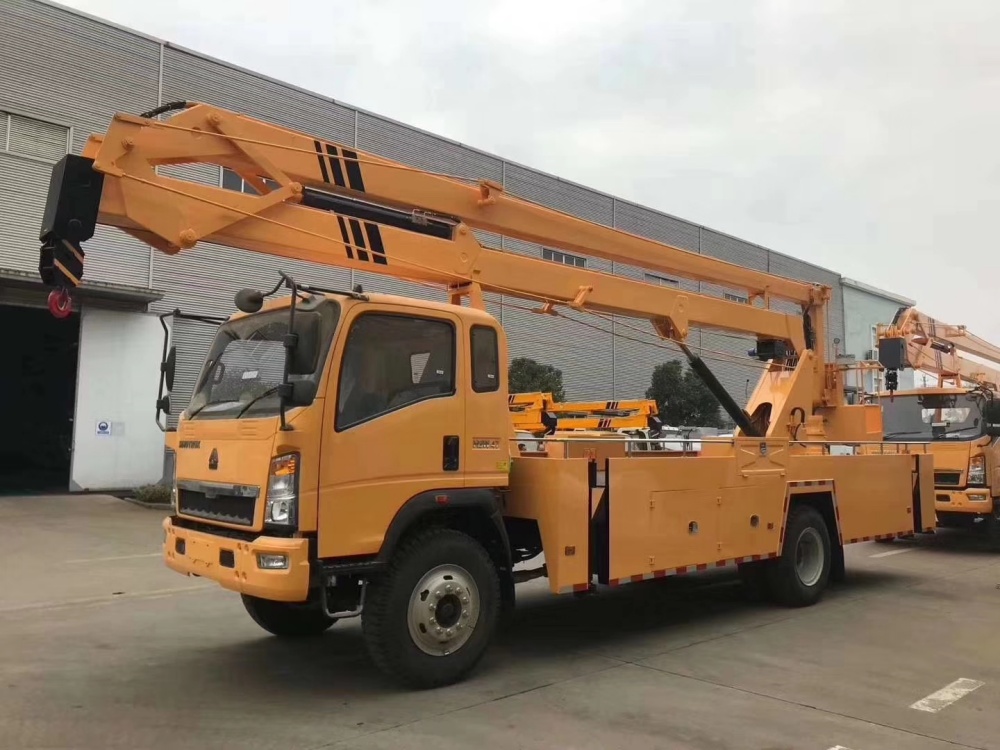

Two units of SINO TRUK HOWO 22m aerial working platform truck adopts SINO TRUK HOWO L3W 2080mm wide single row driver cab, 4700mm wheelbase, YC4E160-33 160hp Euro 3 diesel engine, 3.2tons front axle/8tons rear axle, 8.25R20 rail tires, 24V electric voltages, etc.
The working height of SINO TRUK HOWO 22m overhead working truck is 22m.
Whole Truck Main Technical Parameter | ||||
Product Name | SINO TRUK HOWO 4*2 LHD folded aerial lifting bucket truck (22) | Gross Vehicle Weight (kg) | 10490(Kg) | |
Curb Weight (kg) | 10295(Kg) | Overall Dimension(mm) | 10000×2500×3600(mm) | |
Working Height(m) | 22m | Cab Allowed Persons | 3 | |
Axle No. | 2 | Wheelbase (mm) | 4700 | |
Chassis Technical Parameter | ||||
Chassis Model | ZZ1127 | Chassis Name | Truck Chassis | |
Chassis Brand | HOWO brand | Manufacturer | SINO TRUK HOWO company | |
App./ Dep. Angle(º) | 27/14(°) | Tire Spec. | 8.25R20*6 with 1 spare tire | |
Leaf Spring No. | 9/11+7, | Front/rear suspension (mm) | 1240/2550(mm) | |
Fuel Type | Diesel | Front/rear tread(mm) | 1904/1796(mm) | |
Drive Type | 4x2 | Driver cab | SINO TRUK HOWO L3W 2080mm wide single row driver cab | |
Steering Type | Power steering | Gear Box | 6 speed gearbox, Manual | |
Brake | Air cut braking | Air-conditioner | Without, air conditioner is selective | |
Max speed(km/h) | 95km | Front/rear axle | 3.2ton/8ton | |
Engine Technical Parameter | ||||
Engine Model | YC4E160-33 | Emission Standard | Euro Ⅲ | |
Displacement ( ml ) | 4257 ml | Power (KW) | 118KW/160hp | |
Work platform parameter | 1. carbon steel working bucket of the loading capacity of 200kgs | |||
2, 4 sets of hydraulic outriggers with two-way hydraulic locks | ||||
3, lifting capacity of the lifting hook: 1,000kgs | ||||
4. Max working platform height: 22m | ||||
5. hydraulic control, up- down operation, 360° full rotation; hydraulic oil cylinders of working arms with two-way balancing valves | ||||
6, three sections folding working arms | ||||
7, the truck color upon request, free to paint company logo | ||||
Aerial work platform truck, also called high altitude operation truck, is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
