our industry advantage
vehicle photo show
product parameters

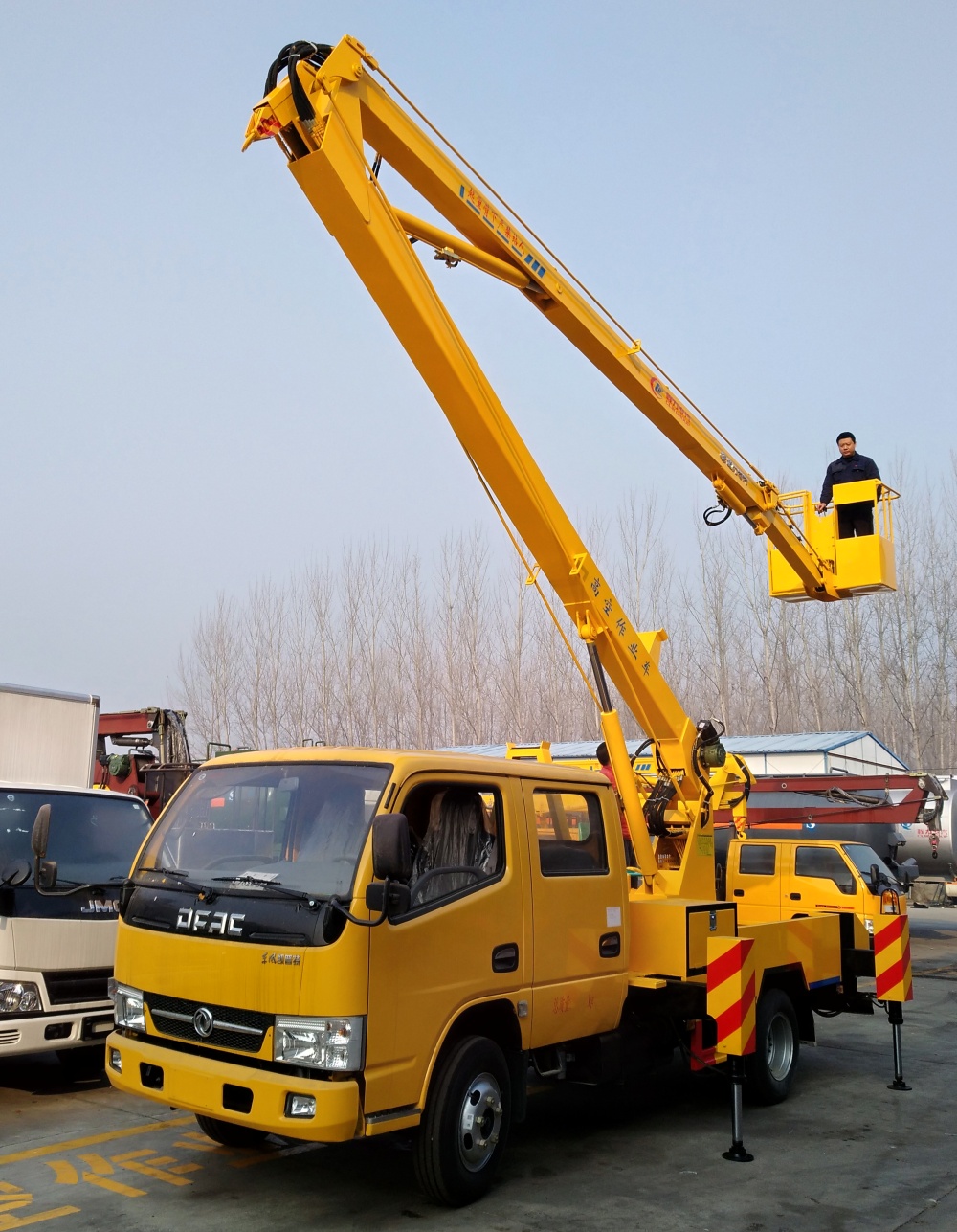

Dongfeng 4*2 LHD 14-meter high-altitude operating vehicle adopts a folding crank arm structure, the operating arm is three-section folding, the working bucket and the turntable have double working positions, up and down operation, electro-hydraulic control, 360-degree rotation, four hydraulic outriggers, inside the working bucket It can control the start and stop of the engine, the boom has a hoisting hook system, the hook lifting weight is ≤900kg, the manned working bucket is 200kg, the steel tool box and the pattern anti-skid platform, and the stainless steel fence.
The chassis hydraulic outrigger balance system is equipped with a two-way hydraulic lock as standard, the working arm cylinder is equipped with a two-way balance valve as standard, and the working arm balance structure is an external balance lever.
The main components of Chengli aerial vehicle hydraulic cylinders, hydraulic tubing, hydraulic locks, balance valves, gear pumps, power take-offs, multi-way valves, etc., all adopt well-known domestic brands. The hydraulic system of the vehicle has stable reversing and flexible and convenient operation; The working arms are interlocked, safe and reliable, to prevent misoperation; H-shaped outriggers have a large span and good stability. The outriggers can be independently retractable and linked. The rear outriggers are equipped with outriggers and flashing lights for operation. When the outrigger is profiled, it sends out a light alarm signal.
Item | Name | model/specification |
1 | Truck brand | CLW brand truck mounted aerial working platform for sale |
2 | Truck model | CLW5060JGKD6 |
3 | Truck chassis model | EQ1070 |
4 | Overall dimension(L*W*H)(mm) | 7400×2000×3100 |
5 | Total mass(kgs) | 5520 |
6 | Curb mass(kgs) | 5195 |
7 | Wheelbase(mm) | 3308 |
8 | Engine model | H20-120E60 / 90kw 122hp |
9 | Working parameters | Max working height: 14m( person height:1.7m included) The distance between ground and working platform: 12.3m Max working range of the working platform≥6.46m Working range at the working platform max working≥2.05m Working height at the working platform max working range≥8.6m Max loading capacity of the working bucket: 200kgs
|
Working bucket | Max loading capacity of the working bucket: 200kgs Working bucket dimension(L*W*H): 1200*600*1100mm | |
Outriggers | type：H type outriggers Nos.：4 Operating way：Independently adjustable and can also be linked Horizontal span：2680mm Longitudinal span：3000mm | |
hook | Safety value mass≤900kg Max lifting height: 7.2m
| |
Operation system | Operation position: turntable， double working position operation of hanging bar-two operation systems Operation mode: electronic control operation
| |
Hoarding and platform board | Steel toolbox and hoarding, Pattern non-slip walking board, | |
Boom structure mode | 3 sections folded boom | |
Boom material | Q345B Steel alloy structural steel | |
Balance device | External balance rod | |
Slewing device | Two-way 360° continuous rotation | |
Safety device | The outrigger cylinder is equipped with a hydraulic lock, and the working arm cylinder is equipped with a two-way balance valve. |
Aerial work platform truck, also called high altitude operation truck, is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
Chengli Special Automobile Co., Ltd. is the leading mnaufacturer and supplier of aerial working platform trucks in China since 2004s. We can design and produce 12m overhead working truck, 14m-16m aerial working platform truck, 18m-20m high altitude operation truck, 20m-22m aerial working truck, etc.More information, please feel free to contact with Ms. Anita Deng.
