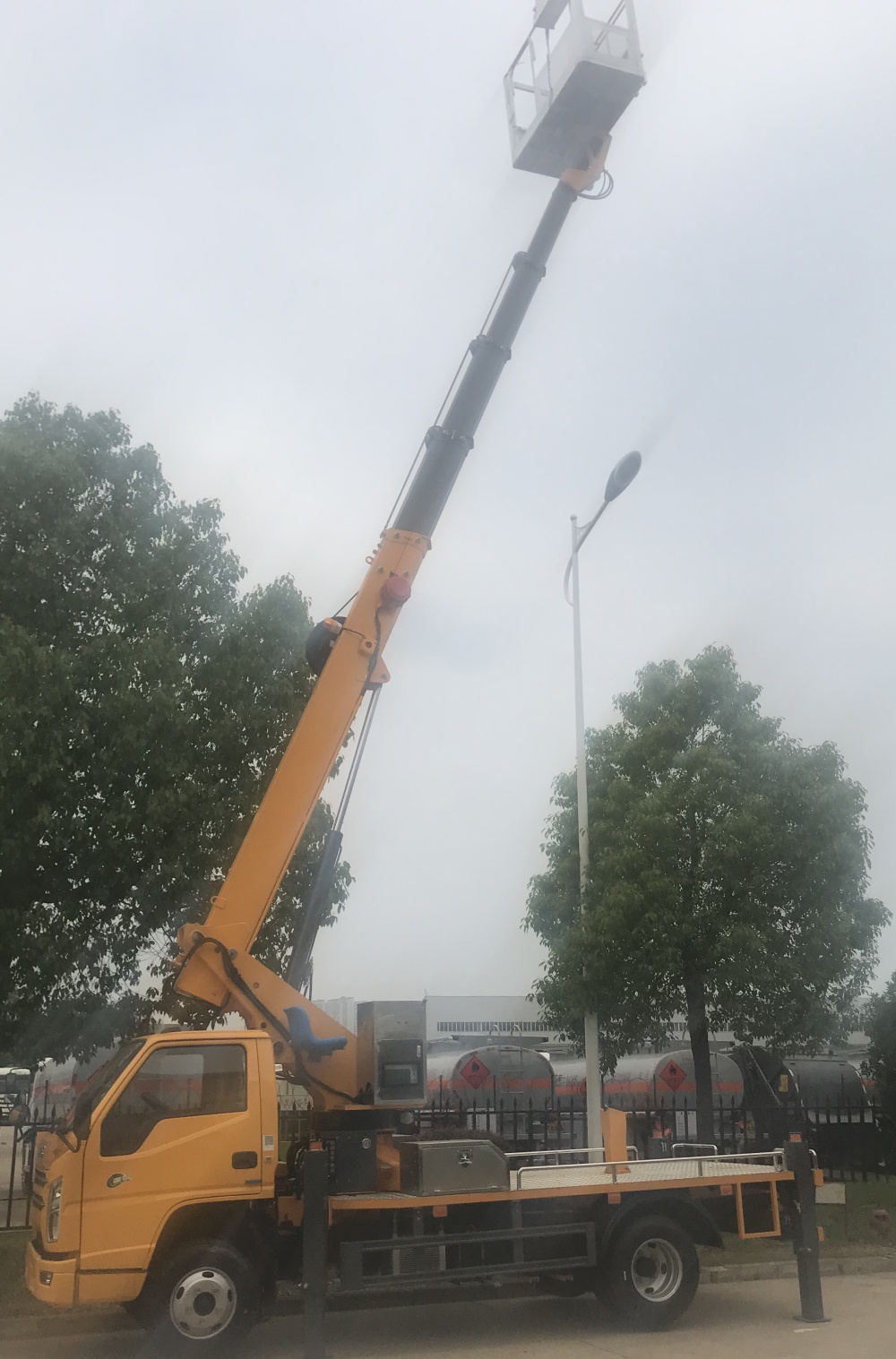

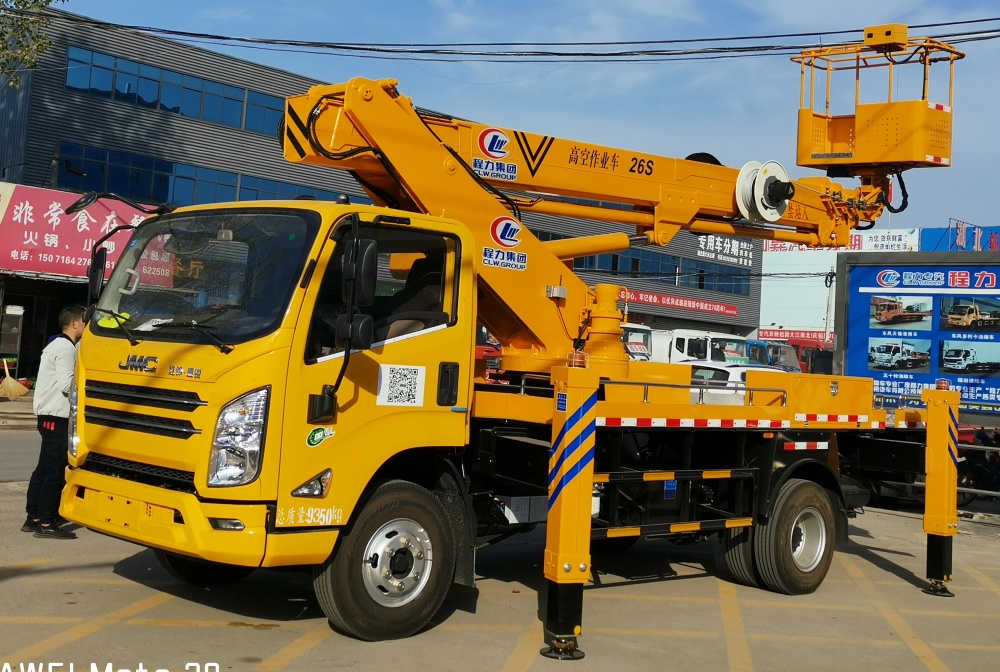

Customized JMC brand 18m telescopic aerial working platform truck for sale
Aerial work platform truck, also called high altitude operation truck, is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
Chengli Special Automobile Co., Ltd. is the leading mnaufacturer and supplier of aerial working platform trucks in China since 2004s. We can design and produce 12m overhead working truck, 14m-16m aerial working platform truck, 18m-20m high altitude operation truck, 20m-22m aerial working truck, etc.More information, please feel free to contact with Ms. Anita Deng.
The technical advantages of CLW brand aerial platform vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
1. Aerial platform vehicles is also named high-altitude operation truck, refers to the special vehicles for aerial operation with the delivery of staff and the equipment to the scene.
2. We are professional factory, supply Dongfeng aerial vehicles, JMC aerial working vehicles, JAC aerial platform vehicles, Qingling high-altitude working truck, Foton aerial platform operating vehicles, etc., working height of 8-24 meters for choose.
3. Produced by the high-altitude operation vehicles, using double lift hydraulic cylinder, up and down a total of four hydraulic cylinders, the conventional aerial vehicles only two lifting cylinders, double lift hydraulic cylinder in the lift, rotation process does not tremble, do not shake, stability Sex, safety is better.
4. High-altitude operation vehicles using domestic or imported reversing valve and hydraulic cylinder, for the balance, flexible and convenient operation, outrigger and work arm interlocking, outrigger and work arm interlock to prevent misuse over.
5. Installed four hydraulic legs, to ensure vehicle stability and safety in operation.
6. Optional aerial crane hook, hook hanging 1 ton and the electronic control system.
7. Aerial platform vehicles can be up and down operation, 360-degree rotation, install the hand throttle.
8. If you have any special requirements for the aerial vehicles, please let us know, we can design for you.

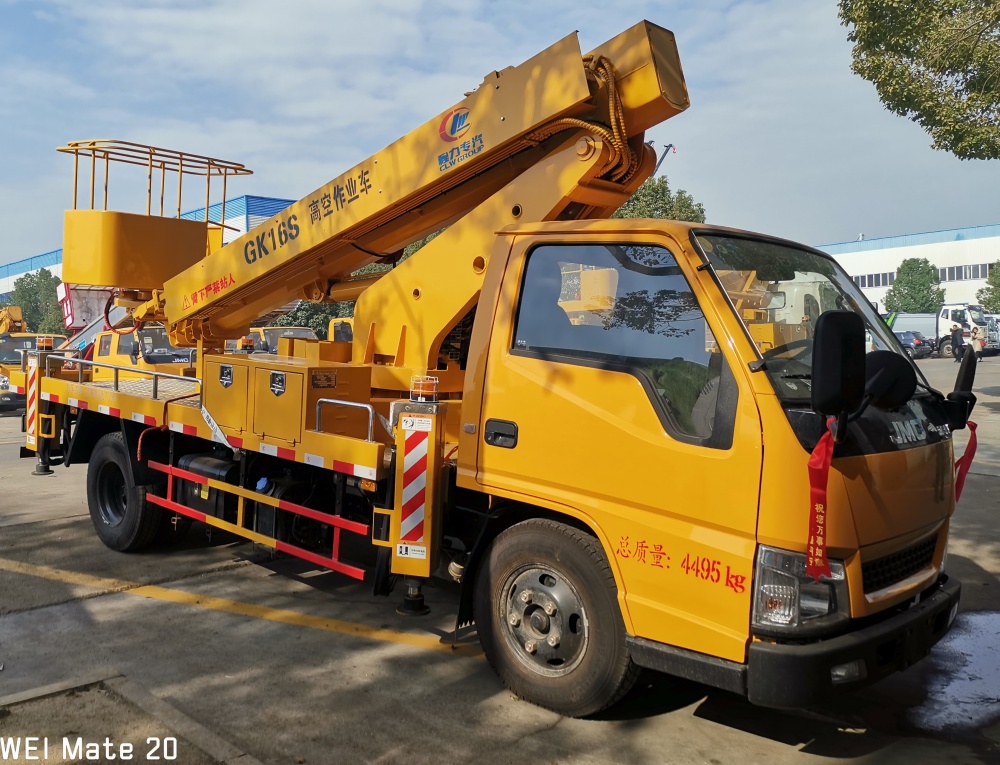

Main technical parameters of JMC 4*2 LHD 18m telescopic aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd.
Main technical parameters | ||||
classification | Item | Unit | Parameters | |
Overall dimension | ★Length | mm | 5998 | |
★Width | mm | 2000 | ||
★Height | mm | 2950 | ||
Mass | Seated person（driver cab included） | person | 2 | |
★total mass | kg | 4495 | ||
Main devices | Rated loading capacity of the working platform | kg | 200 | |
★ Max working height | m | 17.5 | ||
★ Working range at the max working height | m | 5.0 | ||
★ Max working height | m | 10.5 | ||
★ Working height at the max working range | m | 5 | ||
Outrigger span ★ | horizontal | mm | 4000 | |
longitudinal | mm | 4000 | ||
Driving parameters | ★front suspension | mm | 1075 | |
★rear suspension | mm | 1563 | ||
★wheelbase | mm | 3360 | ||
Max driving speed | Km/h | 100 | ||
Approach angle | ° | 20 | ||
Departure angle | ° | 14 | ||
Part Name | Brief explanation |
Truck chassis | JMC JX1041TG26 |
Engine | Diesel engine, max rated power 85KW Euro 6 |
Driver cab | Single cab with air conditioner and 2 seats |
Coaming and platform | Stainless steel coaming and non-slip walking platform |
Force-taking system | Mechanical operation |
Working platform | （1200）1200x700x1150 |
Boom type | ★ 3sections Pentagonal type working boom, synchronous telescoping
|
Rotating system | 360°Continuous rotation |
Outriggers | ★ Front V type& rear H type; individually adjustable |
Operatgion | ★ working platform & Electrical operation of ground remote control |
Control system | Electro-hydraulic proportional control system， Electro-hydraulic proportional control system |
Leveling system | Automatic hydraulic leveling |
Basic Functions and security configuration
Basic Functions and security configuration: the rated loading capacity of the working platform is 200kgs; max working height is 17.5m; max working range is 10.5m. | |
Name | Brief explanation |
Automatic interlock device for loading and unloading vehicles | ★It is used for interlock on and off vehicles to prevent disoperation and danger |
hanging flower basket | High Strength Aluminum Alloy 360° rotating |
Level detection function | ★Real-time detection of the vehicle level |
Emergency Electric Emergency pump | When the engine and main pump failure, the staff can be sent back to the ground |
Emergency Stop Device | For Emergency Stop Operations |
Night safety warning device | In the vehicle there are engineering strobe lights, lighting lights |
Horizontal State Tester for whole vehicle | The utility model can detect the lateral and longitudinal inclining state of the whole vehicle |
Engine ignition off | In the turntable and platform for the engine ignition, flameout control |
Real-time communication | There's a walkie-talkie on the deck and off the train |
