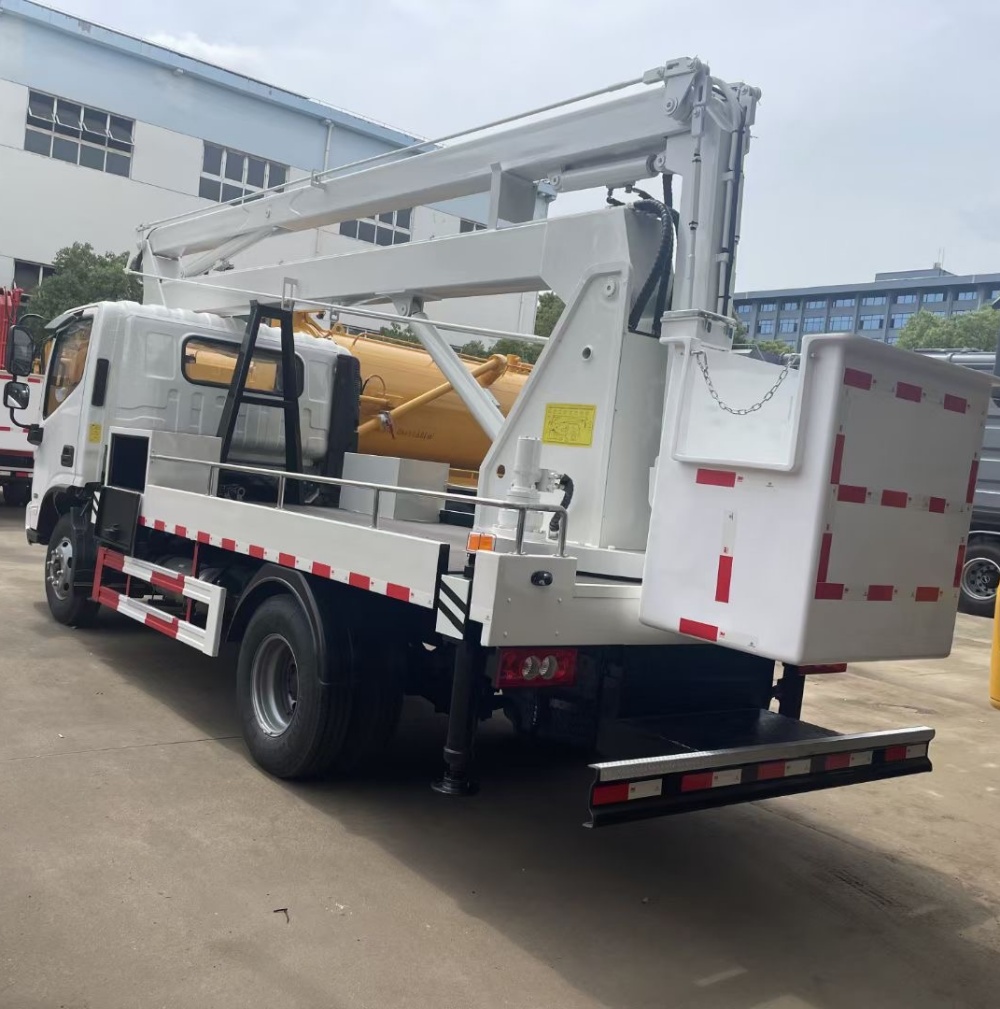

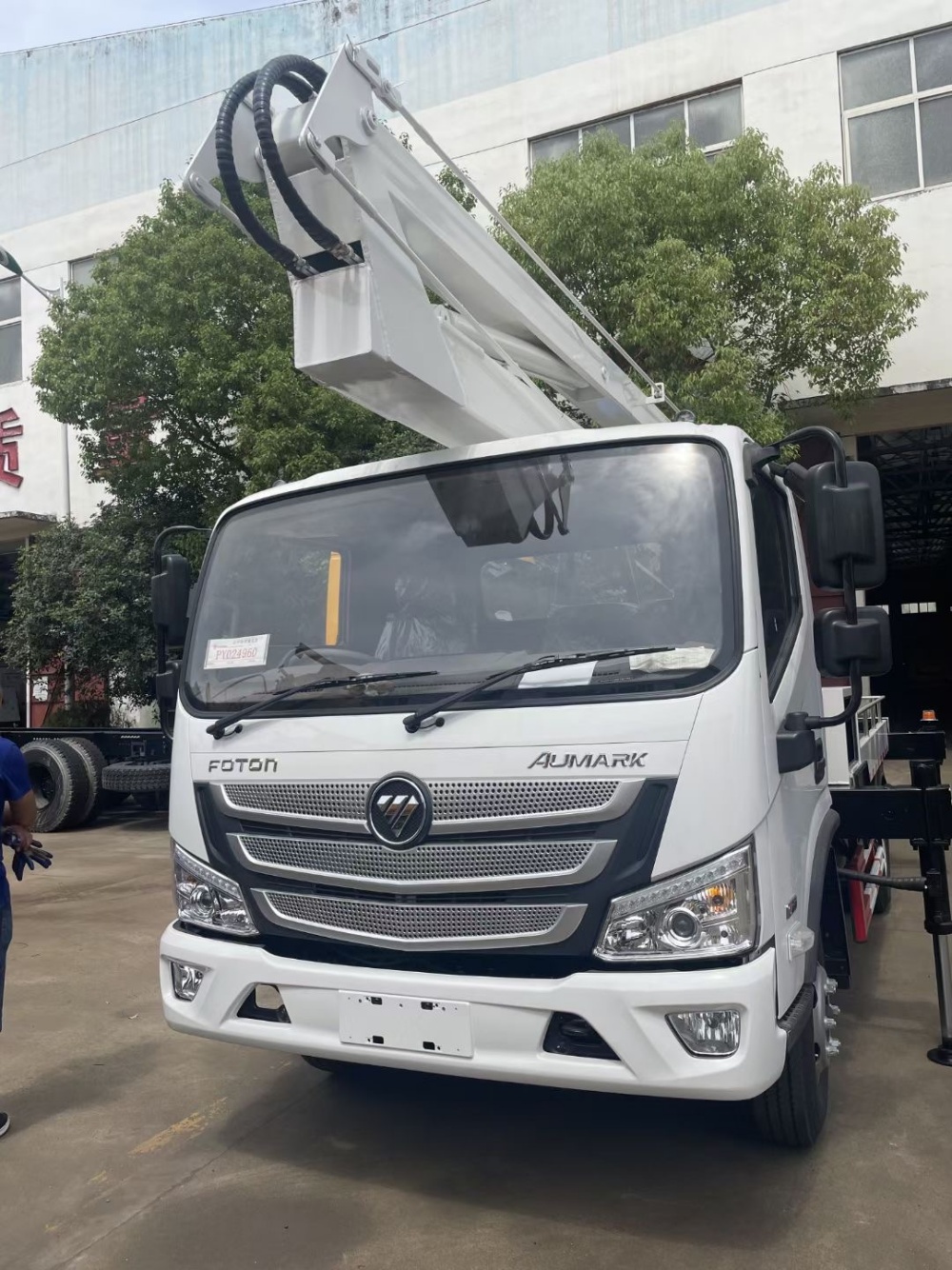

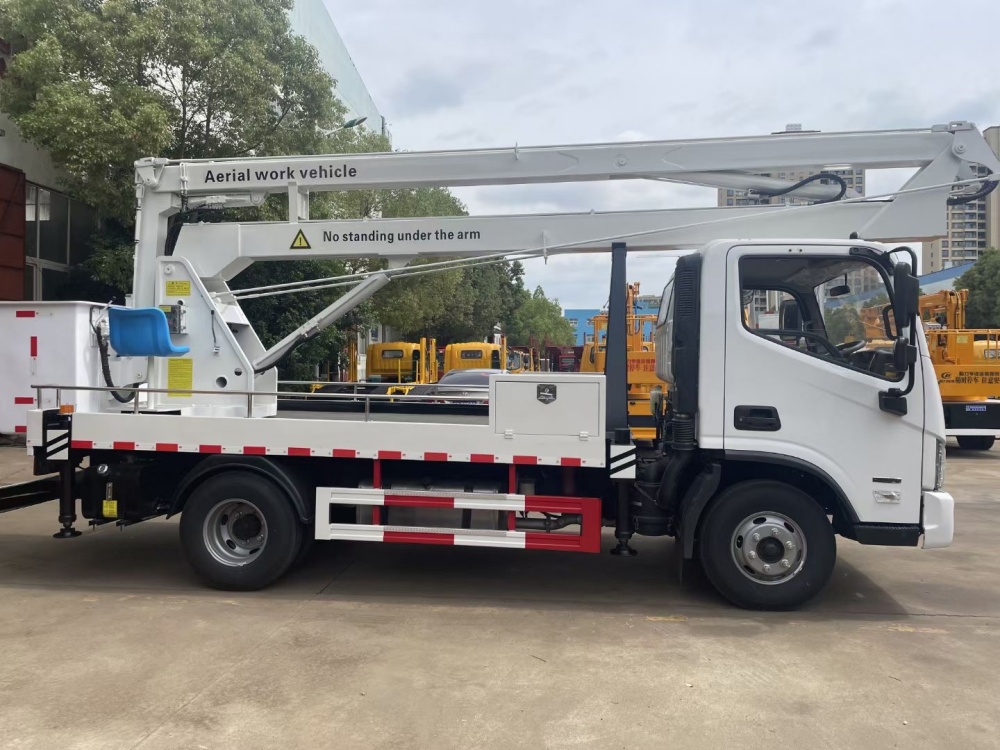

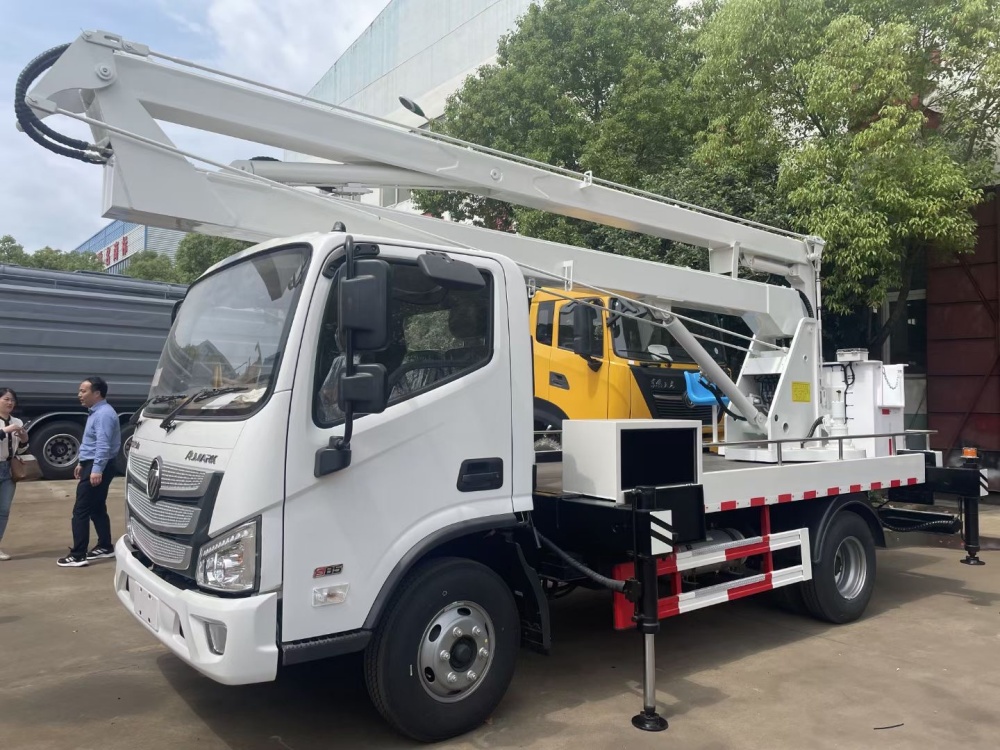

vehicle photo show
product parameters
customized 14m 16m high altitude operation truck for building construction, street lamp maintain, plant pruning, power grid maintenance
Aerial work platform truck also called bucket truck,truck mounted aerial platform,aerial work platform,hydraulic beam lifter ,bucket boom truck ,truck mounted aerial lift ,telescopic platform truck , aerial working platform , truck mounted aerial working platform .
Aerial platform truck basic specification below:
1, Aerial working height 12m,14m,16m,18m,20m,22m,24m
(4*2 Chassis brand with Dongfeng, Sinotruck, Shacman,JAC, Foton and so on available)
2, The Hydraulic lifting system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3 Aerial bucket is moving system with dual action commands, one at ground level and the other at the level of the bucket,Truck equipped with two rotating amber lights
4, Aerial work platform truck equipped with balance valve ,emergency valve to keep safety when people overhead working .
5, Application:It is mainly used for inspection of electric lines, cleaning of aerial work, pruning of trees and other aerial work.
| vehicle model | AUMARK-S38 | |||
| Cabin | Single row/W2060/left rudder | |||
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6730×2138×2440 | ||
| Wheel base(mm) | 3800 | |||
| Weight data | Curb weight(kg) | 3528 | ||
| Gross vehicle weight(kg) | 11995 | |||
| Persons in cab | 3 | |||
| Whole vehicle main performance | Max. speed(km/h) | 105 | ||
ENGINE | Model | F3.8s3141 | ||
| Emissions standards | EuroⅢ | |||
| Displacement(L) | 3.76 | |||
| Rated Power(kw/rpm) | 105 | |||
| Max torque (N.m/rpm) | 450 | |||
| Gearbox | Model | 6S558 | ||
| Front axle | Type/Mainreducetion ratio | 3.6T | ||
| Rear axle | Type/Mainreducetion ratio | 6.5T/5.286 | ||
| Suspension | Front suspension/Leaf spring number | 9 | ||
| Rear suspension/Leaf spring number | 8+6 | |||
| Brake system | Service brake | Drum pneumatic braking | ||
| Parking brake | Brake gas brake | |||
| Auxiliary brake | Engine exhaust brake | |||
| Wheels and tyre size | 6+1/( 8.25R20 14PR) | |||
| Power take-off system | Power is taken by the gearbox and operated in the cab | |||
| Work bucket | Size 1150×650×1150mm Rated load 200kg | |||
| Boom | Two-section folding arm | |||
| Swivel device | Two-way 360° continuous rotation | |||
| operating system | Two operating systems of working bucket and turntable | |||
| Hydraulic system | Electro-hydraulic control, stepless speed regulation, equipped with emergency pump | |||
| Go platform | Steel toolbox and hoarding, stainless steel railing, aluminum alloy anti-skid platform | |||
| safety devices | Interlock for getting on and off the car, emergency pump, two-way balance valve, two-way hydraulic lock, vehicle level, working arm limit position alarm and protection device | |||
| Power take-off system | Power is taken by the gearbox and operated in the cab | |||
| Main operating technical parameters | Working height of bucket | 16m | ||
| Maximum working range of working bucket | 6m | |||
| Rated load of working bucket | 200Kg | |||
| Rotation angle | ±360° continuous | |||
| Working range at maximum working height of working bucket | 3m | |||
| Working height when working bucket maximum working range | 7.3m | |||
| Lifting time of working platform | 80~130s | |||
| Swing speed | ||||
As a professional truck lifting nacelle manufacturer in China, besides veritical aerial platform truck, we also have 360 degree rotate aerial working truck, which include knuckle boom platform truck and telescopic aerial truck.
The hydraulic aerial basket truck for sale is consisted of truck chassis, telescopic boom, hydraulic cylinders, power take off, motor, gear pump, operator seat, multi-way control valve, lifting hook, etc. It mainly used for street light maintenance, power maintenance, communication maintenance, planting by municipal corporation, power section, communication corporation, etc.
Chengli Special Automobile Co.,Ltd as a professional aerial working platform truck supplier in China, the aerial working truck height is from 10 meters to 45 meters. It is mainly used for building construction, street lamp maintain, plant pruning, power grid maintenance etc.
