The ladder truck is also called a ladder transporter, aerial transporter, aerial work vehicle, and ladder moving truck. The truck is mainly used for project leasing, curtain wall construction, rooftop waterproofing, solar installation, advertising guns, power maintenance, air conditioning installation, moving companies, cement sand and stone transportation, ship maintenance, road and bridge repair, etc.
The operating range can reach 36 meters high, equivalent to 12 floors, and the maximum load-bearing cargo weight is 400kgs.
The advantages of aerial ladder work vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below
The floor bucket is lower to the ground.
Wireless remote control It can be operated remotely within 100 meters. You no longer have to worry about working in the sun. It is more convenient.
The self-unloading hopper can automatically unload when transporting goods or sand, greatly saving work time.
Manual automatic radiator, automatic temperature sensing, when the temperature reaches 35 degrees, automatic heat dissipation to reduce losses.

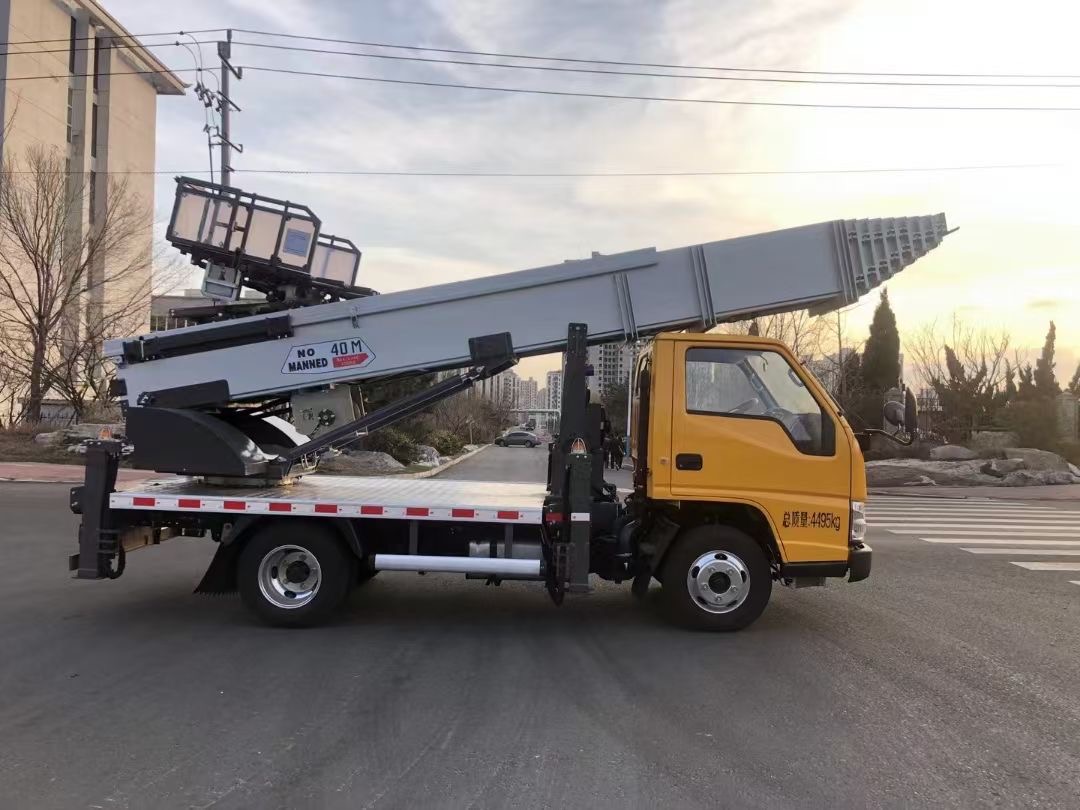

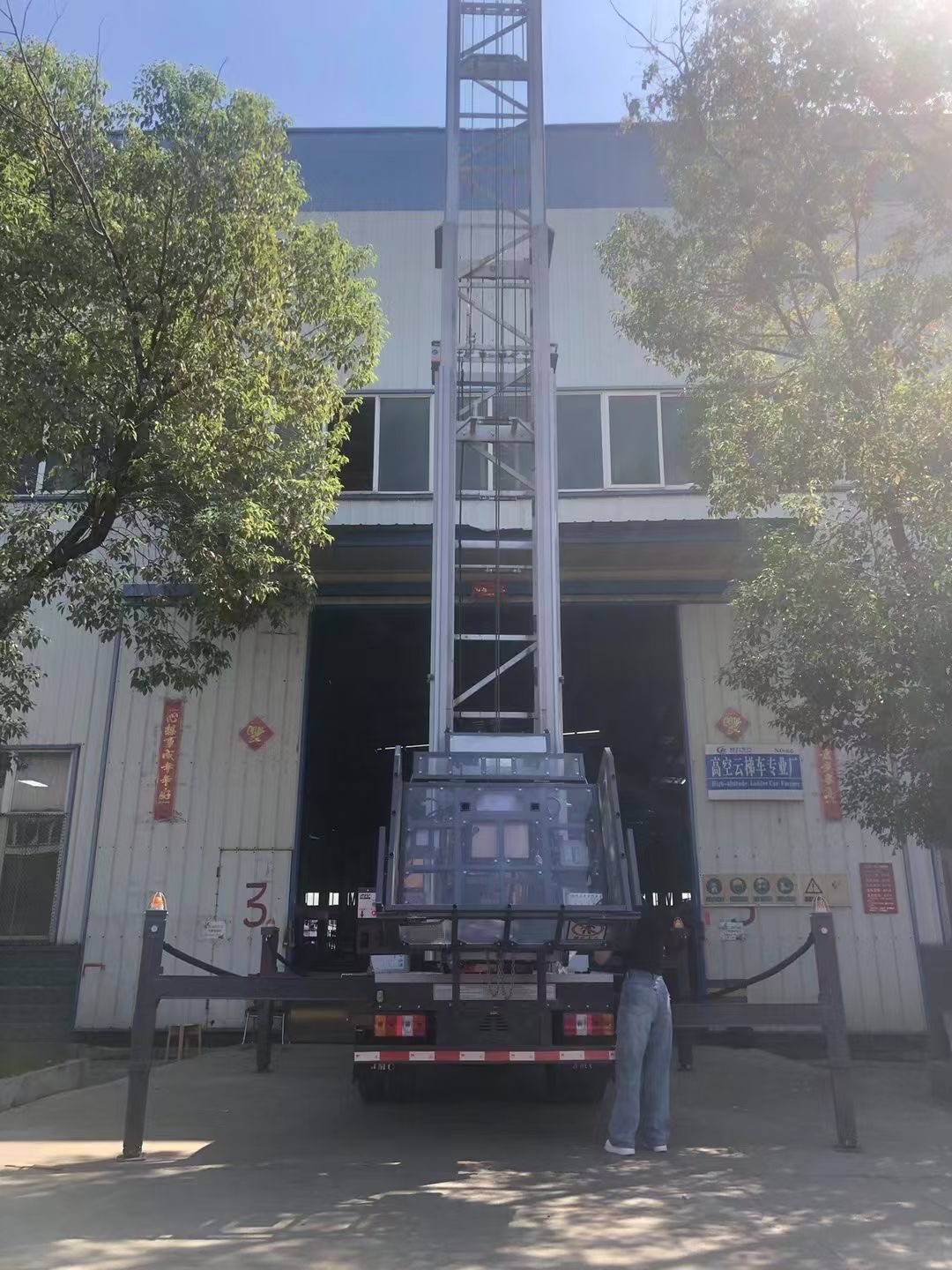

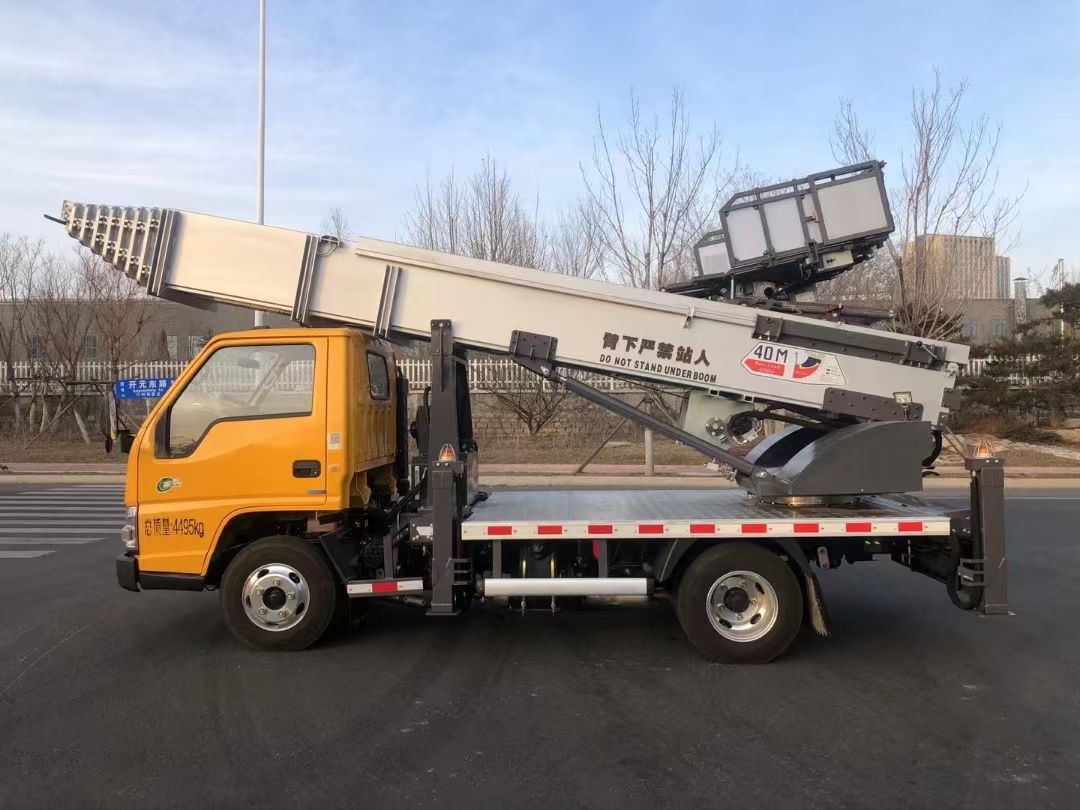

More pictures of 32m JMC aerial ladder work vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below.
main technical parameters of 32m JMC aerial ladder work vehicle is as below.
Main technical parameters of aerial ladder vehicle | |||
Item | Project | Unit | Data |
dimension | Overall length | mm | 5995 |
Overall width | mm | 1900 | |
Overall height | mm | 2850 | |
Mass | Seated person(driver included) |
/ |
5 |
Total mass | kg | 4495 | |
Curb mass | kg | 4170 | |
Main performance parameters | Rated loading capacity of working platform | kg | 400 |
Max working height | m | 30/32 | |
Outrigger span | mm | 1000 | |
Outrigger retraction time | s | 20 | |
Driving parameters | Axle nos. | / | 2 |
Axle load | / | 1835/ 2660 | |
Wheelbase | mm | 3360 | |
Front tread | mm | 1385 | |
Rear tread | mm | 1425 | |
Springs nos. | / | 7/4+5 | |
Tires nos. | / | 6 |
Tire specification | 7.00R16LT | ||
Max driving speed | km/h | 100 | |
Approach angle | ° | 28 | |
Departure angle | ° | 18 |
We Chengli Special Automobile Co., Ltd. is one of the leading manufacturer and supplier of aerial work vehicles from 6m-51m. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
