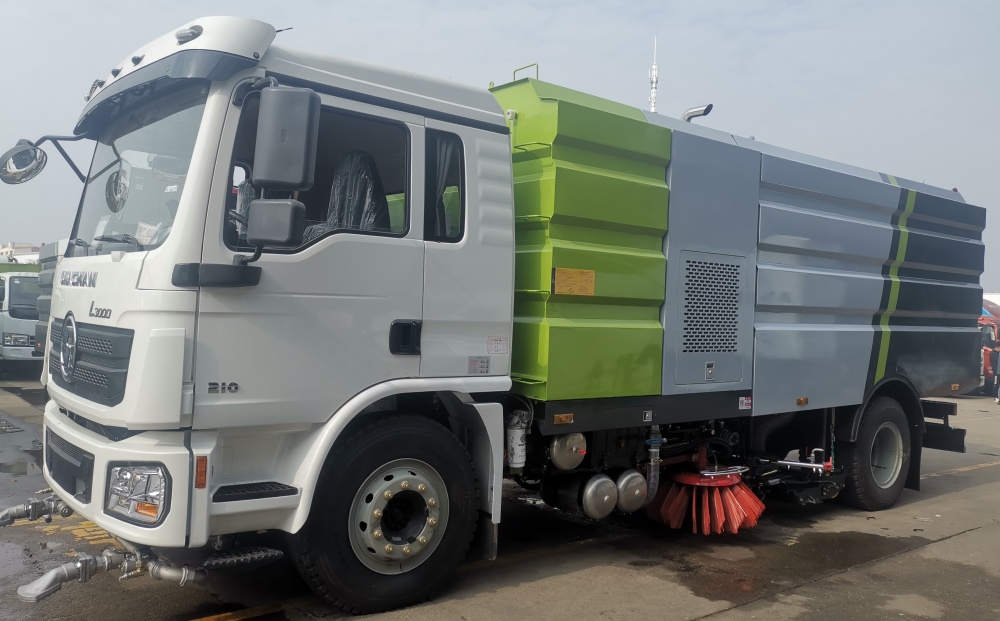

high quality and best price SHACMAN L3000 6 tires road sweeping and washing vehicle for sale

The SHACMAN brand road sweeping and washing truck adopts SHACMAN brand L3000 type national Ⅱ class II chassis modification, adding auxiliary engines, fans, high-pressure water pumps, clean water tanks, garbage bins, left and right vertical sweeps, wide suction nozzles with water spray rods, and low-pressure flushing system , Sweeping pan dust reduction system, hydraulic system, special device electric control system and sub-frame etc. are refitted.

The auxiliary engine drives the fan and high-pressure water pump, and the auxiliary engine adopts a Dongfeng Cummins six-cylinder 170-horsepower diesel engine. The fan uses an 8.0 high-pressure centrifugal fan, which has high efficiency and large air volume, with a maximum air volume of 23500m3/h. The high-pressure water pump adopts the internationally well-known PF36 plunger pump with suitable flow and high pressure, and the maximum allowable pressure is 10MPa.

The clean water tank makes full use of the on-board space, with a large volume, up to 9m3. The trash bin adopts single-layer 304 stainless steel structure, dumping and unloading, with high-pressure self-cleaning device. The self-cleaning device can help unloading and cleaning the inside of the trash can when the trash can is unloaded.

The left and right vertical scanning is a single scanning plate, which reduces the number of brushes and the consumption of brushes, and can reduce the cost of use. The left and right vertical sweeps are controlled separately, and different operation modes such as left sweep, right sweep and full sweep can be realized. The width of the suction mouth of the wide suction nozzle reaches 2418mm, ensuring that the total working width is greater than 3.5mm. The 4 height-adjustable nozzle wheels can adjust and ensure a reasonable gap between the nozzle and the road surface. The suction nozzle has a built-in high-pressure water spray rod, and as many high-pressure washing nozzles as possible are arranged inside the suction nozzle, which not only has a good cleaning effect, but also minimizes the secondary pollution caused by the high-pressure water jet washing up the dirt.

The left and right spray rods are installed on the suction cups, which rise and fall with the suction cups. The structure is simple and compact, which ensures that the height of the spray rods from the ground is constant and achieves the best cleaning effect. The open hydraulic system drives the left and right vertical sweeping and lifting, the left and right sweeping pan rotation, the suction nozzle lifting, the opening and closing of the back door of the dustbin, and the dumping and resetting of the dustbin.

The power take-off on the gearbox side of the chassis drives the low-pressure water pump to realize the low-pressure flushing function of the sprinkler, and one-button start and stop operations.

SHACMAN brand rsweeper has multiple functions such as road cleaning, road cleaning, curb cleaning, curb and curb facade scrubbing, low-pressure washing, spray dust removal, etc. There are multiple operation modes to choose from, such as "full wash and sweep", "left wash and sweep", "right wash and sweep", "full sweep", "left sweep", and "right sweep". Choose "full washing and sweeping" mode to clean the square and pavement, the cleaning efficiency is high and the effect is good, and the cleaning rate is more than 90%. Choose "left washing and sweeping" or "right washing and sweeping" mode to clean the road surface and curbs, and scrub the curb facade. When road cleaning or road cleaning operations are required, the road sweeping mode can be selected. When spray dust removal is required, the spray device can be turned on to perform spray dust removal operations. The road surface can be washed with low pressure like a sprinkler.


Customized SHACMAN brand 4*2 LHD road sweeping and washing truck, adopts SHACMAN brand L3000 one row and a half driver cab, 4500mm wheelbase, WP6.210E32 weichai 210hp diesel engine,4.8tons front axle/10tns rear axle, 200L steel oil tanker, 8JS85TE-C 8 speed manual gearbox,10.00R20 rail tires, etc.

SHACMAN brand 4*2 LHD road sweeping and washing truck is suitable for cleaning operations such as mechanized cleaning, sweeping, spraying and dust suppression of urban roads, highways, squares, airports, docks, tunnels, bridges, isolation walls, curbs and curb facades.

Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper trucks in China. With many years’ development, we Chengli Special Automobile Co., Ltd. could offer ISUZU road sweeper truck, forland street sweeper truck, dongfeng brand road cleaning vehicle, JMC brand road sweeping vehicle, JAC brand street sweeper, FAW brand street sweeping vehicle, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
