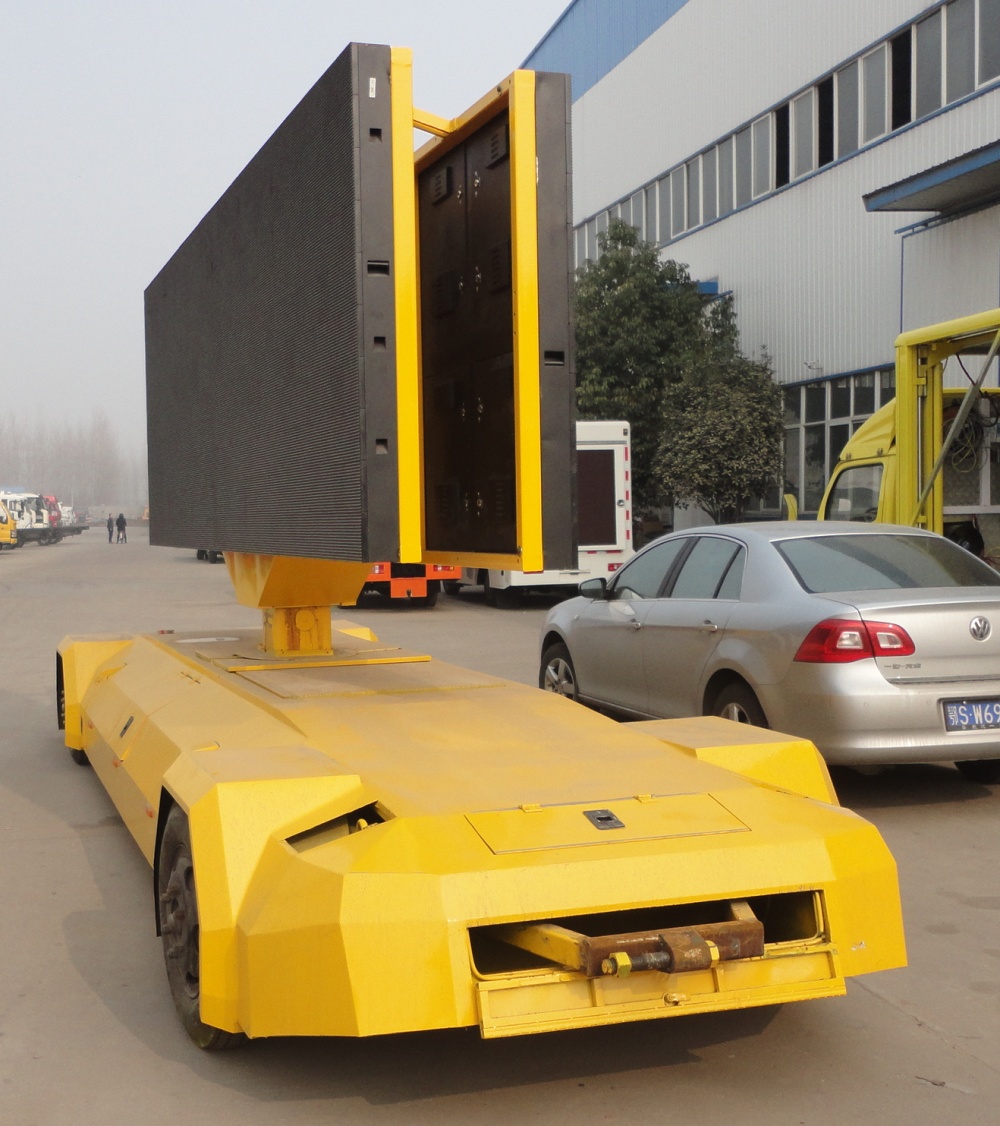

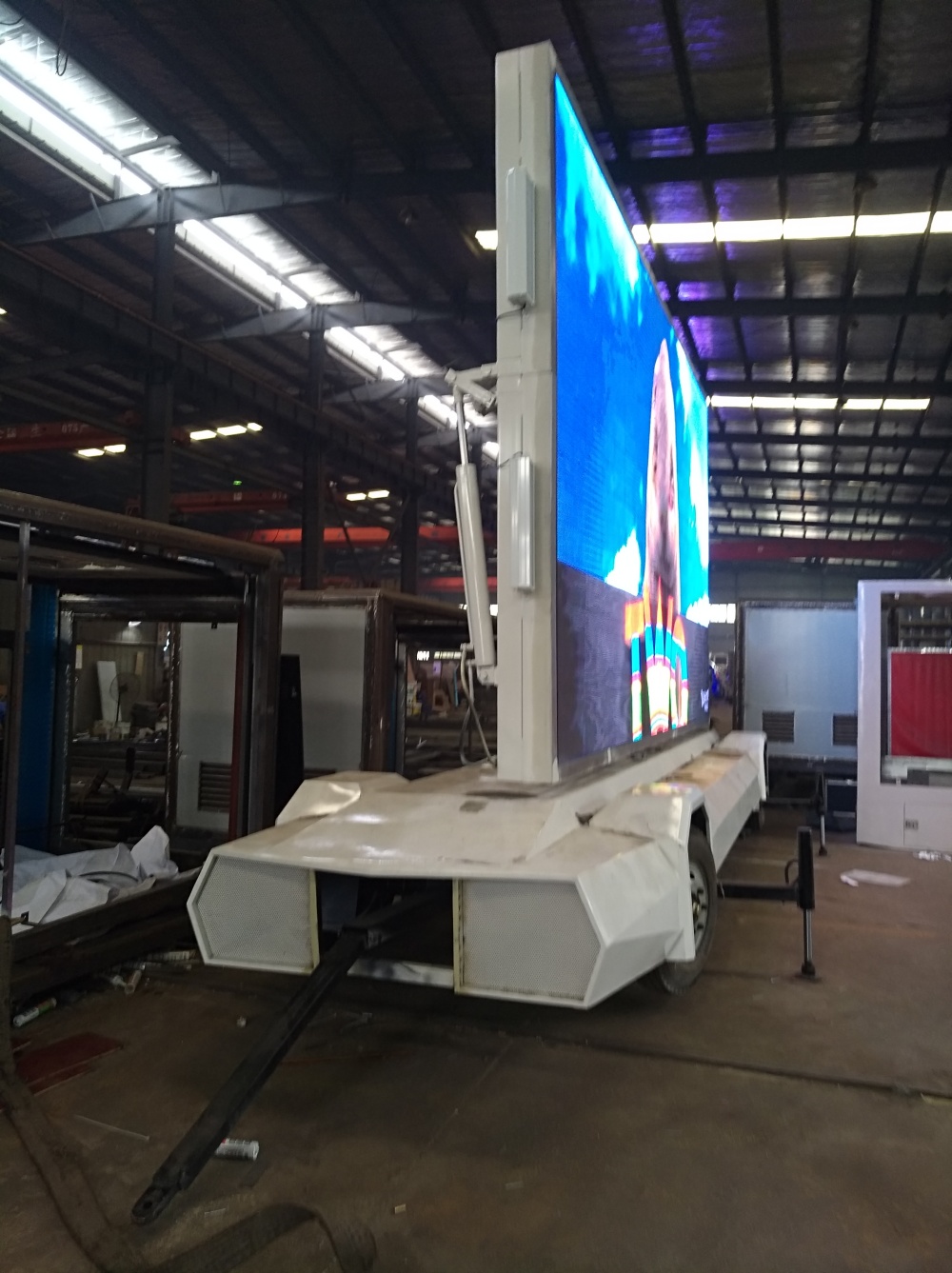

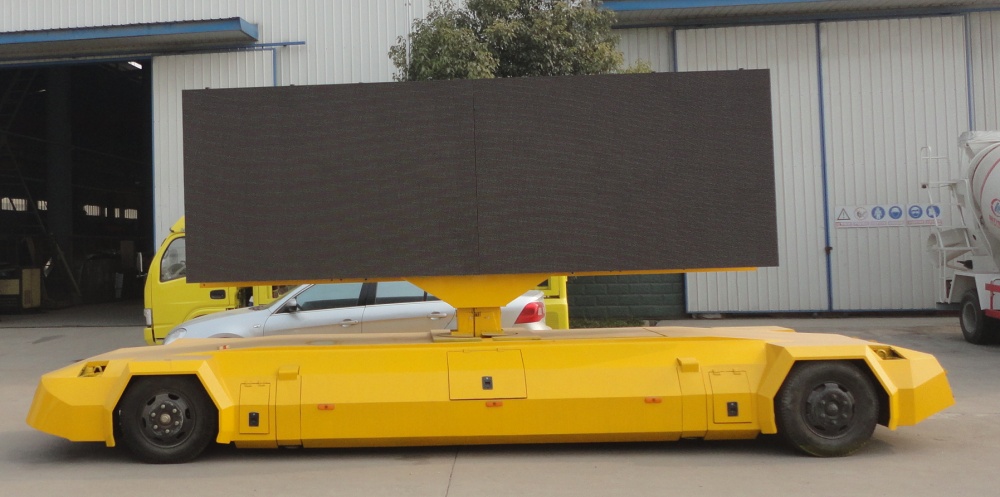

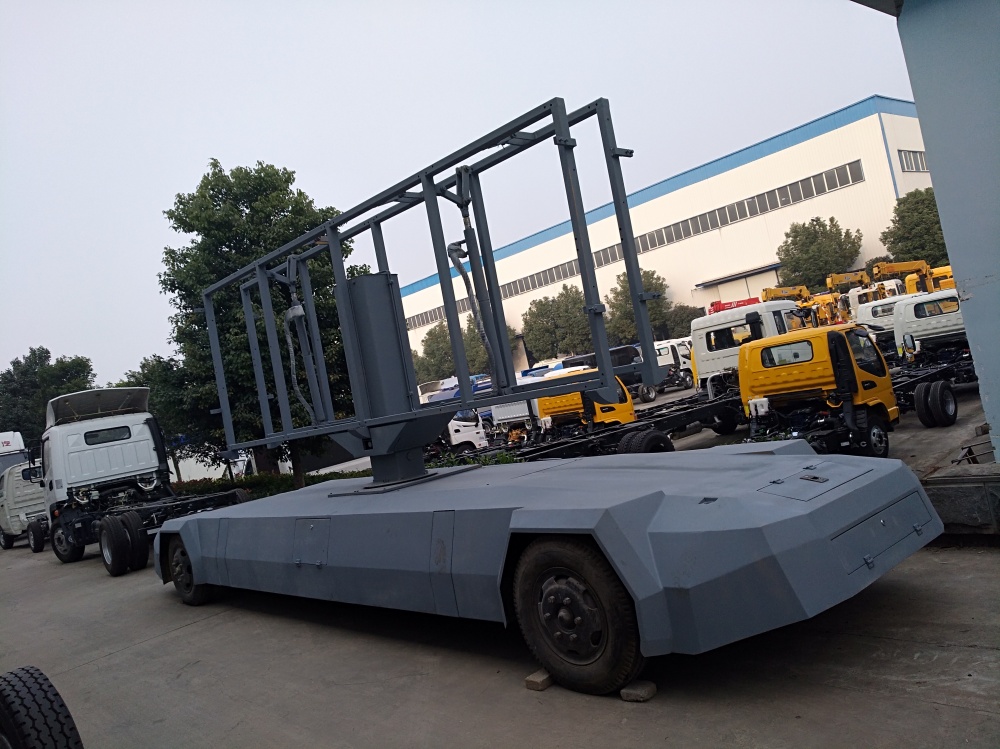

vehicle photo show
product parameters
Good quality High-end and atmospheric traction LED propaganda vehicle (customized version)
Vehicle size: 6800✘2100✘2800 (folded)
1. Special traction axle
2. 2. P4 surface-mounted full-color LED screen size: 5760*3200=18.5㎡
3. 3. Power 1500W hydraulic pump,
4. Double cylinder hydraulic lifting, with flip folding.5. Mechanical stable outriggers
6. Tire model 7.00-16LT
7. Wind resistance level
8. Input voltage 380V.
9. 4 YVT 60W sound columns, 1 YVT 350W amplifier. Wireless remote control device.
main technical parameters of outdoor LED van trailer manufactured by
Vehicle name | LED VAN trailer | Model | CLW-F16 model |
Driving part | |||
Overall dimension(L*W*H) | 6320*1800*2750mm（after folding ） | Van body material | 1.2mm cold-rolling sheet steel |
Truck frame | Front axle+rear axle | Braking | Rear wheel braking with braking sytem |
Tire specification | 7.00-16LT | Mini turning radius | ≥16m |
Total mass | 3000kg | color | customized |
hydraulic system | |||
Hydraulic lifting |
Customized hydraulic cylinders, stroke 1500mm HSG-100×55×640-CA/CB | hydraulic pump system | 220V power unit, 1400rpm， power: 1500W
|
Legs |
Mechanical structural legs, single leg can bear 5Tons | Legs stroke | Manual type, expended 1700mm |
LED screen brand | QIANGLI JUCAI |
Manufacturing site | XIAMEN, China |
LED screen dimension(L*W) | 5120*3200=16.38㎡ |
LED screen specification | P5 outdoor colorful |
LED screen details | Model: Q5-E, pixel pitch: 5mm, module size: 320*160mm, pixel density: 40000Dots/㎡, lamp package: SMD2525, module resolution: 64*32=2048Dots, drive mode: 1/8 constant current drive, module power: ≤43W, brightness: ≥4200cd/㎡, brightness uniformity: >0.95, grayscale level: 12-14bits, frame change frequency: ≥60 frames/second, refresh frequency: 960Hz, service life: ≥100,000 hours, discrete out-of-control point: <0.0001, blind spot rate: <0.0003. | ||
controlling system | |||
Control card | Colorlight/Onbon | Place | HANGZHOU |
Amplifier brand | IVITE | Model: | EW-935 series |
power | 350W |
type |
Constant voltage amplifier |
Signal-to-Noise Ratio: | ≥80DB | Frequency Response: | 40HZ-16KHZ＜±2DB |
Functions: | Supports USB playback, Bluetooth connection, wireless microphone, wired microphone, five-zone audio source output, and wireless remote control. | ||
Speaker brand: | IVITE brand |
Power: | 60W |
Sensitivity | 89±3DB | Frequency response | 150HZ-14KHZ |
Waterproof grade: | IPX6 grade | Nos.: | 4 sound columns |
Video playback device (optional) | |||
Industrial Computer | Industrial control computer, chassis: Huntkey, category: industrial control, motherboard: ASUS, CPU: Intel, type: quad-core processor, win10, running memory: 4G, solid state drive: 120G, power supply: wide-range power supply, network card: Gigabit. | ||
Video Processor | Brand: Onbon, Model: OVP-L1X Single screen 2 Gigabit Ethernet ports, the mainboard integrates 2 Gigabit Ethernet port sending card, conveniently supports remote maintenance of LED display. Supports USB disk playback function, especially suitable for display and exhibition occasions. Maximum load 1.31 million pixels, width ≤ 3840, height ≤ 2500; input interface: HDMI*2, DVI*1, VGA*1, CV*1, HDMI and DVI, support 4Kx2K@30Hz; front USB2.0 interface, supports three modes of video playback, picture playback, and video and picture mixed playback. | ||
power supplying system | |||
Input voltage | 220V | Output voltage | 220V |
Average power consumption | 300W/㎡ | ||
FOB SHANGAI PRICE | |||
| PLEASE CALL Whatsapp/Wechat: 0086 13329899995 | |||
Outdoor mobile LED displays screen advertising billboard trailer vehicle adopts P10 full color screen with high brightness, stable performance, impact resistance, etc. The LED trailer vehicle is with Stereo fidelity and Clear dynamic pictures. The trailer installs light control system adjusted the brightness of the screen freely. We can change the pictures and information quickly without any installation. The pictures are combining, realizing showing the multi-form, multi-vector and multi types information. The LED billboard trailer vehicle equips with TV turner, receiving the TV signal of CATV and TVB. Wide view, Strong visual shock and perfect communication effect.
If you're interested in our mobile LED billboard semitrailer, please feel free to send email talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
