Factory direct sale price SINOTRUK HOWO outdoor LED screen vehicles for sale
The details of SINOTRUK HOWO 3 sides LED billboard van vehicle is as below.
3 sides LED billboard truck,
PIXELS: 10mm/8mm/6mm(P4)
One side: 6.88
Sides(left + right): 6.88m2*2=13.76m2
Rear: 1.84m2
Stage: 10m2
The overall dimension(L*W*H) of SINOTRUK Mobile LED truck：5995*2040*2995(mm),

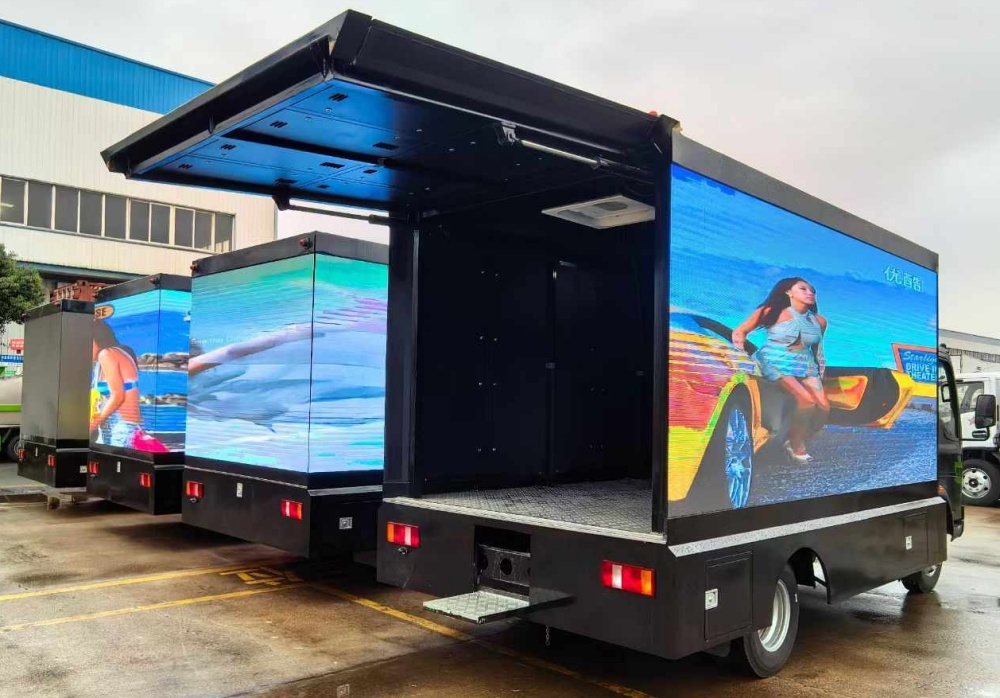

1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1792=6.88m2),choose to install the side screen is with hydraulic lifting stage(stage area: 10m2, lifting height: 1.5m) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens
3, the rear part screen is with single color word screen (screen area: 1280*1440=1.84m2)
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW diesel generator.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system.
4*2 LHD mobile LED vehicle for sale(two sides P4 LED screen) main parameters | |||
Product name | New SINO TRUK HOWO brand 4*2 RHD mobile LED screen truck with two sides P4 LED screens for sale | ||
Overall dimension(L*W*H) | 5995×2025×2995(mm) | Truck chassis model | ZZ |
Total mass(kgs) | 4495kgs | curb mass(kgs) | 4300kg |
Axle nos. | 2 | Wheelbase(mm) | 3360mm |
Front/rear suspension(mm) | 1160/1475 | Front/rear tread(mm) | 1605/1520 |
Rated person | 2 (driver included) | Tyre specification | *6 |
Max speed(km/h) | 90 | Approach/departure angle | 20/25(°) |
Axle load(kgs) | 1790/2705 | Steel spring | 3/5+3 |
Gearbox | 6 speed gearbox, manual | F/R loading capacity | 2T/3.5T |
brake | Air cut braking | Driver cab | SINO TRUK HOWO RHD 4*2 single row driver cab with power steering and clutch steering, without air conditioner |
Engine model | CY4102BZLQ | Emission standard | Euro Ⅲ |
Displacement(ml) | 3856ml | Rated power | 88KW/120hp |
Fuel type | Diesel | ||
Truck mounted LED screen | |||
1
| two sides of the driver cab are with high quality HD waterproof and shake-proof full color outdoor P4 LED screens ( One side P4 screen area: 3840*1792=6.88㎡) | ||
2 | The rear back face is also with single color word LED screen | ||
3 | One side(left or right side) P4 LED screen can be hydraulic sliding up-down; 10㎡ platform stage with double outriggers. | ||
4 | Truck mounted silence diesel generator adopts high quality OUMA 15KW diesel generator unit. | ||
5 | 5cm composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audios, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, Gigabit flow Media control system, etc. | ||
Remark: the computer is with English words, English operation system and Software playback system HS code: 8705909990 | |||
Mobile LED truck, is also called mobile LED digital billboard trucks, mobile Video LED Billboard Trucks. Mobile LED advertising trucks, Mobile LED billboard, LED billboard trailer, digital LED truck, LED digital display truck, Mobile LED Billboard Truck, mobile LED advertising truck, LED mobile Billboard truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
