our industry advantage
vehicle photo show
product parameters

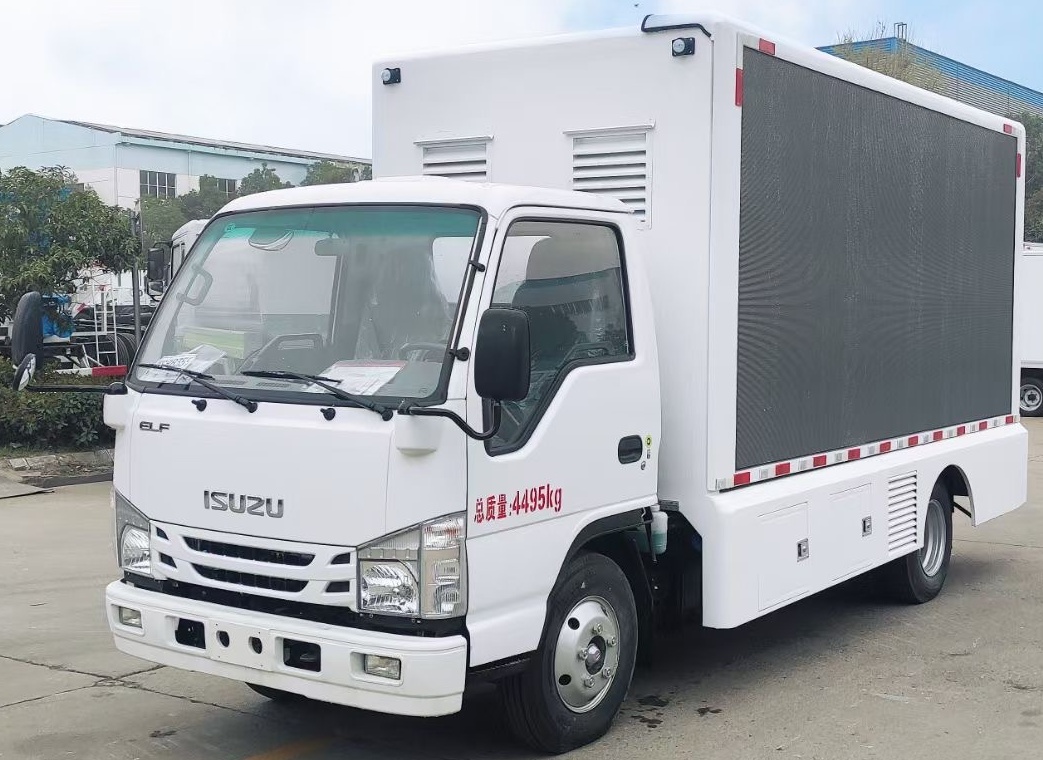

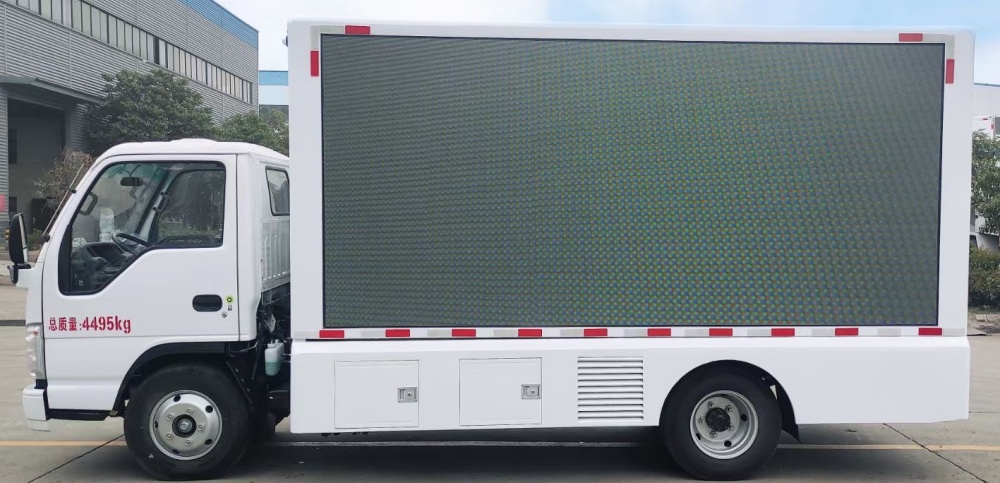

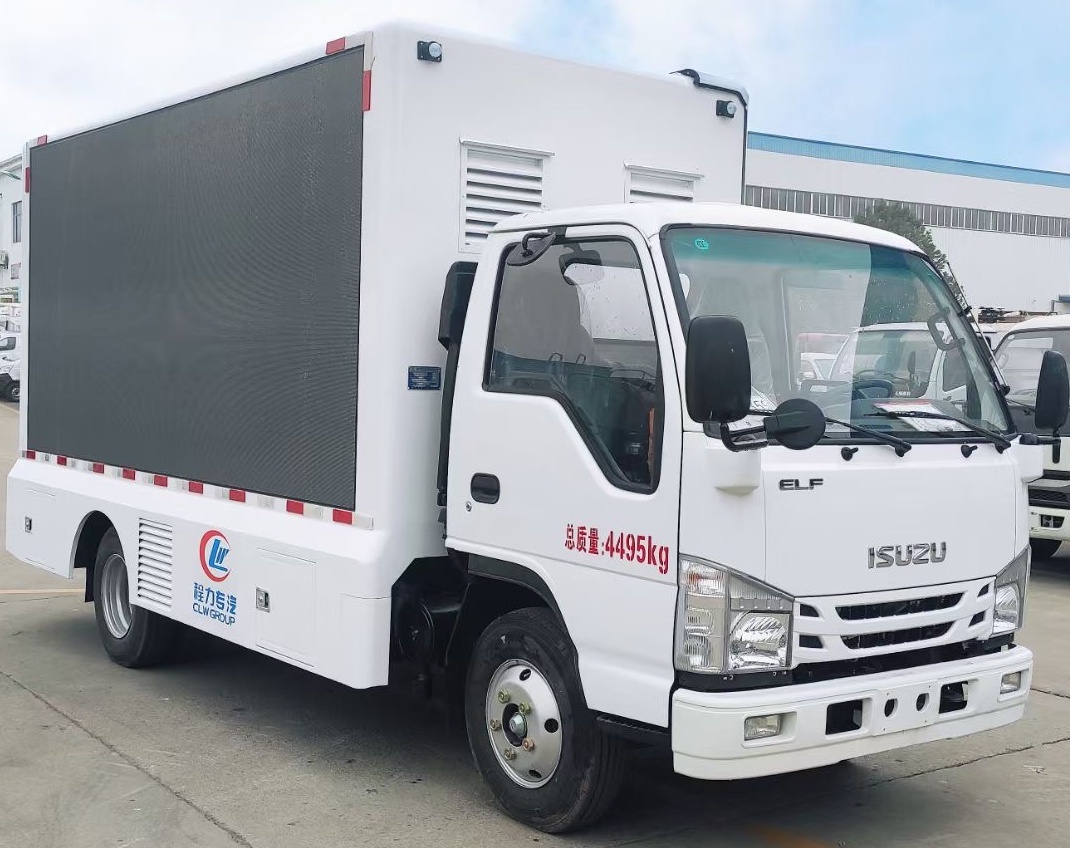

Isuzu LHD mobile digital billboard LED advertising vehicle for sale
3 sides LED billboard truck,
PIXELS: 10mm/8mm/6mm(P10/P8/P6)
One side: 6.88
Sides(left + right): 6.88m2*2=13.76m2
Rear: 1.84m2
Stage: 10m2
The overall dimension(L*W*H) of ISUZU Mobile LED truck：5995*2040*2990(mm), truck model: CLW5040XXCQL4

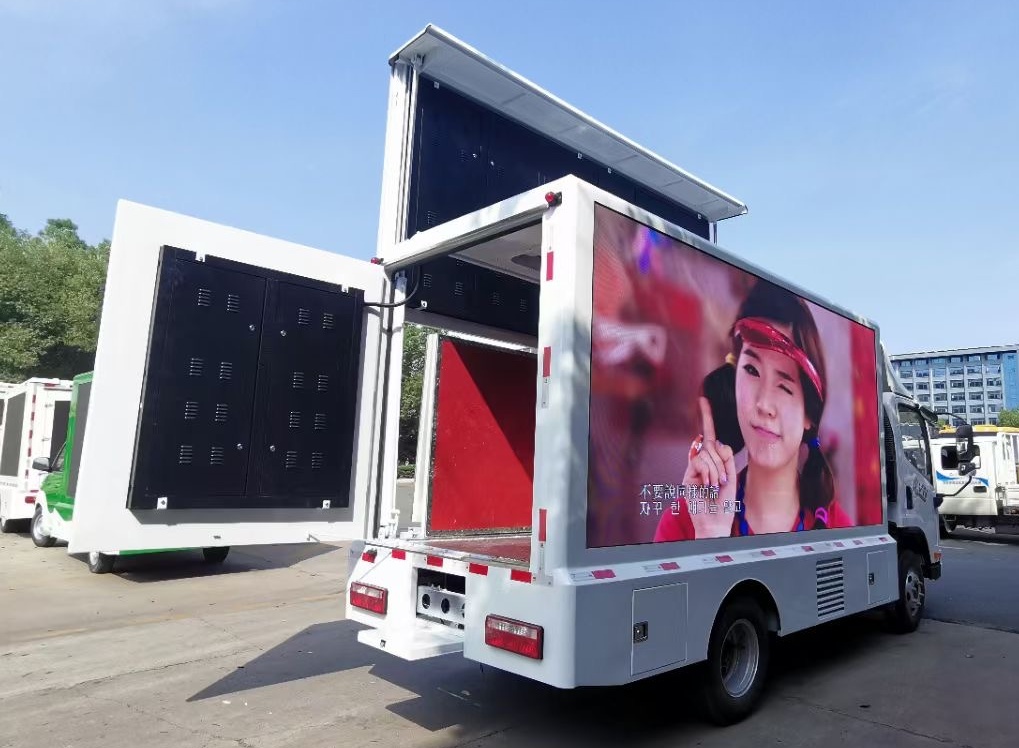

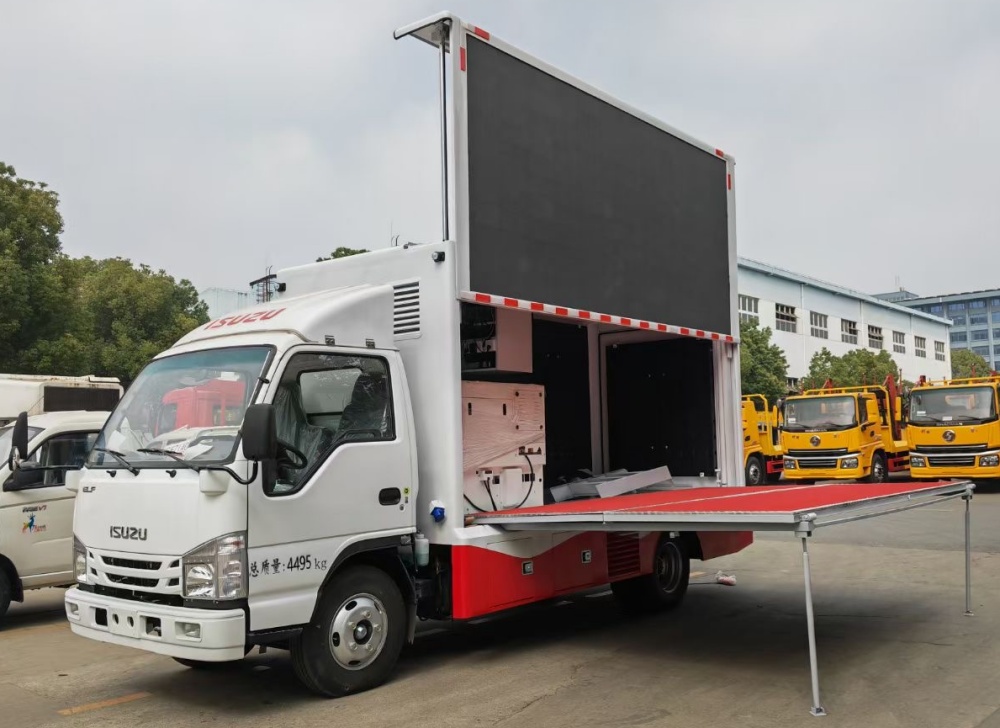

1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1792=6.88m2),choose to install the side screen is with hydraulic lifting stage(stage area: 10m2) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens
3, the rear part screen is with single color word screen (screen area: 1280*1440=1.84m2)
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW diesel generator.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system.
high quality ISUZU brand 4*2 LHD diesel mobile LED screen van vehicle for sale
main technical parameters of Isuzu mobile LED advertising van vehicle is as below
Main technical parameters | |||
Product name | MOBILE LED billboard truck for sale | Product model | CLW5040XXCQL4 |
Total mass(Kg) | 4475 | Diesel generator | OUMA 8KW/15KW diesel generator |
Curb mass(Kg) | 4345 | Overall dimension(L*W*H)(mm) | 5995×2040×2990 |
Side screen area | 3840*1792=6.88m2 | Rear screen area | 1280*1440=1.84m2 |
Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
Approach/departure angle(°) | 24/12 | Front/rear suspension(mm) | 1015/1620 |
Axle nos. | 2 | Wheelbase(mm) | 3360 |
Axle load(Kg) | 1800/2675 | Max speed(Km/h) | 98 |
Truck chassis | |||
Truck chassis model | QL10403HARY | Manufacturer | ISUZU company |
Tire specification | 7.00-15 10PR | Tire nos. | 6 |
Approach/departure angle(°) | 24/16 | Front tread(mm) | 1385,1504 |
Steel spring | 8/6+5,4/3+2 | Rear tread(mm) | 1425 |
Driver cab | ISUZU 100P single row luxurious driver cab with air conditioner and power steering | Brake | Oil cut brake with vacuum booster |
Fuel type | Diesel | Gearbox | ISUZU MSB gearbox |
Emission standard | Euro Ⅳ | ||
Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
4JB1CN | ISUZU | 2771 | 72 |
