SHACMAN brand X9 flatbed wrecker towing truck for excavators transportation  for sale

High quality and best price flatbed wrecker towing truck for excavators transportation

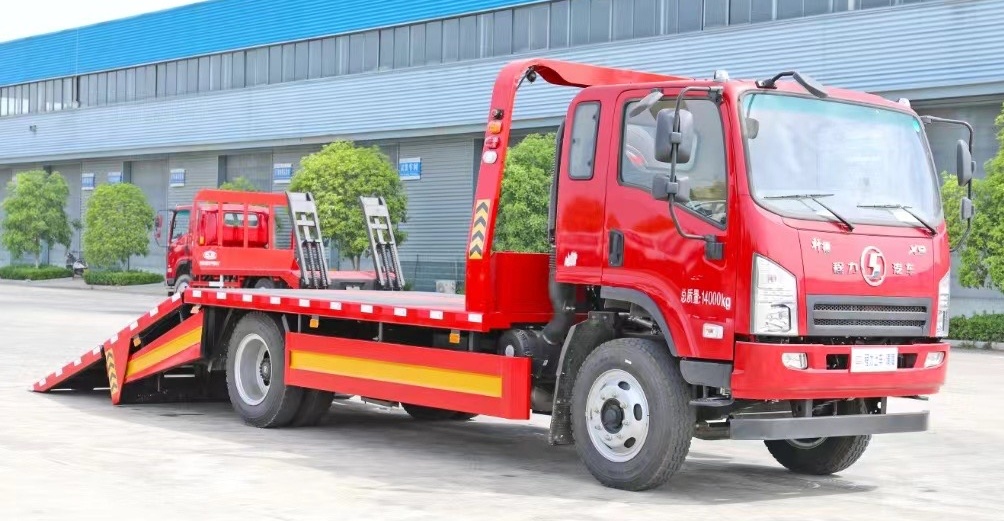

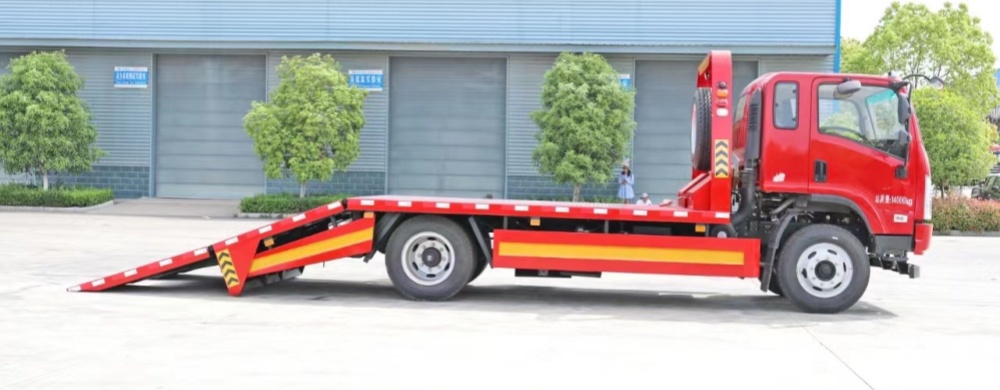

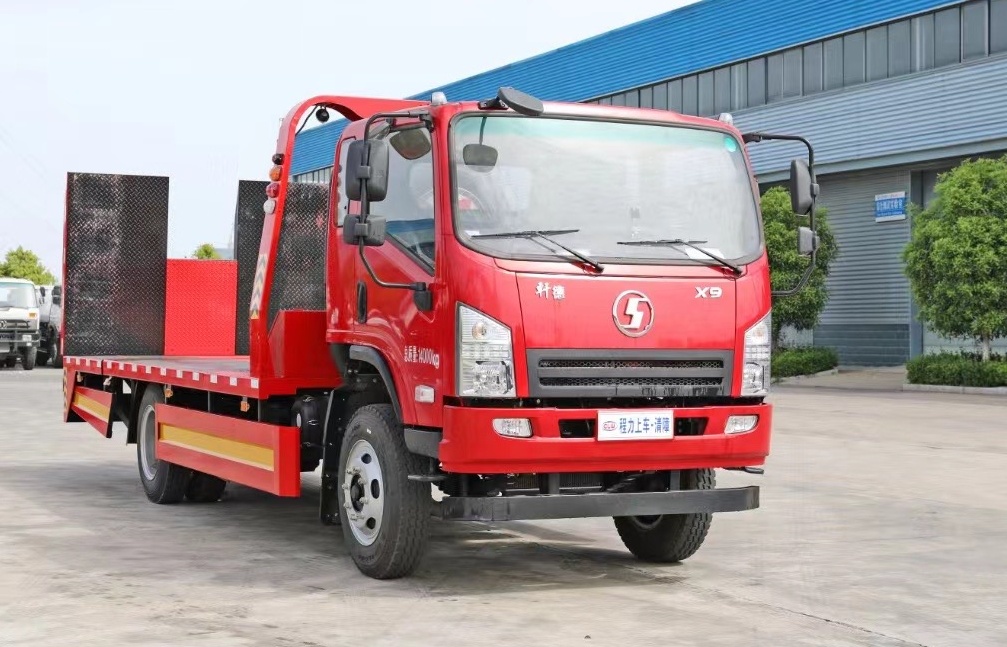

Customized SHACMAN X9 flabted wrecker towing vehicle for sale

Overall dimension(approximate):7710*2550*3100mm (can be designed)

Driver cab: SHACMAN X9 1995mm RHD driver cab

Engine: YC4D130-33 yuchai 130hp diesel engine；YC4D140-33  engine

Wheelbase：4200mm wheelbase

Tires: 8.25R20*6+1 spare

Gearbox: 6DS50T-D FAST 6+1 manual gears,

Oil tanker: 130L aluminum alloy material

Beam: 800×250/7+4 double layer

Steel spring: 9/11+5 steel spring

Others: air conditioner, metal bumper, electric doors and windows, central lock, etc.

flatbed upper parts

1, Flatbed dimension(L*W*H): 4800*2550(mm)( can be designed);

Reinforced flatbed standard devices: 100X100 square steel, 4mm thickness checked steel plate, rectangular tube, rear installed spring-loaded ladder, simple rear outrigger.It is suitable for loading the equipments upon 10000kgs.

2, 4000kgs hydraulic winch, 8000kgs sub-cylinders, etc.

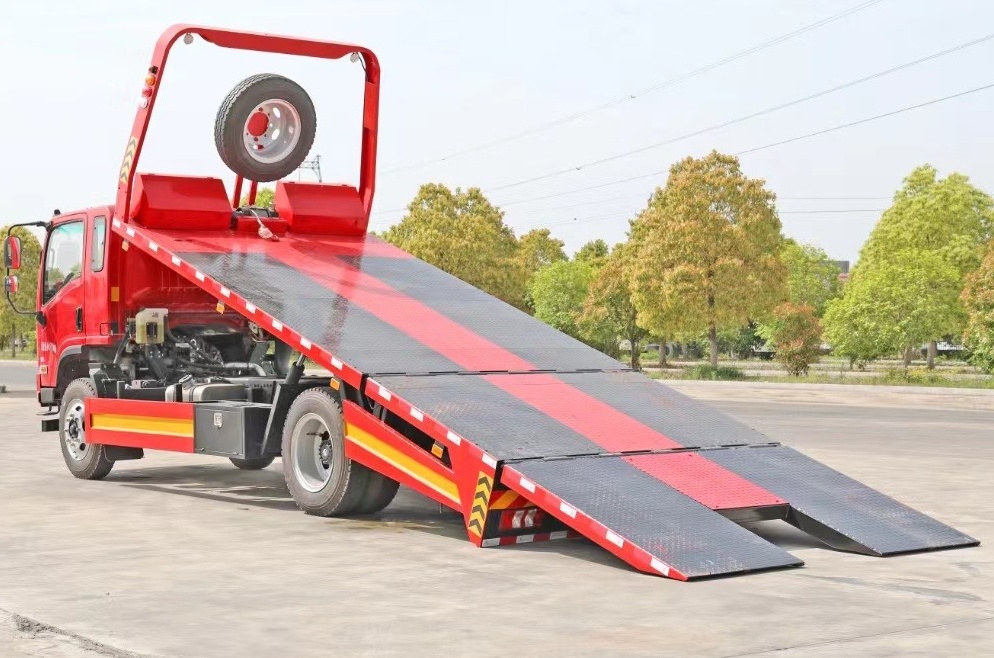

main plate of 4.2m length can with the loading capacity of 15000kgs, sub-plate of 1.5m length with the loading capacity of 4000kgs; while flipped-over tail plate of 1.65m length with the loading capacity of 2000kgs.

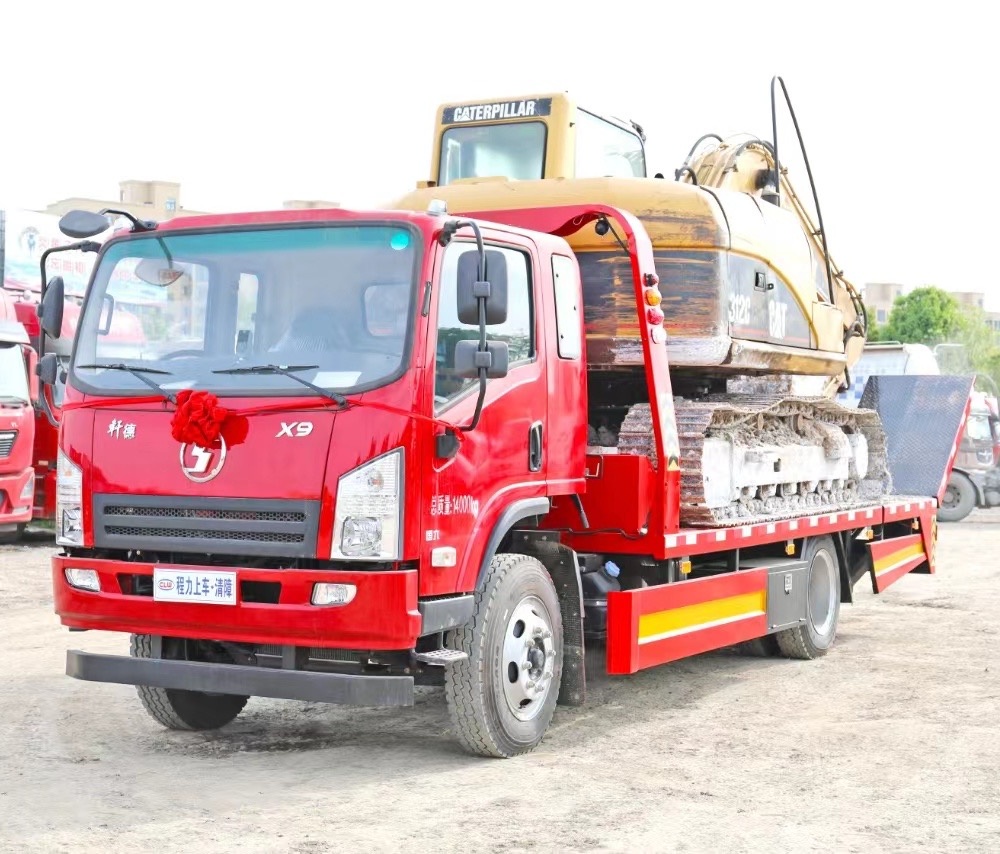

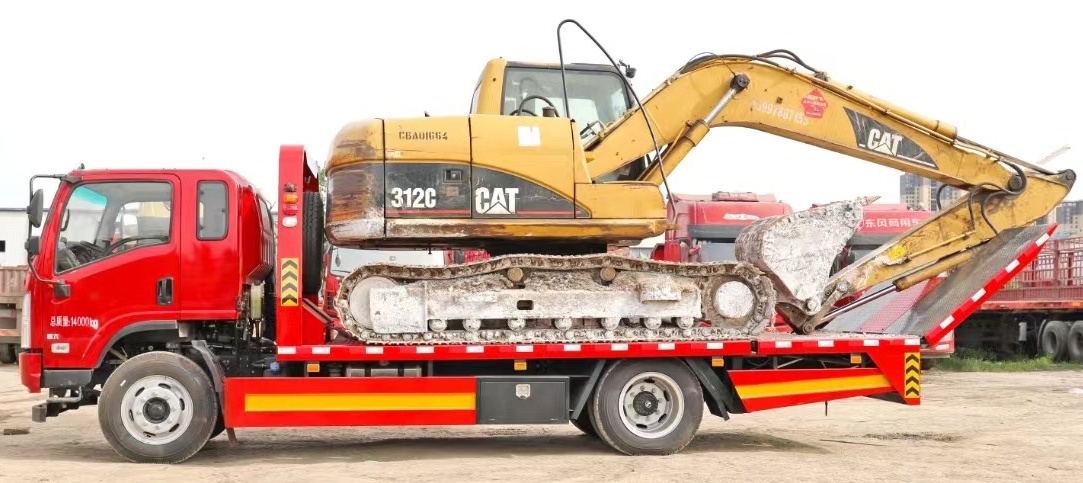

It is suitable for the transportation by excavator trailer under various road conditions  and Urban road engineering machinery transportation
