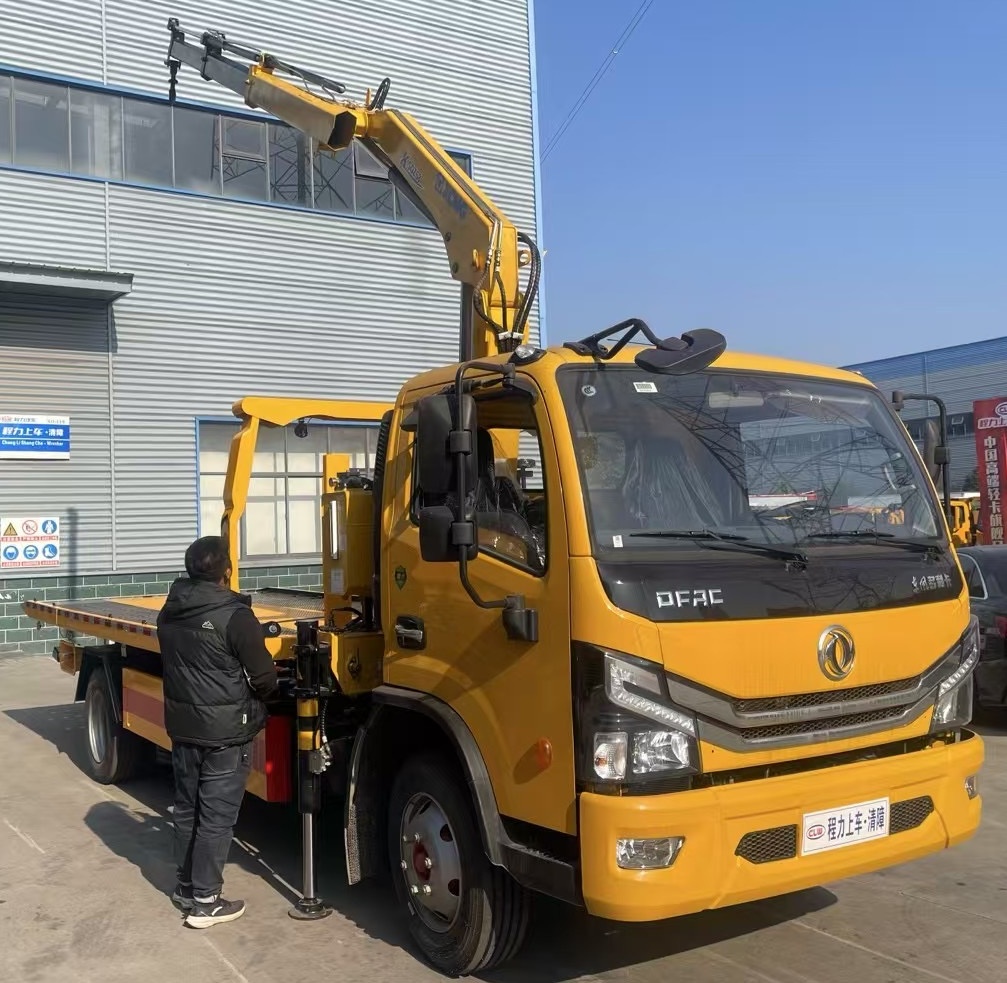

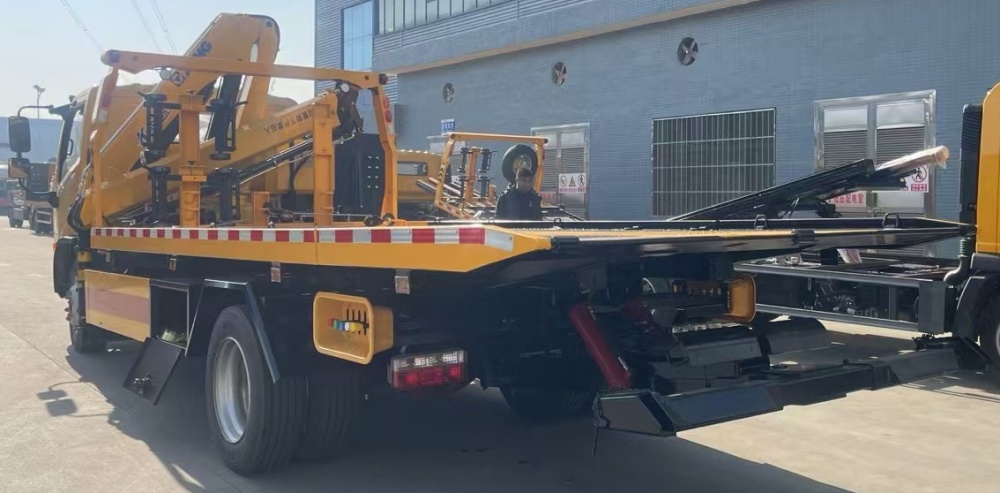

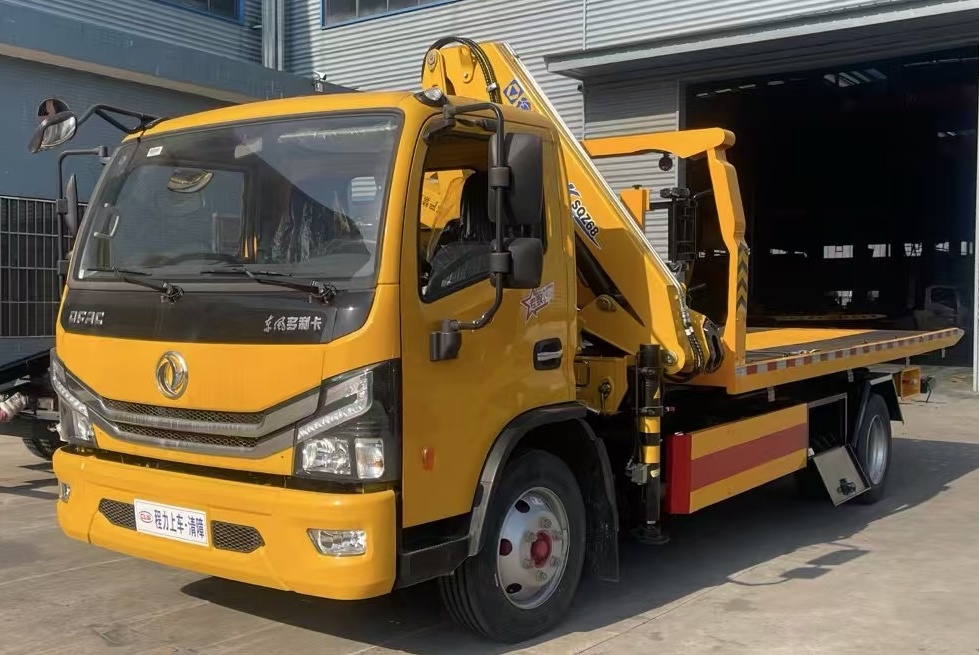

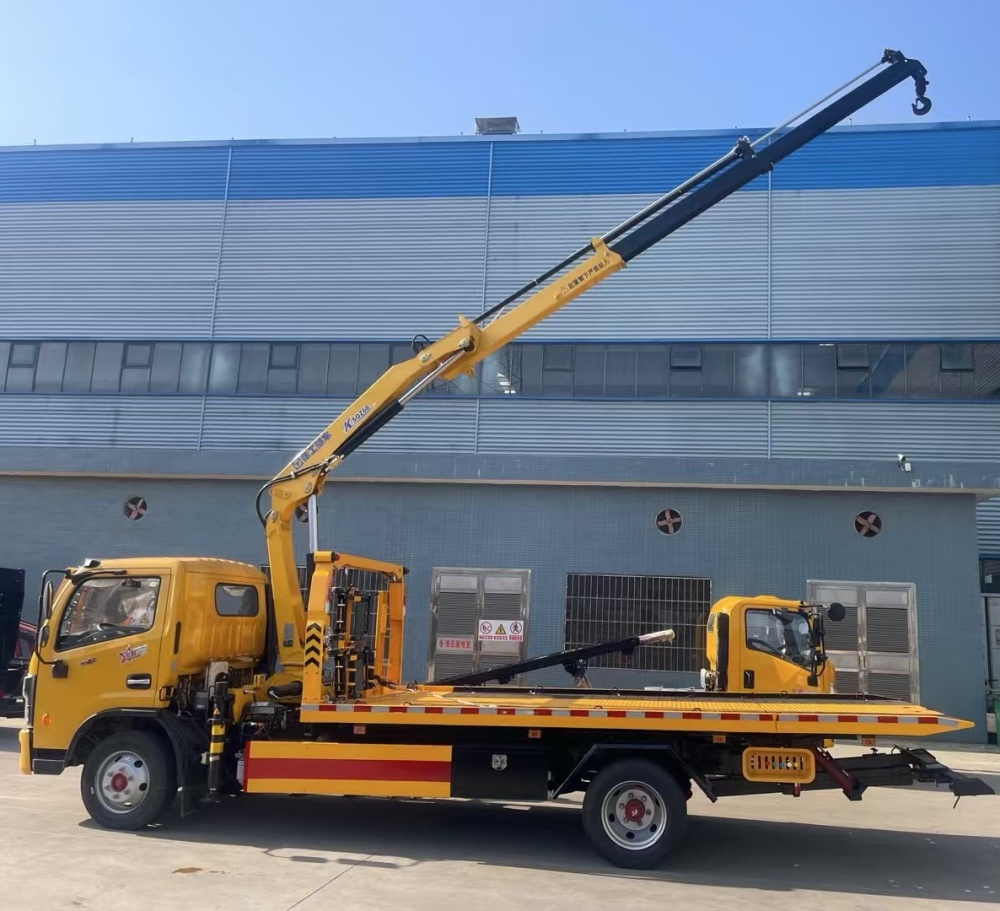

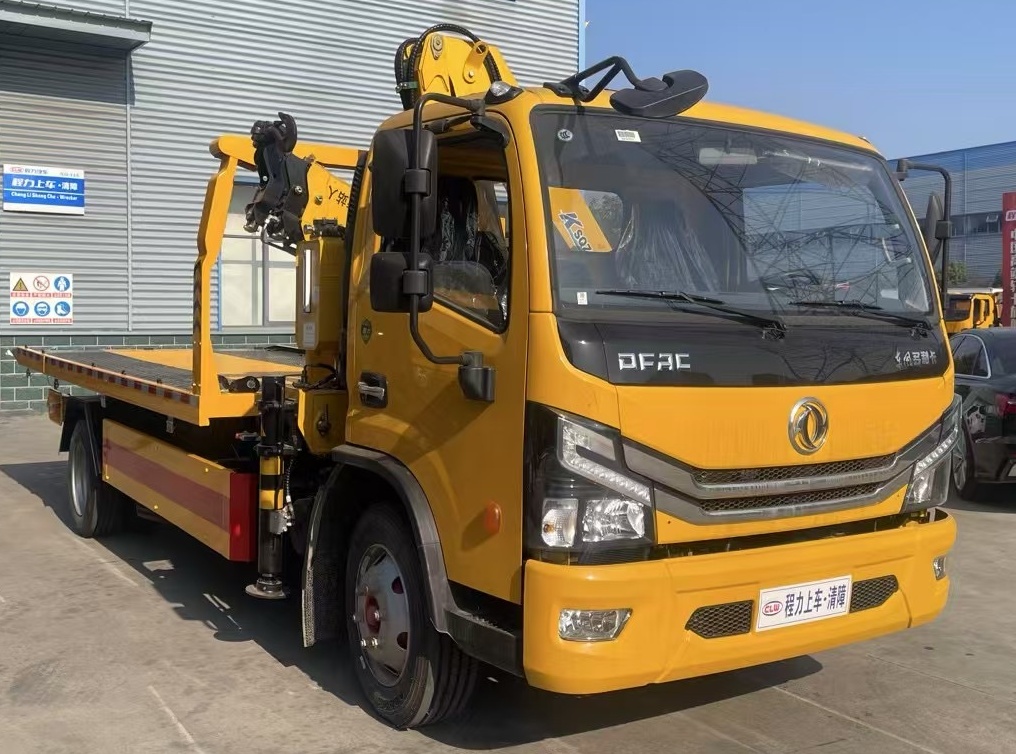

DONGFENG DUOLIKA 5T flatbed tow wrecker truck with knuckle crane boom for sale
Dongfeng duolika 2030mm single row driver cab,
4*2 LHD, RHD Optional
4400mm wheelbase
YC4E135 33 100KW/135hp diesel engine, Euro 2 emission standard
WLY 6+1 manual gearbox,
8/10+7 steel leaf,
8.25R25*16*6+1 spare
The length of the flatbed for the dongfeng wrecker tow truck is 5600mm; while the width of the flatbed is 2300m. Choose to install 3.2T knuckle crane boom.
The standard devices of dongfeng 5tons road wrecker tow truck with 3.2T crane boom is as below
1,5 tons loading capacity for the upper part/flatbed, full-landed flatbed.
2, 4T hydraulic winch and 20m length wire rope
3, 2.5tons loading capacity of Retractable Rear Lift Arm (choose to install)
4, auxiliary wheels*1 sets
5, yellow color alarm light
6, special binding belts*4sets
7, 3.2T knuckle crane boom
high quality dongfeng wrecker towing vehicle with knuckle crane boom for sale
main technical parameters of dongfeng full-landed flatbed wrecker towing with crane boom is as below.
Overall parameters | Product name | dongfeng 5tons wrecker tow truck for sale |
Total mass(kgs) | 11995 | |
Curb mass(kgs) | 8000 | |
Overall dimension (L*W*H)(mm) | 8300×2350,2480×3250,3380 | |
Chassis parameters | Driver cab | dongfeng 4*2 LHD single row driver cab with 3 seats |
Approach/departure angle(°) | 22/9 | |
Front/rear suspension(mm) | 1130/2770 | |
Axles nos. | 2 | |
Wheelbase(mm) | 4400 | |
Axle load(kgs) | 4350/7645 | |
Max speed(km/h) | 103 | |
Tire specification | 8.25R16*6 | |
Steel spring | 8/10+7 | |
Engine model | YC4E135 33 | |
Fuel type | Diesel | |
Emission standard | Euro 3, Euro 4/5/6 optional | |
Gearbox | WLY 6+1 gearbox, manual | |
Upper part parameters
| Flatbed dimension(L*W)(mm) | 5600*2300 |
Total flatbed length (mm) | 5600 | |
Hydraulic winch | 4tons | |
Operation way | Bilateral linkage operation | |
Retractable Rear Lift Arm | 2.5tons loading capacity of the rear towing arm | |
Loading capacity of the flatbed | 4tons-5tons | |
Wire rope | 20m length | |
Auxiliary wheels | 2 sets | |
Special binding belts | 4 sets | |
Caller with alarm light | Yes | |
Crane boom | 3.2T/4T telescopic crane boom(High quality China-made XCMG or other brands) |
Wrecker truck is also called road wrecker tow truck or tow truck, making up of chassis, lifting device, hauling and supporting device, hydraulic system, electronic control system, truck body and toolbox, etc. having the functions of lifting, hauling, and supporting, etc. wrecker tow truck is suitable for wrecker working on the high road and municipal working.
1. Many brands of wrecker tow trucks for choose, such as Dongfeng, DFAC, JAC, JMC, Foton, Isu-zu
2. China factory direct supply all kinds of wrecker truck, light duty flatbed wrecker and heavy duty towing trucks.
3. We sold many wrecker towing trucks / platform wrecker body to South America, Africa, Middle East, etc.
4. We can design and produce the wrecker trucks according to customers' request.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
