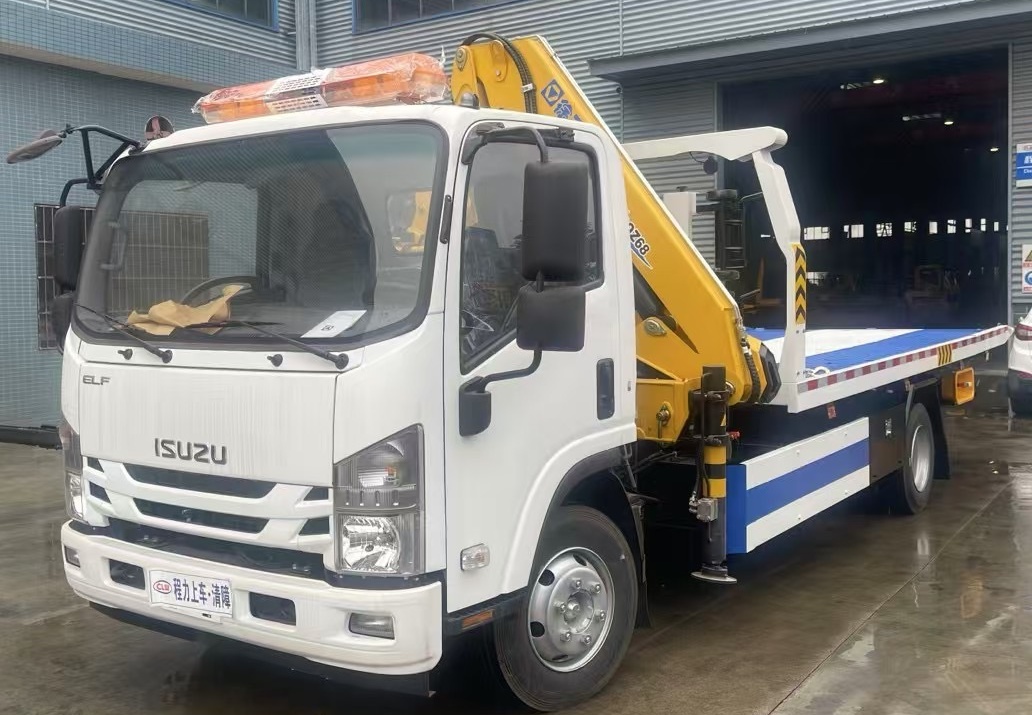

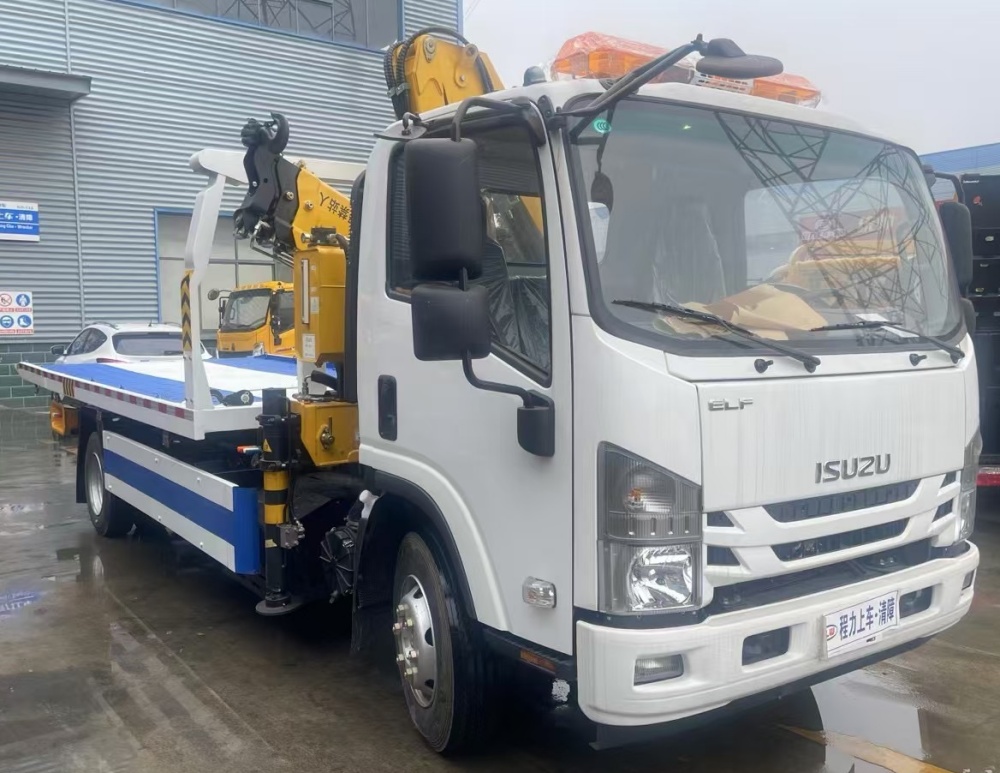

customized ISUZU 700P flatbed wrecker towin vehicle with knuckle crane boom for sale
This ISUZU 7O0P 4*2 LHD 5tons flatbed type wrecker towing truck
ISUZU 700P single row driver cab,
4475mm wheelbase,
ISUZU MLD 6 speed manual gearbox,
4HK1-TC50 205hp diesel Euro 5 engine,
4T front axle/7T rear axle,
235/75R17.5*6+1 spare
Air conditioner+ ABS+ Air cut braking+ power steering,

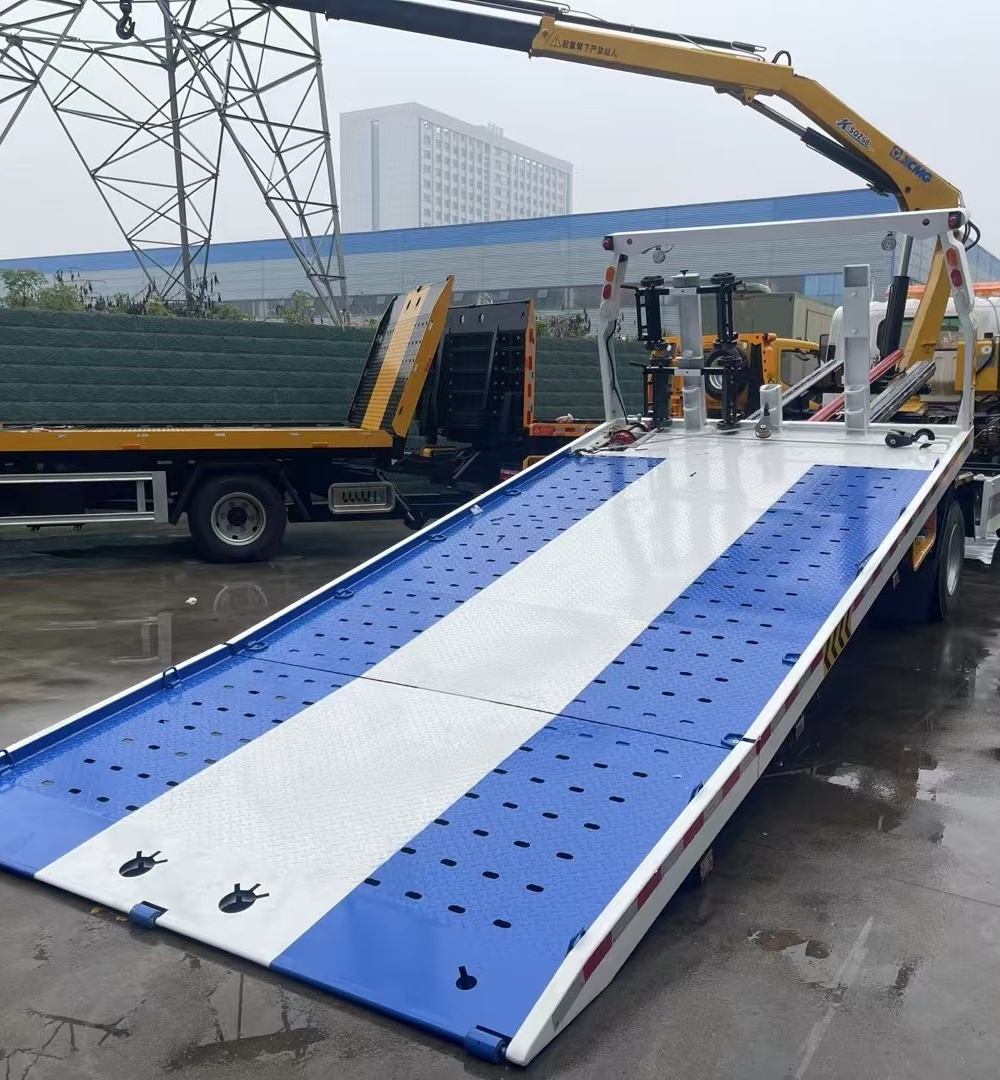

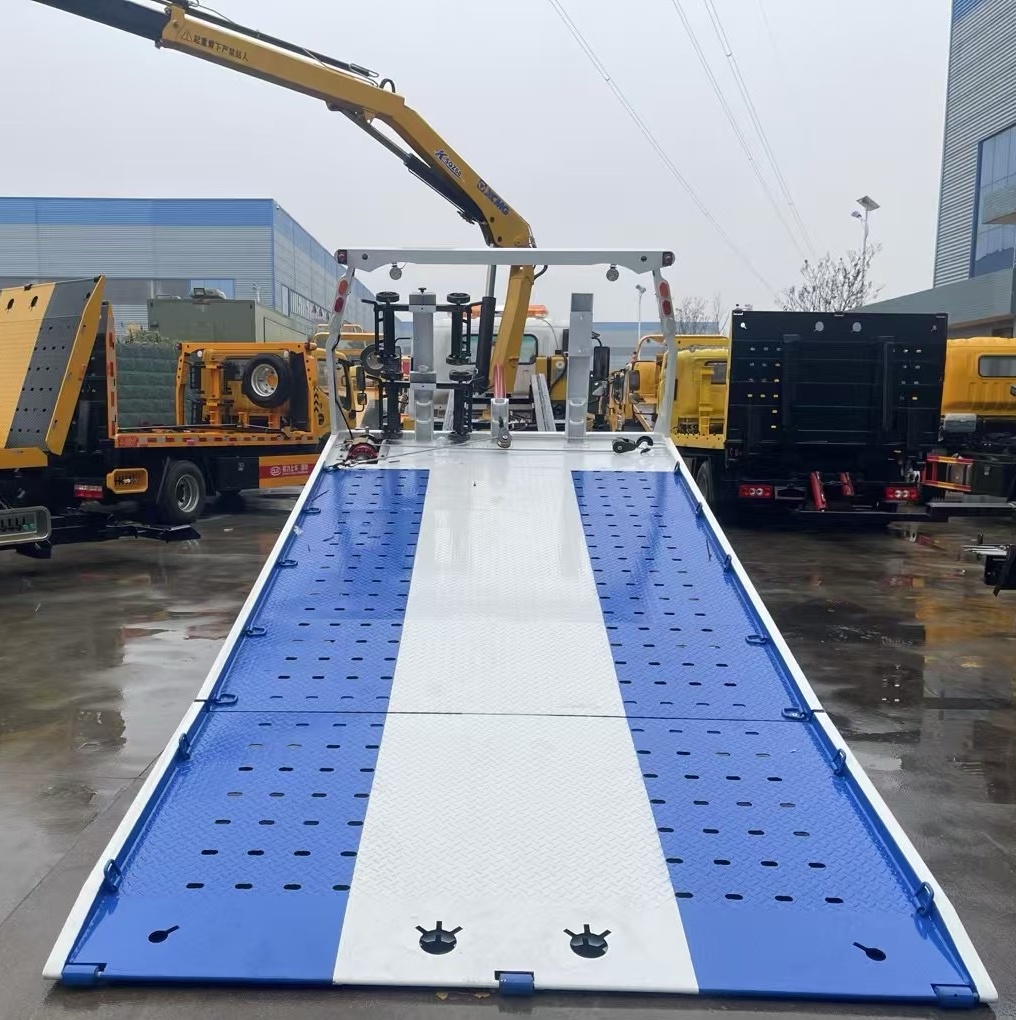

The length of the flatbed for the ISUZU wrecker tow truck is 5600mm; while the width of the flatbed is 2300mm,
The standard devices of ISUZU 4*2 LHD 5tons road wrecker tow truck as below
1, 5 tons loading capacity for the upper part/flatbed
2, 5T hydraulic winch and 25m length wire rope
3, 3.5tons loading capacity of rear towing arm(choose to install)
4, auxiliary wheels*2 sets
5, bilateral linkage control valve
6, fully hydraulic flipping plates
7, caller with alarm light
8, auxiliary wheels*2 sets
9, 4* special binding belts
10, 3.2T/5T knuckle crane boom.
Factory direct sale price ISUZU full-landed wrecker towing vehicle with knuckle crane boom for sale
Main technical parameters of ISUZU brand 6T road wrecker towing truck with 5T/3.2T folded crane boom is as below.
Overall parameters | Product name | ISUZU 5T wrecker tow truck for sale |
Manufacturer | Chengli Special Automobile Co., Ltd. | |
Product model | CSC5102TQZWP | |
Total mass(kgs) | 10000 | |
Curb mass(kgs) | 5675 | |
Overall dimension (L*W*H)(mm) | 8485×2420×2500 | |
Chassis parameters | Driver cab | ISUZU 700P single row driver cab |
Approach/departure angle(°) | 21/10 | |
Front/rear suspension(mm) | 1110/2900 | |
Axles nos. | 2 | |
Wheelbase(mm) | 4475 | |
Axle load(kgs) | 4450/9550 | |
Max speed(km/h) | 95 | |
Tire specification | 10.00R20*6 | |
Steel spring | 7/7+5 | |
Front/rear tread(mm) | 3350/6650 | |
Engine model | 4HK1-TC50 | |
Fuel type | Diesel | |
Emission standard | Euro Ⅴ | |
Gearbox | ISUZU MLD 6 speed gearbox, manual | |
Upper part parameters
| Flatbed dimension(L*W)(mm) | 5600*2300 |
Hydraulic winch | 5tons | |
Operation way | Bilateral linkage operation | |
Loading capacity of the flatbed | 5tons | |
Wire rope | 25m length | |
Auxiliary wheels | 2 sets | |
Special binding belts | 4 sets | |
Caller with alarm light | Yes |
1. The road wrecker truck is also called rollback wrecker beds truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck, towing truck, wrecker with crane, etc, which is used for dealing with the cars and trucks in accident.
2. Our recovery truck vehicle with crane consist of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, crane, hydraulic system, electric control system, truck body and the tool boxes.
3. Currently there are tow mainly design for wrecker trucks, flat bed model and towing model.
Towing model is mainly designed for deal with heavy duty vehicles, with the weight above 10 tons.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
