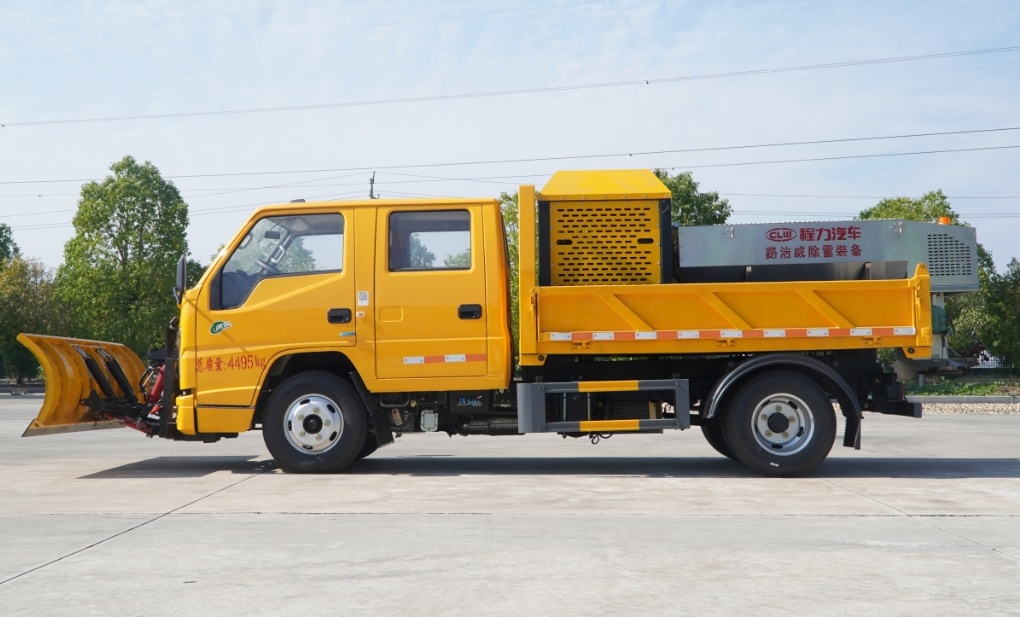

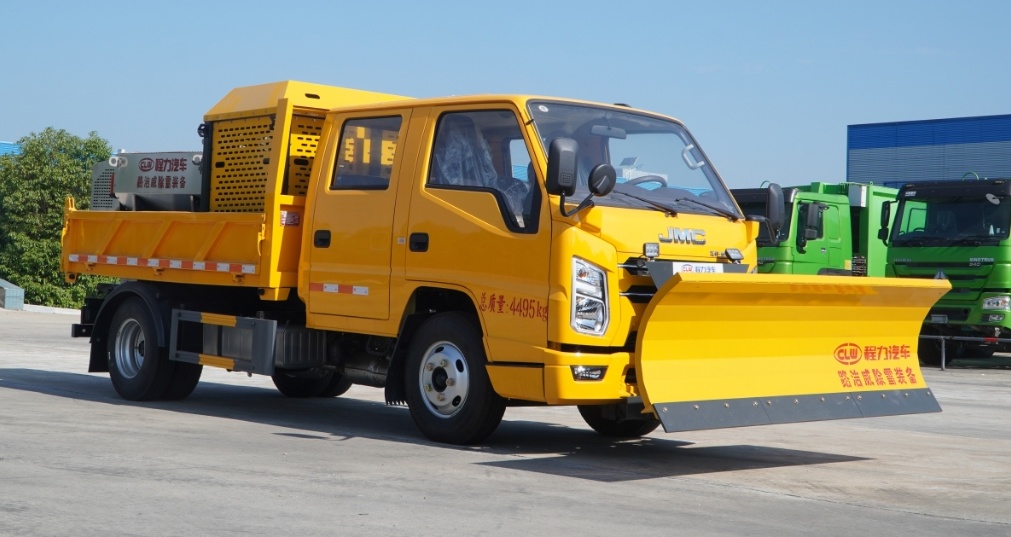

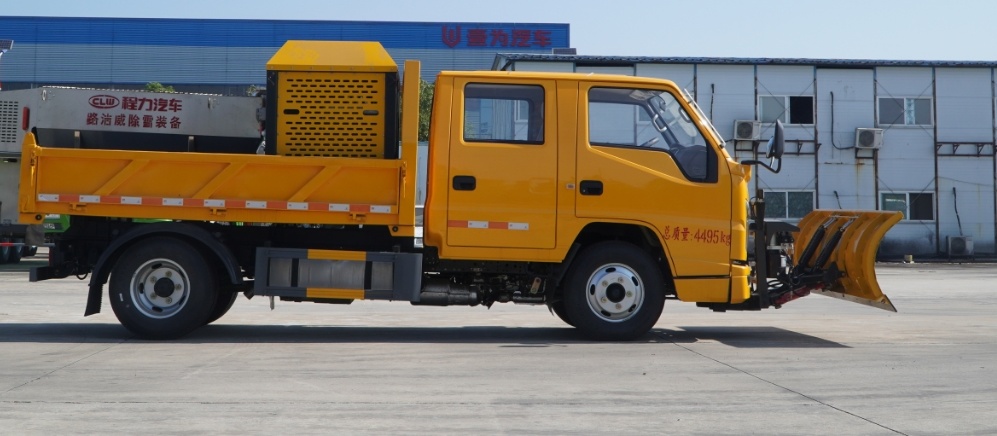

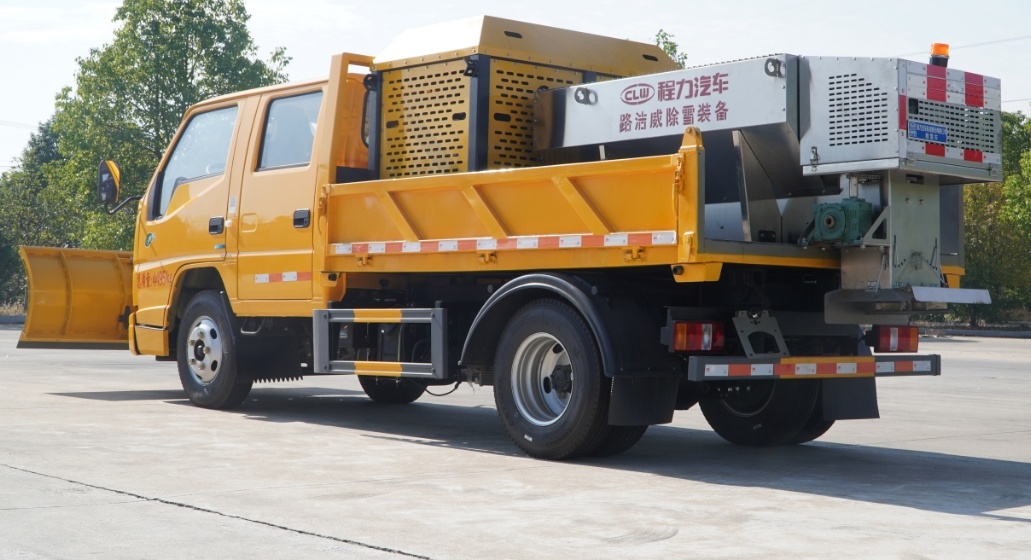

vehicle photo show
product parameters
high quality and best price JMC double-cab snow spreading vehicle for sale
Today, we will introduce best selling JMC brand double-cab snow spreading vehicle is as below,
high quality and best price JMC double-cab snow-removal vehicle for sale
main technical parameters of JMC double-cab snow spreading vehicle is as below.
Product model | JMC doube-cab snow-spreading vehicle for sale | |||
Total mass(Kg) | 4495 | Spreader capacity(m3) | 1.2 | |
Curb mass(Kg) | 3670，3490，3350 | Overall dimension(mm) | 5995,5700,5550X2070X2240,2120 | |
Front/rear suspension （mm） | ≥1075/1540 | wheelbase(mm) | 3360 | |
Tires nos. | 6 | Tires specification | 7.00R16LT 10PR | |
Chassis parameters | ||||
Truck model | JX1041TSG26 | Manufacturer | JMC | |
Engine model | JX4D30B6H | Rated power （kw） | 85KW/115HP | |
displacement（ml） | 2 8 9 2 | Emission standard | G B 1 7 6 9 1 - 2 0 1 8 国 Ⅵ | |
Gearbox | 5+1 gears, manual type | Fuel type | Diesel | |
Air conditioner | Original air conditioner | Driving type | 4X2 | |
Others | Electric windows, central locks, | |||
Spreader parameters（LJW100RS） | ||||
Overall dimension (mm) | 2250×1160×1210 | mass（t） | ≥0.345 | |
Spreading amount(g /m2) | 20～150 adjustable | Spreading width（m） | 2-12 | |
Working speed(km/h) | 15～45 adjustable | Silo capacity | 1.2m3 | |
Spreading disc diameter（mm） | 400 | Power source | Gasoline engine | |
Spreading width | 2-15m，and be adjustable | Material of spreading disc | High quality stainless steel material | |
conveying type | Scraper chain conveying form | Spreader | Can be disassembled as a whole | |
Uniform Feeding particles | The filter screen is installed on the spreader to reduce the large particles or debris from entering the equipment and ensure the safe operation of the mechanism. | |||
V type SILO | Simple structure, easy operation, automatic discharge of snow melting agent, no residue | |||
The advantages of spreader
1. The whole machine adopts stainless steel structure, which is salt-alkali resistant and corrosion-resistant, and has a long service life.
2. The conveying adopts a special reducer with hard tooth surface, which has high transmission efficiency and stable transmission speed.
3. The adjustable spreading mechanism is convenient for adjusting the spreading direction and auxiliary adjustment of the spreading width, and the spreading width range is 2 to 12m .
4. The waterproof LED flashing light flashes at high frequency during work to remind the rear vehicle, making it safer to work at night.
5. The imported Briggs and Stratton gasoline engine is energy-saving and quiet, stable and reliable, and easier to start in winter. 6. The all-stainless steel scraper chain conveying structure has a large discharge, large torque, stable operation, and is simple and easy to maintain.
7. The feeding filter structure prevents large pieces of material or debris from entering the equipment, ensuring the normal operation and safety of the equipment.
8. The industrial-grade heavy-duty connector facilitates the quick disassembly and assembly of the intelligent control system harness.
9. The adjustable discharge port adjusts the snow melting agent delivery amount according to the spreading requirements, and the spreading density ranges from 20 to 150 g/m2.
10. The centralized control system in the cab can control the operation of the equipment, which is simple, convenient and safe to operate.
11. There are many types of spreading, including solid salt, sand, snow melting agent and other snow and ice melting and anti-skid materials.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
