Drilling truck is also called mobile drilling platform, which is composed of automobile chassis, drilling equipment, transfer device, hydraulic system, tower and other parts. It is mainly used for the construction of seismic blast holes; the general survey exploration of oil, natural gas and solid minerals; the construction of engineering geological surveys for urban construction, railway and hydropower departments; shallow hydrogeological surveys and water well drilling.

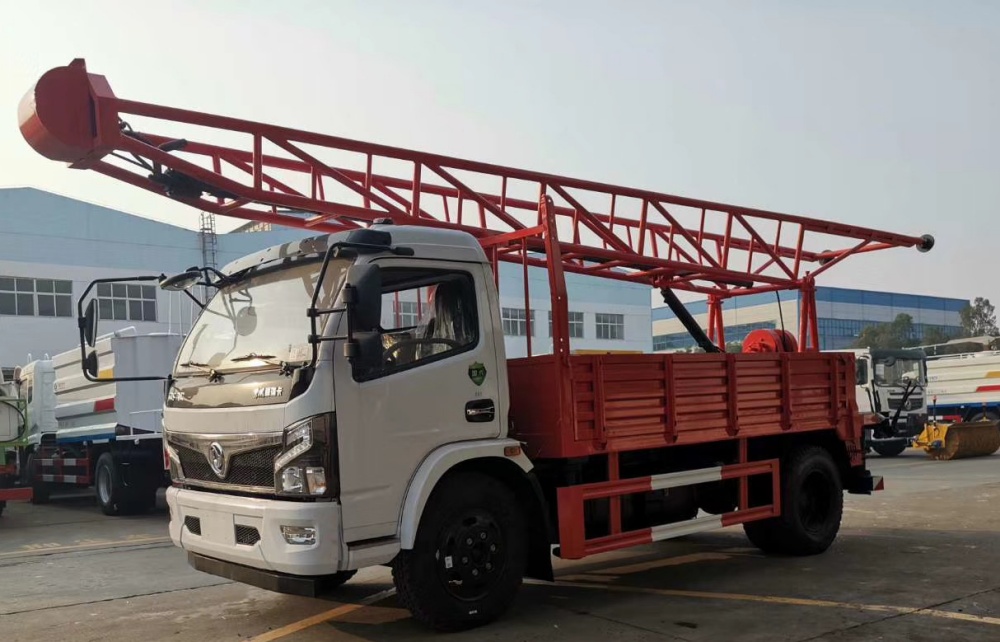

IMG_7335(20240430-131939)_副本

Best price dongfeng water drilling machine on truck for sale

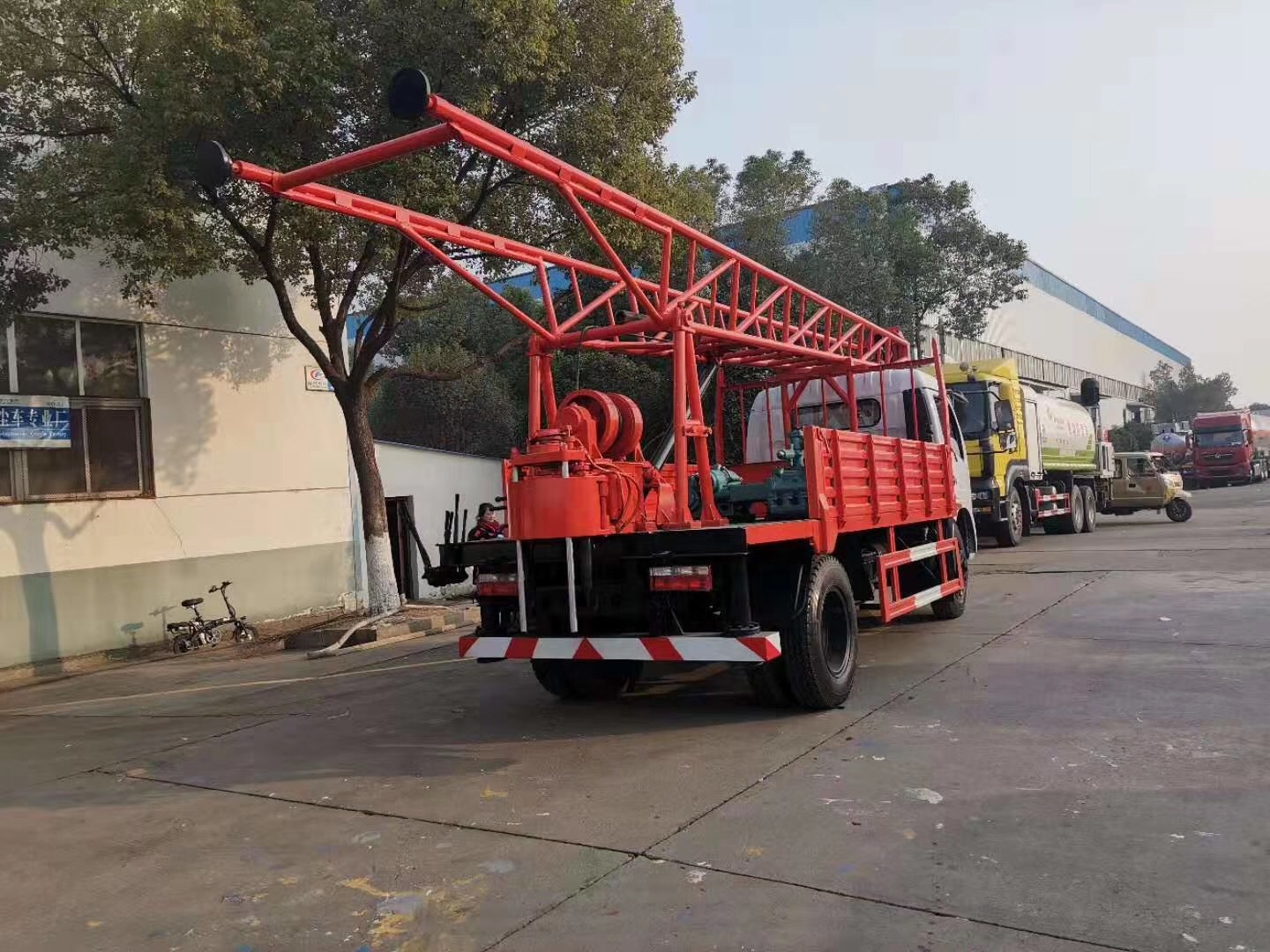

IMG_7333(20240430-131935)_副本

Main features of Dongfeng water well Drilling Machine as below.

Pressure and strong lifting, saving manpower and reducing labor intensity.

The hoist is a planetary hoist, which is flexible, safe and reliable in operation.

A reverse gear mechanism is added to the reduction box, and a handle can be manipulated to enable the gyrator to have three positions of forward rotation, stop, and reverse rotation, which makes it easy to unscrew and unload the active drill rod, save time and effort.

The mud pump has strong self-priming ability and adjustable 10-level flow.

The faucet is small in size, light in weight and reliable in sealing.

The active drill pipe has good rigidity and self-heavy weight. It can be pressurized by its own weight when drilling, and the drilling efficiency is high.

The lifting and landing derricks are operated hydraulically, which is convenient, safe and reliable.

The whole vehicle is equipped with four-stage hydraulic outriggers, which can adjust the extension length of any leg at will to adapt to different working places.water well



Dongfeng Dorica D9 drilling truck locomotive: the chassis adopts Dongfeng Dorica D9 country six chassis, Yuchai 200 horsepower engine 4500 wheelbase 10.00 R20 tire with spare tire 6 gear gearbox, with directional power, gas brake. Original air conditioning. Upper configuration: reducer, gyroscope, hoist, gearbox, mud pump, force box, Derrick, tower, faucet.

<!---->

borehole angle range :90°

engine power: KW 147

weight: kg 9200

processing customization: Yes

crushing mode: impact swing rig

construction site: surface drilling rig

drilling depth: mid-deep drilling rig

use: Hydrogeological well drilling rig

geological exploration vehicle drilling rig geological survey drilling vehicle DPP100 North exploration vehicle drilling rig drilling rig

 main technical parameters of dongfeng drilling truck Technical specification as below.

Maximum drill depth

drill diameter ψ200mm depth 70 m drill diameter ψ150mm depth 100

Drill pipe diameter

mm



Rotary speed

R/min

Revised 96 169

Reverse 38

Maximum feed/drawing force

KN

30/50

To proceed

mm

450

Hoisting single rope lifting

KN

13

Maximum working pressure of mud pump

<span style="box-sizing: content-box; margin: 0px; padding: 0px; border: 0px; font-style: inherit; font-variant: inherit; font-weight: inherit; font-stretch: inher  <!----><!---->

Water Drilling truck Main advantages:

 1, hydraulic pressure and strong pull-out, save manpower, reduce labor intensity.

 2, hoist is planetary hoist, flexible operation, safe and reliable.

3, the reverse gear mechanism is added to the reducer, and a handle can be operated to make the rotary device have the position of positive rotation, stop and reverse rotation, so that the active drill pipe can be screwed and unloaded conveniently, time saving and labor saving.

 4, mud pump self-priming ability, adjustable 10 class flow.

 f5, aucet is small in size, light in weight and reliable in sealing.

 6, the active drill pipe is rigid and self-important, it can be pressurized by self-weight when drilling, and the drilling efficiency is high.

 and falling Derrick for hydraulic control, easy to operate, safe and reliable.

 7, vehicle is equipped with four groups of hydraulic legs, can adjust the extension length of any leg at will, adapt to different working sites.

 car split box for the whole, military off-road type.

8,  on the operating table can realize the rig positive and negative operation, easy and flexible operation.
