our industry advantage

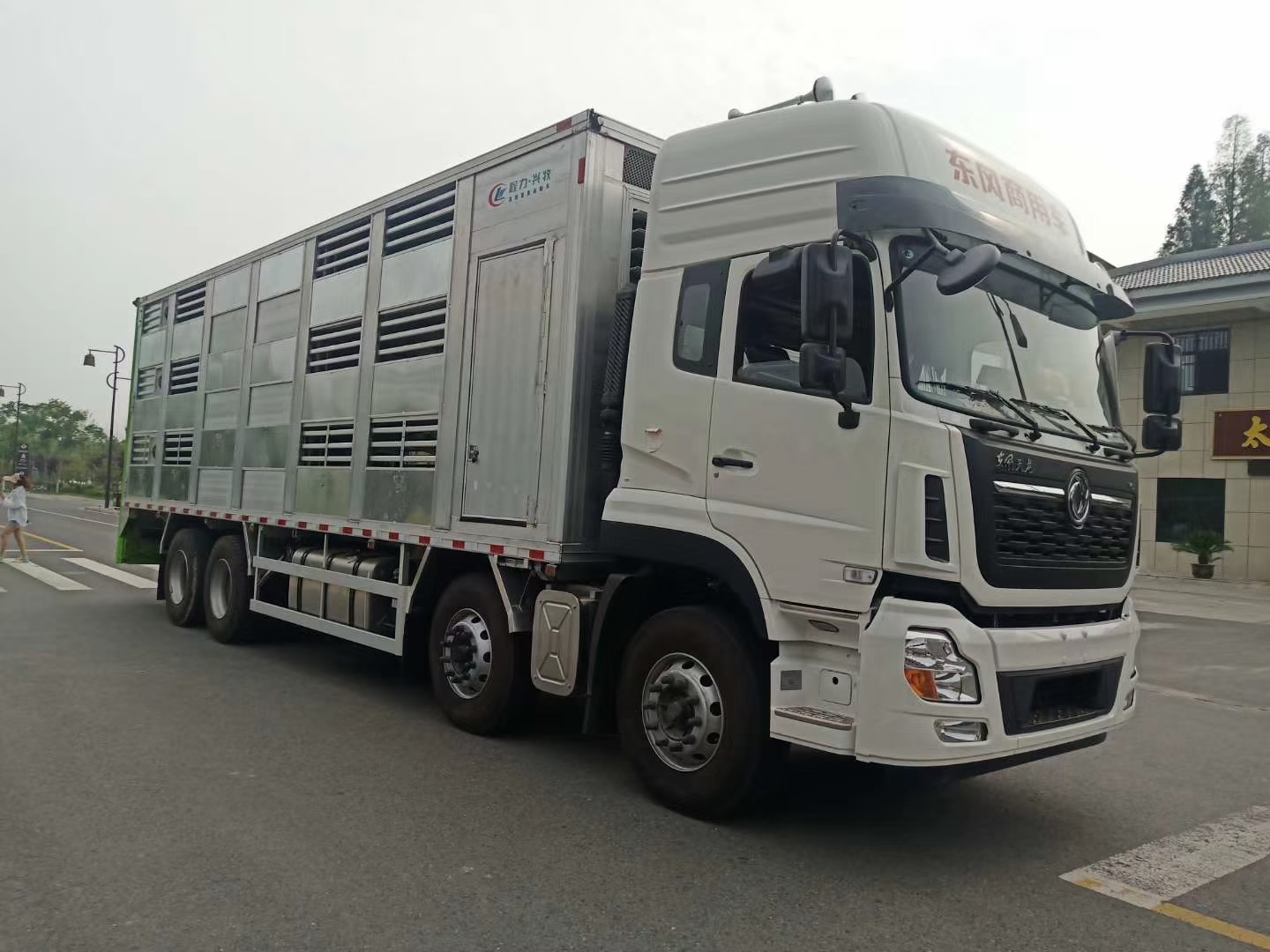

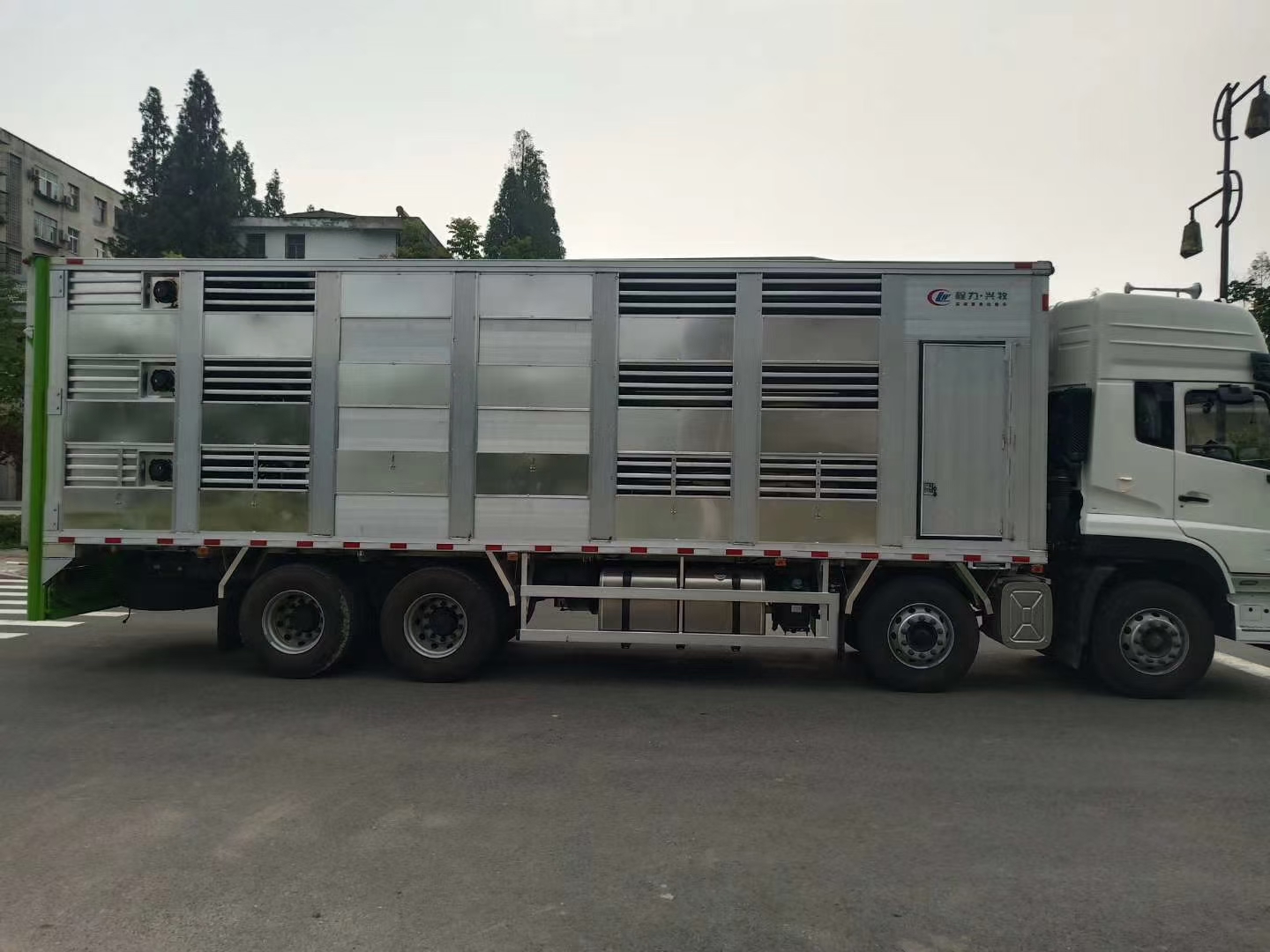

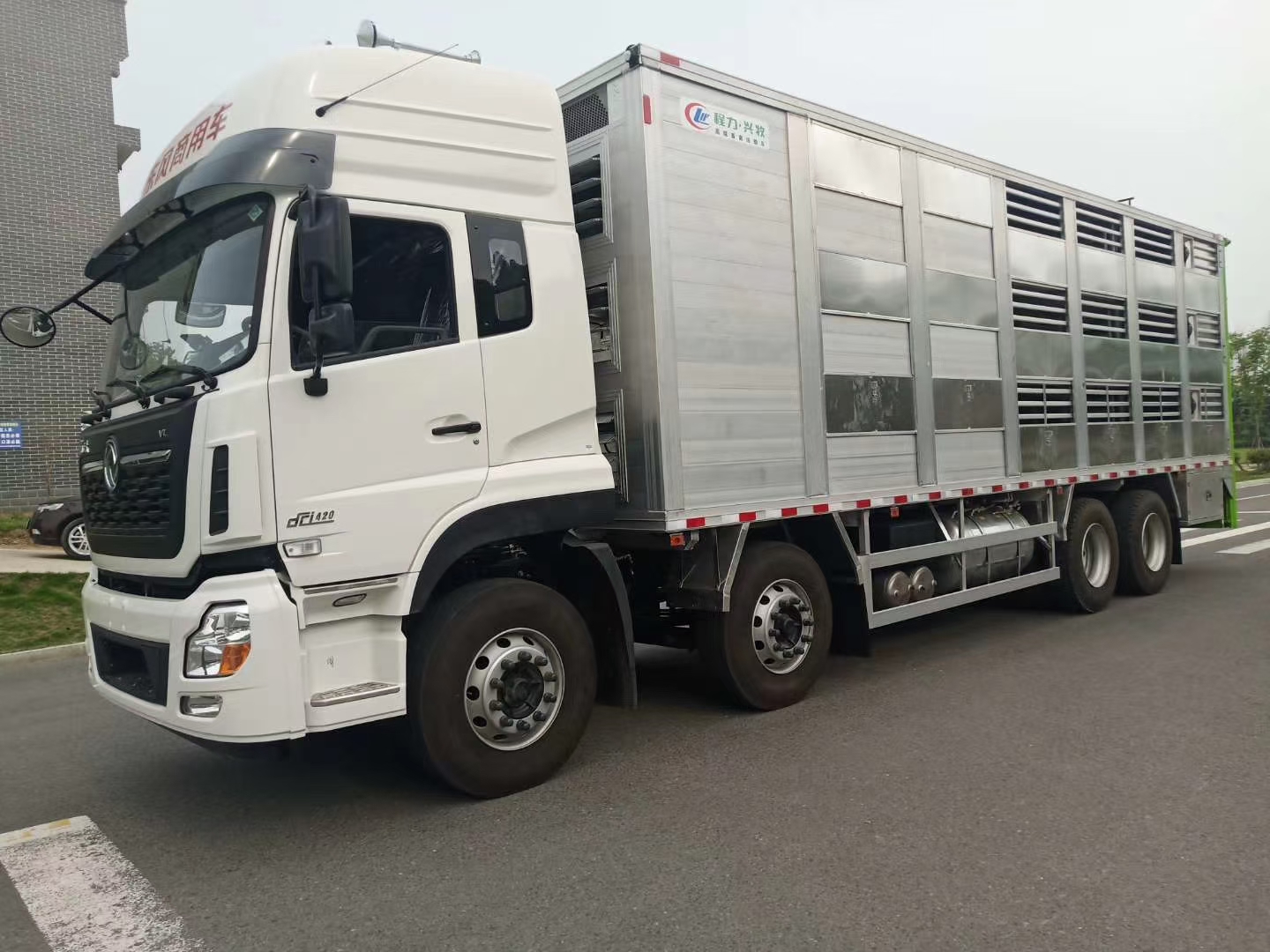

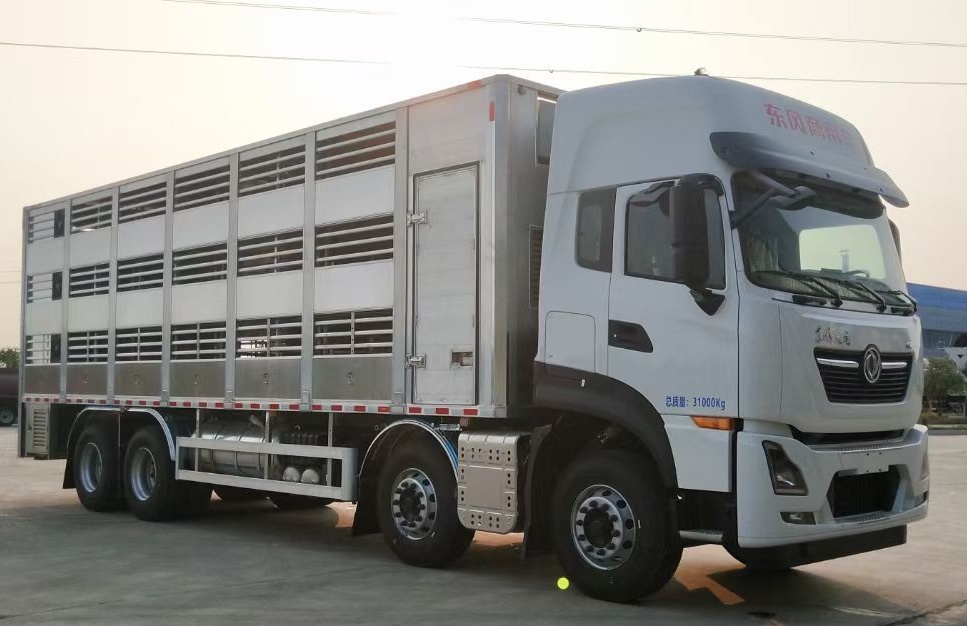

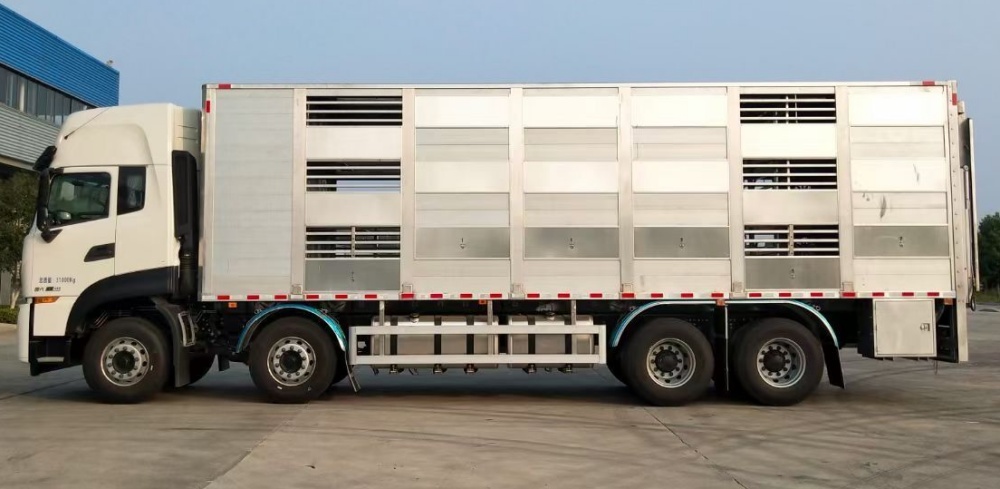

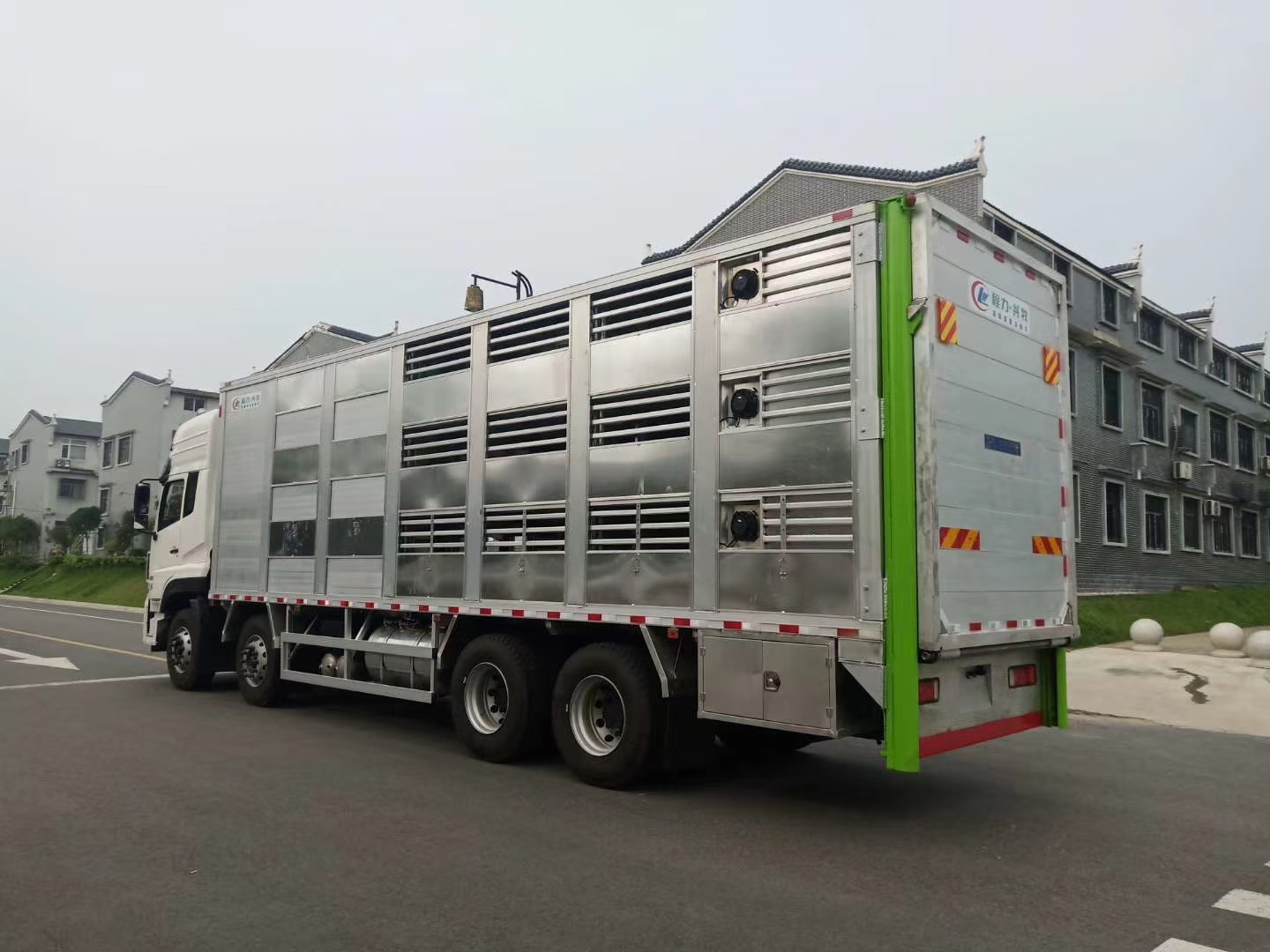

vehicle photo show
product parameters
| Truck chassis | Truck model | CLW5310CCQD5 |
| Driving type | 8X4 | |
| Wheelbase | 1995+4600+1350 | |
| Tire specification | 12R22.5 18PR | |
| Front axle type | Duanquan I-beam | |
| Rear axle type | Integral stamping and welding axle housing | |
| Suspension type | Steel spring | |
| Braking type | Dual circuit air brake | |
| Driver cab | Driver cab type | Flat head |
| Seated person | 3 | |
| Conditioner type | Manual | |
| Engine | Type | dCi465-51 |
| Horsepower | 465hp | |
| Displacement | 11120 | |
| Emission standard | Euro Ⅴ | |
| gearbox | Type | DT1422 DD |
| Forward gear | 12 | |
| Oeration type | Manual / high and low gear | |
| Other | Standard configuration: ABS, electric doors and windows, central control lock, direction assist, air-conditioning, airbag seat, driving recorder and other original factory configuration, airbag suspension cab, | |
<!--
-->| Vehicle parametes | Overall dimension(L*W*H)mm | 12000X2500X3980 |
| Total mass(Kg) | 31000 | |
| Curb mass(Kg) | 15500 | |
| Rated mass(Kg) | 15370.15305 | |
| Transfer box area | Van box material | All aluminum alloy |
| Van box dimension(L*W*H) mm | 9600X2500X2600 | |
| Van box structure | Three or four layers, side windows can be opened and closed | |
| Loading capactiy | The forth floor: 21.25㎡×4; the third floor: 21.25㎡×3 | |
| Volume unit | 21.25×3×110/pig/125Kg（the third floor） | |
| 21.25×4×1200 pig/10Kg（the forth floor） | ||
| Floor height (mm) | 850mm（the third floor）、620mm（the forth floor） | |
| Area per column(㎡) | ||
| Reversible structural parts | Middle aisle floor and roof | |
| Van inner system | Loading and unloading methods | Hydraulic lifting tail plate |
| Tail board area(㎡) | 5 | |
| Cooling mode | Sprayers*18 /the third floor | |
| Sprayer*24 /the forth floor | ||
| feeding system | Drinking sprayer* 18/the third floor | |
| Sprayer*24 /the forth floor | ||
| Fan exhaust m3/h | 500，1200,1400,2200 | |
| Standard device | Constant temperature, spraying, feeding, monitoring, high-speed waterproof ventilation exhaust fan, three-layer, vertical lifting tail plate | |
| Remark: 1. The car body adopts a fully enclosed structural frame design and is made of all aluminum alloy profiles, which is light in weight, high in strength, strong in corrosion resistance, and resistant to high temperature disinfection at 60-80 degrees 2. The compartment body effectively avoids high temperature conduction, and the internal channel and top plate can be turned over, which is convenient for loading, unloading and cleaning | ||
heavy dity poultry pig carrier for sale
--><!--
-->The pig transport truck for sale is also called livestock transport truck, pigling delivery truck, pig transport box truck. The live pig transport truck is belong to poultry truck, livestock truck, etc. The poultry transport truck is one simple truck for piggy transportation, mature pig transport truck, goat transport truck, sheep transport truck, oxen transportation truck. It is consisted of truck chassis, truck refrigerator, cold box. The cooling box body is made of fiber glass or aluminum , the middel is Polyurethane insulated .As a professional poultry transport refrigerator truck manufacturer, the refrigerator truck for sale is one of our main product.
The livestock truck is with two or three hydraulic lifting layers, which convenient for poultry get on or off the truck.
As a poultry transport truck supplier, we have dongfeng poultry truck, foton livestock truck, faw poultry transportation truck, etc.We can customize the fence truck body according to the size of your pig, sheep, oxen.
The technical advantages of CLW brand baby pig transported truck as below.
1, the pig van box divided into 2 layers, each layer with 4 compartments. Both sides of the box are with several fans and ventilation windows. Front of the box is one operation compartment.
2, There is sprinkler system which composed of a pressure water tanker, pipes, sprinklers, and a sweage and fecal collection tanker, which sprayers and cools the piglets, cleans the tanker, and collects sewage.
3, constant temperature control & monitor system, can monitor and control the temperature in the cabin.
4, Lifting system: the rear tailgate is aluminum and can be lifted to load or unload livestock conveniently.
Each layers is with lighting system, which is convenient to observe the livestock's status.
