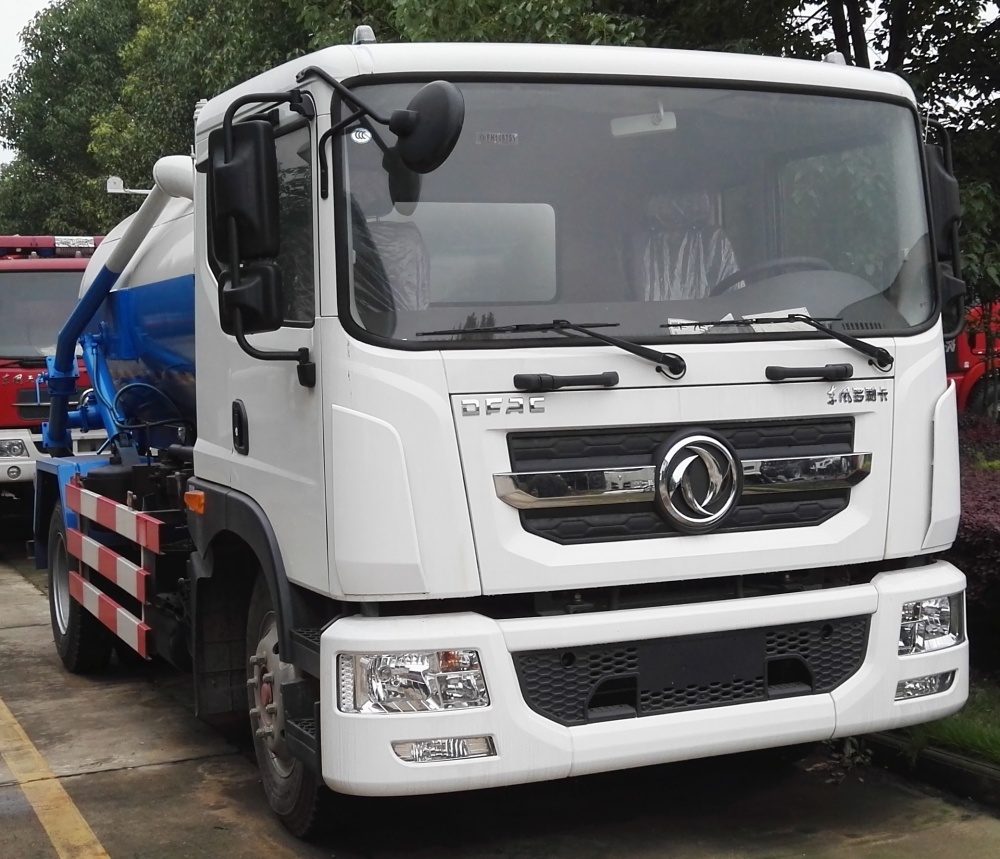

HOT SALE! DONGFENG D9 10CBM sewage suction truck for sale 4*2 LHD 190HP DIESEL

Truck chassis:

Dongfeng D9 one row and a half driver cab

pearl white color one row and a half driver cab(different color upon request),

Cummins B190 33 190hp diesel Euro 3 engine,

Dongfeng 6 speed manual gearbox,

4500mm wheelbase,

10.00R20 rail tires,

4*2 LHD, RHD optional

Dongfeng D9  luxurious driver cab with tilting mechanism design, B190 33 Cummins 190Hp(EGR) diesel engine, φ395 diaphragm spring clutch, truck engine with air intake preheating, hede brand 5tons front axle/hede 10tons double rearaxles(5.571)， 8JS85E( with PTO) manual gearbox, 300mm（8+6）x90 constant cross section 860 width dual-layer beam, full steel oil tanker(left-installed), 10.00R20 16PR rail tires, etc.

Upper part of vacuum tanker is as below
1, the sewage tanker volume: 14cbm, adopts high quality wugang steel plate, 8mm thickness tanker wall. There are several anti-wave sheets inside the tanker.
2, the vacuum pump adopts Shangdong zibo haosai 2BE204 water-circulating pump(vertical suction distance: 9m).
3, installed anti-overflow valve; the vacuum tube is installed with stainless steel material filter (preventing impurities into the pump)
4, the sewage four-way valve position is with 100mm diameter vibration-proof pressure gauge, which to resist the vibration of the working conditioner and reduce the pulsation of medium pressure.
5, one 100mm sewage suction inlet, rear part is with 600mm hydraulic sewage outlet and one 100mm sewage outlet
6, the vacuum tanker can be hydraulically lifting and tipping; the rear part sewage outlet hydraulically open with locking device.
7, tanker top is with platform with sidewalk guardrail; and tanker top is with 2* tanker openings to inlet the sewage and clean the tanker.
