Good price and high quality 10cbm dongfeng light duty Vacuum Sewage Suction Truck

Contacts: Ms. Anita Deng

Phone: Whatsapp/Wechat/Mob.: 0086 13329899995.

address: South Suburb, Chengli Automobile Industry Park, Suizhou City, Hubei Province, China. 441300

 Home>Products>Vacuum sewer tanker truck >Good price and high quality 10cbm dongfeng light duty Vacuum Sewage Suction Truck

Our industry advantages

our industry advantage

direct deal
Deliver the car home
TEAM
National Quality Assurance

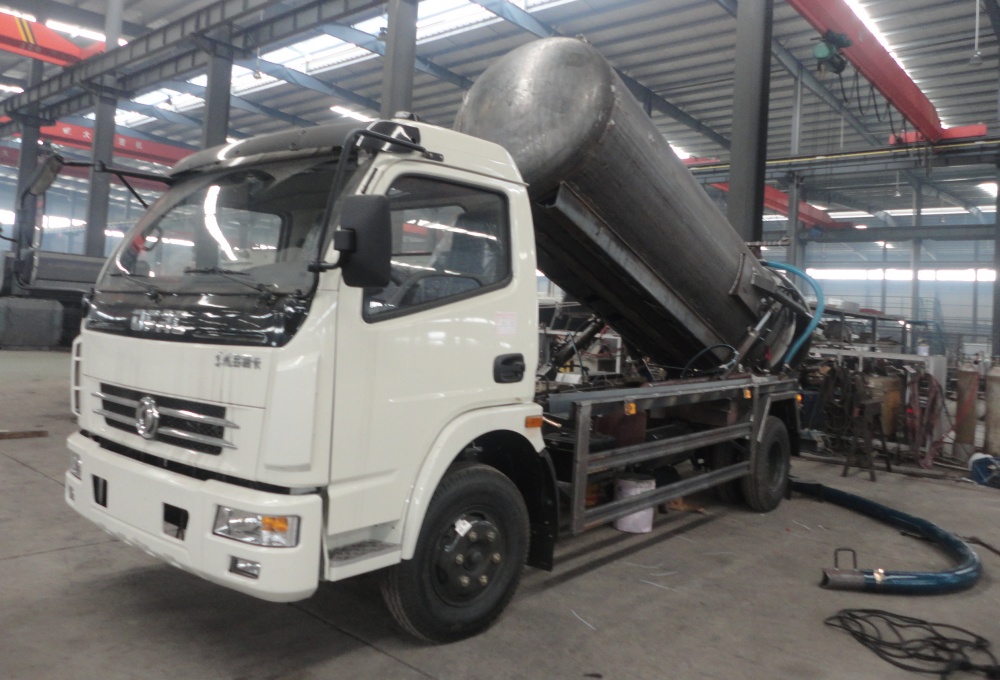

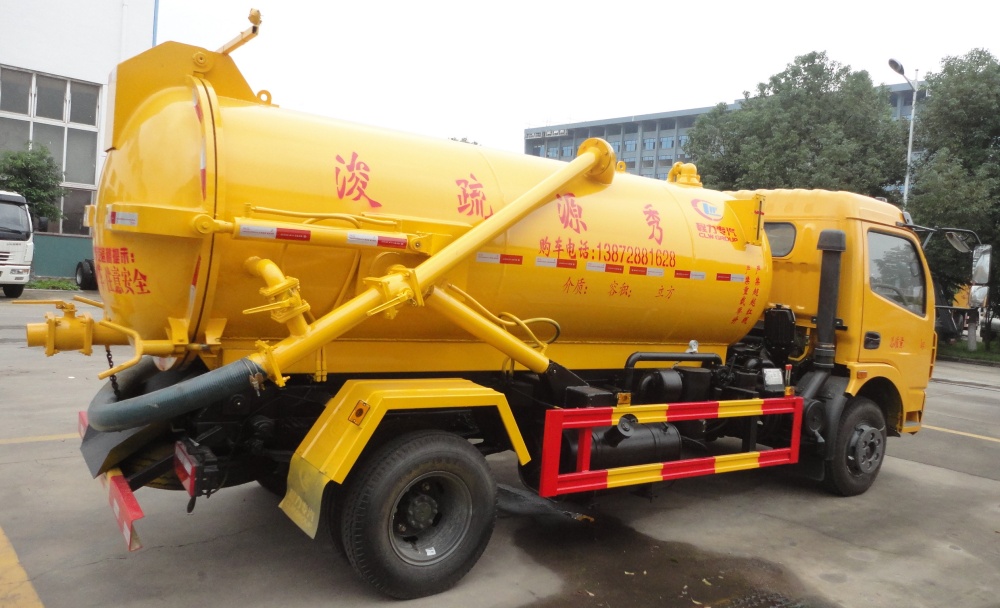

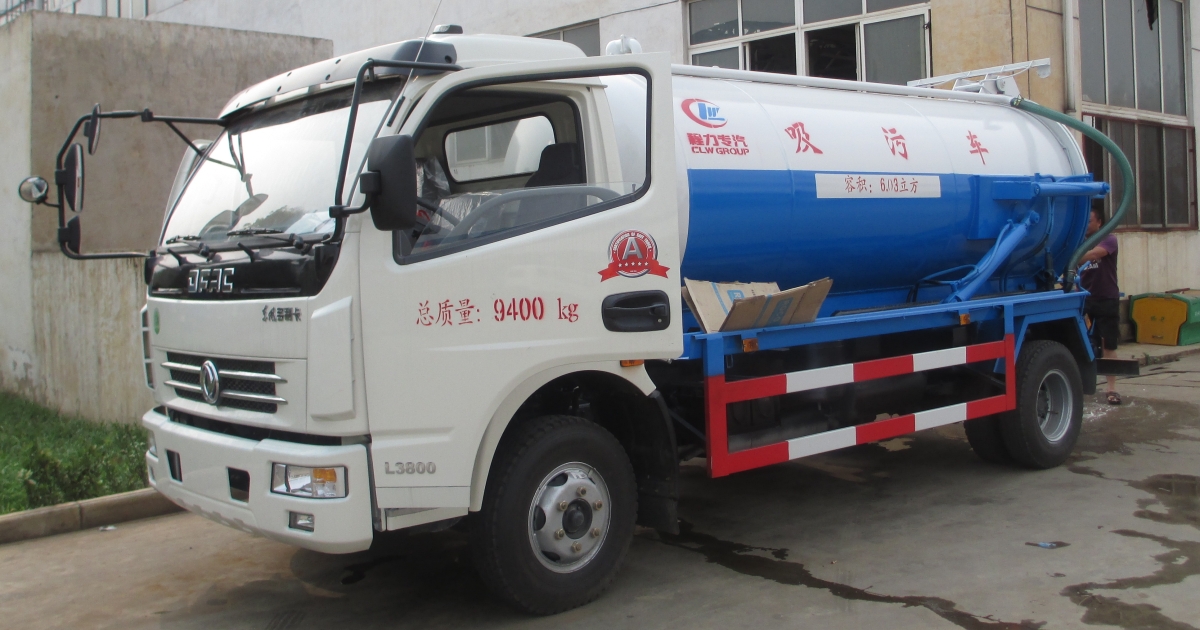

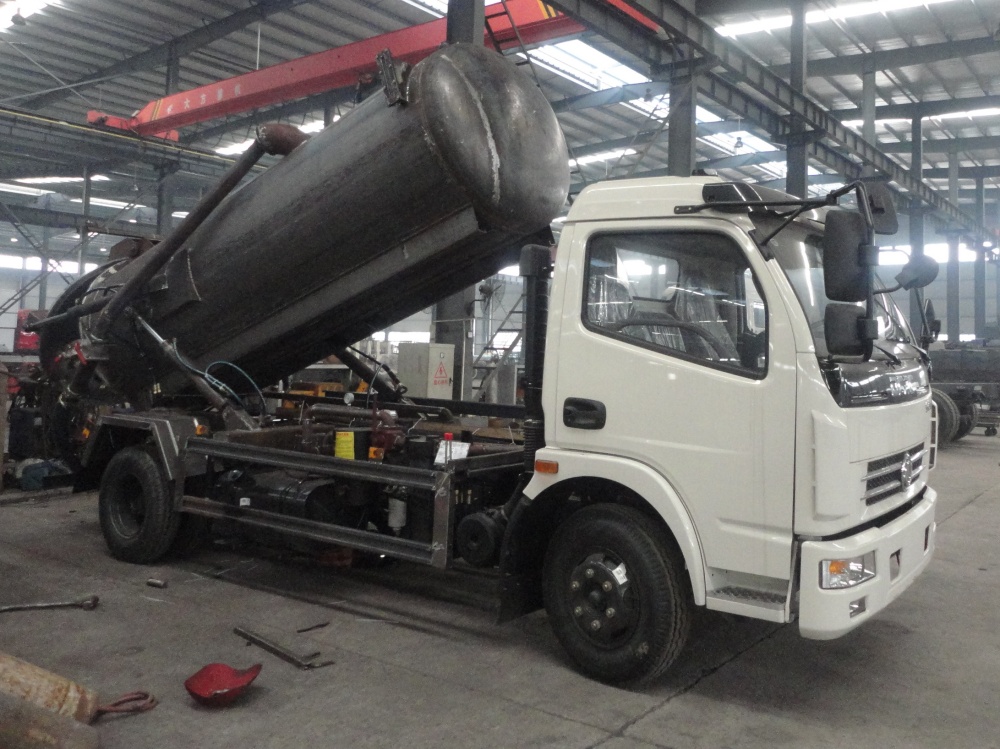

Product Real Shot Display

vehicle photo show

DSC06516_副本 IMG_0044_副本 DSC06515_副本 DSC05060_副本

Product parameter details

product parameters

Good price and high quality 10cbm dongfeng light duty Vacuum Sewage Suction Truck For Sale

The vacuum sewage suction truck is also called sewage truck,vacuum pump sewage truck, sewer vacuum truck, sewer tanker truck, vacuum sewage suction truck, sewage suction tanker truck, etc. It mainly used for sucting, transporting and discharging of feces, sewage, wastes water from septic tanker and sludge from drains. Widely used by municipal environment and sanitation department and residential management.

the septic tanker truck manufactured is as below.
1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance, double hydraulic jack system, morestrength then cesspit  emptier.

The cesspoolage truck is widely used to transport liquid manure, slurries, crude oils, and other liquid with small suspending impurity and mainly used in such conditions, including septic tanks, gutters, sewers, toilets, and more. The discharging has high pressure discharging and self-discharging, etc. The time of sucking full the feces tank is ≤6min, the vertical distance is ≥7m, the rated speed is 1450r/min, the flow is 60m3/h.


1. Equipped with hydraulically opened rear lid with self-discharge, high vacuum degree an sucking range.
2. Equipped with self-priming and self-draining vacuum pump (ratin rotate speed=1400r/m, min rotate speed>800r/m,max suction lift>
6m, vacuum>500mmhg, clockwise)
3. Time for full suction <5min.

Items

Descriptions

Specifications and Types

General

Truck Name

Sewage suction truck

Drive Type

4*2

Gross Vehicle Weight(kg)

9890

Curb Weight (kg)

5625

Overall Dimensions L*W*H(mm)

6880×2330×2870

Engine

Engine Model

YN4102QBZL

Engine Brand

yunnei

Fuel Type

Diesel

Power

116hp

Emission Standard

Euro II

Displacement(ml)

4080

4Engine Type

6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling

Chassis

Chassis Brand

HOWO

Front/Rear Axle Load(KG)

3065/6825

Tire No.

6+1

Tire Specification

7.50R16

Wheelbase (mm)

3800

Axle No.

2

Gear Box

6+1 gears, manual type

Steering Wheel

right hand drive with power-assisted

Brake

Air brake

Cab

Flat roof with single sleeper, with A/C

Sucking System

Tank Volume(L)

7,000L-8,000L

Tank shape

Cylindrical

Tank Material

4mm thick tank body, 4mm tank head

Vacuum Pump

high quality vacuum pump

Suction Depth(m)

More than 6 meter
