Vacuum sludge truck is also called vacuum truck, sewer vacuum truck, sludge transported truck, etc. It is a kind of special full sealed tank truck for collecting and transporting sludges. It is a vacuum tank truck, self-sucking and self-discharging, easy to operation and large volume.

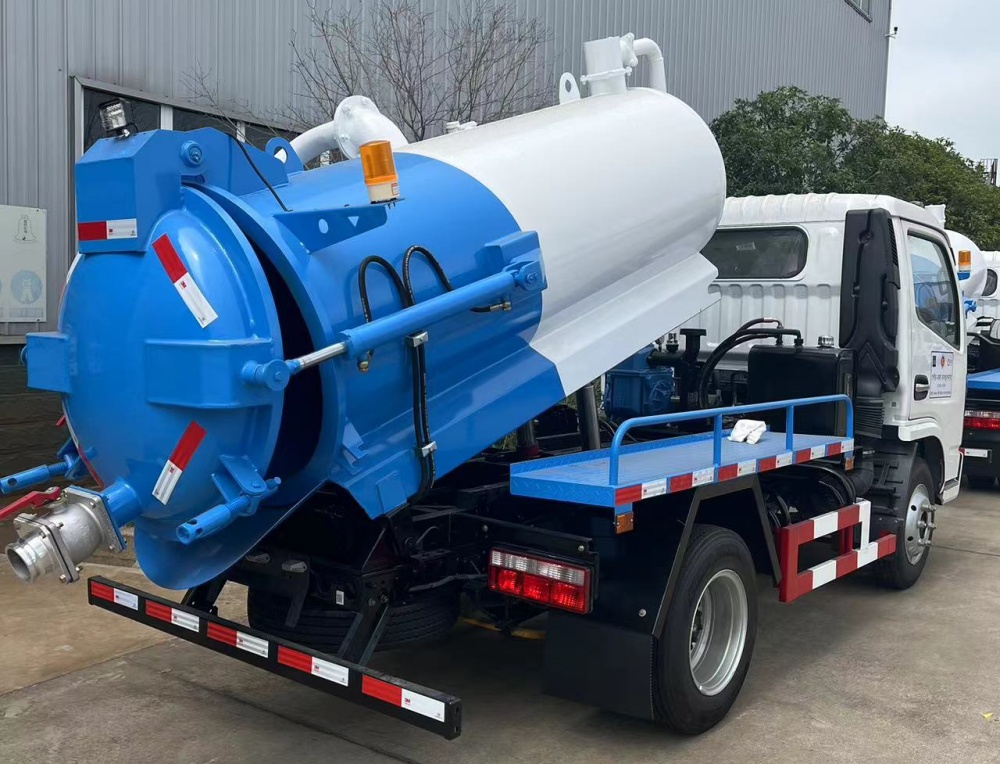

DONGFENG 4*2 RHD vacuum tanker truck 3cubic meters for sale
Dongfeng captain single row driver cab
4*2 RHD, LHD optional
2800mm wheelbase,
JE493ZLQ3A ISUZU technology 75KW/102hp diesel engine,
WLY 5+1 gears, manual type,
6.50R16 tires*6+1 spare
Power steering, 76Liters oil tanker,
1, The tanker volume is 5cbm, adopts high quality 5mm thickness carbon steel material, several anti-wave sheets inside the tanker.
2, Installed with good quality water-circulation vacuum pump(SK-9), four-way valve, dual stainless steel filters.
3, vacuum pipeline with stainless steel filters(aviod impurites into the pump)
4, Shake-resisting pressure gauge of DN100 installed at the position of sewer four-position valve to resisting working environment vibrations and reducing the pulsating effects of medium pressure.
5, DN100 drain-outlet and DN100 suction-inlet the side of the vacuum tanker.
6, the vacuum tanker can be lifting and tipping; the rear door can be opened hydraulically with lucking device.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of sewage suction trucks in China since 2004s. With many years'experience in developing, Chengli Special Automobile Co., Ltd. could supply 2cbm-16cbm sludge tank truck, such as dongfeng brand sewage suction truck, ISUZU septic tank truck, FAW vacuum truck, forland sewage suction truck, JMC liquid wastes truck, Yuejin cesspit empiter truck, HOWO vacuum truck, etc.
The sewage suction truck manufactured by Chengli Special Automobile Co., Ltd. adopts adopting Wuagng high quality carbon steel sheets, equipping with big power special vacuum sewage suction pump. And the special parts are made up of vacuum pump, PTO, shaft, water separator, oil separator, multi-way valve, tanker, discharging valve, sewer view window, vacuum pressure gauge, pipelines, hydraulic system, etc. The rear door is operated by the hydraulic switch with self-discharging function. The outlet is shut by pneumatic controlling. The truck also equips with one 5m length hose, with hand cleaning small water tanker.
cesspoolage tank trucks manufactured by Chengli Special Automobile Co., Ltd. adopt Wugang GB high quality sheets. The functions of the sludge truck is pumping and delivering feces, mud, bulk oil, etc. liquids. equipped with the leading chengliwei vacuum pump, with feces view window, one discharging open, cleaning device, mobile hanger rod, with 5m length hose, oil separator, anti-overflow valve, metal coating tanker, etc. choosing to install over-flow warming alarm device, double pump, etc.
The cesspoolage truck is widely used to transport liquid manure, slurries, crude oils, and other liquid with small suspending impurity and mainly used in such conditions, including septic tanks, gutters, sewers, toilets, and more. The discharging has high pressure discharging and self-discharging, etc. The time of sucking full the feces tank is ≤6min, the vertical distance is ≥7m, the rated speed is 1450r/min, the flow is 60m3/h.
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
