best price ISUZU 6*4 LHD vacuum sewer cleaning tanker vehicle 18cbm 20cbm for sale

Sewer cleaning truck is one the basis of high pressure cleaning tanker vehicle and installed with suction pump, sewage tanker, sewage pipes, a special purpose vehicles with the functions of cleaning and sewage suction. It is composed of two tankers, two pumps,(high pressure cleaning pump and vacuum pump), two pipelines, etc.

Today, we will introduce ISUZU vacuum sewer cleaning tanker vehicle 18cbm 20cbm is as below.

ISUZU one row and a half driver cab

6*4 LHD

6UZ1-TCG51 350hp diesel engine,

FASTGEAR 12 speed gears, manual type

315/80R22.5*10+1 spare

power steering, air conditioner, centrl lock, electric windows,etc.

1, The total volume of the tank is about 21 cubic meters (the volume of the water tank and the sewage tank can be freely allocated). It is made of high-quality steel plates, with a wall thickness of 8mm thickness. The middle of the tank is reasonably designed with a wave-breaking plate, and the sewage tank is lined with a butterfly head (with reinforcement ribs)

2, The inside of the sewage tank is paved with stainless steel plates, the bottom of the tank is corrosion-resistant, and it is convenient for unloading. There is a ladder inside the tank.

3,The double top design of the left and right oil cylinders of the tank (with buffer support rods) makes the lifting and lowering of the tank more reliable and the vehicle has strong stability

4, The water tank inlet is a ball valve fire hydrant (convenient to switch, durable), with a fire interface, a thickened liquid level pipe, and a pagoda-style hand washing valve

5, With water and sewage intercommunication function (DN100 thickened connecting pipe)

6, The high-pressure pump adopts Pinfu 350L flow, 18 MPa pressure, self-developed large filter, no need to disassemble and wash (to prevent impurities from entering the high-pressure pump)

7, The sewage suction pump adopts Shandong Zibo 2BE-258 water circulation vacuum pump (47m³/min), driven by Weichai 420 horsepower auxiliary engine, and installed with auxiliary fuel tank (longer endurance)

8. A new self-developed anti-overflow valve (with filter net, easy to disassemble and wash, to prevent dirt from entering the pump) is installed on the top of the sewage tank, and a three-claw tank mouth is installed on the top of the sewage tank (for easy tank cleaning)

9. The rear high-pressure reel is fixed with a triangular double plug, which is stable and reliable. The reel is enlarged and thickened, with a pipe sprinkler (after the high-pressure pipe operation, the high-pressure pipe can be rinsed when it is recovered) The reel can rotate 180 degrees (liquid Pressure drive)

10. The two sides are paved with patterned plate pipe-laying platforms, galvanized protective nets, patterned anti-slip guardrails, beautiful and durable

11. The tank body is equipped with a ladder on the side, a patterned plate platform on the top of the tank, and a safety guardrail

12. The operating systems are neatly arranged in the operation box, and there are operating instructions and precautions (to prevent misoperation)

13. The high-pressure three-way valve and the four-way suction valve are both equipped with a 100-diameter earthquake-resistant pressure gauge, which can resist the vibration of the working environment and reduce the pulsation of the medium pressure, and accurately display the actual pressure

14. A large tool box is standard, with an enlarged inner diameter 800 sewage outlet at the tail (hydraulic opening, with a locking device), a 100 internal extraction, and a 100 and 150 self-flow outlet (installed at the bottom of the tank body, cleaner unloading)

15. Install the air-blowing water function (in the northern region), which can effectively blow away the remaining clean water in the high-pressure pipe and high-pressure pump in winter to prevent the high-pressure pipe and high-pressure pump from freezing and cracking.

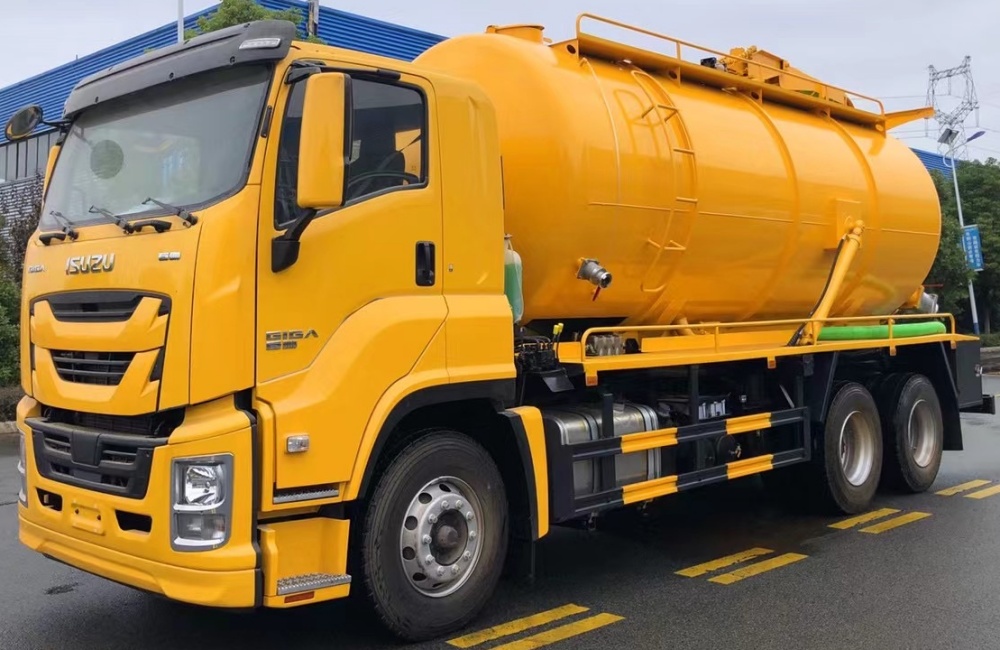

More pictures of ISUZU GIGA sewer cleaning tanker truck are as below.

high quality and competitive price ISUZU vacuum sewer cleaning vehicle for sale
