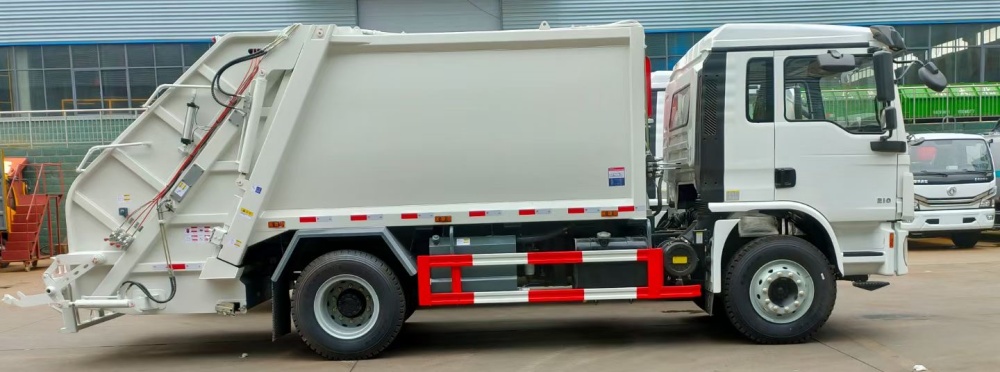

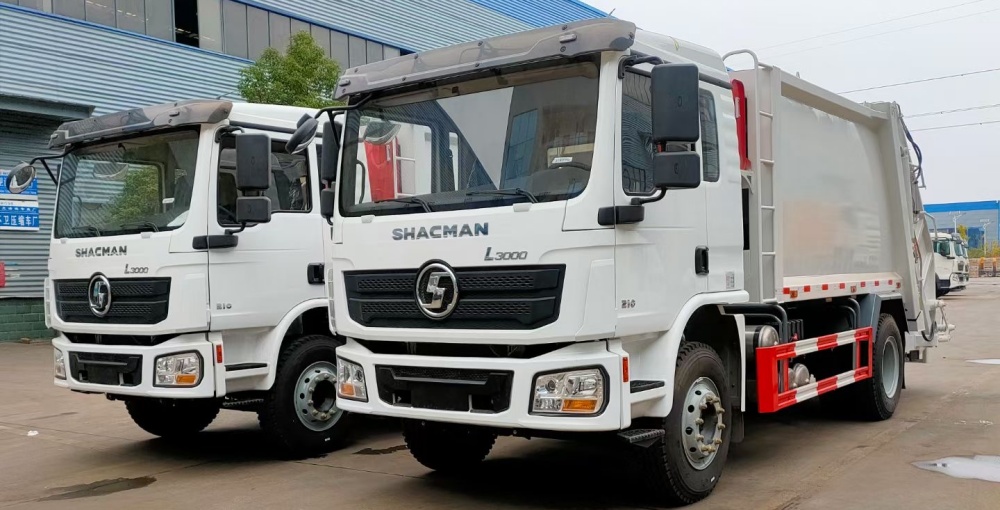

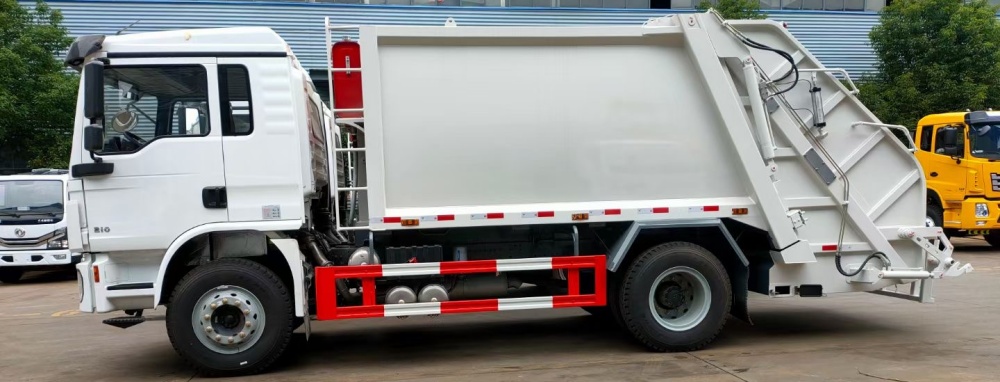

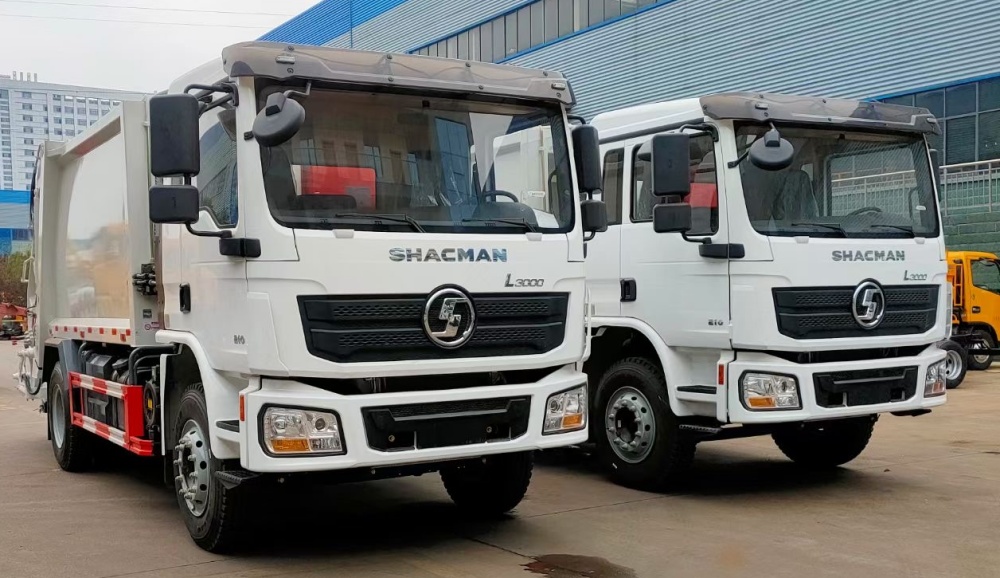

High quality and best price SHACMAN L3000 garbage compacted truck 12cbm 15cbm for sale

HOT SALE! Shacman L3000 one row and a half driver cab
4*2 LHD, RHD optional
WP7.240E51 240hp weichai 240hp diesel engine, Euro 5 emission standard
FAST 8+1 gears, manual type
4.8T front axle/10T rear axle,
4500mm wheelbase,
10.00R20 tires*6+1 spare, etc.
The volume of the garbage compacted garbage truck is 13,000Liters.
Main technical parameters of SHACMAN brand L3000 compacted garbage truck is as below.

1	Product name	SHACMAN L3000 4*2 LHD 13m3 garbage compactor truck
2	Truck chassis model	SX1189LA1F1C
3	Overall dimension(LWH)	8620,8820,9020×2500×3300
4	Total mass(kgs)	18000
5	Curb mass(kgs)	10650,10950
6	Rated mass(kgs)	7220,7155,6920,6855
7	Volume	12CBM/14CBM/16CBM
8	Max speed	89kw/h
9	Wheelbase	4500
10	Axle nos.	2
11	Driver cab	SHACMAN L3000 one row and a half driver cab
12	Approach/departure angle(°)	21/10
13	Front/rear suspension (mm)	1340/2780
14	Front/rear tread(mm)	1835/1860
15	Tire specification	10.00R20*10+1
16	Steel Spring	10/9+6
17	Engine model	WP7.240E51
18	Rated power	176KW/240hp
19	Displacement(ml)	7470ml
20	Fuel type	Diesel
21	Emission standard	Euro 5
22	Gearbox	8 speed gearbox, manual
23	Front/rear axle	4.8tons front axle/10tons double rear axles
24	Color	Different color upon request
25	Wastes van	Solid arc-shape box body of strength beam and steel plate welded
26	Wastes van material	High quality China standard light duty steel
27	Operation way	PLC control way
28	Loading and discharging way	Rear overturning mechanism
29	Compacted way	Bi-directional compression
30	Wastes compacting density	≥0.8tons/m3
31	One working circle time for loading and discharging	≤30s
32	Color	White color upon request

Garbage compactor trucks are used for collecting household wastes, compacted of sealed garbage van body, loader, push shovel, hydraulic system and electric system, etc. The whole vehicle is fully seale3d, adopts electro-hydraulic integration technology, realizing wastes-poured, wastes-crushed or wastes-squashed, forcefully lifted and filled, pushed into the van and compacted and pushed away by the garbage van, loader and push-shovel, etc. The wastes water is into the sewer tanker during compaction, solving the second-pollution during wastes transportation.

CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
