High quality and best price dongfeng RHD 6 tires swing arm garbage truck with wastes hoppers

Curb mass: 4975kgs

Loading capacity 6895kgs

Truck chassis :

Dongfeng captain 2030mm single row driver cab

4*2 RHD(right hand drive) LHD(left hand drive）

3800mm wheelbase

YC4FA120-33 88KW/120hp diesel engine, Euro 2 emission standard,

WLY 6+1 gears, manual type

2.7T front axle/6.8T rear axle,

8.25R16 tires*6+1 spare

Upper parts:

The base-plate adopt high quality 5mm thickness carbon steel, hydraulic multi-way valve operating system, swing arm hoisting up-down, high quality hydraulic cylinders, hanging ring type chain for the swing arm part, installed rear outriggers,etc.

Wastes hopper (ground type) 4.5cubic meters, 3mm thickness and 4mm thickness base-plate steel material.

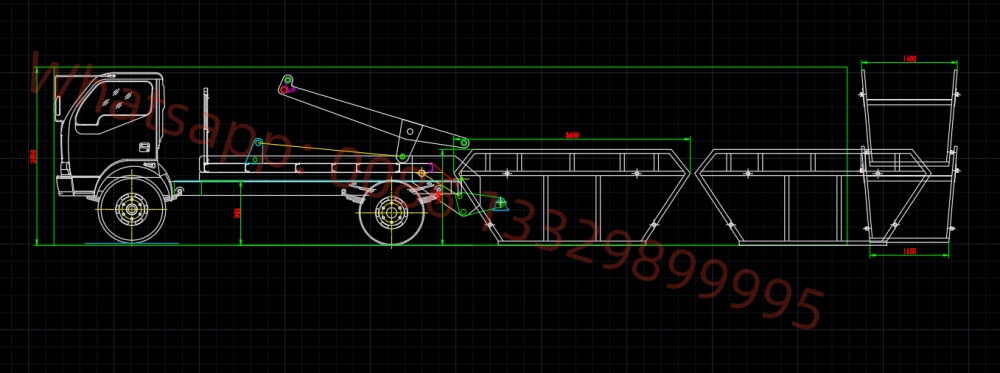

drawing of swing arm garbage truck for construction wastes

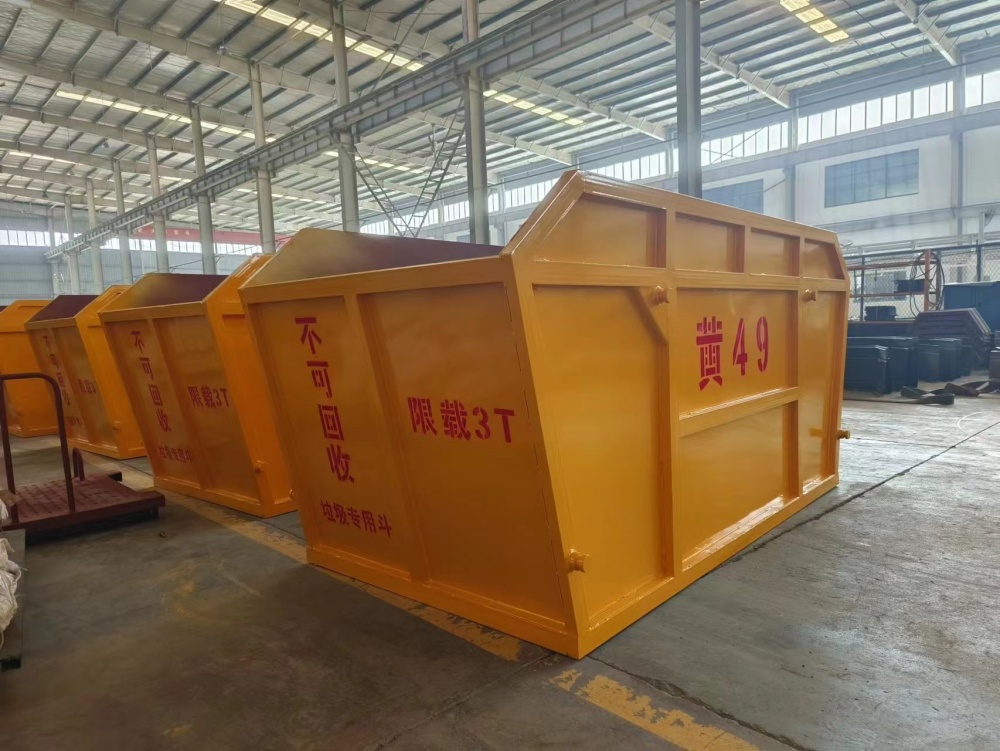

wastes hopper, we can design and manufacture diifferent models and sizes wastes hoppers

The waste collection vehicle  is also called swing arm garbage truck,  roll on roll off garbage truck, skip loader garbage truck, rear loader garbage truck,etc. The container garbage truck is equipped with large hydraulic cylinders to drive the two arms installed with hydraulic legs to ensure stability and safety during operation.The garbage container of arm roll waste truck can be designed as sealed type,semi-sealed type;while the shape can be oblong or echelon.

The refuse collection truck for sale is equipped with imported multi-way control valve to put the garbage container on the truck and off the truck. It is operated conveniently and high efficiently.  The largest advantage of rolling arm garbage trucks is one truck can match with several garbage container, manpower saved.

Skip loader , also called swing arm garbage truck , swing arm skip garbage container trucks , garbage collector truck ,waste collector truck , arm lift container garbage truck , roll on roll off garbage truck , waste bin collector ,hydraulic swing arm bin lifter garbage truck, etc

Advantage of skip loader garbage truck :

1 Easy control :Hydraulic operation handle to operate the bin up and down

2 One garbatge truck could lifting severl dustbin box to improve transportation efficiency

3 Lifting and Unloading Time less than 45s.
