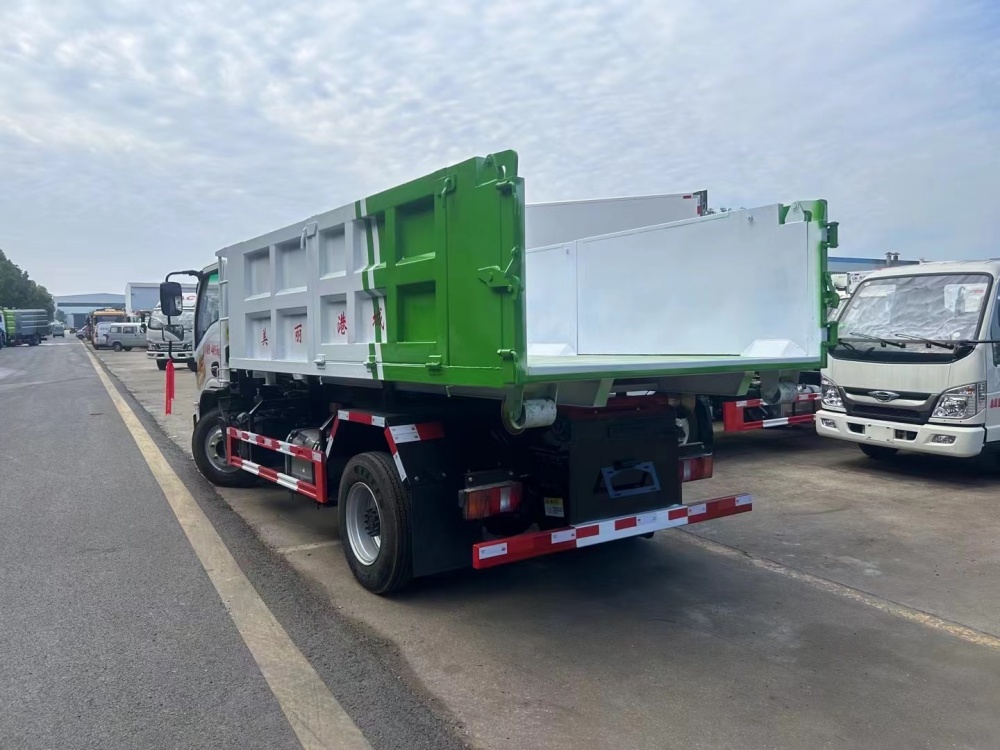

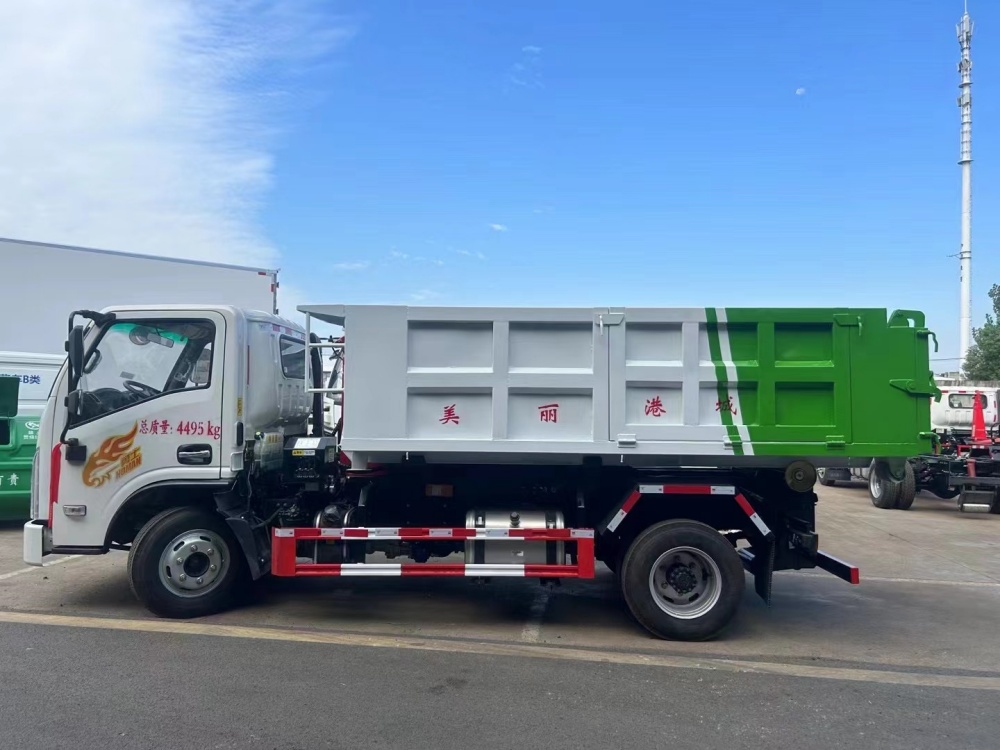

High quality and best price customized detachable container garbage truck for construction wastes delivery and transportation for sale

Dongfeng 2030mm single row driver cab

4*2 RHD(right hand drive)

3308mm wheelbase

YC4FA120-33 88KW/120hp diesel engine, Euro 2 emission standard,

WLY 6+1 gears, manual type

2.2T front axle/4.2T rear axle,

7.50R16 tires*6+1 spare

Upper parts:

Wastes container approximate dimension(L*W*H): 3.4*1.85*1(m) and volume: 6.3cubic meters, adopts high quality 4mm thickness and 5mm thickness steel material.

The whole length of the Wastes container(the front hook section included) is about 3.7m.

The loading capacity of one wastes container is about 8tons.

Overall dimension(L*W*H) is about 6100*2200*2600(mm)(with a wastes container, can be design for 40HQ container).

lightweight design; Structural optimization,high-strength materials;self weight ratio of the load is higher (under the premise of equal reliability);material strength of key parts is extremely high (yield strength ≥ 460mpa)

Renowned hydraulic system components with better performance and longer lifespan

Wireless remote control operation and Direct operation of the main valve handle (in emergency situations

All cylinders are equipped with load holding valves for high safety

Equipped with limit switch valve to prevent the compartment from being damaged, prevent two dangerous working conditions: opening the door lock and not opening the door lock hook arm when the door is not in a horizontal state

Equipped with a compartment unlocking detection switch,;after unlocking the compartment, an alarm can be sounded through a buzzer to increase safety

Hydraulic pipelines are neat, smooth, and aesthetically pleasing, effectively reducing hydraulic oil flow resistance

Rear hydraulic support effectively prevents the vehicle from tilting its head during loading and unloading of containers
