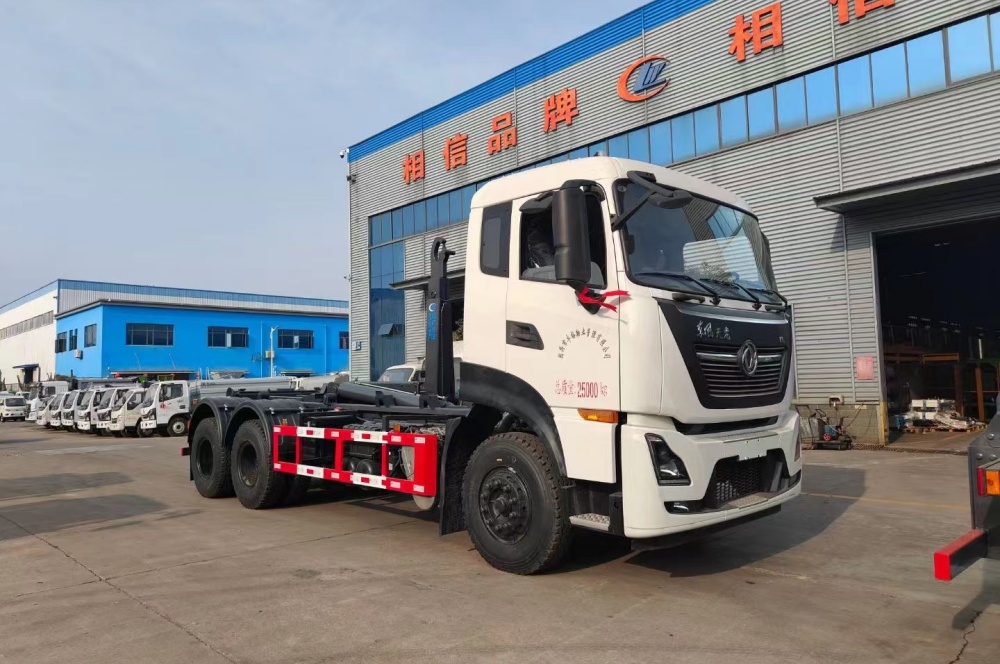

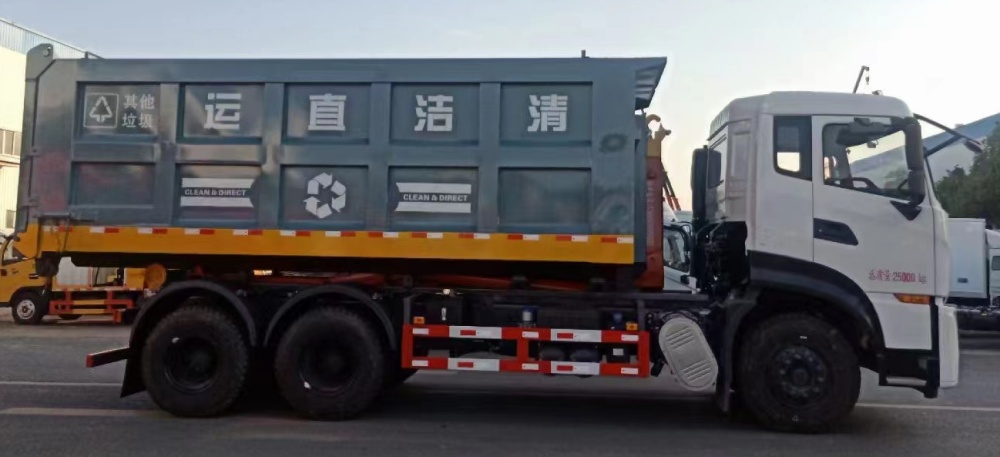

vehicle photo show
product parameters
Dongfeng 16-20 ton Heavy duty detachable container garage truck for sale 20cubic meters hook lift garbage truck for sale
And the volume of the detachable container is 20 cubic meters, adopting hydraulic system operation. One truck is suitable for several detachable containers. And the garbage containers can be sited at different wastes sites. The hook lifting garbage truck is with dumping function, hydraulic operation and easy for tipping. The main advantages of the detachable container garbage collector are one truck for several garbage containers; only one truck can be transferring for several wates collecting sites. So high effient, and the garbage container is sealed designing, avoding the second time pollution.
dongfeng KR detachable container garbage truck for sale
main technical parameters of 20cubic meters dongfeng detachable container truck for wastes collection is as below.
| Vehicle Description | ||
| Overall dimensions | 8300*2500*3250 mm | |
| GVW | 25000kg | |
| Curb weight | 13205kg | |
| Chassis brand | DONGFENG KL | |
| Traction type | 6*4, left hand drive | |
| Chassis Description | ||
| Chassis model | DFL1250A8 | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. | |
| Wheelbase | 4350+1350mm | |
| Tire specification | 11.00R20 | |
| Tire quantity | 10+1 units | |
| Engine | Engine model | C260 33 |
| Emission level | Euro 2 | |
| Displacement/output | 8300ml/191kw | |
| Horse power | 260hp | |
| Gear box | Type | 9JS119T-B |
| Number of gears | 9 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake | |
| Axle | Front | 7T- Elliot type, I beam section |
| Rear | 10T*2-Single reduction, ratio 5.143 | |
| Suspension | Front | 8- Leaf spring with shock absorber |
| Rear | 9+8-Leaf spring | |
| Fuel tanker | Type | Steel fuel tank, with lockable cap |
| Capacity | 350L | |
| Up-part description | ||
| Fact cubage | 16-20T | |
| Standard configuration | 1. Equipped with multiply way valve controller and dustbin. 2. Equipped with hook boom and hydraulic cylinder with locking usage of dustbin. 3. Equipped with loading balance valve, double hydraulic lock valve, and safety control valve. | |
