our industry advantage

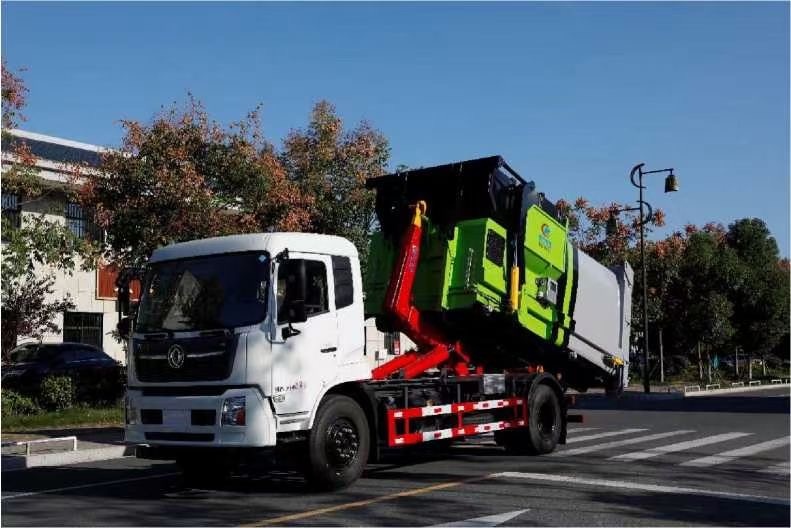

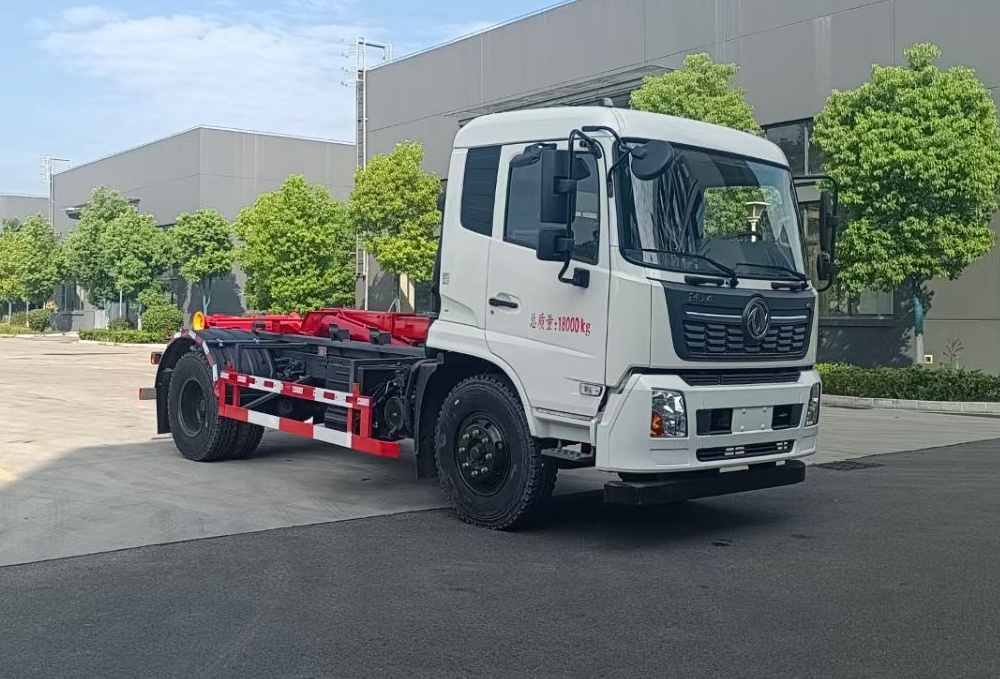

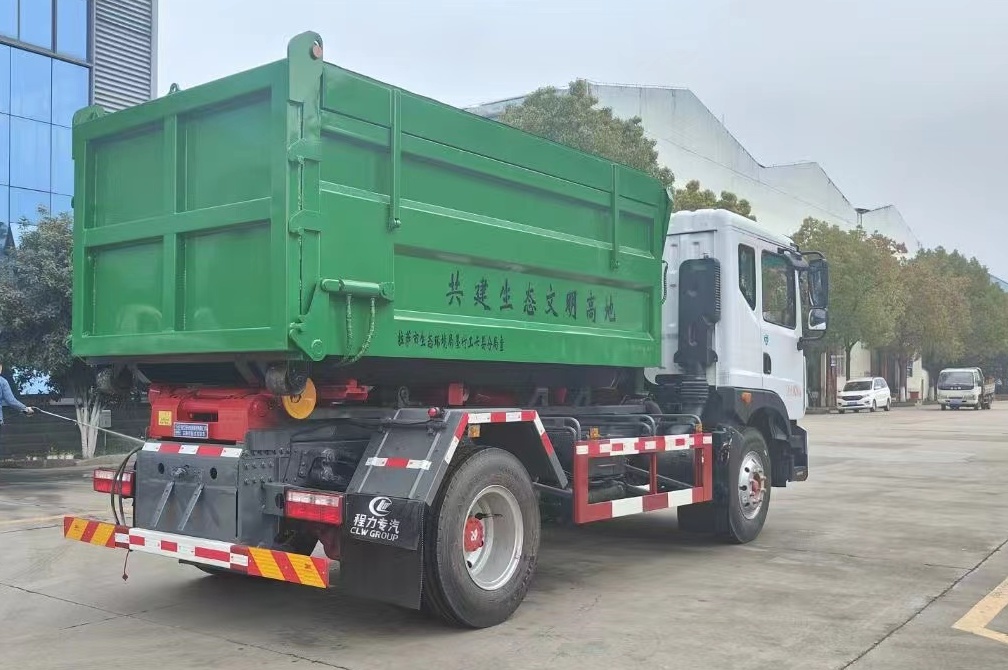

vehicle photo show
product parameters
Arm roll garbage truck is also called hook lifting garbage truck., which worked with detachable rubbish carriage for the wastes collecting and transportation. It is widely used in residential area, public area, and garbage transfer station, etc. Which equipped with control system, hydraulic system, safety protection, interlock protection to ensuring the stability and security during the operation process.
dongfeng KR detachable container garbage truck for sale
main technical parameters of hook lift garbage truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Chassis parameters | |||
| Truck Name | Hook lift garbage truck | Chassis brand | Dongfeng |
| Driving Type | 4X2 left/right hand drive | Gross Vehicle Weight(kg) | 18000 |
| Overall dimensions | About 7580×2500×3100mm | Wheel base | 4500mm |
| Front/Rear overhang | 1480/1120 | Aprroach/dparture angle(°) | 20°/10° |
| Maximum speed (Km/h) | 90 | Grade ability(%) | 30 |
| Engine | Model | cummins B190 33 | |
| Emission | Euro 3 | ||
| Type | 6 cylinders,in-line,diesel engine | ||
| Rated power | 190hp | ||
| Displacement | 5800ml | ||
| Tire | Size | 10.00-20 18PR | |
| Number | 6 spare tire | ||
| Front axle loading | 5T | ||
| Rear axle loading | 10T | ||
| Rated voltage | 24V,DC | ||
| Gear box Model | 8 Forwards and 1 Reverse | ||
| Lifting system | |||
| Capcity | about 10m3-12m3 | ||
| Waste container Body Material | Carbon steel Q235 | ||
| Discharge time | 40S-50S | ||
| Loading time(s) | ≤60 | ||
| Discharge system | lifting/dump type | ||
| Dump angle | 50 degree | ||
| Hydraulic system pressure | 30Mpa | ||
| Hydraulic pressure system | |||
| Type | Electric- -gas- -Hydraulic | ||
| Main component | Hydraulic oil pump, operating valve, balance valve, hydraulic lock, hook arm main operating oil cylinder, sleeve arm sliding,Cylinder, hydraulic oil tubing, hydraulic oil tank | ||
| System rated pressure | 22MPa | ||
| Hydraulic tank capacity | 120L | ||
Garbage truck: dump truck, garbage truck, refers to a special vehicle used exclusively for the municipal sanitation department to transport various garbage. The types are: compressed garbage trucks, swing arm garbage trucks, hook-arm garbage trucks, and bucket-type garbage trucks.
Garbage trucks mainly carry domestic garbage, and can also transport bulk materials such as ash, sand, stone and soil. They can also send ore or coal in mines or coal construction.
Garbage trucks are classified into: compact garbage trucks, dump trucks, swing arm garbage trucks, pull arm garbage trucks, hook-arm garbage trucks (vehicle detachable garbage trucks), sealed garbage trucks, and hanging buckets. Garbage truck (self-loading garbage truck). Garbage trucks are mainly used for municipal sanitation, large-scale factories and mines, for transporting various kinds of garbage, suitable for transporting residential garbage, and can compress and crush the loaded garbage to increase its density and volume, and greatly increase it. The efficiency of garbage collection and transportation. The new garbage truck has the characteristics of reliable quality, low failure rate, convenient maintenance and low operating cost.
detachable compressed wastes container vehicle for sale
