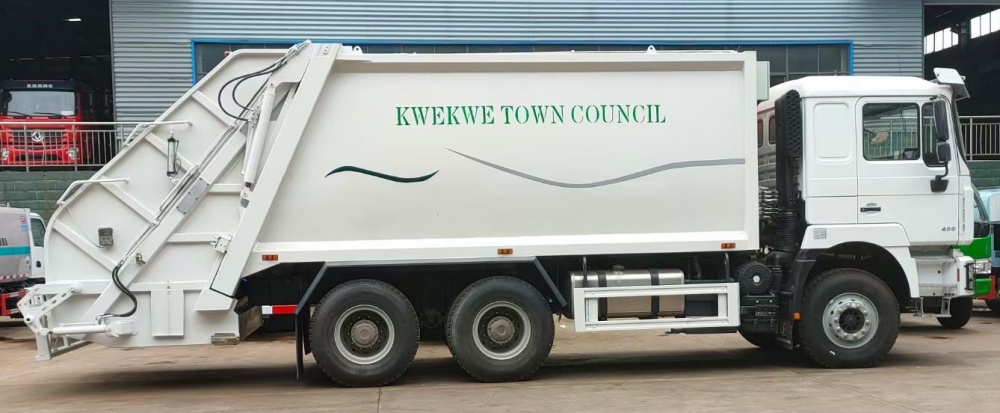

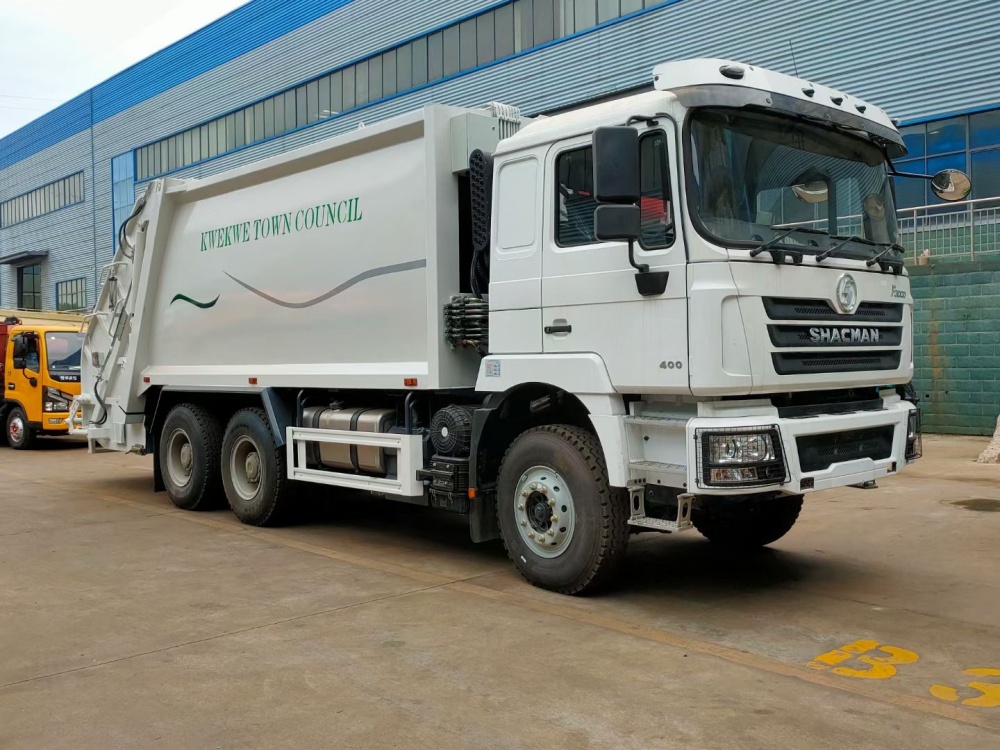

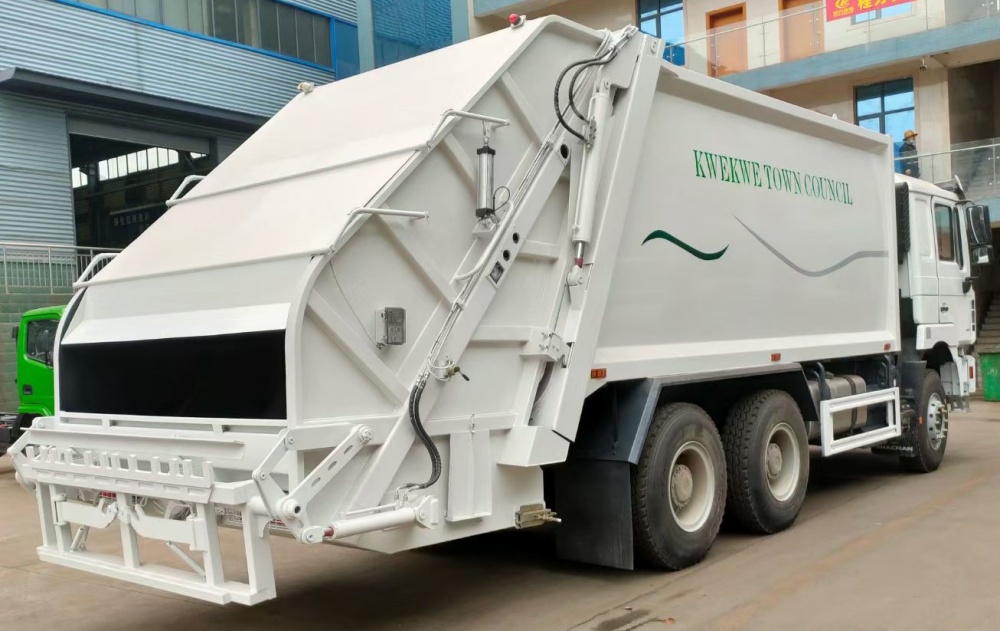

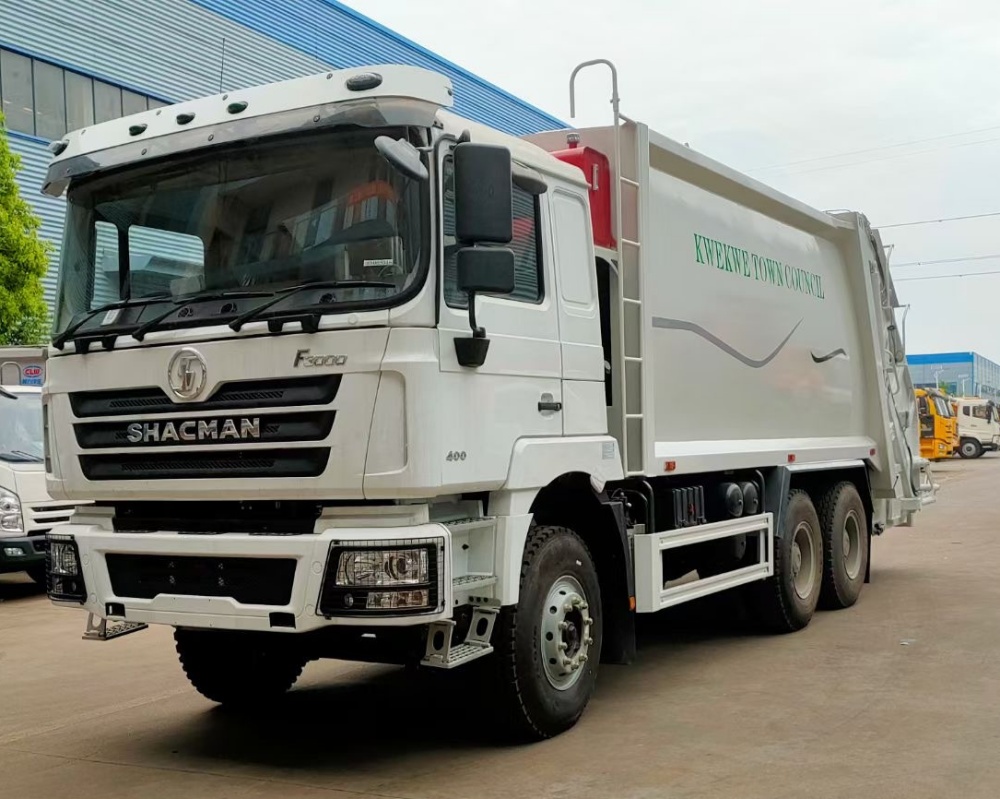

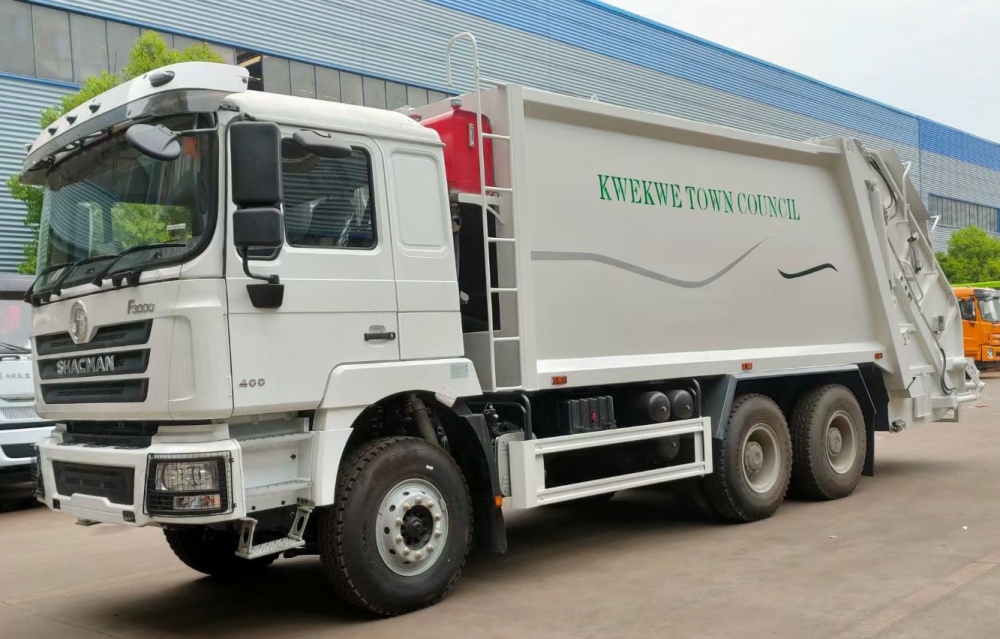

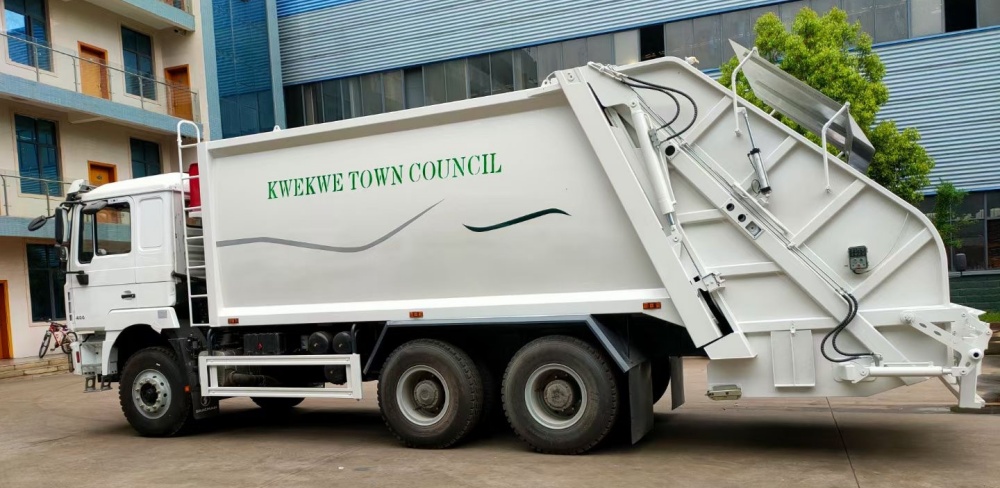

vehicle photo show
product parameters
high quality and best price SHACMAN Brand F3000 Refuse garbage truck 6*4 LHD RHD for sale
Compressed garbage truck is also called Compression garbage truck, compactor garbage truck,Waste Compactors truck.Compactor garbage truck consists of a sealed garbage compartment, hydraulic system, and operating system.Compression type garbage truck can realize garbage collection and transportation capacity reduction, sealing, no secondary pollution, reduce the labor intensity of sanitation workers, improve labor efficiency and other needs. It is widely used in collection, compression and transit garbage which come from cities, towns, rural areas, large factories and mining enterprises and living areas of colleges and universities.
Today, we will introduce SHACMAN Brand F3000 compressed garbage truck is as below.
SHACMAN F3000 one row and a half luxurious driver cab
6*4 LHD,
4375+1400mm wheelbase
weichai 400hp diesel diesel engine,
Fast 10+2 gears, manual type
12.00R20 tires*10+1 spare
300L aluminum oil tanker, steel springs suspension, etc.
The volume of SHACMAN brand 6*4 LHD 20CBM compacted garbage truck is 18cbm,and with the wastes loading capacity of about 15-16tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
High quality and best price SHACMAN refuse garbage truck 20cubic meters for sale
main technical parameters of SHACMAN compacted garbage truck is as below.
| Product name | Shacman garbage compactor truck for sale |
2 | Truck chassis model | SX |
3 | Overall dimension(L*W*H) | 10400×2490×3270 |
4 | Total mass(kgs) | 25000 |
5 | Curb mass(kgs) | 14000 |
6 | Volume(m3) | 20 |
7 | Wheelbase | 4375+1400 |
8 | Axle nos. | 3 |
9 | Driver cab | SHACMAN F3000 one row and a half driver cab |
10 | Tires specification | 12.00R20*10+1 spare |
11 | Steel Spring | Yes |
12 | Engine model | weichai 400hp |
13 | Rated power | 294KW/400hp |
14 | Displacement(ml) | 10800 L |
15 | Fuel type | Diesel |
16 | Emission standard | Euro 3 |
17 | Gearbox | FAST 10+2 gears, manual type |
18 | Color | Different color upon request |
19 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
20 | Wastes van material | High quality China standard light duty steel |
21 | Operation way | PLC control way |
22 | Loading and discharging way | Rear overturning mechanism |
23 | Compacted way | Bi-directional compression |
24 | Wastes compacting density | ≥0.8tons/m3 |
25 | One working circle time for loading and discharging | ≤30s |
26 | Max compressing force | ≥150KN |
27 | Max passing force | ≥180KN |
1.High Quality Factory,famous professional and biggest garbage trucks manufacturer direct sale Compressed garbage truck in China;
2.Compactor garbage truck consists of a sealed garbage compartment, hydraulic system, and operating system;
3.High compression ability, huge loading quantity Compressed garbage truck.
4.Automatic design, saving labor, energy conservation and environment protection Compressed garbage truck.
We Chengli Special Automobile Co., Ltd. can produce many kinds of garbage trucks, including compactor garbage truck, garbge collection truck, garbage transportion truck, container garbage truck, hydraulic lifter garbage truck, self-loading garbage truck, skip garbage truck, arm-roll rubbish truck, hanging bin garbage truck, dump garbage truck, hermetic garbage truck, sealed garbage trucks for sale, arm shaking garbage truck, and so on. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
