Good quality and best price 11Cubic meters refuse gabage truck SINOTRUK HOWO for sale
SINOTRUK HOWO one row and a half driver cab
4500mm wheelbase
4*2 LHD, RHD optional
YN4102QBZL YUNNEI 116hp diesel engine,
8.25R16 tires*6+1 spare
WLY 6+1 gears，manual type
3.6T front axle/8T rear axle
power steering, 120Liters oil tanker, etc.
The volume of the dongfeng KR compactor garbage van is 9m3,and with the wastes loading capacity of about 6tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
It is designed with rear flipping mechanism for two models of wastes bins(one for 240Liters wastes bins and 660Liters wastes bins)
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.

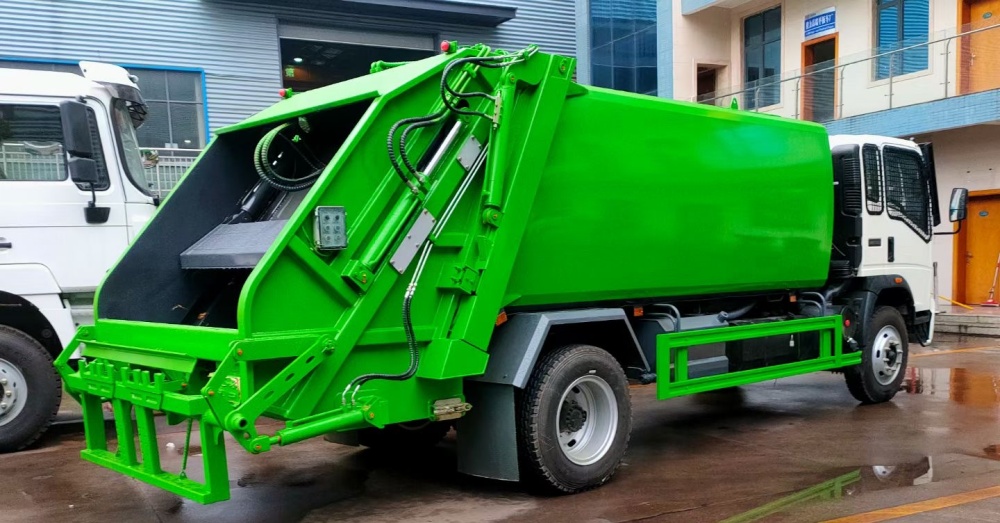

HOWO brand garbage compactor truck for sale
main technical parameters of compacted garbage truck is as below.
| 1 | Product name | SINO TRUK HOWO 4*2 LHD 8m3 garbage compactor truck |
| 2 | Truck chassis model | ZZ |
| 3 | Overall dimension(L*W*H) | 7900×2300×3250 |
| 4 | Total mass(kgs) | 9990 |
| 5 | Curb mass(kgs) | 7000 |
| 6 | Driver cab person | 3 included the driver |
| 7 | Volume | 9m3 |
| 8 | Real loading capacity | About 6-7tons |
| 9 | Max speed | 95kw/h |
| 10 | Wheelbase | 3800 |
| 11 | Axle nos. | 2 |
| 12 | Driver cab | SINO TRUK HOWO L3W series 2080mm single row drivercab |
| 13 | Approach/departure angle(°) | 18/15 |
| 14 | Front/rear suspension (mm) | 1240/2320 |
| 15 | Front/rear tread(mm) | 1585/1796 |
| 16 | Tire specification | 8.25R16 |
| 17 | Spring | 11/11+7 |
| 18 | Engine model | ISF3.8s5154 |
| 19 | Rated power | 154hp/115KW |
| 20 | Displacement(ml) | 3856ml |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro 3 |
| 23 | Gearbox | 6 speed gearbox, manual |
| 24 | Front/rear axle | 2.7tons/7.2tons |
| 25 | Color | Different color upon request |
| 26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 27 | Wastes van material | High quality China standard light duty steel |
| 28 | Operation way | PLC control way |
| 29 | Loading and discharging way | Rear overturning mechanism |
| 30 | Compacted way | Bi-directional compression |
| 31 | Wastes compacting density | ≥0.8tons/m3 |
| 32 | One working circle time for loading and discharging | ≤30s |
| 33 | Max compressing force | ≥150KN |
| 34 | Max passing force | ≥180KN |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
