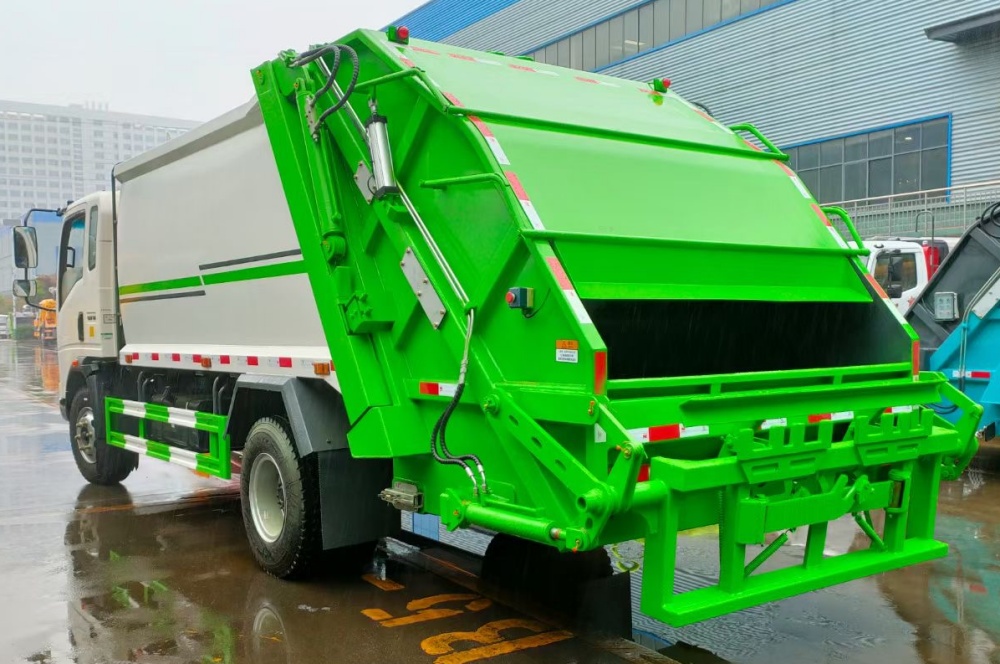

Factory direct sale price high quality HOWO 9CBM compression garbage truck for sale
SINOTRUK HOWO 2080mm single row driver cab
4*2 LHD, RHD optional
YUNNEI 116hp diesel engine, Euro 2 emission standard
3800mm wheelbase
WLY 6+1 gears, manual type
2.7T front axle/7.2T rear axle
8.25R16 tires*6+1 spare
The volume of the HOWO compression garbage truck is 9cbm,and with the wastes loading capacity of about 6tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate welded.
HOWO compacted garbage truck used for 240L and 660Liters wastes bins
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
| Product name | SINO TRUK HOWO 4*2 LHD 8m3 garbage compactor truck | |
| 2 | Truck chassis model | ZZ1107 |
| 3 | Overall dimension(L*W*H) | 7360×2300×3250 |
| 4 | Total mass(kgs) | 9990 |
| 5 | Curb mass(kgs) | 7000 |
| 6 | Driver cab person | 3 included the driver |
| 7 | Volume | 8m3 |
| 8 | Real loading capacity | About 5-6tons |
| 9 | Max speed | 95kw/h |
| 10 | Wheelbase | 3800 |
| 11 | Axle nos. | 2 |
| 12 | Driver cab | SINO TRUK HOWO L3W series 2080mm wide one row and a half driver cab |
| 13 | Approach/departure angle(°) | 18/15 |
| 14 | Front/rear suspension (mm) | 1240/2320 |
| 15 | Front/rear tread(mm) | 1585/1796 |
| 16 | Tire specification | 7.50R16 |
| 17 | Spring | 11/11+7 |
| 18 | Engine model | YN4102QBZL |
| 19 | Rated power | 75KW/116hp |
| 20 | Displacement(ml) | 3765ml |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro 3 |
| 23 | Gearbox | 6 speed gearbox, manual |
| 24 | Front/rear axle | 2.7tons/7.2tons |
| 25 | Color | Different color upon request |
| 26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 27 | Wastes van material | High quality China standard light duty steel |
| 28 | Operation way | PLC control way |
| 29 | Loading and discharging way | Rear overturning mechanism |
| 30 | Compacted way | Bi-directional compression |
| 31 | Wastes compacting density | ≥0.8tons/m3 |
| 32 | One working circle time for loading and discharging | ≤30s |
| 33 | Max compressing force | ≥150KN |
| 34 | Max passing force | ≥180KN |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
