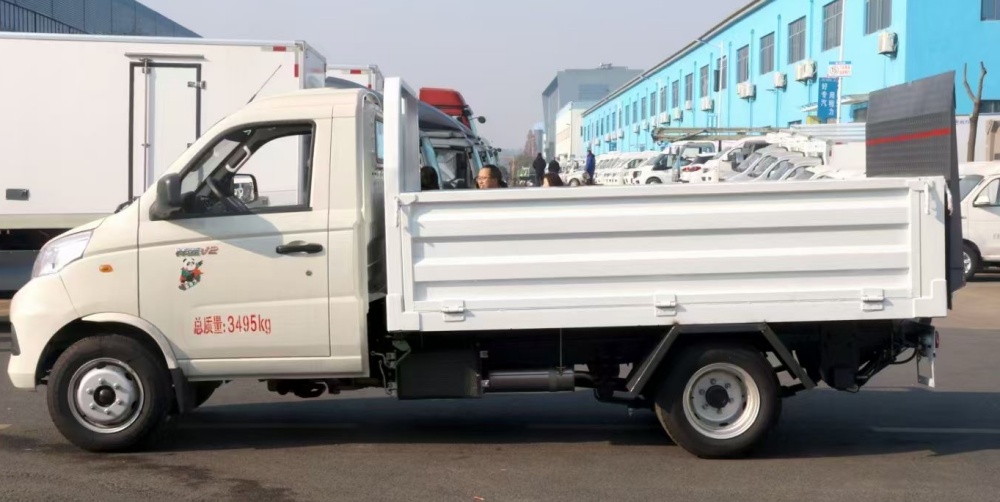

FOTON GASOLINE mini wastes truck for wastes buckets for sale
FOTON V2 mini wastes transported truck for wastes buckets adopts FOTON V2 single row driver cab, 3170mm wheelbase, DAM16KL dong’an 1600Liters petrol engine, 175R14 tires*6, air conditioner, ABS+EBD, etc.
The box body is made of high-quality carbon steel plate, with two sides and three bottoms. The size is strictly made according to the announced size. The tail board adopts the hydraulic lifting tail board of Kaizhuoli, which is guaranteed nationwide. The maximum lifting capacity is 500KG, and multiple trash cans (12 *240L trash bins) can be loaded and unloaded at one time. It is equipped with a remote control, and a safety warning flag and safety chain are installed on the lifting tail plate.
main technical parameters of FOTON petrol engine cargo truck for wastes barrels transportation is as below.
Truck model | CLW5030CTYBHJ
| ||||
Overall dimension(L*W*H) | 4870×1850×2000(mm) | Carog body dimension(L*W*H) | 2740×1750×600(mm) | ||
Total mass | 3495(Kg) | Rated mass | 1605(Kg) | ||
Curb mass | 1760(Kg) | Driver cab | 2 | ||
Approach/departure angle | 32/30,32/23(°) | Front/rear suspension(mm) | 630/825 | ||
Fuel type | Petrol | Emission standard | Euro 6 | ||
Axle load | 1010/2485 | wheelbase | 3415,3170(mm) | ||
Axle No. | 2 | Max speed | 110,100(km/h) | ||
Tires nos. | 6(个) | Tire specification | 175R14LT 8PR | ||
Fuel consumption | 8.5(L/100Km) | Leaf spring | 5/5 | ||
Front tread | 1360,1380(mm) | Rear tread | 1320(mm) | ||
Engine model | DAM16KL | ||||
