6cbm dongfeng dollicar 4*2 LHD refuse garbage truck for sale
Dongfeng dollicar garbage compactor truck is with the volume of 6cubic meters-7cubic meters, adopts Dongfeng dollicar new model driver cab.
Look at the new dongfeng dollicar compressed garbage trucks 6cbm are as below.
dongfeng dollicar garbage compacted truck 6cbm for sale
The driver cab of dongfeng dollicar wastes collecting vehicle is the same as the China local market national 6 driver cab. Very fashionable and beautiful. More overseas clients like it.
But this time the engine of dongfeng dollicar garbage trucks for overseas market adopts high quality yuchai YC4FA130 50 yuchai brand 150hp diesel Euro 5engine. We can say that Yuchai engine is best quality in light duty vehicle. Euro 5 diesel engine is for central Asian countries markets. We can customized Euro 3 YC4FA120 33 yuchai 120hp diesel engine for African markets, too.

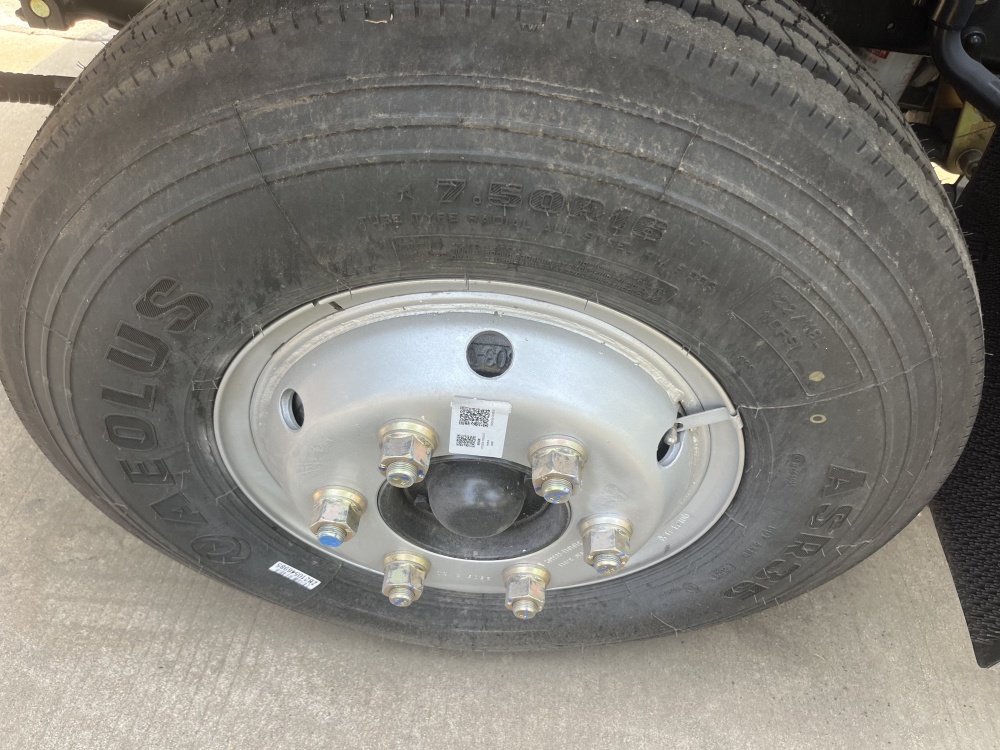

And the tires adopts high quality AEOLUS brand 7.50R16 tires*6+1 spare tire.
The specification of dongfeng dollicar compressed garbage truck is as below.
1 | Product name | Dongfeng 4*2 LHD 6cbm garbage compactor truck for sale |
2 | Truck chassis model | EQ |
3 | Overall dimension(L*W*H) | 6495×2050×2450 |
4 | Curb mass(kgs) | 5365 |
5 | Volume | 6cbm |
6 | Max speed | 100kw/h |
7 | Wheelbase | 3308mm |
8 | Axle nos. | 2 |
9 | Driver cab | DONGFENG dollicar single row driver cab |
10 | Approach/departure angle(°) | 19/10 |
11 | Front/rear suspension (mm) | 1032/2138 |
12 | Front/rear tread(mm) | 1506/1466 |
13 | Tire specification | 7.50R16*6+1 |
14 | Engine model | YC4FA130 50 |
15 | Rated power | 96KW/130hp |
16 | Displacement(ml) | 2982 |
17 | Fuel type | Diesel |
18 | Emission standard | Euro 5 |
19 | Gearbox | FAST 6+1 gears, manual type |
20 | Color | Different color upon request, company logo free to paint |
21 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
22 | Wastes van material | High quality China standard light duty steel |
23 | Operation way | PLC control way |
24 | Loading and discharging way | Rear overturning mechanism |
25 | Compacted way | Bi-directional compression |
26 | Wastes compacting density | ≥0.8tons/m3 |
27 | One working circle time for loading and discharging | ≤30s |
28 | Max compressing force | ≥150KN |
29 | Max passing force | ≥180KN |
The waste compression truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.by the use of hydraulics,the barrel is locked during the overturning process,which is very safe and reliable.
Garbage trucks are widely used in sanitation, municipal, factory and mining enterprises, and residential areas where have a lot of garbage. Garbage trucks are classified into compressed garbage trucks, swing arm type, dump type, sealed type, docking type, hook type arm type, and pull arm type garbage truck. Garbage trucks can carry multiple compartments in one vehicle, which can effectively prevent secondary pollution during the loading and unloading process. The modified part is separable from the original car chassis, which is easy to maintain and maintain the mobility and driving performance of the original car. Customers who have special requirements for garbage trucks please contact with us at any time. We can produce the trucks according to your requirements.
