mini 4cbm 5cbm dongfeng compressed garbage truck for sale
Dongfeng tuyi 1650mm single row driver cab
4*2 LHD(left hand drive),
2800mm wheelbase
JE493ZLQ3A 75KW/102hp/2771ml displacement,
WLY 5+1 gears, manual type
185R15 8PR*6+1 spare tire
Power steering, electric doors and windows, central locks, 12Volts electrics，etc.
The volume of dongfeng tuyi refuse garbage truck is 4cubic meters, and with the wastes loading capacity of about 11tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.

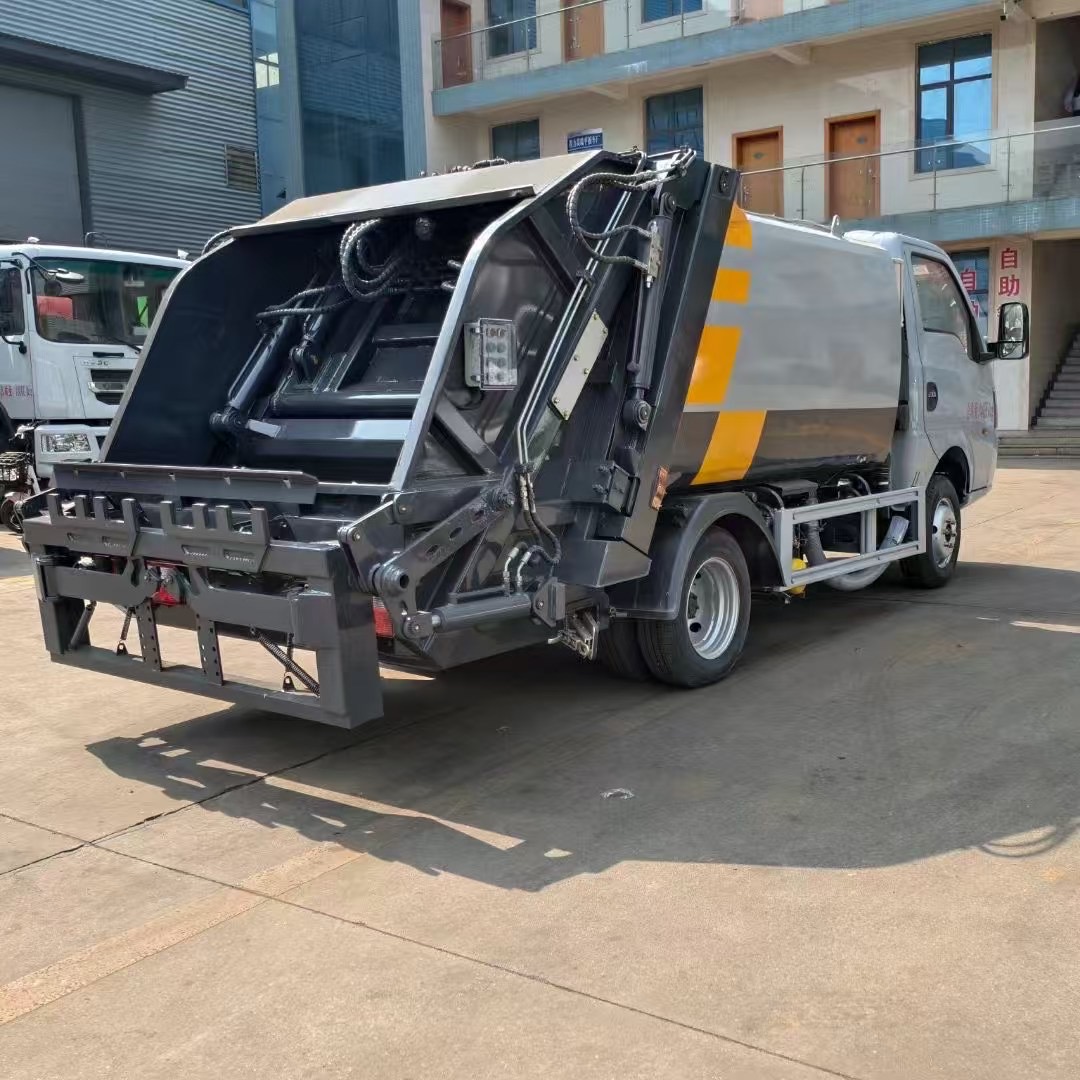

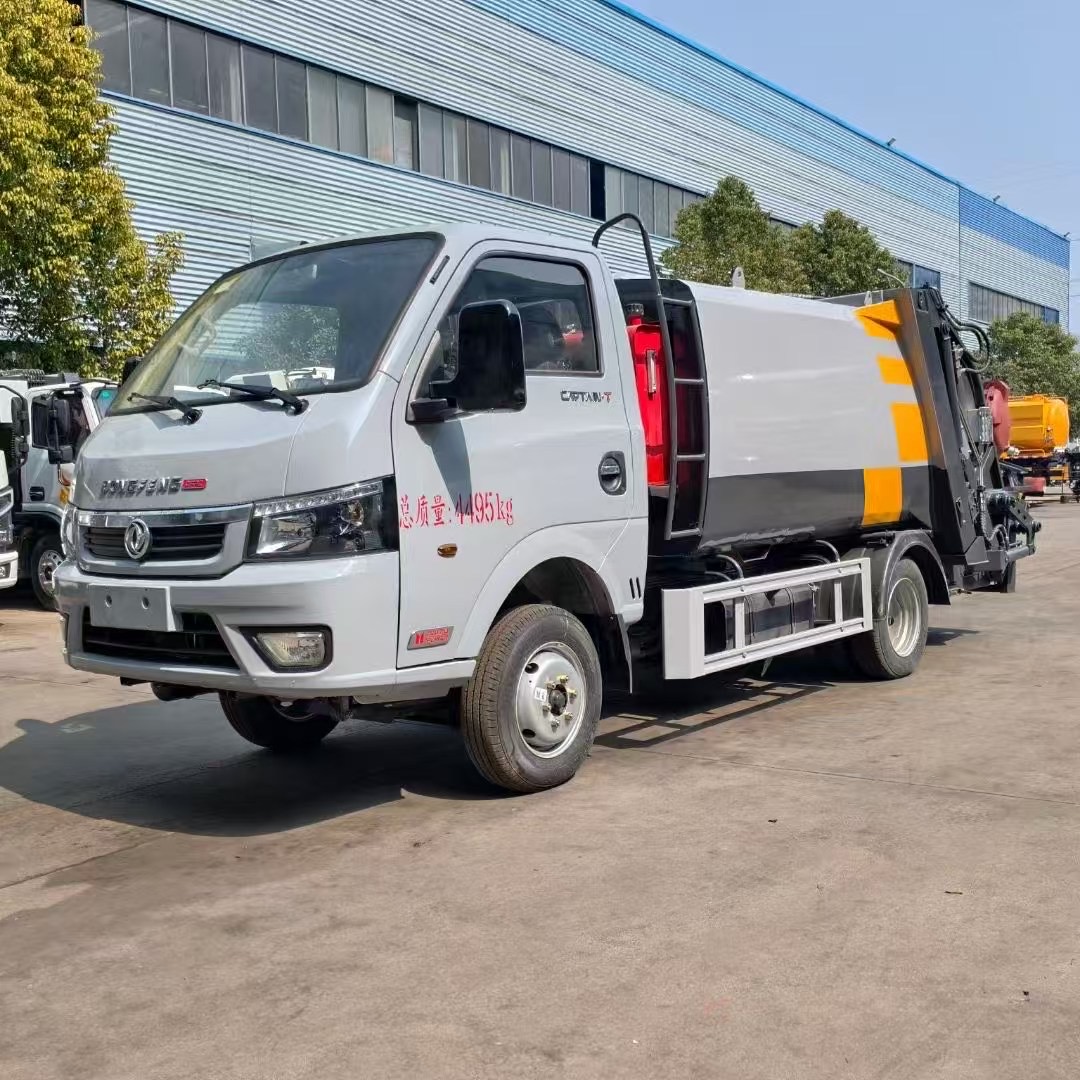

More pictures of 4cbm dongfeng refuse garbage truck are below.
4cbm dongfeng compacted garbage truck for sale
the specification of dongfeng tuyi compressed garbage truck is as below.
1 | Product name | dongfeng 4*2 LHD 4m3 garbage compactor truck |
2 | Truck chassis model | EQ1040 |
3 | Overall dimension(L*W*H) | 5900×2000×2250 |
4 | Total mass(kgs) | 4495 |
5 | Curb mass(kgs) | 3815 |
6 | Rated mass(kgs) | 550 |
7 | Volume | 4m3 |
8 | Real loading capacity | About 2-3Tons |
9 | Max speed | 95kw/h |
10 | Wheelbase | 2800 |
11 | Axle nos. | 2 |
12 | Driver cab | Dongfeng tuyi 1650mm single row driver cab |
13 | Approach/departure angle(°) | 22/12 |
14 | Front/rear suspension (mm) | 1090/1560 |
15 | Front/rear tread(mm) | 1358/1380 |
16 | Tire specification | 185R15 8PR*6+1 spare tire |
17 | Spring | 3/3+3 |
18 | Engine model | JE493ZLQ3A |
19 | Rated power | 75kw/102hp |
20 | Displacement(ml) | 2771ml |
21 | Fuel type | Diesel |
22 | Emission standard | Euro 2 |
23 | Gearbox | WLY 5 speed gearbox, manual |
24 | Axle load(kgs) | 1650/2845 |
25 | Color | Different color upon request |
26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
27 | Wastes van material | High quality China standard light duty steel |
28 | Operation way | PLC control way |
29 | Loading and discharging way | Rear overturning mechanism |
30 | Compacted way | Bi-directional compression |
31 | Wastes compacting density | ≥0.8tons/m3 |
32 | One working circle time for loading and discharging | ≤30s |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is +86 13329899995.
