our industry advantage

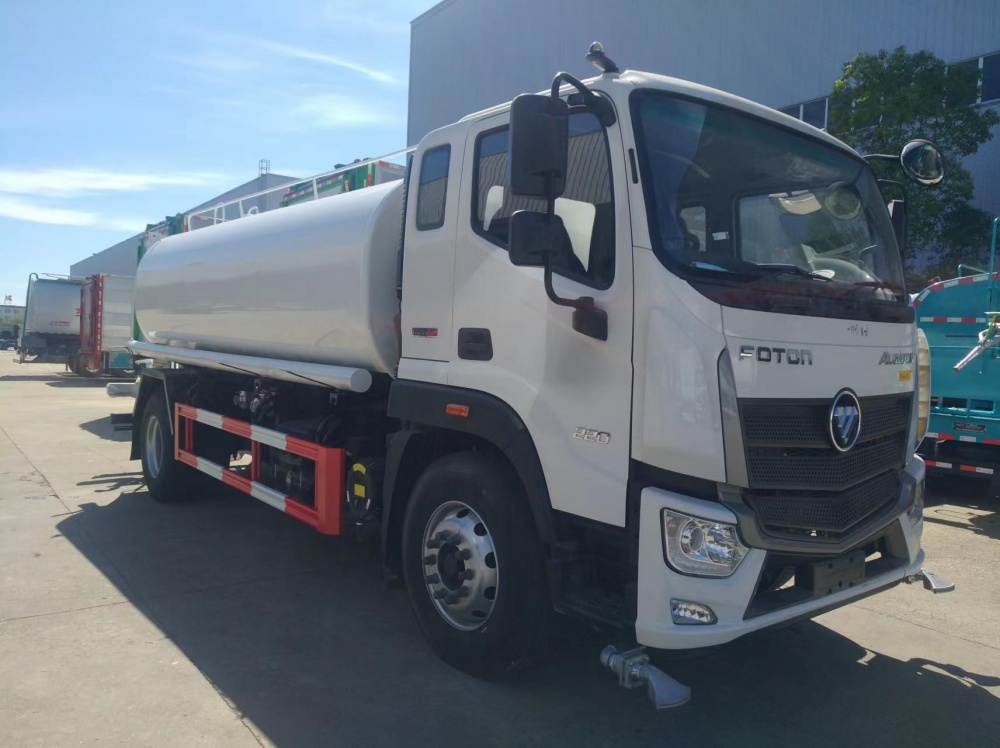

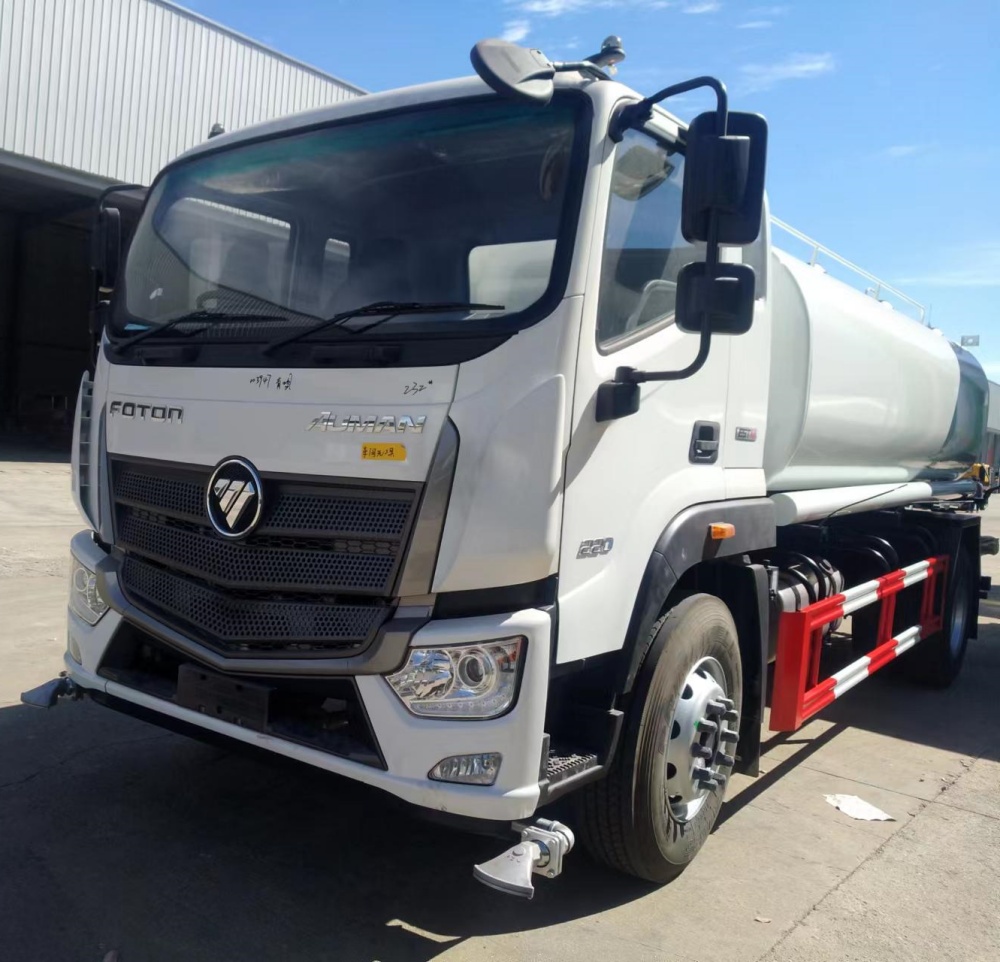

vehicle photo show
product parameters
FOTON EST-M 2200mm one row and a half driver cab
4*2 LHD, RHD optional
4800mm wheelbase,
YC6J220-33 yuchai 220hp/162KW diesel engine, Euro 3 emission standard
8JS105TA FASTGEAR 8 speed manual gearbox,
5.5T front axle/10T rear axle
11R22.5 tires*6+1 spare
200Liters oil tanker
Air cut braking+manual air conditioner+manual doors and windows+rear view mirror+MP3+power steering, etc.
The tanker volume of the FOTON EST-M water tanker truck is 15,000Liters. It adopts high quality carbon steel material. Stainless steel material for the water tanker is optional for the portable water tanker and pure drinking water tanker.
Main technical parameters of FOTON EST-M water tanker truck is as below
| Item | Unit | Parameters | |
| Truck chassis model | FOTON water tanker truck for sale (15cbm) | ||
| Fuel type | Diesel | ||
| Emission standard | Euro Ⅲ | ||
| Total mass | Kg | 18000 | |
| Rated mass | Kg | 11400 | |
| Curb mass | Kg | 6710 | |
| Overall dimension(L*W*H) | MM | 8520×2500×3250 | |
| Wheelbase | MM | 4800 | |
| Axle nos. | 2 | ||
| Tires nos. | 11R22.5 tires*6+1 spare | ||
| Engine | YC6J220-33 yuchai 220hp/162KW diesel engine | ||
| Engine rated power | 162KW/220HP | ||
| Engine displacement | 6494ML | ||
| Emission standard | Euro Ⅱ | ||
| FOTON EST-M 2200mm one row and a half driver cab 4*2 RHD, LHD optional 4800mm wheelbase, YC6J220-33 yuchai 220hp/162KW diesel engine, Euro 3 emission standard 8JS105TA FASTGEAR 8 speed manual gearbox, 5.5T front axle/10T rear axle 11R22.5 tires*6+1 spare 200Liters oil tanker Air cut braking+manual air conditioner+manual doors and windows+rear view mirror+MP3+power steering, etc. | |||
| The volume of the water tanker is 15,000Liters, adopts high quality 4mm thickness carbon steel with One roll molding, completely seamless. There are several reinforced anti-wave sheets inside the tanker to reduce the impact of water inside the tank and increase stiffness. | |||

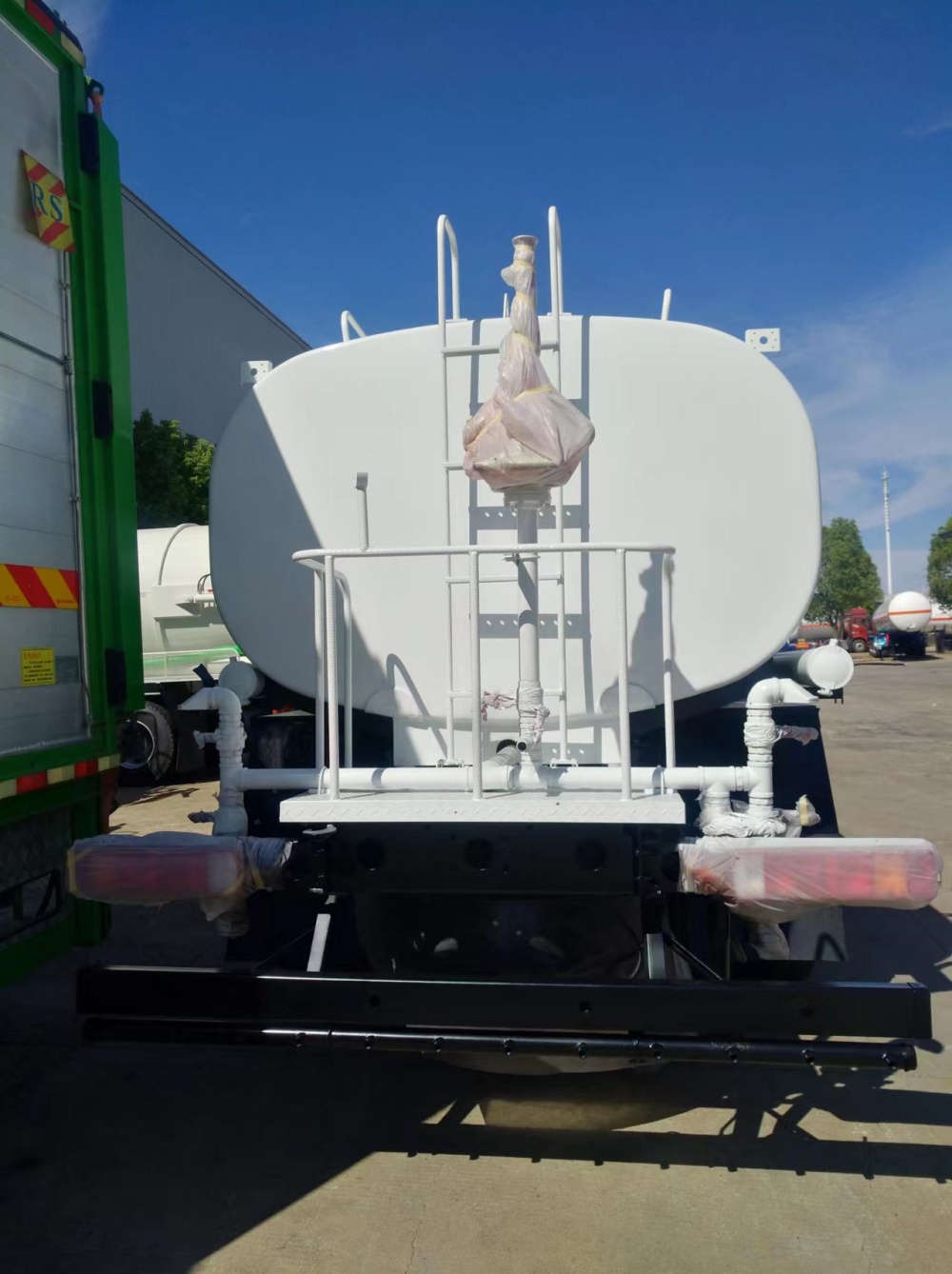

| The rear part of the truck is with working platform installed with water spraying gun of full rotation and mist cannon special for dust suppression of 180 °rotating. The mist cannon is with 8KW gasoline generator unit ; the cannon is with the fog spraying effect and the practical Horizontal remote spraying range up to 30m. The function of water spraying truck: front-flushing and rear sprinkling, side spraying, platform high-altitude spraying gun, special water pump for controlling water sprinkling system; with the function of Pumping and drainage, filter installed, fire-fighting interface inletting water by hydrant, self-discharging valve, etc. | |||
Chengli Special Automobile Co., Ltd. as the leading manufacturer and supplier of water truck in China, water sprinkling truck, water tanker, etc. in China since 2004s, it could offer 3cbm to 5cbm water truck with spray system, 700 gallon to 1000 gallon water delivery truck, 2000 gallon to 4000 gallon dongfeng cistern truck, 5000 gallon to 9000 gallon water tank, water tanker, 30000L-35000L water tank semitrailer, etc. More information, please feel free to contact with us.
The main technical advantages of CLW water trucks in China.
1. Front dash, side spraying and rear sprinkler, with fire hose coupling and gravitydischarge valve.
2.Equipped with rotatable water cannon on the rear working platform, the water can be adjusted into mist, drizzle, moderate rain, heavy rain.
3.. Equipped with ladders, as well as guard railing on the top the tank, as well as anti-slip catwalk.
4. The tank material is high quality carbon steel, aluminum and stainless steel are optional.
5. The thickness of the tank is 5mm and shape can be elliptical, rectangular.
6. This sprinkler truck can be used as pesticide spraying truck as long as install pesticide spraying device.
CLW water truck and CLW tank trucks are very famous and also have been exported to so many countries, such as Sudan, Libya, Algeria, Morocco, Ethiopia, Kenya, Tanzania, Uganda, Rwanda, Guinea, Sierra Leone, Ivory Coast, Togo, Benin, Niger, Nigeria, Cameroon, Gabon, Botswana, Democratic Republic of Congo, Zambia, Angola, Mozambique, Botswana, Namibia, Maurtius, Mongolia, Kazakhstan, Uzbekistan, Tajikistan, Kyrgystan, Turkmenistan, Afghanistan, Saudi Arabia, Philippines, Indonesia, Korea, Malaysia, Brunei, Thailand, Vietnam, Kampuchea, Laos, Burma, Mexico, Maldvies, Venezuela, Guyana, Columbia, Ecuador, Peru, Brail, Bolivia, Chile, Uruguay, etc.
