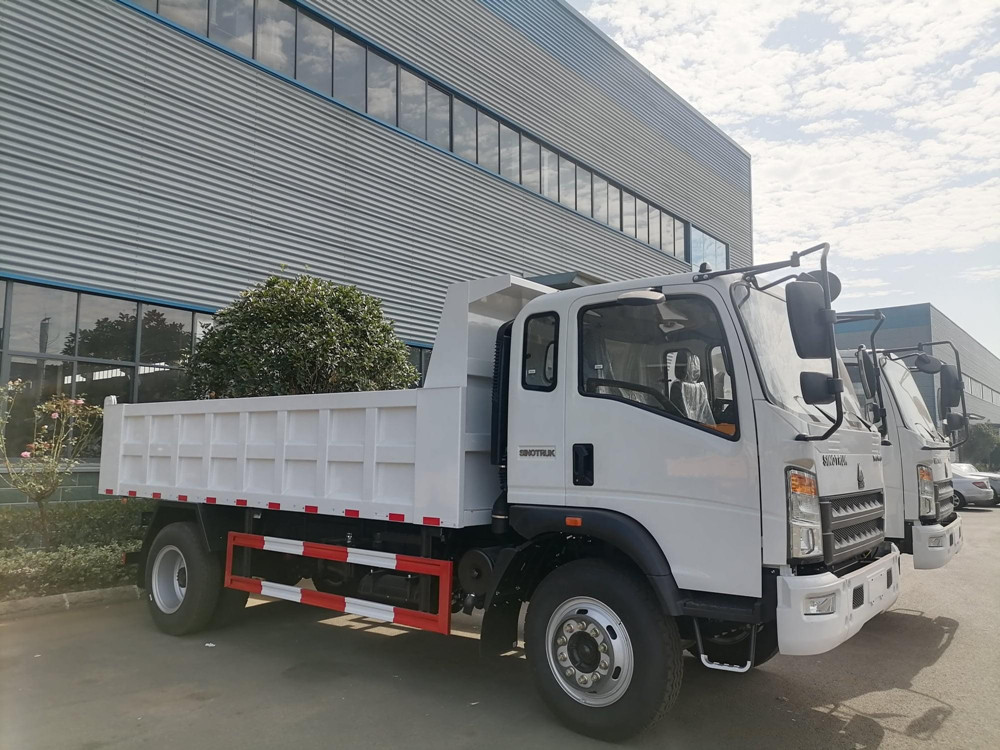

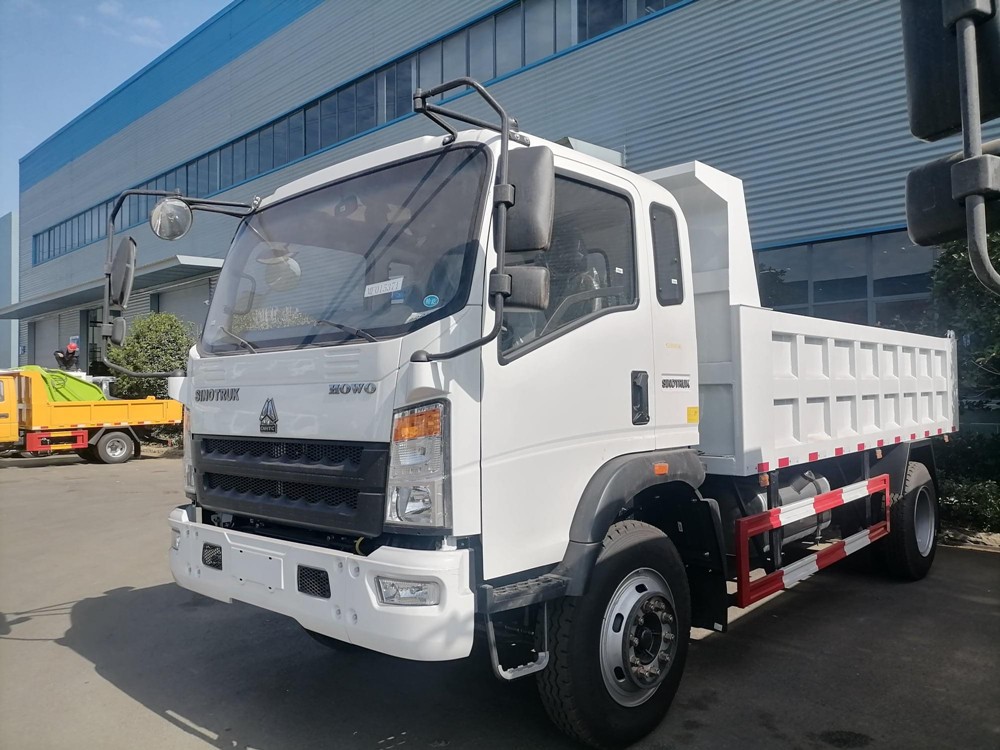

Customized SINO TRUK HOWO 4*2 LHD 5T-7T dump tipper truck for Cameroon clients.
SINO TRUK HOWO 2080mm one row and a half driver cab, 4*2 LHD(left hand drive), RHD is selective.
ISF3.8S3154 Cummins 154hp/115KW/3760ml displacement, Euro 3 emission standar diesel engine,
WLY653 China high quality Wanliyang 6 speed gearbox, 6 forward gears and 1 reverse gear, manual type.
2.7T front axle/7.2T rear axle,
8.25R16 rail tires*6+1 spare tire
24 volts electrics, original air conditioner, power steering, air braking, spring storage braking, exhaust brake, electric heating, clutch steering, etc.
The real loading capacity is about 7000kgs.
Main technical parameters of SINO TRUK HOWO 4*2 LHD dump truck is as below.
| Items | Nos. | Descriptions | Specifications and Types |
| General | 1 | Truck Name | SINO TRUK HOWO dump truck for sale |
| 2 | Drive Type | 4*2, LHD | |
| 3 | Loading capacity | 5,000kgs-7,000kgs | |
| 4 | Gross Vehicle Weight(kg) | 11975 | |
| 5 | Rated weight(kgs) | 4990 | |
| 6 | CurbWeight (kg) | 4990 | |
| 7 | Overall Dimensions L*W*H(mm) | 6800,6450×2495×2950 | |
| 8 | Dump tipper box dimension(L*W*H)(mm) | 4500,4200×2200×800 | |
| Engine | 9 | Engine Model | ISF3.8S3154 |
| 10 | Fuel Type | Diesel | |
| 11 | Power | 115kw/154HP | |
| 12 | Emission Standard | Euro III | |
| 13 | Displacement(ml) | 3760 | |
| 14 | Engine Type | 4 cylinders in line turbo-intercooling, diesel | |
| Chassis | 15 | Chassis Brand | SINO TRUK HOWO |
| 16 | Front/Rear Axle Load(KG) | 5050/6925 | |
| 17 | Tire No. | 6 | |
| 18 | Tire Specification | 8.25R16*6+1 | |
| 19 | Wheelbase (mm) | 3800 | |
| 20 | Axle No. | 2 | |
| 21 | Gear Box | WLY653 China high quality Wanliyang 6 speed gearbox, 6 forward gears and 1 reverse gear, manual type. | |
| 22 | Brake | Air brake | |
| 23 | Air Conditional | Yes, original air conditioner | |
| 24 | Front/rear suspension(mm) | 1260/1740,1260/1540 | |
| 25 | Leaf Spring No. | 9/11+8 | |
| 26 | Driver cab | SINO TRUK HOWO 2080mm one row and a half driver cab, 4*2 LHD(left hand drive) | |
| Tipping system | 27 | Box inner dimension(mm) | 4500,4200×2200×800 |
| 28 | Box material | Carbon steel,side 3mm,bottom 4mm | |
| 29 | Hydraulic cylinder no.(set) | 2 | |
| 30 | Hydraulic cylinder position | At the center of the truck bottom | |
| 31 | Discharge type | Rear tipping and rear door open |
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
