our industry advantage
vehicle photo show
product parameters

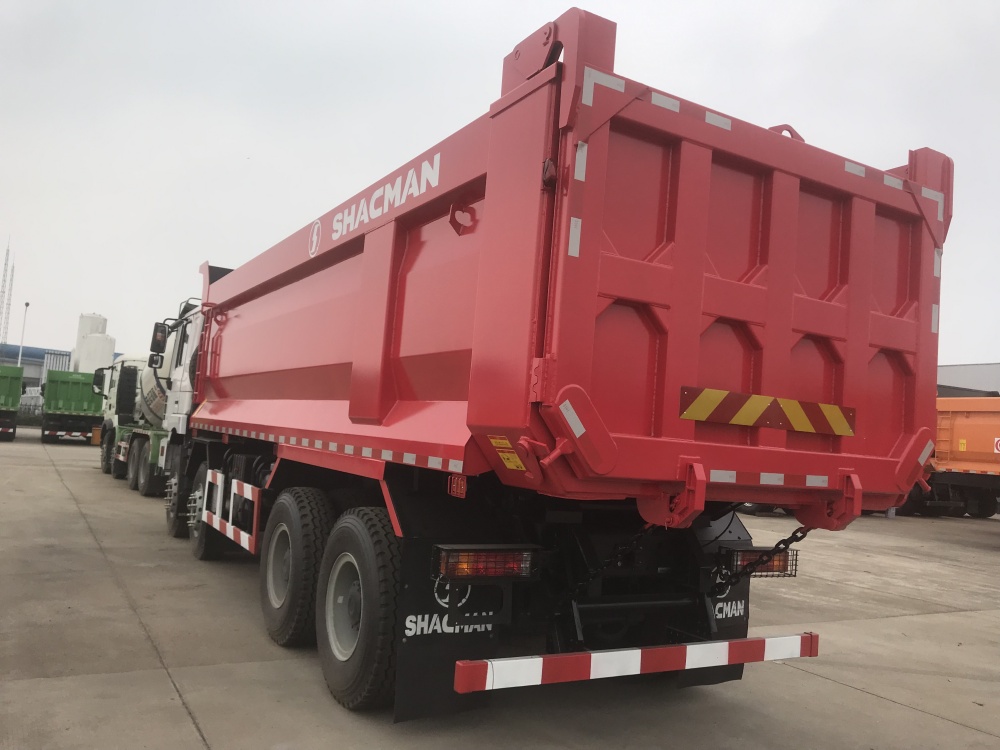

Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
HOT SALE! Shacman brand 8*4 LHD dump truck adopts Shacman F3000 8*4 LHD dump truck chassis, 1800+3575+1400mm wheelbase, Weichai 375hp Euro Ⅳ diesel engine, fastgear 12 speed gearbox, 400Liters aluninum alloy oil tank, 12.00R20 tires*12, 9.5tons front axle/16tons rear axle, etc.
And the overall dimension(L*W*H) of Shacman F3000 8*4 dump truck is 10350*2490*3540(mm), and the tipper box body dimension(L*W*H): 7600*2300*1600(mm). Front-installed single cylinder lifting and rear door tipping.
main technical parameters of hot sale Shacman F3000 dump truck as below
| SHACMAN 8*4 LHD dump truck | ||||
| Brand | Shacman F3000 heavy duty dump tipper truck for sale | Truck type | Dump truck | |
| Rated mass(kg) | 15893,15828 | Total mass(kg) | 31000 | |
| Curb mass(kg) | 14977 | Fuel type | Diesel | |
| Emission standard | Euro Ⅳ | Tyre nos. | ||
| Wheelbase(mm) | 1800+3575+1400 | Axle load(kg) | 6500/6500/18000(biaxial) | |
| Steel spring | left:14; right:13/12 | Tyre nos. | 12 | |
| Tyre specification | 12.00R20 18PR | Approach/departure angle | 28/39 | |
| Front suspension(mm) | 1525 | Rear suspension(mm) | 1850 | |
| front tread(mm) | 2036 | rear tread(mm) | 1860 | |
| Overall dimension(L*W*H)(mm) | 10350*2490*3540 | Cargo body dimension(L*W*H)(mm) | 7600*2300*1600 | |
| Max speed(km/h) | 80 | Driver cab person | SHACMAN F3000 8*4 luxurious driver cab | |
| Chassis model | SX3316DT366 | Manufacturer | Shacman | |
| Transmission | Fastgear 12 speed transmission, manual | Bridge | 9.5tons front axle/16tons rear axle | |
| Engine modelManufacturerDisplacement(ml)Power (KW)WP12.375E40Weichai power11596276Engine typeVertical 6 cylinders in line, 4 strokes inter-cooling direct injection diesel engine(Euro Ⅳ) | ||||
| Remark | 1, the overall dimension(L*W*H): 10350*2490*3540 (mm); cargo body dimension(L*W*H): 7600*2300*1600 (mm); 6mm thickness carbon steel for side sheets and 8mm thickness carbon steel for bottom sheets. 2, single front-cylinders lifting with rear door tipping as the picture show | |||

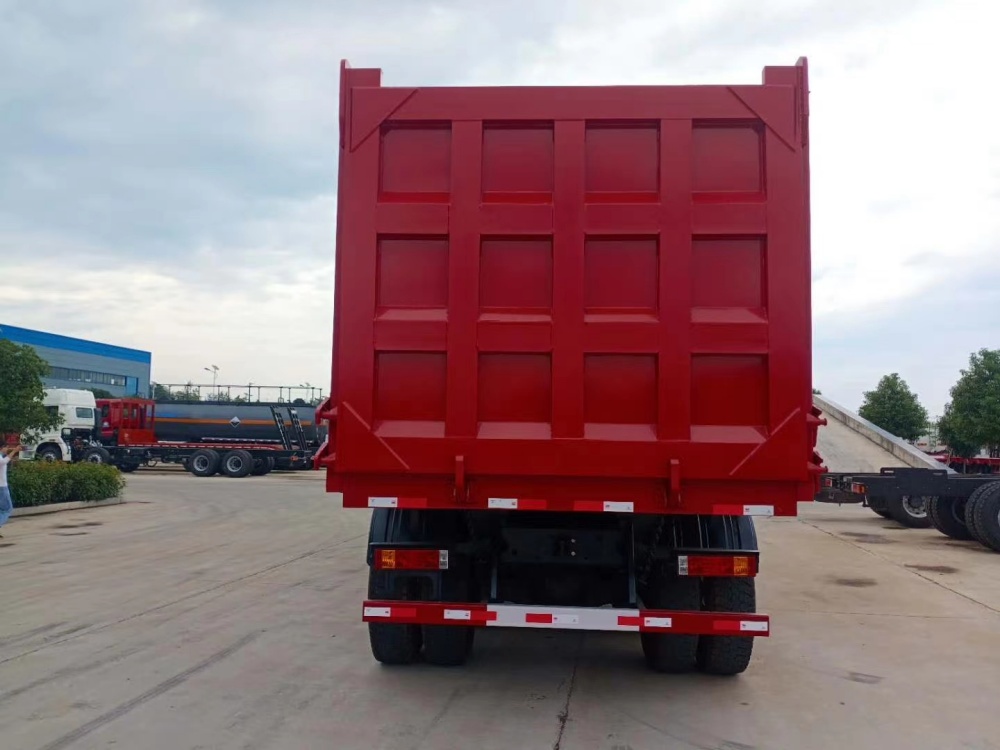

"U" shape rear door for shacman dump truck
Square shape door for SHACMAN dump truck
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. With many years' experience in supplying, Chengli Special Automobile Co., Ltd. could supply 3ton-10ton dump truck, 10ton-25ton tipper truck, 25ton-45ton dump tipper truck,etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
