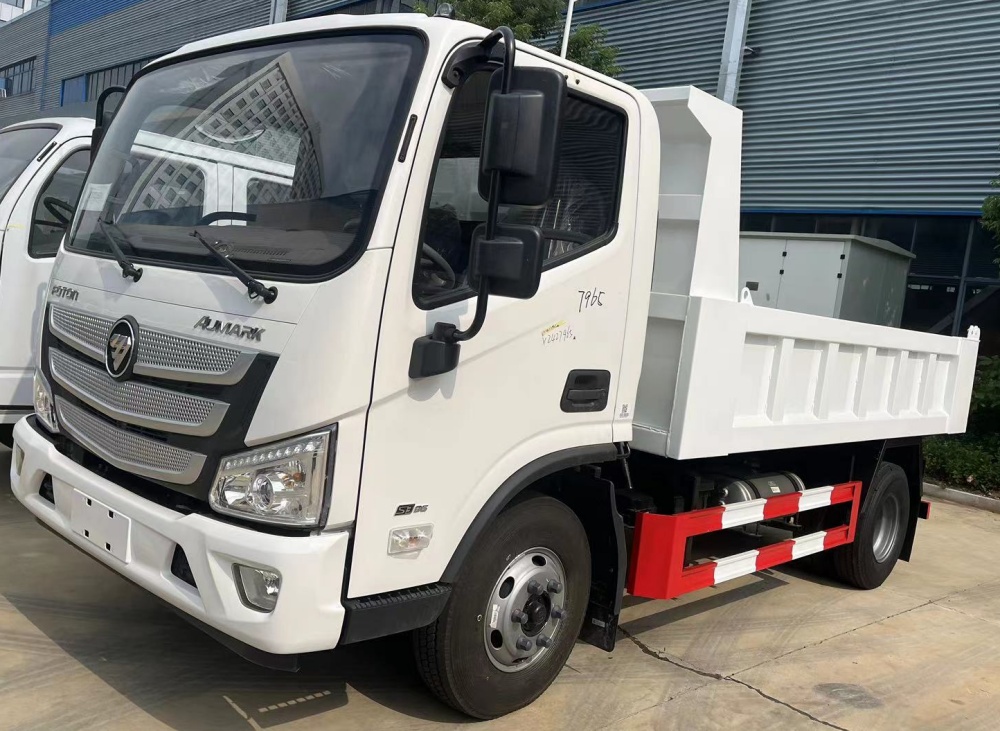

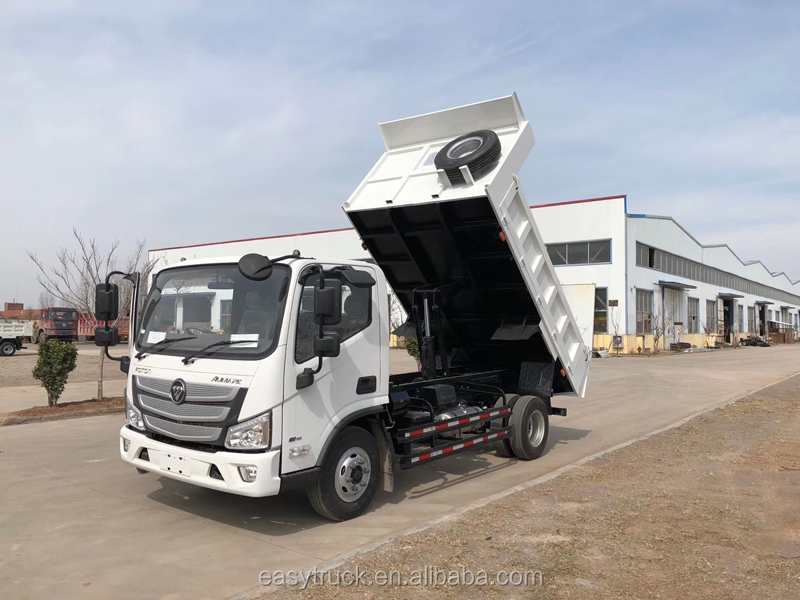

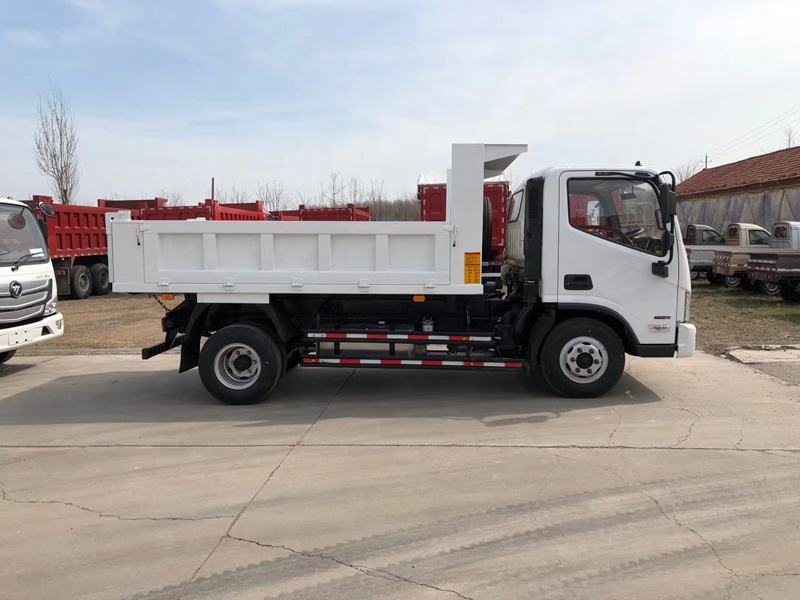

vehicle photo show
product parameters
customized FOTON AUMARK diesel engine dump tipper truck for domestic wastes collecting for sale
FOTON AUMARK dump truck for sale
FOTON AUMARK 4*2 LHD dump truck, adopts FOTON AUMARK 1995mm single row driver cab, 3360mm wheelbase, YC4D130-33 YUCHAI 130HP Euro 3 diesel engine, 6T120 6 speed manual gearbox, 2.2T front axle/5.5T rear axle, 7.50R16 rail tires, 120L oil tanker truck, manual air conditioner + manual doors and windows + rear view window, etc.
The overall dimension(L*W*H)of FOTON brand dump tipper truck is 5900×2150×2470(mm), and the dimension(L*W*H)of FOTON AUMARK dump tipper truck is 3600×2000×800(mm), 3mm thickness for side steel plate and 4mm thickness for bottom steel plate. The loading capacity is 3T-5T.
Main technical parameters of FOTON AUMARK 4*2 LHD 3-5tons DUMP TRUCK as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | FOTON AUMARK 4*2 LHD light duty dump tipper truck for sale |
| Drive Type | 4*2 LHD | |
| Total mass(kg) | 6300 | |
| Curb Weight (kg) | 3605 | |
| Loading capacity | 3T-5T | |
| Overall Dimensions L*W*H(mm) | 5900×2150×247 | |
| Engine | Engine Model | YC4D130-33 |
| Engine Brand | YUCHAI | |
| Fuel Type | Diesel | |
| Power | 96kw/130HP | |
| Emission Standard | Euro 3 | |
| Displacement(ml) | 4214 | |
| Chassis | Chassis Brand | FOTON |
| Front/Rear Axle Load(KG) | 1890/4410 | |
| Tire No. | 6 | |
| Tire Specification | 7.50R16*6 | |
| Wheelbase (mm) | 3360 | |
| Axle No. | 2 | |
| Gear Box | 6 speed gearbox | |
| Brake | Air cut brake | |
| Steering Wheel | Left Hand Drive with power-assisted, | |
| Axle(kg) | 2.2ton front axle/5.5ton rear axle | |
| Driver cab | FOTON AUMARK T series 1995mm driver cab | |
| Tipping system | Box inner dimension(mm) | 3600×1900,2000×800 |
| Box material | High quality Carbon steel, 3mm thickness for side sheet and 4mm thickness for bottom sheet. | |
| Tipping way | Double hydraulic cylinders middle installed tipping | |
| Open type | Rear door open |
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery
.
