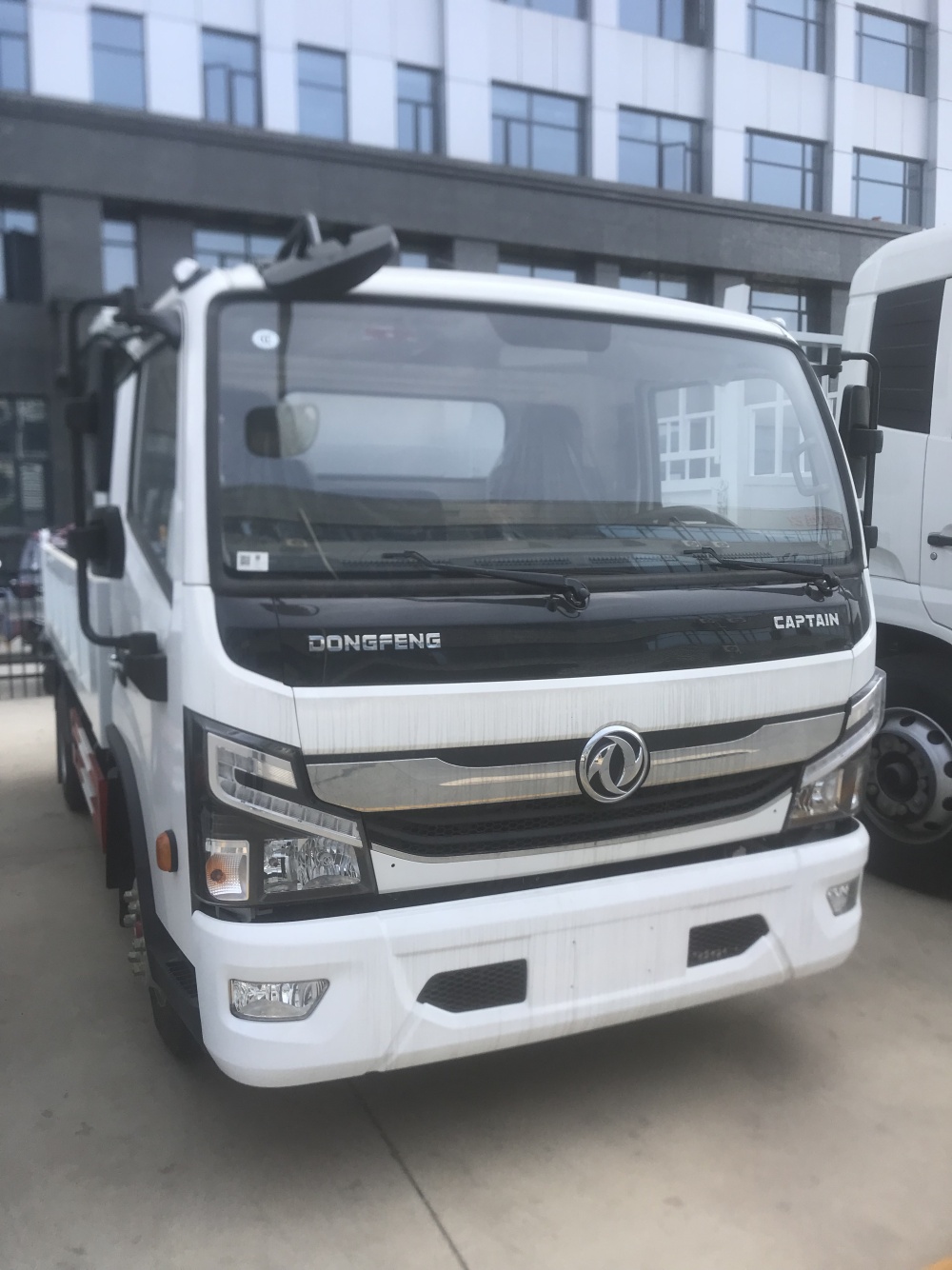

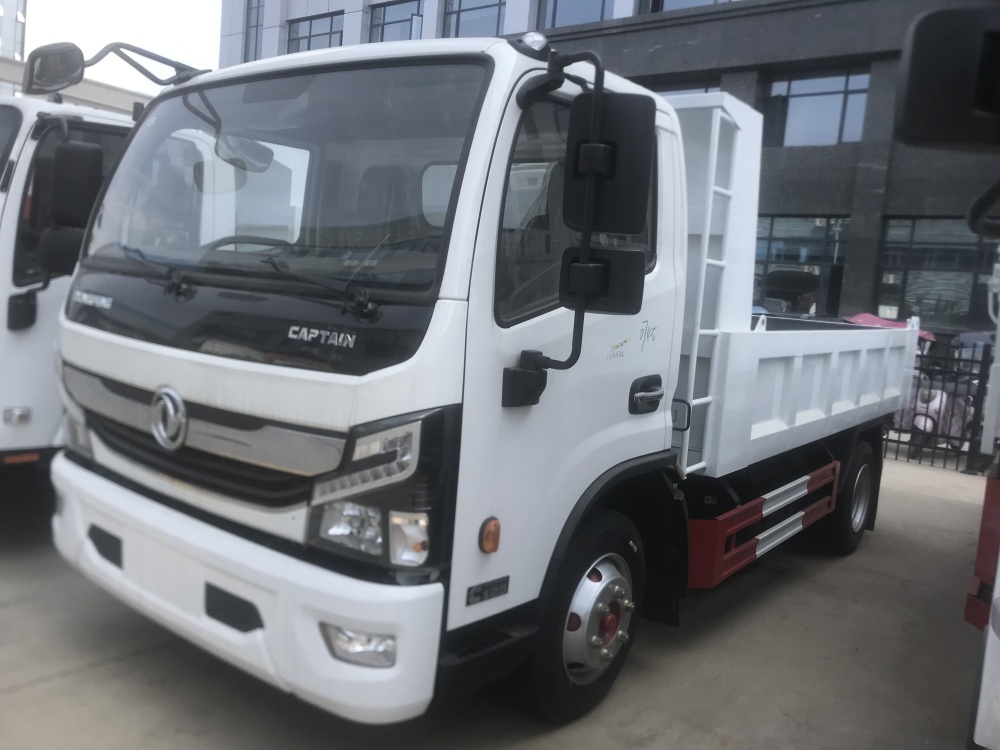

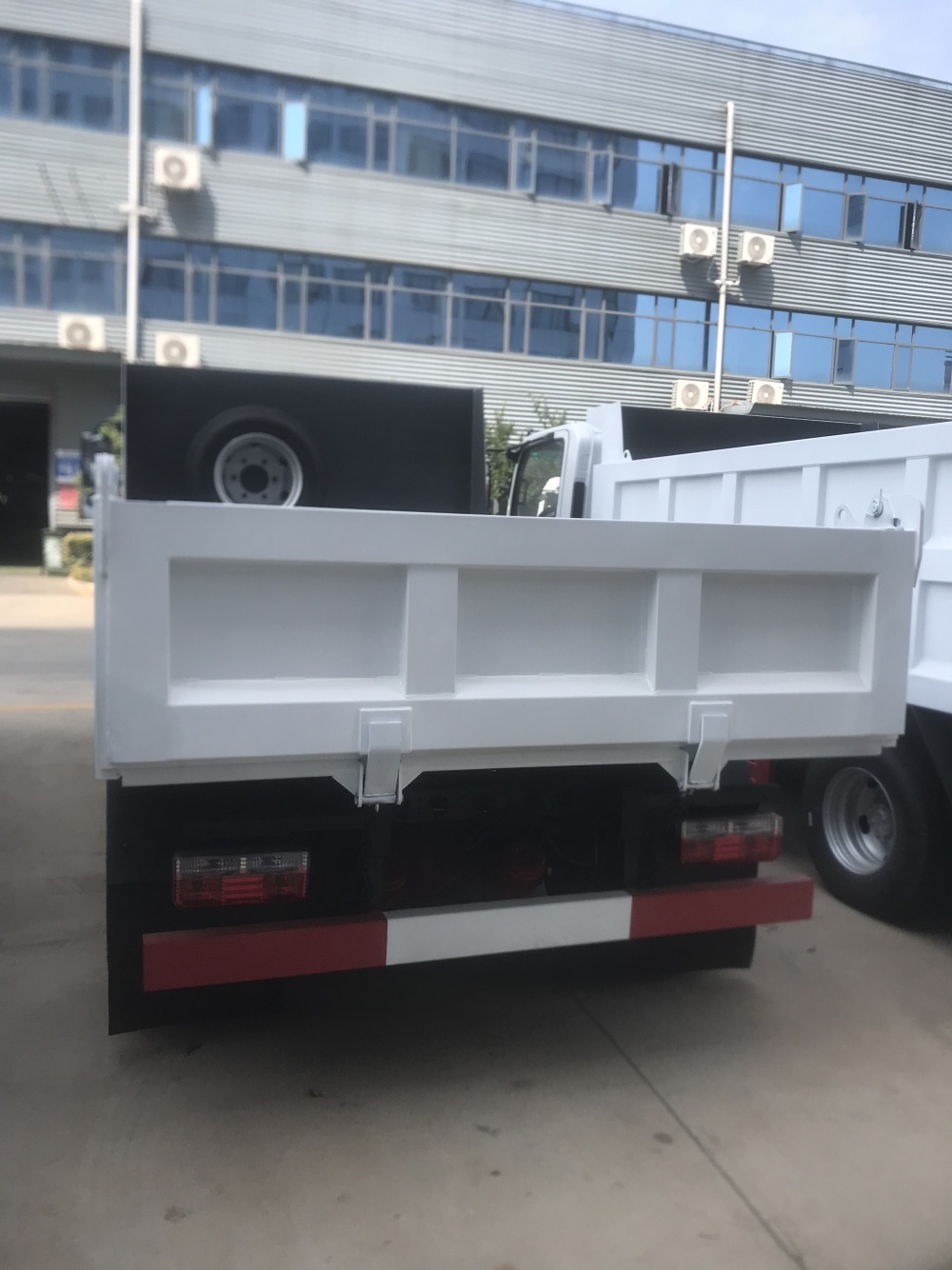

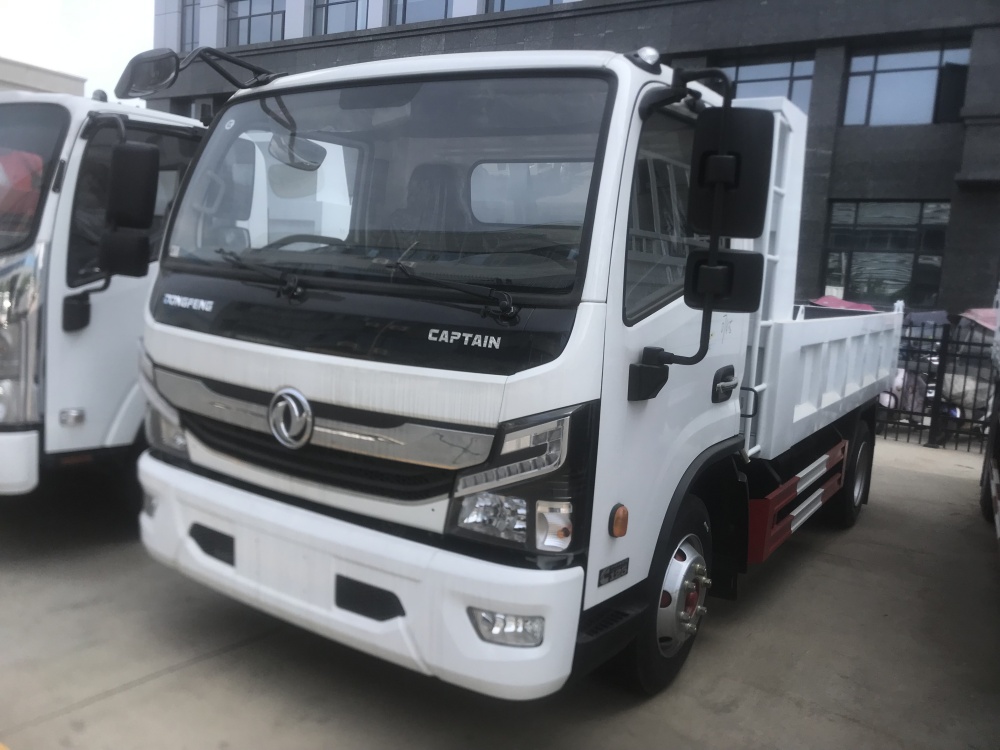

vehicle photo show
product parameters
good price Dongfeng captain 4*2 LHD dump tipper truck Cummins engine 5000kgs for sale
Truck chassis :
Dongfeng captain 2030mm single row driver cab
4*2 LHD(right hand drive)
3308mm wheelbase
B125 33 Cummins 125hp diesel engine, Euro 2 emission standard,
WLY 6+1 gears, manual type
2.2T front axle/5.5T rear axle,
7.50R16 tires*6+1 spare
Air cut braking, power steering, clutch steering, 125L oil tanker, etc.
And the overall dimension of the dongfeng mini dump truck is 5850*2000*23800(mm), cargo body dimension is 3760*1880*600 adopting high quality GB carbon steel, etc.
Box material: Carbon steel, side sheet: 3mm thickness, bottom 4mm thickness
Hydraulic cylinder position: Double cylinders at the center of the truck bottom
Tipping way: rear tipping.
The loading capacity of dongfeng mini diesel dump truck is 5000kgs.
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
